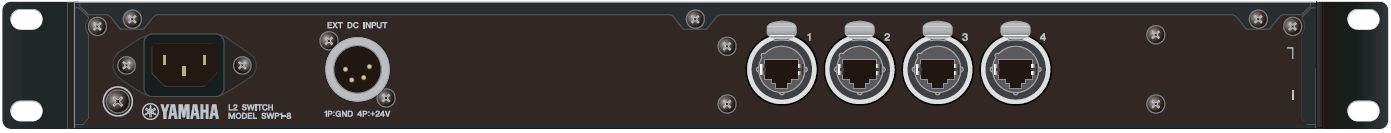

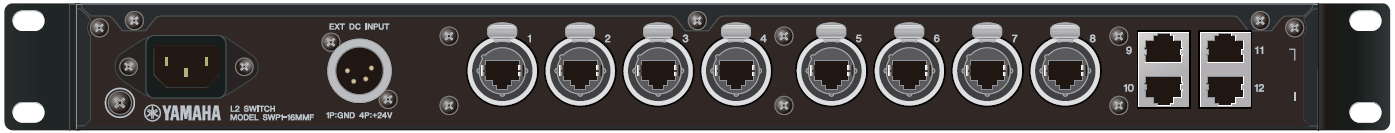

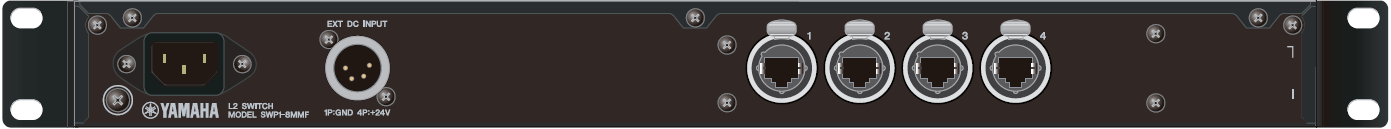

SWP1 Series Technical Data

Firmware revision: Rev.2.01.02

Thank you for your purchase of the Yamaha SWP1 series.

Please read this manual carefully, correctly installing the unit and making the proper settings before use.

Make sure to observe the warnings and cautions listed in this manual, in order to use the unit correctly and safely.

Firmware Updates

For stable operations of this L2 switch, we recommend that you apply the latest updates, which include new functionality and bug fixes.

Please confirm your system version when applying updates.

Use the "show version" command to confirm the system version.

Web GUI Function

The latest firmware for this L2 switch includes the following settings and functions:

Detailed settings
- VLAN
- MAC address table
- IGMP snooping
- QoS
- EEE
Management
- Unit settings
  - Time settings
- Access management
  - Management password
- Maintenance
  - Command execution (for details on the commands, refer to the Command Reference)
  - Firmware update
  - CONFIG file management
  - SYSLOG management
  - Reboot and initialize

Support Service Center

Yamaha Pro Audio global website:
http://www.yamahaproaudio.com/
Yamaha Downloads
http://download.yamaha.com/

Introduction

1. What you can do using the Web GUI

The web GUI lets you perform basic settings and management of the Yamaha switch (this unit). The web GUI contains the following screens for you to make settings and perform management.

Dashboard
LAN MAP
Detailed settings
Management
CONFIG
TECHINFO

2. Operating environment

Here we explain the environment that is required in order to use the web GUI.

Recommended web browser

We recommend the following web browser for use with the web GUI.

Windows

Microsoft Internet Explorer 9, 10, 11
Google Chrome 37 or later
Mozilla Firefox 32 or later

Mac

Apple Safari 7 or later

NOTE

Do not use the "Back" or "Forward" buttons of the web browser.

In some cases, the display layout of a page may become disordered. If this occurs, please access that page once again.

Memo

The web GUI uses UTF-8 character encoding.

JavaScript settings

The web GUI uses JavaScript. If your web browser is set to disable JavaScript, you might not be able to use the web GUI itself.

In advance, please enable JavaScript as described in the following procedure.

Settings for Internet Explorer 9, 10, and 11 (Windows version)

On the menu bar of Internet Explorer, choose "Tools."
* If the menu bar is not visible, press the "Alt" key of the keyboard to make it appear.
In the menu that appears, choose "Internet options."
Select the "Security" tab.
Verify that "Internet" (the globe symbol) is shown, and press the "Default level" button.
If you can't press this button, "Default level" is already selected. Proceed to step 5.
Alternatively, you can use the following method.
1. Press the "Custom level" button to open the "Security Settings - Internet Zone" dialog box.
2. Under "Scripting," choose "Enable" for each of the two items "Scripting of Java applets" and "Allow Programmatic clipboard access."
3. Click "OK." The warning "Do you want to change the settings of this zone?" is shown. Click "Yes." You will return to "Internet Options." Click the "OK" button.
You will return to "Internet Options." Click the "OK" button.

Settings for Mozilla Firefox (Windows version)

For details on JavaScript settings for Firefox, refer to the Firefox support page (external site).

Settings for Google Chrome (Windows version)

On the Google Chrome toolbar, select "Google Chrome settings."
On the menu that appears, press "Settings (S)."
Select the "Show advanced settings" link.
In the "Privacy" section, press the "Content settings" button.
Select "Allow all sites to run JavaScript (recommended)" and click the "Done" button.

For details on JavaScript settings for Google Chrome, refer to the Google Chrome support page (external site).

Settings for Safari 7 (Mac version)

On the menu, select "Safari" and choose "Preferences."
In the window that appears, choose "Security."
Add a check mark for "Allow plug-ins" and "Enable JavaScript."
Close the "Security" window.

3. User access rights

Users who log in to the web GUI are divided into two types: general users and administrative users. These are referred to as "access levels." The differences between the access levels are described below.

For general users: Can view the settings of the unit. Cannot change the settings.
For administrative users: Can view and change the settings of the unit. The user can also obtain CONFIG and TECHNIFO.

4. Note when using together with command input

Settings for this unit can be made not only via the web GUI but also from the command console screen by directly entering commands. Command input allows a broader range of settings than when using the web GUI, and also lets you make settings for functions that are not supported in the web GUI. If you use both command input and the web GUI to make settings, be aware that the commands that you input may be overwritten, or the settings may be cleared.

Memo

The command console screen contains the following items.

Management -> "Maintenance" -> "Command execution"

For details on commands, refer to "Command reference."

Login/Logout

1. Login method

Here we explain how to log in to the web GUI of this unit.

Log in as general user

Start your web browser, and access "http://(the IP address you assigned to the unit)/".
A dialog box asking you to enter a user name and password appears.
Enter "guest" as the user name, and enter the login password.

* If you log in as a general user, you will be able to view the unit's settings and operating status. You will not be able to make settings for this unit.

Log in as administrative user

Start your web browser, and access "http://(the IP address you assigned to the unit)/".
A dialog box asking you to enter a user name and password appears.
Enter "administrator" as the user name, and enter the specified password when moving to the specially privileged EXEC mode.

* If you log in as an administrative user, you will be able to perform all web GUI operations. You can not only view the unit's settings and operating status, but also make settings for the unit.

Log in again as another user

In the upper right of the screen, press the "Log out" button to log out.
Close the web browser. Then open it again and log in again.

About general users and administrative users

General users

The user name is "guest".
As the password, use the login password (the text string specified by the "password" command).
In the factory-set state, this password is unset.

Administrative users

The user name is "administrator".
As the password, use the password specified when moving to the specially privileged EXEC mode (the text string specified by the "enable password" command).
In the factory-set state, this password is unset.

About passwords

You must enter the password as single-byte characters. Double-byte characters may not be used. Uppercase and lowercase characters are distinguished.
If an incorrect user name or password is stored in your web browser, the login authentication dialog box might not appear. Close and reopen the web browser, and access this unit once again. If the browser is storing auto-login user information, delete it.
Take care not to forget the password that you assigned. If you have forgotten the password, ask the administrator who set up this unit for the correct password.

2. Logout method

To log out of the web GUI for this device, press the "Log out" button in the upper right of the GUI screen. After you log out, be sure to close the web browser.

About each screen

1. Dashboard

It shows the various system information of this device in visual form. You can check and monitor the following status.

Interface information
System information
Resource information ( CPU Utilization / MemoryUtilization )
SYSLOG

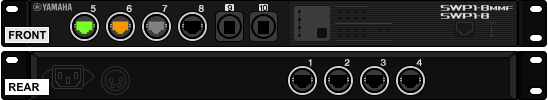

2. LAN MAP

In this page you can view, manage, and make settings for the Yamaha network devices managed by the LAN interface, and any equipment under its management.

The LAN map is shown only if this unit is operating as a controller.

3. Detailed settings

In this page you can make detailed network-related settings for this unit. The following items are provided.

VLAN
- Create VLAN
- Tag VLAN
MAC address table
IGMP snooping
QoS
EEE

4. Management

In this page you can make settings for this unit, and perform maintenance. The following items are provided.

Unit settings
Access management
Maintenance
- Command execution
- Update firmware
- CONFIG management
- SYSLOG management
- Restart and initialization
GUI display language

5. CONFIG

The results of running the "show running-config" command (a setting of this unit) can be viewed in a web browser or acquired as a text file.

Viewing CONFIG

In the "CONFIG" menu, press the "Show in browser" button. The execution result of the "show running-config" command is shown in a sub-window.
To close, press the web browser's close button.

Obtaining CONFIG as a text file

In the "CONFIG" menu, press the "Obtain as text file" button to start the download automatically.
The name of the acquired file is "config_YYYYMMDDhhmmss.txt".
YYYY ... A.D. ( 4 Digit )
MM ... Month ( 2 Digit )
DD ... Day ( 2 Digit )
hh ... Hours ( 2 Digit )
mm ... Minutes ( 2 Digit )
ss ... Seconds ( 2 Digit )

6. TECHINFO

The "show tech-support" command lets you view status information for all of this unit's functions.

In the "TECHINFO" menu, the results of running the "show tech-support" command can be viewed in a web browser or acquired as a text file.

Viewing TECHNIFO

In the "TECHINFO" menu, press the "Show in browser" button. The execution result of the "show tech-support" command is shown.
To close, press the web browser's close button.

Obtaining TECHNIFO as a text file

In the "TECHINFO" menu, press the "Obtain as text file" button to start the download automatically.
The name of the acquired file is "technifo_YYYYMMDDhhmmss.txt".
YYYY ... A.D. ( 4 Digit )
MM ... Month ( 2 Digit )
DD ... Day ( 2 Digit )
hh ... Hours ( 2 Digit )
mm ... Minutes ( 2 Digit )
ss ... Seconds ( 2 Digit )

Notes

It may take some time to obtain TECHNIFO.
This unit may undergo loading while the information is being acquired.

About the dashboard

Using the dashboard

What is the dashboard?

The page that provides visualization and monitoring of various system information and status information is called the "dashboard."

What is a gadget?

Each window shown in the dashboard is called a "gadget."
Information for each gadget is automatically updated at regular intervals.

Using the gadgets

The following gadgets can be used.

System information
Resource information
Interface information
SYSLOG

Each gadget has the following functions.

Separate the gadget screen:

A "Separate" button () is shown in the upper right of each gadget.
If you press the "Separate" button, that gadget alone is shown in a different window.
At this time, the corresponding gadget in the dashboard is indicated as "In separate window."
If a gadget is separated, the following occurs.
- The "Separate" button is no longer shown for the separated gadget.
- When you update the dashboard display, all separated gadgets return to the dashboard and are shown.
- When you close the dashboard, all separated gadgets are also closed.
Separated gadgets can also be displayed by specifying a URL directly in the browser.
Example) System information gadget: http://192.168.100.1/dashboard/system.html

Minimize gadget:

When you press the minimize icon () in the upper left of each gadget, the icon turns sideways () and the gadget display is minimized.
When you press it again, the icon returns to its original downward orientation () and the gadget returns to its original size.

Auto-update gadget:

All gadgets are automatically updated at regular intervals.
The update interval differs depending on the gadget.

About the gadgets

Interface information

This shows the link status of the ports.

The "Port" icon display lets you check the link status of the ports.
When you move the mouse cursor over the "Port" icon, detailed port information is shown.
The "Port" icon is shown as follows depending on the link status.

For a LAN port

Icon	Explanation
	Link up (port speed 1000BASE-T)
	Link up (port speed 100BASE-TX)
	Link up (port speed 10BASE-T)
	Link down
	Error occurrence (Loop detection, Shutdown by BPDU guard)

For an SFP port

Icon	Explanation
	Link up (full duplex)
	Link down
	Error occurrence (Loop detection, Shutdown by BPDU guard)

System information

The following information is displayed.

Device name:

Display the device name of the switch.

Firmware revision:

Firmware revision

Serial number:

Serial number of the device
This is also shown by a label on the rear of the chassis.

MAC address:

MAC address of the device
This is also shown by a label on the rear of the chassis.

Currently-running settings file:

The currently used CONFIG file is shown.
Depending on CONFIG switch 1, either config0 (if ON) or config1 (if OFF) is loaded when the system starts up.

System time:

Current device date and time
If the date and time are incorrect, set the date and time either in the Web GUI's "Management" -> "Device settings" page, or by using the clock set command or the ntpdate command.

Startup time:

System startup date and time

Startup reason:

Reason for startup
Start from power-off state, reload command, revision up, etc.

Resource information

This page shows the CPU usage and memory usage.

The current values and peak values of CPU usage and memory usage are shown.
The number at the right of the meter is the current usage, and the number at the left is the peak value.
When you click "Clear peak values," the previous peak values will be cleared.
- Peak values are also cleared when you restart the device.
When you move the mouse cursor to each meter, the peak value and the date and time at which the peak value was recorded are shown.

SYSLOG

This shows the most recent SYSLOG.

The most recent log is at the top.
In the select menu you can change the number of lines that are displayed (default: 10 lines).

Create VLAN

1. Summary

In this page you can create or delete VLANs, and change the IP address.

2. Top page

This is the top page for creating a VLAN.

VLAN list

Information for the defined VLANs is displayed
A maximum of 20 items can be displayed for one page. Press or or enter a numeric value to switch between pages.
You can press the sort switch to sort by each item.
Press the "New" button to access a page where you can create a new VLAN
Press the "Setting" button to access a page where you can change the settings of the selected VLAN
If you press the "Delete" button, all VLANs whose check box has a check mark will be deleted
- The following VLAN cannot be deleted
  - Default VLAN (VLAN ID = 1)
  - Private VLAN
  - VLAN used for link aggregation, an access list, an MST instance, and maintenance functions
Up to 256 VLANs can be created including the default VLAN (VLAN ID = 1).

3. VLAN settings page

In this page you can create a new VLAN or edit the settings of an already-defined VLAN.

Enter the settings, and then press the "OK" button.

If there are no mistakes in the input content of the confirmation screen, press the "OK" button.

VLAN settings

VLAN ID
- To create a new VLAN, enter the desired VLAN ID within the valid range (2-4094)
  - The smallest ID of the unregistered VLAN IDs is entered as the default value
  - If an already-registered VLAN ID is entered, it is handled as a change in settings
- When changing the settings, it is not possible to change the VLAN ID
Name
- Specify the name of the VLAN using up to 32 single-byte alphanumeric characters and symbols.
  - The default VLAN (VLAN ID = 1) cannot be renamed
  - A space and "?" cannot be used in the name of the VLAN.
Frame transmission
Select frame forwarding from the following items.
- Enable frame transmission
- Disable frame transmission
  - Frame forwarding cannot be disabled for the default VLAN (VLAN ID = 1)
IP address
Select the IP address from the following items. Only a VLAN for which frame forwarding is valid can be specified for this item.
Only one IP address can be specified for all VLAN interfaces. Note that when you make settings, the existing IP address is deleted.
- Not set
- Obtain automatically using DHCP
- Specify a fixed IP address
  - Enter the IP address and subnet mask

Tag VLAN

1. Summary

In this page you can make settings for tagged VLANs.

2. Top page

This is the top page for tagged VLANs.

Tag VLAN settings

The various settings for tagged VLANs are shown for each LAN/SFP port
- "Frame types that can be received" is displayed according to the operating mode and the VLAN settings. (This item cannot be set in the settings page.)
Press the "Setting" button to access a page where you can change the settings for the tagged VLAN of the selected port
If you press the "Specify all" button, the settings can be changed for all LAN/SFP ports whose check box contains a check mark
If you press the "Return to defaults" button, the settings will be initialized for all LAN/SFP ports whose check box contains a check mark
- Default settings for a tagged VLAN are as follows
  - Operating mode: Access
  - Assigned VLAN: Default VLAN (VLAN ID = 1)
Settings for the LAN/SFP port assigned to a private VLAN cannot be changed
Settings for the LAN/SPF port used for link aggregation cannot be changed
If the operation mode is "Trunk," both the native VLAN and the trunk VLAN are shown as assigned VLANs.

3. Tagged VLAN settings page

In this page you can make various settings related to tagged VLANs.

Enter the settings, and then press the "OK" button.

If there are no mistakes in the input content of the confirmation screen, press the "OK" button.

Tag VLAN settings

Port
- The LAN/SFP port for which settings are made is shown
Operation mode
- Access
  - The corresponding port is specified as the access (untagged) port
- Trunk
  - The corresponding port is specified as the trunk (tagged) port
Associated VLAN
The content of the settings differs depending on the operating mode.
[ For an access port ]
- AccessVLAN
  - From the list, select the access port's assigned VLAN
  - However, the following cannot be selected as access VLAN.
    Private VLAN
    VLAN for which frame forwarding is invalid
[ For a trunk port ]
- NativeVLAN
  - From the list, select the assignment-destination VLAN (native VLAN) for untagged frames received from the trunk port.
  - However, the following cannot be selected as native VLAN.
    VLAN selected as trunk VLAN
    Private VLAN
    VLAN for which frame forwarding is invalid
  - If the native VLAN is set to "none" for the uplink port or downlink port, the following functions cannot be used.
    L2MS (LAN map display)
    Spanning tree
    Link aggregation
    Unique loop detection
- Trunk VLAN
  - Specify the assignment-destination VLAN (trunk VLAN) for tagged frames received at the trunk port.
  - When you press the "Select" button, a list of the selectable VLAN IDs appears in a separate window
  - However, the following cannot be selected as trunk VLAN.
    VLAN selected as native VLAN
    Private VLAN
    VLAN for which frame forwarding is invalid
  - Place a check mark in the check box of the VLAN ID that you want to specify, and press the "Confirm" button
Ingress filter
Select the ingress filter from the following items. This item is shown only if the operating mode is "Trunk."
- Enabled ( Receive only if the VLAN ID of the incoming frame is the same as the associated VLAN )
- Disabled ( Receive all frames )

MAC address table

1. Summary

In this page you can edit the settings of the MAC address table function.

2. Top page

This is the top page for the MAC address table.

Basic settings for MAC address learning function

The current settings for the MAC address learning function are shown
When you press the "Setting" button, a page where you can change the MAC address learning function settings will appear

Static MAC address table settings

The static MAC address table is shown as a list
A maximum of 20 items can be displayed for one page. Press or or enter a numeric value to switch between pages.
You can press the sort switch to sort by each item.
If you press the "New" button, a page appears in which you can create a new static MAC address entry.
If you press the "Setting" button, a page appears in which you can edit the settings of the selected static MAC address entry.
If you press the "Delete" button, all static MAC address entries whose check box has a check mark will be deleted
Up to 512 static MAC address entries can be created from the Web GUI.

3. MAC address learning function basic settings page

In this page you can make settings for the MAC address learning function.

Enter the settings, and then press the "OK" button.

If there are no mistakes in the input content of the confirmation screen, press the "OK" button.

Basic settings for MAC address learning function

MAC address learning function
Select the MAC address learning function from the following items.
- Use MAC address learning function
- Don't use MAC address learning function
Aging time for dynamic entries
- Specify a setting in the range of 10 seconds to 634 seconds. The default value is 300 seconds

4. Static MAC address table settings page

In this page you can make static MAC address settings.

Enter the settings, and then press the "OK" button.

If there are no mistakes in the input content of the confirmation screen, press the "OK" button.

Static MAC address settings

Kind
Choose from the following items as the type of MAC address to be registered in the static MAC address table.
- Register a unicast MAC address
- Register a multicast MAC address
Destination MAC address
To input directly
- In the input area in the upper left of the frame, enter the MAC address in the format hhhh.hhhh.hhhh
To convert IP multicast group addresses to multicast MAC addresses
- Conversion is possible only when registering a multicast MAC address
- Enter the address in the input area in the lower part of the frame, and then press the "Convert" button
- If conversion is successful, the MAC address is shown in the input area in the upper left of the frame
- If conversion fails, an error message is displayed
Frame processing
From the following items, select the processing for frames sent to the destination MAC address.
- Forward frames that are being sent to the destination MAC address
- Discard frames that are being sent to the destination MAC address
  - If a multi-cast MAC address is registered, "Forward" is the only frame processing that can be specified
Destination VLAN ID
- Select the forwarding-destination VLAN ID from those that are registered in the VLAN database
Forwarding destination interface
- If you press the "Select" button, the interfaces assigned to the forwarding-destination VLAN ID are shown as a list
  Place a check mark in the check box of the interface that you want to use as the forwarding-destination interface, and press the "Confirm" button
- If registering a unicast MAC address, you can specify one interface
- If registering a multicast MAC address, you can specify multiple interfaces

IGMP snooping

1. Summary

In this page you can edit the settings of the IGMP snooping function.

2. Top page

This is the top page for IGMP snooping.

IGMP snooping function settings

IGMP snooping function settings are shown for each VLAN ID that is defined
A maximum of 20 items can be displayed for one page. Press or or enter a numeric value to switch between pages.
When you press the "Setting" button, a page where you can change the IGMP snooping function settings for the selected VLAN ID will appear
If you press the "Specify all" button, the settings can be changed for all VLAN IDs whose check box contains a check mark
If you press the "Return to defaults" button, the settings will be initialized for all VLAN IDs whose check box contains a check mark
- Default settings for the IGMP snooping function are as follows
  - IGMP snooping function: Enabled
  - IGMP version: IGMPv3
  - IGMP querier: Disabled
  - IGMP query transmission interval: 125 seconds
  - TTL check: Enabled

3. IGMP snooping function settings page

In this page you can make various settings for the IGMP snooping function.

Enter the settings, and then press the "OK" button.

If there are no mistakes in the input content of the confirmation screen, press the "OK" button.

IGMP snooping function settings

VLAN ID
- The VLAN ID for which settings are being made is shown
IGMP snooping function
Enabled ( Control transmission of IP multicast packets )
- Enables the IGMP snooping function
  By monitoring (snooping) the IGMP messages that are exchanged between the receiving equipment and the multicast router, multicast packet flooding can be controlled, limiting the network bandwidth that is used.
Disabled ( Flood IP multicast packets )
- Disables the IGMP snooping function
  Multicast packets are always forwarded to all ports in the same VLAN.
IGMP version
Select the IGMP version from the following items.
- IGMPv3
- IGMPv2
IGMP querier
Enabled ( Periodically transmit IGMP queries )
- IGMP query transmission function is enabled. The transmission interval can be specified in the range of 20 seconds to 18000 seconds
Disabled ( Don't transmit IGMP queries )
- IGMP query transmission function is disabled
TTL check
Select the TTL check from the following items.
- Enabled ( IGMP packets other than TTL=1 are discarded )
- Disabled ( IGMP packets other than TTL=1 are corrected to TTL=1 and transmitted )

QoS

1. Summary

In this page you can edit the settings of the QoS (Quality of Service) function.

You can enable/disable the QoS function, and change the trust mode.

2. Top page

This is the top page for QoS.

QoS function basic settings

The current setting is shown as to whether the QoS function is used
Press the "Setting" button to access a page where you can change the settings

QoS function settings

The trust mode setting used by the QoS function is shown for each LAN/SFP port
Press the "Setting" button to access a page where you can change the settings of the selected LAN/SFP port
If you press the "Specify all" button, the settings can be changed for all LAN/SFP ports whose check box contains a check mark
If you press the "Return to defaults" button, the settings will be initialized for all LAN/SFP ports whose check box contains a check mark
- The default trunk mode setting for all ports is "CoS"
If the settings do not use the QoS function, QoS function settings cannot be made

3. QoS function basic settings page

In this page you can specify whether the QoS function is used.

Enter the settings, and then press the "OK" button.

If there are no mistakes in the input content of the confirmation screen, press the "OK" button.

Be aware that if the settings do not use the QoS function, all QoS-related settings will be cleared.

QoS function basic settings

QoS function
Don't use QoS function
- The QoS function will be disabled. At this time, all QoS settings will be cleared.
Use QoS function
- The QoS function will be enabled. QoS-related settings and commands can be executed.

4. QoS function settings page

Set the "Trust mode" setting which means whether the transmission queue is determined based on the packet's CoS value or the DSCP value.

Enter the settings, and then press the "OK" button.

If there are no mistakes in the input content of the confirmation screen, press the "OK" button.

QoS function settings

Port
The LAN/SFP port for which settings are made is shown
Trust mode
- Use CoS value to determine transmission queue
  - The packet's CoS value and the "CoS - Transmission queue ID conversion table" are used to determine the transmission queue
  - If the received packet is an untagged packet, the default CoS value is applied
  - For details on checking and changing the default CoS value and the "CoS - Transmission queue ID conversion table," refer to the command reference
- Use DSCP value to determine transmission queue
  - The packet's DSCP value and the "DSCP - Transmission queue ID conversion table" are used to determine the transmission queue
  - For details on checking and changing the "DSCP - Transmission queue ID conversion table," refer to the command reference
- If a policy map is applied to the LAN/SFP port, you cannot change the trust mode setting.

EEE

1. Summary

In this page you can make and edit the settings for the power-conserving Ethernet (EEE: Energy Efficient Ethernet) function.

2. Top page

This is the top page for EEE.

EEE function settings

The current EEE settings are shown for each LAN port.
Press the "Setting" button to access a page where you can change the settings of the selected LAN port
If you press the "Specify all" button, the settings can be changed for all LAN ports whose check box contains a check mark
If you press the "Return to defaults" button, the settings will be initialized for all LAN ports whose check box contains a check mark
- The default setting for the EEE function is "Disabled" for all LAN ports.
EEE settings cannot be made for SFP ports.

3. EEE function settings page

In this page you can specify whether the EEE function is used.

Enter the settings, and then press the "OK" button.

If there are no mistakes in the input content of the confirmation screen, press the "OK" button.

EEE function settings

Port
- The LAN port for which settings are made is shown
EEE function
Select the EEE function from the following items.
- Use ( Use power-conservation Ethernet function )
- Don't use ( Don't use power-conservation Ethernet function )

Unit settings

1. Summary

You can make settings related to date and time of the unit.

2. Top page

This is the top page for this unit's settings. The current date and time, time zone setting, and date and time synchronization setting are shown.

Time zone setting

The time zone setting is shown.

Press the "Setting" button to access a page where you can change the settings.

Current date and time setting

The current date and time specified for this unit are shown.

Press the "Setting" button to access a page where you can change the settings.

Date and time synchronization setting

The NTP server that is queried at the specified time and date synchronization interval is shown.

Press the "Next" button to access a page where you can synchronize the time.
Press the "Setting" button to access a page where you can change the settings.

3. Time zone setting page

In this page you can set the time zone.

When you have entered the settings, press the "OK" button. If there are no mistakes in the input content confirmation screen, press the "OK" button.

Time zone setting

Time zone
- Select the time zone from the following.
  - UTC
  - JST
  - Difference from GMT ( -12:00 to +13:00 )

4. Current date and time setting page

In this page you can set the current date and time.

When you have entered the settings, press the "OK" button. If there are no mistakes in the input content confirmation screen, press the "OK" button.

Current date and time setting

Current time
- In the "year/month/date" box, enter the date in YYYY/MM/DD format.
  - When you move the focus to the box, a calender is displayed. You can select a date to enter that date in the box.
  - You can also enter this manually.
- In the "hours:minutes:seconds" box, enter the time in hh:mm:ss format.
  - When you move the focus to the box, a calender is displayed. You can select a date to enter that date in the box.
  - You can also enter this manually.

5. Date and time synchronization page

In this page you can synchronize the time with an NTP server.

When you press the "Execute" button, the time is synchronized with the NTP server that is specified as the query destination.

6. Date and time synchronization setting page

In this page you can make settings for synchronization with an NTP server.

When you have entered the settings, press the "OK" button. If there are no mistakes in the input content confirmation screen, press the "OK" button.

Date and time synchronization setting

Date and time synchronization interval
- Specifies the interval at which time is synchronized with the NTP server.
- You can choose from the following as the synchronization interval.
  - Unused
  - 1 hour - 24 hours
- The default value is 1 hour
NTP server to query
- Enter the host name or IP address of the NTP server that will perform synchronization.
- The default value is ntp.nict.jp.

Access management

1. Summary

You can specify the password for the administrative user.

2. Top page

This is the top page for access management. The presence or absence of an administrative password setting is shown.

Administrator password

The presence or absence of a current administrative password setting is shown.

The password itself is not shown.
Press the "Setting" button to access a page where you can change the settings.

3. Administrator password setting page

In this page you can specify the password for the administrative user.

When you have entered the settings, press the "OK" button. If there are no mistakes in the input content confirmation screen, press the "OK" button.

Administrator password

New password
- Enter the new administrative password that you want to specify.
- A password that is already specified is shown as "●" characters.
- When you enter a password, the strength of the password is shown for your information.
- The strength of the password is indicated in four levels from "weak" to "strongest" based on the following conditions.
  - Is there a sufficient number of characters
  - Are uppercase and lowercase characters included
  - Are numerals and symbols included
- The following passwords can not be specified
  - Passwords that contain any of the following: "|", ">", "?"
  - Passwords whose first character is not an alphanumeric character
  - Passwords consisting of the single character "8"
  - Passwords whose first two characters are "8" (the second character is a space)
New password (confirm)
- To confirm the password that you entered in the "New password" field, enter the password once again.
Encrypt password
- Select whether the password is stored in encrypted form.
- If you save without encryption, the password itself will be visible when you view CONFIG.
- It is not possible to change only the presence or absence of encryption for an already-specified password

Command execution

1. Summary

In this page you can perform operations related to command execution.

2. Command execution page

In this page you can execute commands and acquire the results of command execution. After entering the command in the command entry field, press the "Execute" button to execute the command. If you press the "Clear" button, the contents of the command entry field are cleared.

Command execution

Command input
- In the command entry field, enter the setting in console command format (abbreviated input is not accepted).
- You can enter multiple commands together by separating them with line-returns.
- Execution always starts with the specially-privileged EXEC mode (enable). Enter the mode change command each time.
- For details on commands to enter, refer to the command reference and to the information provided on the SWP1 product information page.
- The following commands cannot be entered.
  - cold start
  - firmware-update execute
  - ping
  - quit
  - reload
  - show history
  - show tech-support
  - telnet
  - disable ( When in special privilege EXEC mode )
  - exit ( When in special privilege EXEC mode )
  - logout ( When in special privilege EXEC mode )
Command execution result
- Displays the command execution result.
  - Success ... Shown if the command executed successfully.
  - Error ... Shown if the command you entered could not be executed.
  - Prohibited ... Shown if a prohibited command was entered.
Command execution log
- The console log is output as the command execution record.
- The command execution log will not necessarily always show the identical result as when the console setting operation was executed.
- By pressing the "Obtain as text file" button, you can acquire the contents of the command execution log as a text file.
- The name of the acquired file is "command_YYYYMMDDhhmmss.txt".
  YYYY ... A.D. ( 4 Digit )
  MM ... Month ( 2 Digit )
  DD ... Day ( 2 Digit )
  hh ... Hours ( 2 Digit )
  mm ... Minutes ( 2 Digit )
  ss ... Seconds ( 2 Digit )

Update firmware

1. Summary

In this page you can perform operations related to firmware update.

2. Top page

This is the top page for firmware update.

You can start the procedure for updating the firmware via the network. Various settings for updating the firmware via the network are displayed.

Current firmware revision

The currently-used firmware revision is shown.

Update firmware from PC

When you press the "Next" button, the procedure for updating the firmware from the PC will be started.

Update firmware via network

When you press the "Next" button, the procedure for updating the firmware via the network will be started.
Various settings for updating the firmware via the network are displayed.
Press the "Setting" button to access a page where you can change the settings.

3. Update firmware from PC page

In this page you can specify the firmware file placed on the PC from which you are accessing the web GUI, and perform the firmware update.

In "Select file," select the firmware file that you want to use for the update, and press the "OK" button. If there are no mistakes in the confirmation screen, press the "Execute" button.

Note that the unit will automatically restart when the firmware has been updated successfully.

Update firmware from PC

Specify update file
- Selects the firmware file used for the update

4. Update firmware via network page

In this page you can download a firmware file from a web server, and perform the firmware update. This function lets you easily perform the entire process of checking for the latest firmware, downloading it, and updating the firmware.

When you open the page, the revision of the firmware file on the web server is automatically checked.

If the URL of the download source is a Yamaha website, and an updatable firmware revision is found, pressing the "Execute" button will display the software license agreement. Carefully read the software license agreement, and press either the "Agree" button or "Disagree" button. Only if you press the "Agree" button, the firmware file will start being downloaded from the web server.

Note that the unit will automatically restart when the firmware has been updated successfully.

Update firmware via network

Current firmware revision
- The revision of the currently-used firmware file is shown.
Firmware revision available for update
- Updatable revisions of the firmware files on the web server are shown.

5. Firmware update basic settings page

In this page you can make various settings for updating the firmware via the network.

When you have entered the settings, press the "OK" button. If there are no mistakes in the input content confirmation screen, press the "OK" button.

Firmware update basic settings

Download source URL
- This is the setting of the URL at which the firmware is located.
Permit downward revision
- This setting permits or forbids rewriting to an older version of firmware.
Timeout
- This setting specifies the timeout time during the process of updating the firmware via the network.

CONFIG management

1. Summary

In this page you can import and export CONFIG files.

This unit operates in accordance with its CONFIG file (settings data). A CONFIG file consists of a combination of multiple commands.

2. Top page

This is the top page for CONFIG file management.

Here you can start the process of importing a CONFIG file from the PC, or the process of exporting a CONFIG file to the PC.

Import CONFIG file

Press the "Next" button to begin the process of importing a CONFIG file from the PC.

Export CONFIG file

Press the "Next" button to begin the process of exporting a CONFIG file to the PC.

3. Import CONFIG file page

In this page, a CONFIG file from the PC can be copied to internal non-volatile memory, updating the CONFIG file.

When you have entered the settings, press the "OK" button. If there are no mistakes in the input content confirmation screen, press the "Execute" button.

When import has completed successfully, the unit restarts automatically.

Import CONFIG file

Currently-used CONFIG file
- The currently used CONFIG file is shown.
File to import
- Press the "Select a file" button to display the file selection dialog box.

4. Export CONFIG file page

In this page you can copy a CONFIG file from internal non-volatile memory to the PC.

To export the CONFIG file, press the "Execute" button.

Export CONFIG file

Currently-used CONFIG file
- The currently used CONFIG file is shown.

SYSLOG management

1. Summary

In this page you can view and edit the settings of the SYSLOG function.

The operation history of this device is output as the SYSLOG (log data) according to the settings of the SYSLOG function. In addition to recording the SYSLOG inside this device, you can also specify a destination address for output to an external host.

2. Top page

This is the top page for SYSLOG management.

The current settings for the SYSLOG function are shown.

SYSLOG settings

The type of SYSLOG that is output and the SYSLOG transmission destination address are shown.
Press the "Setting" button to access a page where you can change the settings.

3. SYSLOG settings page

In this page you can make settings for the SYSLOG function.

When you have entered the settings, press the "OK" button. If there are no mistakes in the input content confirmation screen, press the "OK" button.

For details on the various SYSLOG types, refer to the command reference.

SYSLOG settings

SYSLOG type
- DEBUG
  - This setting specifies whether DEBUG type SYSLOG is output.
- INFO
  - This setting specifies whether INFO type SYSLOG is output.
- ERROR
  - This setting specifies whether ERROR type SYSLOG is output.
SYSLOG transmission destination address
- This is the transmission destination address setting when outputting the SYSLOG to an external host.
- You can specify only one transmission destination address.
- If no transmission destination address is specified, the SYSLOG is recorded only inside the switch.

Reset and initialization

1. Summary

In this page you can restart this unit and return it to the factory-set state.

2. Top page

This is the top page for restart and initialization.

Here you can start the process of restarting this unit or returning it to the factory-set state.

Restart

When you press the "Next" button, the process of restarting this unit will begin.

Initialization

When you press the "Next" button, the process of returning this unit to the factory-set state will begin.

3. Restart page

In this page you can restart this unit.

When you press the "Execute" button, the unit will restart.

Note that when you execute restart, the settings that were being changed will not be saved. In addition, the GUI cannot be accessed until restart has completed.

4. Initialization page

In this page you can return this unit to its factory-set state.

After you have entered the administrator password, press the "OK" button. Confirm the content to be executed, and if you want to return this unit to its factory-set state, press the "Execute" button.

Note that when the unit is returned to its factory-set state, all settings will return to their default values, including the address for accessing the GUI.

Initialization

Administrator password
- To return the unit to its factory-set state, enter the administrator password.

GUI display language

1. Summary

Here you can specify the display language.

2. Top page

This is the top page for the web GUI display language. The contents of the display language settings are shown.

Display language setting

The display language settings are shown.

Press the "Setting" button to access a page where you can change the settings.

3. Web GUI display language page

In this page you can make settings for the display language.

When input is complete, check the input, and if it is correct, press the "OK" button.

Display language setting

Language
- Select the display language from the following.
  - 日本語 ( Japanese )
  - English ( English )

YYYY	...	A.D. ( 4 Digit )
MM	...	Month ( 2 Digit )
DD	...	Day ( 2 Digit )
hh	...	Hours ( 2 Digit )
mm	...	Minutes ( 2 Digit )
ss	...	Seconds ( 2 Digit )
