Maintenance and operation functions

• User account management
• LED control
• Boot data management
• Viewing unit information
• Config management
• Remote access control
• Time management
• SNMP
• RMON
• SYSLOG
• Firmware update
• L2MS control
• Mail notification
• LLDP
• Terminal monitoring
• Performance observation
• Dante optimization setting function
• List of preset settings

User account management

1 Function Overview

This product provides the functions shown below for managing user accounts.

• Functions for setting user information
• Functions for user authentication by user name and password

2 Definition of Terms Used

Unnamed user

A user who does not have a user name.

If an unnamed user logs into the console or Web GUI, they can log in without specifying a user name.

Guest privileges

Users that have guest privileges can use the Web GUI to view the device settings and status.

Administrator privileges

Users that have administrator privileges can perform the following actions in the Web GUI.

• View and modify the settings
• Restart the device
• Initialize the device
• Update the firmware

3 Function Details

3.1 User information settings

Use the username command to specify user information.

Specify the following as user information.

• User name
• Password
• Privileges

A user to whom privileges are granted has the following differences compared to a normal user.

• Password entry is not required when executing the enable command from the console.
• When logging into the Web GUI, the user can log on with administrator privileges.

Use the password command to specify the password for unnamed users.

In the factory-set state, this is unset.

You can use the password-encryption command to encrypt the specified password.

If you want to encrypt the password, specify password-encryption enable.

Once a password has been encrypted, it will not be returned to an unencrypted text string even if you specify password-encryption disable.

Encryption applies to the passwords specified by the following commands.

• password command
• enable password command
• username command

3.2 User authentication

3.2.1 When logging in to the console

When you connect to the console, the following login prompt appears.

Username:
Password:

Enter a specified user name and password to log in.

If you want to log in as an unnamed user, press the Enter key at the user name prompt to omit it, and then enter the password that was specified by the password command.

3.2.2 When logging in to the Web GUI

When you access the Web GUI, the following login form appears.

Enter a specified user name and password to log in.

If you want to log in as an unnamed user, leave the user name entry field blank, and in the password entry field, enter the password specified by the password command or the enable password command.

In this case if you enter the password specified by the password command, you will log in with Guest privileges.

If you enter the password specified by the enable password command, you will log in with Administrator privileges.

If the password that was entered matches both the password specified by the password command and by the enable password command, you will log in with Administrator privileges.

3.3 What to do if you forget your login password

3.3.1 Login with special password

You can access this product from the serial console and log in by entering the special password w,lXlma during user authentication.

If you log in using the special password, the logged-in user is automatically given administrator privileges.

Username:                                ... (Press the Enter key at the user name prompt to omit it)
Password:                                ... (Enter the special password)

SWP2 Rev.2.03.01 (Tue Mar 13 08:41:39 2018)
  Copyright (c) 2018 Yamaha Corporation. All Rights Reserved.

SWP2#                                    ... (The user can log on with administrator privileges)

Also, if you log in using the special password, you can use the special password to perform initialization when you execute the cold start command.

3.3.2 Permission setting of special password

In order to log in using the special password, it is necessary to enable login with the special password using the force-password command.

However, force-password enable is set at the factory, so you can log in with the special password unless you change the setting.

Therefore, in an environment where an unspecified number of people can access the serial console, it is recommended that login with the special password is disabled.

4 Related Commands

The related commands are shown below.

For details, refer to the Command Reference.

List of related commands

5 Examples of Command Execution

5.1 Specifying the password for unnamed users

Specify yamaha as the login password for unnamed users.

Specify yamaha_admin as the administrative password.

Yamaha>enable
Yamaha#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Yamaha(config)#password yamaha
Yamaha(config)#enable password yamaha_admin

5.2 Adding a user

Grant privilege options to the user yamaha, and assign the password yamaha_pass.

Yamaha#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Yamaha(config)#username yamaha privilege on password yamaha_pass
Yamaha(config)#exit
Yamaha#exit

Username: yamaha
Password:

SWP2 Rev.2.03.01 (Tue Mar 13 08:41:39 2018)
  Copyright (c) 2018 Yamaha Corporation. All Rights Reserved.

Yamaha>enable
Yamaha#

6 Points of Caution

None

7 Related Documentation

• Remote access control

LED control

1 Function Overview

This L2 switch uses LEDs to indicate the status of the LAN/SFP+ ports.

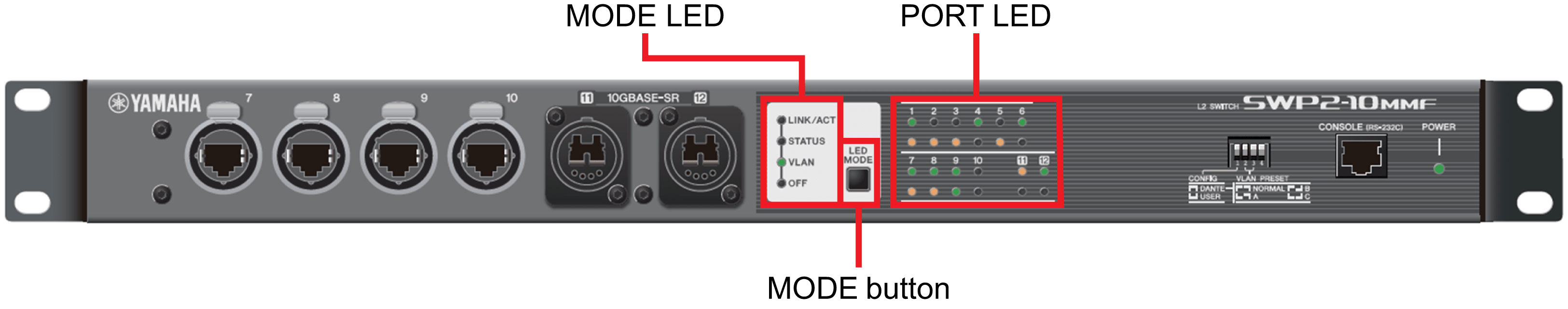

The location of each LED and button is shown below.

2 Definition of Terms Used

Explanation of port LED illumination

The port LED illumination used in subsequent explanations is described below.

Port LED illumination

3 Function Details

3.1 Port LEDs

3.1.1 Switching between display modes

This product provides the four display modes shown below.

Mode name	MODE LED light status	Function overview
LINK/ACT mode		The upper LED of the LAN/SFP+ port shows the link status, and the lower LED shows the connection speed.
STATUS mode		The error status of the LAN/SFP+ port is shown.
VLAN mode		The VLAN ID set for the LAN/SFP+ port is shown.
OFF mode		The LAN/SFP+ port LEDs are unlit in order to decrease the power consumption.

Use the MODE button to switch between display modes.

Display mode switching follows the flow shown below.

Display mode switching (when the default LED mode is LINK/ACT)

The display mode after system boot and the display mode after error resolve depend on the default LED mode setting.

When an error is detected by the following functions, the port LED display automatically switches to STATUS mode.

• Loop detection
• SFP optical reception level monitoring

When an error has been detected, the unit remains in STATUS mode even if the MODE switch is pressed. (The switch will not function until all errors have been resolved.)

In this state, if you long-press the MODE button for three seconds, all error states are reset, and the unit switches to the display that is specified by the default LED mode setting.

(For details, refer to LED display in STATUS mode.)

3.1.2 LED display in LINK/ACT mode

The port LEDs will display as shown below in LINK/ACT mode.

• LAN/SFP+ port link status
• LAN port connection speed

The LED display for the link status is shown below.

LAN/SFP+ port link status LED display

Linking down	Linking up	Forwarding data
(unlit)	(lit green)	(flashing green)

The LED display for the connection speed is shown below.

LAN/SFP+ port connection speed LED display

10BASE-T	100BASE-T	1000BASE-T	10000BASE-T
(unlit)	(lit orange)	(lit green)	(none)
(none)	(none)	(none)	(lit green)

3.1.3 LED display in STATUS mode

In STATUS mode, the port LEDs indicate error statuses generated by the following functions of this product.

• Loop detection
• SFP optical reception level monitoring

Port LED display when an error occurs

	Normal state	Loop detected or SFP optical reception level fault
LAN port	(unlit)	(upper flashes orange)
SFP+ port	(unlit)	(upper flashes orange)

When this product detects an error, it forcibly switches to STATUS mode.

An error is determined by each function in the following cases.

• Loop detection
  • A loop was detected and the port was blocked.
  • A loop was detected and the port was shut down.
• SFP optical reception level monitoring
  • The SFP+ optical reception level fell below the normal range.
  • The SFP+ optical reception level exceeded the normal range.

To determine the cause of the error, you can use the show error port-led command.

In STATUS mode when an error has occurred, the LEDs will automatically switch to the default LED mode in the following states.

• All of the following errors were resolved.
  • Blocked status due to loop detection was resolved.
  • Shutdown status due to loop detection was resolved.
    • The monitoring time has elapsed following shutdown due to loop detection.
    • In a shutdown state due to loop detection, the unit linked up after the no shutdown command was executed.
  • SFP+ optical reception level recovered.
• The MODE switch was long-pressed (for three seconds), forcibly resetting (clearing) the error status.

3.1.4 LED display in VLAN mode

In VLAN mode, the port LEDs display the VLAN association status.

The port LED light status is shown below.

Port LED light status in VLAN mode

VLAN association status for LAN/SFP+ port	Port LED light status
Associated with one VLAN	Expressed as one of six specific light patterns, starting with the newest of the VLAN IDs. All VLAN IDs from #7 onwards will be indicated using the same light pattern.
Is not associated with any VLAN	(OFF)
Associated with multiple VLANs	(Both upper and lower port LEDs are lit orange.)

• The default VLAN (VLAN #1) is not shown. It is not counted as an associated VLAN.
• The VLAN association status does not depend on the link status of each LAN/SFP+ port. Ports in linkdown status will be shown.
• Only VLAN IDs for which associated LAN/SFP+ ports exist are shown.

  If only the VLAN ID is defined (without an associated LAN/SFP+ port), the VLAN ID is not shown.

3.1.5 LED display in OFF mode

If the default LED mode is OFF mode, the port LEDs are all unlit regardless of the link status.

Even if the default LED mode is OFF mode, the unit automatically transitions to STATUS mode when an error occurs, indicating the error status.

3.1.6 Changing the LED mode after system boot

The LED mode after system boot (the default LED mode) for this product can be specified.

The default value for the default LED mode is set to LINK/ACT mode, but can be changed using the led-mode default command.

Use the show led-mode command to check the default LED mode and the LED mode currently displayed.

When STATUS mode is cleared during error detection, the unit will switch to the default LED mode that was set.

3.1.7 Other port LED displays

Regardless of the LED mode status, the LEDs of all ports will display as follows during initialization at startup and during firmware update.

Other port LED displays

	Updating firmware	Initializing
LAN port	(flashing green)	(unlit)
SFP+ port	(flashing green)	(lit orange)

4 Related Commands

The related commands are shown below.

For details on the commands, refer to the Command Reference.

List of related commands

5 Examples of Command Execution

5.1 Check LAN/SFP+ port status

Use the show interface command to check the LAN/SFP+ port status.

Yamaha#show interface
show interface
Interface port1.1
  Link is UP
  Hardware is Ethernet
  HW addr: ac44.f23d.0b2c
  ifIndex 5001, MRU 1522
  Speed-Duplex: auto(configured), 1000-full(current)
  Auto MDI/MDIX: on
  Vlan info :
    Switchport mode        : access
    Ingress filter         : enable
    Acceptable frame types : all
    Default Vlan           :    1
    Configured Vlans       :    1
  Interface counter:
    input  packets          : 317111
           bytes            : 31387581
           multicast packets: 317074
    output packets          : 162694
           bytes            : 220469213
           multicast packets: 162310
           broadcast packets: 149
           drop packets     : 0
  ：
(Information for all LAN/SFP+ ports is shown)

5.2 Check LAN/SFP+ port loop detection status

Check the LAN/SFP+ port loop status.

Yamaha#show loop-detect
loop-detect: Enable

loop-detect: Enable

port      loop-detect    port-blocking           status
-------------------------------------------------------
port1.1        enable           enable           Normal
port1.2        enable           enable           Normal
port1.3        enable           enable           Normal
port1.4        enable           enable           Normal
port1.5        enable           enable           Normal
port1.6        enable           enable           Normal
   :             :                :                :
-------------------------------------------------------
(*): Indicates that the feature is enabled.

5.3 Set the default LED mode

Set the default LED mode to OFF mode.

Yamaha#configure terminal
Yamaha(config)#led-mode default off … (Set default LED mode)
Yamaha(config)#exit YamahaW#show led-mode … (Show LED mode)
default mode : off
current mode : off

6 Points of Caution

• None

7 Related Documentation

• Proprietary loop detection

Boot data management

1 Function Overview

As system boot information, this product manages the information shown in the table below.

System boot information: items managed

This product stores the current boot information and information on the previous four boots, for a total of five boot records.

2 Related Commands

The related commands are shown below.

For details on the commands, refer to the Command Reference.

List of related commands

3 Examples of Command Execution

3.1 Show boot information

• This shows the current boot information.

  Yamaha>show boot 0
   Running EXEC: SWP2 Rev.2.03.01 (Tue Mar 13 08:41:39 2018)
  Previous EXEC: SWP2 Rev.2.03.01 (Tue Mar 13 08:41:39 2018)
  Restart by reload command


• This shows a list of the boot history.

  Yamaha>show boot list
  No. Date       Time     Info
  --- ---------- -------- -------------------------------------------------
    0 2018/03/15 09:50:29 Restart by reload command
    1 2018/03/14 20:24:40 Power-on boot
  --- ---------- -------- -------------------------------------------------


3.2 Clear boot information

• This clears the boot information.

  Yamaha#clear boot list

4 Points of Caution

None

5 Related Documentation

None

Viewing unit information

1 Function Overview

1.1 Show unit information via command

This product provides the display functions shown in the table below.

List of unit information display items

1.2 Remote retrieval of technical support information

A TFTP client installed on a PC or other remote terminal can be used to obtain the technical support information (the output results of "show tech-support") from this product.

In order to operate this product's TFTP server, use the steps shown below to set up a network environment that allows remote access.

1. Decide on the VLAN that will be used for maintenance.
2. Set the IPv4 address on the maintenance VLAN. Use the "ip address" command for this setting.
3. Permit access from the maintenance VLAN to the TFTP server. If you want to specify a different VLAN than specified by the "management interface" command, use the "tftp-server interface" command to specify it.

When using a TFTP client, specify "techinfo" for the remote path from which technical support information is obtained.

2 Related Commands

The related commands are shown below.

For details, refer to the Command Reference.

List of related commands

3 Examples of Command Execution

3.1 Show inventory information

This checks the following inventory information for this unit and for the SFP+ modules.

• Name (NAME)
• Description (DESCR)
• Vendor Name (Vendor)
• Product ID (PID)
• Version ID (VID)
• Serial number (SN)

Yamaha>show inventory
NAME  : L2 switch
DESCR : SWP2
Vendor: Yamaha
PID   : SWP2
VID   : 0000
SN    : SMF00000

NAME  : SFP1
DESCR : 10G Base-LR
Vendor: Yamaha
PID   : YSFP-10G-LR
VID   : V1.0
SN    : Z5H00000YJ

NAME  : SFP2
DESCR : 10G Base-LR
Vendor: Yamaha
PID   : YSFP-10G-LR
VID   : V1.0
SN    : Z5H00001YJ

Yamaha>

3.2 Show operating information

This checks the system operating information (as shown below).

• Boot version
• Firmware revision
• Serial number
• MAC address
• CPU usage ratio
• Memory usage ratio
• Firmware file
• CONFIG mode
• VLAN preset (only in DANTE mode)
• Serial baud rate
• Boot time
• Current time
• Elapsed time from boot

Yamaha>show environment
SWP2 BootROM Ver.1.00
SWP2 Rev.2.03.01 (Fri Sep  7 00:00:00 2018)
main=SWP2 ver=00 serial=S00000000 MAC-Address=ac44.f200.0000
CPU:   7%(5sec)   8%(1min)   8%(5min)    Memory:  18% used
Startup firmware: exec0
Configration mode: DANTE
VLAN preset: Normal
Serial Baudrate: 9600
Boot time: 2018/10/01 06:14:46 +00:00
Current time: 2018/10/01 06:49:23 +00:00
Elapsed time from boot: 0days 00:34:41

Yamaha>

3.3 Show technical support information

The following commands show information that is useful for technical support.

• show running-config
• show startup-config
• show environment
• show dipsw
• show disk-usage
• show inventory
• show boot all
• show logging
• show process
• show users
• show interface
• show frame-counter
• show vlan brief
• show spanning-tree mst detail
• show etherchannel status detail
• show loop-detect
• show mac-address-table
• show l2ms detail
• show qos queue-counters
• show ddm status
• show errdisable
• show auth status
• show auth supplicant
• show error port-led
• show ip interface brief
• show ipv6 interface brief
• show ip route
• show ip route database
• show ipv6 route
• show ipv6 route database
• show arp
• show ipv6 neighbors
• show ip igmp snooping groups
• show ip igmp snooping interface
• show ipv6 mld snooping groups
• show ipv6 mld snooping interface

Yamaha#show tech-support
#
# Information for Yamaha Technical Support
#

*** show running-config ***
!
dns-client enable
!
!

...

#
# End of Information for Yamaha Technical Support
#

4 Points of Caution

None

5 Related Documentation

None

Config management

1 Function Overview

This product uses the following config information to maintain the value of settings.

Table 1.1 Config types

This product is equipped with a four-switch DIP switch .

Each switch is assigned a function, and by setting the switches beforehand, the operation of this product can be modified without using commands from a PC or changing settings in the GUI.

The functions assigned to the DIP switches cannot be changed using commands or the GUI.

2 Definition of Terms Used

CONFIG mode

This specifies the mode when this product starts up.

3 Function Details

3.1 Running config

running-config is the settings that are currently operating; since it is maintained in RAM, it is destroyed at reboot.

On this product, commands executed in configuration mode are immediately applied to running-config, and the unit operates according to these settings.

The contents of running-config can be viewed by using the show running-config command.

3.2 Startup config

startup-config is settings that are saved in Flash ROM, and the contents are preserved through reboot.

When this product is started, the settings of startup-config are applied as the initial settings of running-config.

If you attempt to start up in a state where startup-config does not exist, such as after executing the cold start command, the default-config is automatically applied.

If operating in USER mode, the settings of running-config can be saved to startup-config by using the copy running-config startup-config command or the write command.

The contents of startup-config can be erased by the erase startup-config command or viewed by the show startup-config command.

If operating in DANTE mode, some of the settings of running-config can be saved by the backup-config command.

The contents of startup-config can be erased by the erase startup-config command or viewed by the show startup-config command.

3.3 Default config

default-config contains settings saved in internal Flash ROM that are needed for this product to operate minimally as a switch. Like startup-config, the contents are preserved even after a restart.

The factory settings are maintained as default-config.

If startup-config does not exist when the system starts, default-config is copied to startup-config, and applied to running-config.

The contents of default-config cannot be viewed.

3.4 DIP switch control

The functions assigned to the DIP switches are as follows.

The settings of the DIP switches are applied to the various functions when this product starts up. If the DIP switch settings are changed after this product starts up, they take effect at next startup.

With the factory settings, the DIP switches are all set to the " up (OFF)" position.

3.4.1 DIP switch #1: Select CONFIG mode

Selects the CONFIG mode as either DANTE mode or USER mode.

Table 3.1 DIP switch #1 settings

• Operation when DANTE mode is selected

  When the system starts up, it always boots with the preset specified by DIP switches #2/#3.

  If the system booted in DANTE mode, the settings cannot be savedby using the copy or write commands.

  However, settings that are necessary for maintenance, such as the IPv4 address, can be saved using the backup-config command. (For details, refer to the Command Reference.)

• Operation when USER mode is selected

  Only when the system starts up for the first time (or after initialization), it boots with the preset specified by DIP switches #2/#3.

  If the system booted in USER mode, the settings can be savedby using the copy or write commands.

  In this mode, data saved by the user can be used.

3.4.2 DIP switch #2/#3: Select preset

These select the VLAN preset at system boot.

Applying the preset to the system depends on the setting of DIP switch #1.

For specific preset setting values, refer to Maintenance and operation functions: List of SWP2 preset settings.

Table 3.2 DIP switch #2/#3 settings

3.4.3 DIP switch #4

No functions are allocated to this switch at present.

3.5 Controlling the config file via TFTP

If this product's TFTP server function is enabled, a TFTP client installed on a PC or other remote terminal can be used to perform the following.

1. Acquire the currently running running-config and startup-config
2. Apply a previously prepared settings file as startup-config

In order for the TFTP server to function correctly, an IP address must be specified for the VLAN.

Acquisition and settings of the settings file from the remote terminal is done in binary mode, specifying the following as the remote path for acquiring or sending the settings file.

The startup-config settings are applied as running-config after the system is restarted.

Table 3.3 Remote path for applicable files (No automatic restart)

If you want to restart the system automatically after applying the CONFIG file, specify the following remote path.
The currently running configuration is applicable.

Table 3.4 Remote path for applicable files (with automatic restart)

When applying (PUT) a CONFIG file, confirm that the target CONFIG and the type of the target file are correct.

If an incorrect file is specified, it cannot be reflected correctly.

In the case of running-config, it is necessary to add the following at the start of the CONFIG file.

!
! Switch Configuration
!

4 Related Commands

The related commands are shown below.

For details, refer to the Command Reference.

List of related commands

5 Examples of Command Execution

5.1 Save running config

Save running-config.

Yamaha#copy running-config startup-config
Succeeded to write configuration
Yamaha#

Yamaha# write
Succeeded to write configuration
Yamaha#

5.2 Erase startup config

Erase startup config.

Yamaha#erase startup-config
Succeeded to erase configuration
Yamaha#

5.3 Show startup config

Show startup config.

Yamaha#show startup-config
!
!  Default Configuration (SWP2)
!
qos enable
qos dscp-queue 0 0
qos dscp-queue 1 0
...

6 Points of Caution

None

7 Related Documentation

None

Remote access control

1 Function Overview

This product lets you restrict access to the following applications that implement network services.

• TELNET server
• SSH server
• HTTP server / secure HTTP server
• TFTP server

2 Definition of Terms Used

None

3 Function Details

The following four functions are provided to limit access to network services.

• Control whether to leave the service in question running in the background on the system (start/stop control)
• Change reception port number
• Limit access destinations for services currently running
• Limit the source IP addresses that can access services currently running

The following functions that correspond to each network service are shown in the table below.

Network service access control

1. Multiple instances of a network service cannot be started.

   If the start control is applied to the same service that is currently running, the service will restart. Any connected sessions will be disconnected as a result.

2. Limiting access destinations for network services is done for the VLAN interface.
3. Limiting access sources for network services is done by specifying access source IP addresses and whether to permit or deny access.
4. The default settings for the network services are shown in the table below.

   Network service	Start/stop status	Reception port number	Access destination restriction	Access source restriction
   TELNET server	run	23	Only default management VLAN (VLAN #1) permitted	Allow all
   SSH server	stop	22	Only default management VLAN (VLAN #1) permitted	Allow all
   HTTP server	run	80	Only default management VLAN (VLAN #1) permitted	Allow all
   Secure HTTP server	stop	443
   TFTP server	stop	69	Only default management VLAN (VLAN #1) permitted	Allow all

4 Related Commands

Related commands are shown below.

For details, refer to the Command Reference.

List of related commands

5 Examples of Command Execution

5.1 TELNET server access control

This example restricts access to the TELNET server.

Change the TELNET server's reception port to 1024.

Change the management VLAN to VLAN #1000 and allow access. Access from other than the management VLAN is denied.

Access to the TELNET server is allowed only for a client from 192.168.100.1.

If you specify telnet-server access, access from IP addresses that do not meet the conditions is denied.

Yamaha(config)#telnet-server enable 1024 ... (Change reception port to 1024, and restart the TELNET server)
Yamaha(config)#management interface vlan1000 ... (Permit access for VLAN #1000 as a management VLAN)
Yamaha(config)#telnet-server access permit 192.168.100.1 ... (Permit access only from 192.168.100.1) Yamaha(config)
Yamaha(config)#end
Yamaha#show telnet-server ... (Confirm status of settings)
Service:Enable
Port:1024
Management interface(vlan):1000
Interface(vlan):None
Access:
    permit 192.168.100.1

5.2 SSH server access control

This example restricts access to the SSH server.

Generate the SSH server host key.

Register a user name and password.

Login from an SSH client is possible only for a registered user and password.

Change the SSH server's reception port to 1024.

Change the management VLAN to VLAN #1000 and allow access for VLAN #2.

This allows access only from the management VLAN VLAN #1000 and from VLAN #2.

If you specify ssh-server access, access from IP addresses that do not meet the conditions is denied.

Yamaha#ssh-server host key generate ... (Generate host key)
Yamaha#show ssh-server host key ... (Check contents of key)
ssh-dss （Omitted）
ssh-rsa （Omitted）
Yamaha#
Yamaha#configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
Yamaha(config)#username user1 password pw1 ... (Register user name and password)
Yamaha(config)#ssh-server enable 1024 ... (Change reception port to 1024, and restart SSH server)
Yamaha(config)#management interface vlan1000 ... (Allow access for #1000 as management VLAN)
Yamaha(config)#ssh-server interface vlan2 ... (Allow access for VLAN #2)
Yamaha(config)#end
Yamaha#show ssh-serverr ... (Check status of settings)
Service:Enable
Port:1024
Hostkey:Generated
Client alive :Disable
Management interface(vlan):1000
Interface(vlan):2
Access:None
Yamaha#

5.3 HTTP server access restriction

This example makes it possible to restrict HTTP server access.

The HTTP server reception port is changed to 8000, and access is permitted from VLAN #2.

This allows access only from the default management VLAN VLAN #1 and from VLAN #2.

Access to the HTTP server is allowed only for a client from 192.168.100.1.

If you specify http-server access, access from IP addresses that do not meet the conditions is denied.

Yamaha(config)#http-server enable 8000 ... (Change reception port to 8000, and restart the HTTP server)
Yamaha(config)#http-server interface vlan2 ... (Permit access for VLAN #2)
Yamaha(config)#http-server access permit 192.168.100.1 ... (Permit access only from 192.168.100.1)
Yamaha(config)#end
Yamaha#show http-server ... (Check status of settings)
HTTP :Enable(8000)
HTTPS:Disable
Management interface(vlan):1
Interface(vlan):2
Access:
    permit 192.168.100.1

5.4 TFTP server access restriction

This example restricts TFTP server access.

The TFTP server reception port is changed to 2048, and access is permitted from VLAN #10.

Allow access only from the default management VLAN VLAN #1 and from VLAN #10.

Yamaha(config)#tftp-server enable 2048 ... (Change reception port to 2048, and restart the TFTP server)
Yamaha(config)#tftp-server interface vlan10 ... (Permit access for VLAN #10)

6 Points of Caution

None

7 Related Documentation

• User account management

Time management

1 Function Overview

This product provides the functions shown below for managing the date and time.

• Manual (user-configured) date/time information setting function
• Automatic date/time setting information function via network
• Time zone setting function

Note that a function to set summertime (DST: Daylight Saving Time) is not provided.

2 Definition of Terms Used

UTC (Coordinated Universal Time)

This is an official time used when recording worldwide times.

UTC is used as a basis to determine standard time in all countries around the world.

For instance, Japan (JST, or Japan standard time) is nine hours ahead of Coordinated Universal Time, and is thus shown as "+0900 (JST)".

SNTP (Simple Network Time Protocol)

This is a simple protocol to correct clocks by using SNTP packets.

This protocol is defined in RFC4330.

3 Function Details

3.1 Manually setting the date and time

Use the clock set command to directly input the time.

3.2 Automatically setting the date and time

Date and time information is collected from a specified time server, and set in this product.

Defined in RFC4330, SNTP (Simple Network Time Protocol) is used as a communication protocol.

Up to two time servers can be specified, which can be either an IPv4 address, an IPv6 address, or an FQDN (Fully Qualified Domain Name).

Port number 123 is used for the SNTP client. (This setting cannot be changed by the user.)

Use the ntpdate command to choose from the following two methods of automatically setting the date/time.

• One-shot update (a function to update when a command is inputted)
• Interval update (a function to update in a 1–24-hour cycle from command input)

If time synchronization is performed when two time servers have been specified, queries are performed in the order of NTP server 1 and then NTP server 2 shown by the show ntpdate command.

The query to NTP server 2 is performed only if synchronization with NTP server 1 fails.

By default, one hour is specified as the update interval cycle.

However, when the default time cannot be set right after booting up the system, the time server will be queried in a one-minute cycle, regardless of the interval cycle time.

Synchronization with the time server operates with one sampling (the frequency of replies from the server) and with a timeout of 1 second.

Synchronization is blocked during command execution, and an error message is outputted if a timeout occurs.

3.3 Time zone settings

In order to manage the time for the region considered as the "base of daily life", the "clock timezone" command is used to manage the time zone of the users, and reflect this into the time.

The time zone can be set in ±1 hour increments for Coordinated Universal Time (UTC), from -12 hours to +13 hours.

The default time zone value for this product is ±0.

4 Related Commands

Related commands are shown below.

For details, refer to the Command Reference.

List of related commands

5 Examples of Command Execution

5.1 Manually setting the time

In this example, the time zone is set to JST, and the current time is set to 2014.01.21 15:50:59.

Yamaha#configure terminal
Yamaha(config)#clock timezone JST … (Set time zone)
Yamaha(config)#exit
Yamaha#clock set 15:50:59 Jan 21 2014 … (Set time)
Yamaha#show clock … (Show current time)
15:50:59 JST Tue Jan 21 2014

5.2 Automatically setting the time

In this example, the time zone is set to +9.00, and the local 192.168.1.1 and ntp.nict.jp are specified as the NTP servers.

Also, the update cycle with the NTP server is changed to once per 24 hours.

Yamaha#configure terminal
Yamaha(config)#clock timezone +9:00 … (Set time zone)
Yamaha(config)#ntpdate server ipv4 192.168.1.1 … (Set NTP server)
Yamaha(config)#ntpdate server name ntp.nict.jp … (Set NTP server)
Yamaha(config)#ntpdate interval 24 … (Set 24 hours as the interval for updating with the NTP server)
Yamaha(config)#exit
Yamaha#show clock … (Show current time)
10:03:20 +9:00 Mon Dec 12 2016
Yamaha#show ntpdate … (Show interval for time synchronization via NTP)
NTP server 1 : 192.168.100.1
NTP server 2 : ntp.nict.jp
adjust time : Mon Dec 12 10:03:15 2016 + interval 24 hours
sync server : 192.168.100.1

6 Points of Caution

None

7 Related Documentation

• RFC 4330: Simple Network Time Protocol (SNTP) Version 4 for IPv4, IPv6 and OSI

SNMP

1 Function Overview

Setting SNMP (Simple Network Management Protocol) makes it possible to monitor and change network management information for SNMP management software.

In this instance, this product will operate as an SNMP agent.

This product supports communication using SNMPv1, SNMPv2c, and SNMPv3. As an MIB (Management Information Base), it is also compatible with RFC1213 (MIB-II) and with a private MIB (yamahaSW).

SNMPv1 and SNMPv2 notifies the recipient of the group name (called a "community"), and communicates only with hosts that belong to that community. In this instance, different community names can be given for the two access modes, read-only and read-write.

In this sense, community names function as a kind of password; but since community names are sent over a network using plain text, they carry inherent security risks. The use of SNMPv3 is recommended when more secure communications are required.

SNMPv3 offers communication content authentication and encryption. SNMPv3 does away with the concept of community and instead uses security models called "USM" (User-based Security Model) and "VACM" (View-based Access Control Model). These models provide a higher level of security.

SNMP messages that notify the status of this product are called "traps." This product transmits standard SNMP traps. In SNMPv1, trap requests that do not ask for an answer with the confirmation of receipt from the recipient are specified as the notification message format. However, with SNMPv2c and SNMPv3, either an "inform" request asking for an answer from the recipient, or a trap request can be selected.

Since this product does not specifically determine a default value for the read-only and community trap names used in SNMPv1 and SNMPv2c, you can specify a community name as appropriate. However, as described above, the community name is sent over the network in plaintext, so be careful to never use a login password or administrator password as the community name.

By default, no access is possible in each SNMP version. The transmission host for the trap is not set, so traps will not be sent anywhere.

2 Definition of Terms Used

None

3 Function Details

The main characteristics of each SNMP version and the router setting policies are explained below.

See ""5 Examples of Command Execution"" later in this text for specific examples of settings.

3.1 SNMPv1

This is authentication between the SNMP manager and agent by using community names.

The controlling device (this product) is divided and managed by zones called "communities".

• Accessing the MIB objects

  Use the snmp-server community command to permit access using the community name that was set.

  Access is possible from a VLAN interface whose IP address has been specified.

• SNMP traps

  SNMP traps allow for the status of this product to be sent to the hosts that are configured with the snmp-server host command.

  The snmp-server enable trap command sets what kind of trap is transmitted.

3.2 SNMPv2c

As with SNMPv1, this performs authentication between the SNMP manager and agent by using community names.

The snmp-server community command sets the community name used when accessing via SNMPv2c.

The "GetBulk" and "Inform" requests are also now supported from this version.

These requests are used to efficiently retrieve multiple MIB objects, and to confirm replies to notification packets sent from this product.

• Accessing the MIB objects

  Use the snmp-server community command to permit access using the community name that was set.

  Access is possible from a VLAN interface whose IP address has been specified.

• SNMP traps

  SNMP traps allow for the status of this product to be sent to the hosts that are configured with the snmp-server host command.

  Also, the settings of this command can be used to select whether the transmitted message format is a trap or inform request.

  Inform requests are used to request confirmation of reply to the recipient.

3.3 SNMPv3

In addition to all of the functions offered in SNMPv2, SNMPv3 offers more robust security functions.

SNMP packets transmitted across the network are authenticated and encrypted, protecting the SNMP packets from eavesdropping, spoofing, falsification, replay attacks and so on, by offering security-related functionality that could not be realized in SNMPv1 and v2C in regard to community names and IP addresses of SNMP managers.

• Security

  SNMPv3 offers the following security functions.

  1. USM (User-based Security Model)

     USM is a model for maintaining security at the message level. It offers authentication and encryption based on shared key cryptography, and prevents falsification of the message stream.

     • Security level

       The security level can be specified using the parameter settings for the group to which the user belongs.

       The security level combines authentication and encryption, and is classified as shown below.

       • noAuthNoPriv: no authentication and encryption
       • AuthNoPriv: authentication only
       • AuthPriv: authentication and encryption
     • User authentication

       For authentication, HMAC is used in the procedure to authenticate the integrity (whether data has been falsified or not) and the source.

       A hash is used in the authentication key to confirm whether the message has been falsified, and whether the sender is the user themselves.

       Both HMAC-MD5-96 and HMAC-SHA-96 are supported as hash algorithms.

     • Encryption

       With SNMPv3, SNMP messages are encrypted for the purpose of preventing leakage of managed information.

       Both the DES-CBC and AES128-CFB encryption schemes are supported.

       The user and membership group name, user authentication method and encryption scheme, as well as the password can be set with the snmp-server user command.

       The necessary authentication and encryption settings can be made according to the security level specified in the group settings.

  2. VACM (View-based Access Control Model)

     VACM is a model for controlling access to SNMP messages.

     • Group

       With VACM, the access policies mentioned below are defined per group, not per user.

       Use the group option of the snmp-server user command to set the group(s) that the user will belong to. The MIB views set here that are accessible to the specified groups can be configured.

     • MIB view

       With SNMPv3, a collection of accessible MIB objects can be defined for each group. When defined, the collection of MIB objects is called the "MIB view". The "MIB view" is expressed as a collected view sub-tree that shows the object ID tree.

       Use the snmp-server view command to configure the MIB view. Whether the MIB view should be included or excluded in each view sub-tree can be selected.

     • Access policies

       With VACM, set the MIB view that will permit reading and writing for each group.

       Use the snmp-server group command to set the group name, security level, and MIB view.

       The MIB view will be the view that was configured using the snmp-server view command.

• SNMP traps

  SNMP traps allow for the status of this product to be sent to the hosts that are configured with the snmp-server host command.

  In order to transmit a trap, the snmp-server user command must first be used to configure the user.

  Also, the settings of this command can be used to select whether the transmitted message format is a trap or inform request.

  Inform requests are used to request confirmation of reply to the recipient.

3.4 Private MIB

This product supports yamahaSW, which is a proprietary private MIB for switch management.

This private MIB allows the obtaining of information for Yamaha's proprietary functions, and for more detailed information about the switch.

For supported private MIBs and how to obtain a private MIB, refer to the following SNMP MIB reference.

• SNMP MIB Reference

4 Related Commands

Related commands are shown below.

For details on the commands, refer to the Command Reference.

List of related commands

5 Examples of Command Execution

5.1 SNMPv1 setting example

This example makes SNMPv1-based network monitoring possible under the following conditions.

1. Set the read-only community name "public."
2. Set the trap destination as "192.168.100.11", and set "snmptrapname" as the trap community name.

   Yamaha(config)# snmp-server community public ro                  　          ... 1
   Yamaha(config)# snmp-server host 192.168.100.11 traps version 1 snmptrapname ... 2


5.2 SNMPv2c setting example

This example makes SNMPv2c-based network monitoring possible under the following conditions.

1. Set the readable/writable community name as "private."
2. Specify the notification message destination as "192.168.100.12", the notification type as "inform" request format, and the notification destination community name as "snmpinformsname".

   Yamaha(config)# snmp-server community private rw                  　               ...1
   Yamaha(config)# snmp-server host 192.168.100.12 informs version 2c snmpinformsname ...2


5.3 SNMPv3 setting example

This example makes SNMPv3-based network monitoring possible under the following conditions.

1. Specify the view that shows the internet node (1.3.6.1) and below as "most".
2. Specify the view that shows the mib-2 node (1.3.6.1.2.1) and below as "standard".
3. Create the user group "admins", and grant users belonging to the "admins" group full access rights to the "most" view.
4. Create the user group "users", and grant users belonging to the "users" group read access rights to the "standard" view.
5. Create an "admin1" user that belongs to the "admins" group.

   Set the password to "passwd1234", using the "HMAC-SHA-96" authentication algorithm.

   Set the encryption password to "passwd1234", using the "AES128-CFB" encryption algorithm.

6. Create an "user1" user that belongs to the "users" group.

   Set the password to "passwd5678", using the "HMAC-SHA-96" authentication algorithm.

7. Send notifications in trap format (without response confirmation) to 192.168.10.3.
8. Send notifications in inform request format to 192.168.20.3.

Yamaha(config)# snmp-server view most 1.3.6.1 include                                  ... 1
Yamaha(config)# snmp-server view standard 1.3.6.1.2.1 include                          ... 2
Yamaha(config)# snmp-server group admins priv read most write most                     ... 3
Yamaha(config)# snmp-server group users auth read standard                             ... 4
Yamaha(config)# snmp-server user admin1 admins auth sha passwd1234 priv aes passwd1234 ... 5
Yamaha(config)# snmp-server user user1 users auth sha passwd5678                       ... 6
Yamaha(config)# snmp-server host 192.168.10.13 traps version 3 priv admin1             ... 7
Yamaha(config)# snmp-server host 192.168.20.13 informs version 3 priv admin1           ... 8

6 Points of Caution

• In advance, check the SNMP version supported by the SNMP manager you're using. It is necessary to configure this product in accordance with the SNMP version that will be used.
• This product is not compatible with the following functions related to SNMPv3.
  • Proxy function
  • Access to MIB objects after the SNMPv2 subtree (1.3.6.1.6). Changing SNMPv3-related settings via SNMP is also not supported.
  • The specifications of character strings for community name, user name, and password are as follows.
    • When enclosed in "", the character string in "" is used.
      • The case where there is a character string outside the "" is not supported.
    • The use of \ is not supported.
    • Use of "" alone is not supported.

7 Related Documentation

• SNMP MIB Reference

RMON

1 Function Overview

By making settings for the RMON (Remote network MONitering) function, you can monitor and record the traffic volume and error occurrences for each interface.

Since the settings for the RMON function and the data obtained by the RMON function are held as an MIB, they can be retrieved and edited from the SNMP manager.

The RMON function of this product supports the following groups defined in RFC2819.

• Ethernet statistics group
• History group
• Alarm group
• Event group

2 Definition of Terms Used

RMON MIB

MIB for the RMON function, defined in RFC2819

Ethernet statistics group

MIB group defined as group 1 of the RMON MIB.

This holds a table for monitoring Ethernet statistical information.

The information in the table includes counters for the number of packets, the number of errors, etc.

The etherStatsTable is the applicable MIB for this product.

History group

MIB group defined as group 2 of the RMON MIB.

At a specified interval, it measures the same information as the Ethernet statistical information group, and has a table for saving the history of this information.

The MIBs relevant for this product are the historyControlTable and the etherHistoryTable.

Alarm group

MIB group defined as group 3 of the RMON MIB.

At the specified interval, the statistical information of the Ethernet statistical information group is compared with the threshold values.

If the sampled values exceed the threshold values, the event defined for the event group is generated.

The alarmTable is the applicable MIB for this product.

Event group

MIB group defined as group 9 of the RMON MIB.

This is the action taken in response when the alarm group conditions are met.

The eventTable is the applicable MIB for this product.

3 Function Details

The operating specifications for operation of the RMON function are shown below.

3.1 Common between groups

The specifications common between groups are given below.

1. In order to enable the RMON function on this product, the system-wide RMON function must be enabled.

• Use the rmon command to make settings.
• This is enabled by default.
• You can also set this by using the private MIB ysrmonSetting(1.3.6.1.4.1.1182.3.7.1).

3.2 Ethernet statistics group

The operating specifications for the Ethernet statistics group are given below.

1. Make settings by using the rmon statistics command on an interface.
2. Starting at the point at which you specified the rmon statistics command, statistical information is collected, and the etherStatsTable of the RMON MIB will be available for retrieval.
3. This can be specified for a physical interface.
4. A maximum of eight rmon statistics commands can be specified for the same interface.
5. If an rmon statistics command is deleted, the collected statistical information is also deleted.
6. If an rmon statistics command is overwritten, the previously collected statistical information is deleted, and collection is started once again.
7. If the RMON function is disabled system-wide, collection of statistical information is halted.

   If the RMON function is subsequently enabled system-wide, the previously collected statistical information is deleted, and collection is started once again.

8. The supported OIDs in the Ethernet statistical information group are as follows.

    rmon(1.3.6.1.2.1.16)
     +- statistics(1.3.6.1.2.1.16.1)
         +- etherStatsTable(1.3.6.1.2.1.16.1.1)
                 + etherStatsEntry(1.3.6.1.2.1.16.1.1.1) { etherStatsIndex }
                     +- etherStatsIndex(1.3.6.1.2.1.16.1.1.1.1)         (read-only)
                     +- etherStatsDataSource(1.3.6.1.2.1.16.1.1.1.2)    (read-create)
                     |     Interface being monitored
                     +- etherStatsDropEvents(1.3.6.1.2.1.16.1.1.1.3)    (read-only)
                     |     Number of packets dropped
                     +- etherStatsOctets(1.3.6.1.2.1.16.1.1.1.4)        (read-only)
                     |     Number of octets received
                     +- etherStatsPkts(1.3.6.1.2.1.16.1.1.1.5)          (read-only)
                     |     Number of packets received
                     +- etherStatsBroadcastPkts(1.3.6.1.2.1.16.1.1.1.6) (read-only)
                     |     Number of broadcast packets received
                     +- etherStatsMulticastPkts(1.3.6.1.2.1.16.1.1.1.7) (read-only)
                     |     Number of multicast packets received
                     +- etherStatsCRCAlignErrors(1.3.6.1.2.1.16.1.1.1.8)(read-only)
                     |     Number of FCS error packets received
                     +- etherStatsUndersizePkts(1.3.6.1.2.1.16.1.1.1.9) (read-only)
                     |     umber of undersize packets received (packets smaller than 64 octets)
                     +- etherStatsOversizePkts(1.3.6.1.2.1.16.1.1.1.10) (read-only)
                     |     Number of oversize packets received (packets larger than 1518 octets)
                     +- etherStatsFragments(1.3.6.1.2.1.16.1.1.1.11)    (read-only)
                     |     Number of fragment packets received (packets smaller than 64 octets with abnormal FCS)
                     +- etherStatsJabbers(1.3.6.1.2.1.16.1.1.1.12)      (read-only)
                     |     Number of jabber packets received (packets larger than 1518 octets with abnormal FCS)
                     +- etherStatsCollisions(1.3.6.1.2.1.16.1.1.1.13)   (read-only)
                     |     Number of collisions
                     +- etherStatsOwner(1.3.6.1.2.1.16.1.1.1.20)        (read-create)
                     |     Owner name
                     +- etherStatsStatus(1.3.6.1.2.1.16.1.1.1.21)       (read-create)
                           Status of statistics group


3.3 History group

The operating specifications for the history group are shown below.

1. Make settings by using the rmon history command on an interface.
2. Starting at the point at which you specified the rmon history command, historical information is collected, and the etherHistoryTable of the RMON MIB will be available for retrieval.
3. This can be specified for a physical interface.
4. A maximum of eight rmon history commands can be specified for the same interface.
5. If an rmon history command is deleted, the collected historical information is also deleted.
6. If an rmon history command is overwritten, the previously collected historical information is deleted, and collection is started once again.
7. If the RMON function is disabled system-wide, collection of historical information is halted.

   If the RMON function is subsequently enabled system-wide, the previously collected historical information is deleted, and collection is started once again.

8. The supported OIDs in the Ethernet history group are as follows.

    rmon(1.3.6.1.2.1.16)
     +- history(1.3.6.1.2.1.16.2)
         +- historyControlTable(1.3.6.1.2.1.16.2.1)
         |       + historyControlEntry(1.3.6.1.2.1.16.2.1.1) { historyControlIndex }
         |           +- historyControlIndex(1.3.6.1.2.1.16.2.1.1.1)           (read-only)
         |           +- historyControlDataSource(1.3.6.1.2.1.16.2.1.1.2)      (read-create)
         |           |     Interface being monitored
         |           +- historyControlBucketsRequested(1.3.6.1.2.1.16.2.1.1.3)(read-create)
         |           |     Number of history control buckets requested for the history group
         |           +- historyControlBucketsGranted(1.3.6.1.2.1.16.2.1.1.4)  (read-only)
         |           |     Number of history control buckets for the history group
         |           +- historyControlInterval(1.3.6.1.2.1.16.2.1.1.5)        (read-create)
         |           |     Interval for saving the history of the history group
         |           +- historyControlOwner(1.3.6.1.2.1.16.2.1.1.6)           (read-create)
         |           |     Owner name
         |           +- historyControlStatus(1.3.6.1.2.1.16.2.1.1.7)          (read-create)
         |                 Status of history group
         |
         +- etherHistoryTable(1.3.6.1.2.1.16.2.2)
                 + etherHistoryEntry(1.3.6.1.2.1.16.2.2.1) { etherHistoryIndex, etherHistorySampleIndex }
                     +- etherHistoryIndex(1.3.6.1.2.1.16.2.2.1.1)         (read-only)
                     +- etherHistorySampleIndex(1.3.6.1.2.1.16.2.2.1.2)   (read-only)
                     +- etherHistoryIntervalStart(1.3.6.1.2.1.16.2.2.1.3) (read-only)
                     |     Interval for saving the history of the history group
                     +- etherHistoryDropEvents(1.3.6.1.2.1.16.2.2.1.4)    (read-only)
                     |     Number of packets dropped
                     +- etherHistoryOctets(1.3.6.1.2.1.16.2.2.1.5)        (read-only)
                     |     Number of octets received
                     +- etherHistoryPkts(1.3.6.1.2.1.16.2.2.1.6)          (read-only)
                     |     Number of packets received
                     +- etherHistoryBroadcastPkts(1.3.6.1.2.1.16.2.2.1.7) (read-only)
                     |     Number of broadcast packets received
                     +- etherHistoryMulticastPkts(1.3.6.1.2.1.16.2.2.1.8) (read-only)
                     |     Number of multicast packets received
                     +- etherHistoryCRCAlignErrors(1.3.6.1.2.1.16.2.2.1.9)(read-only)
                     |     Number of FCS error packets received
                     +- etherHistoryUndersizePkts(1.3.6.1.2.1.16.2.2.1.10)(read-only)
                     |     Number of undersize packets received (packets smaller than 64 octets)
                     +- etherHistoryOversizePkts(1.3.6.1.2.1.16.2.2.1.11) (read-only)
                     |     Number of oversize packets received (packets larger than 1518 octets)
                     +- etherHistoryFragments(1.3.6.1.2.1.16.2.2.1.12)    (read-only)
                     |     Number of fragment packets received (packets smaller than 64 octets with abnormal FCS)
                     +- etherHistoryJabbers(1.3.6.1.2.1.16.2.2.1.13)      (read-only)
                     |     Number of jabber packets received (packets larger than 1518 octets with abnormal FCS)
                     +- etherHistoryCollisions(1.3.6.1.2.1.16.2.2.1.14)   (read-only)
                     |     Number of collisions
                     +- etherHistoryUtilization(1.3.6.1.2.1.16.2.2.1.15)  (read-only)
                           Estimated network utilization


3.4 Alarm group

The operating specifications for the alarm group are shown below.

1. Use the rmon alarm command to make settings.
2. From the point that the rmon alarm command is specified, sampling occurs at the specified interval.
3. If an rmon alarm command is overwritten, the previous sampling data is deleted, and sampling is started once again.
4. If the RMON function is disabled system-wide, sampling is halted.

   If the RMON function is subsequently enabled system-wide, the previous sampling data is deleted, and sampling is started once again.

5. Only etherStatsEntry(.1.3.6.1.2.1.16.1.1.1) MIB objects that have a counter type can be specified as the object of alarm group monitoring.
6. If the Ethernet statistical information group used by the rmon alarm command is deleted, the rmon alarm command is also deleted.
7. If the event group used by the rmon alarm command is deleted, the rmon alarm command is also deleted.
8. The supported OIDs in the alarm group are as follows.

    rmon(1.3.6.1.2.1.16)
     +- alarm(1.3.6.1.2.1.16.3)
         +- alarmTable(1.3.6.1.2.1.16.3.1)
                 + alarmEntry(1.3.6.1.2.1.16.3.1.1) { alarmIndex }
                     +- alarmIndex(1.3.6.1.2.1.16.3.1.1.1)              (read-only)
                     +- alarmInterval(1.3.6.1.2.1.16.3.1.1.2)           (read-create)
                     |     Sampling interval
                     +- alarmVariable(1.3.6.1.2.1.16.3.1.1.3)           (read-create)
                     |     MIB object being monitored
                     +- alarmSampleType(1.3.6.1.2.1.16.3.1.1.4)         (read-create)
                     |     Sampling type
                     +- alarmValue(1.3.6.1.2.1.16.3.1.1.5)              (read-only)
                     |     Monitored value
                     +- alarmStartupAlarm(1.3.6.1.2.1.16.3.1.1.6)       (read-create)
                     |     Threshold value used to determine first alarm
                     +- alarmRisingThreshold(1.3.6.1.2.1.16.3.1.1.7)    (read-create)
                     |     Upper threshold value
                     +- alarmFallingThreshold(1.3.6.1.2.1.16.3.1.1.8)   (read-create)
                     |     Lower threshold value
                     +- alarmRisingEventIndex(1.3.6.1.2.1.16.3.1.1.9)   (read-create)
                     |     Event index when upper threshold is passed
                     +- alarmFallingEventIndex(1.3.6.1.2.1.16.3.1.1.10) (read-create)
                     |     Event index when lower threshold is passed
                     +- alarmOwner(1.3.6.1.2.1.16.3.1.1.11)             (read-create)
                     |     Owner name
                     +- alarmStatus(1.3.6.1.2.1.16.3.1.1.12)            (read-create)
                           Status of alarm group


Alarm detection is determined by an upper threshold value and a lower threshold value. If the threshold value is crossed, the specified event is executed.

If an alarm is detected, the alarm will not be detected again until the value crosses the opposite threshold.

The following cases are explained as examples.

• At point 1, the upper threshold value is crossed, so an alarm is detected.

  The threshold value that is used for the very first decision can be specified by STARTUP.

  In the example above, we will assume that the STARTUP value is "1" (using only the upper threshold value (risingAlarm)) or "3" (using both the upper threshold value and the lower threshold value (risingOrFallingAlarm)).

• At point 2, an alarm is not detected.
• At point 3, the upper threshold value is crossed, but since the opposite threshold was not previously crossed, an alarm is not detected.
• At point 4, the lower threshold value is crossed, and since the upper threshold was previously crossed, an alarm is detected.
• At point 5, the lower threshold value is exceeded, but since the opposite upper threshold was not previously crossed, an alarm is not detected.
• At point 6, the upper threshold value is crossed, and since the lower threshold was previously crossed, an alarm is detected.

3.5 Event group

The operating specifications for the event group are shown below.

1. Use the rmon event command to make settings.
2. The following operations can be specified for the event group.
   • Record to log
   • Send SNMP trap
   • Record to log and send SNMP trap
3. If trap transmission is specified, the following SNMP commands must be set in order to transmit the SNMP trap.
   • snmp-server host
   • snmp-server enable trap rmon
4. When trap transmission is specified, the following operations are performed.
   • SNMPv1、SNMPv2c
     • Traps are sent only to hosts whose community name specified by the rmon event command matches the community name specified by the snmp-server host command.
   • SNMPv3
     • Traps are sent only to hosts whose community name specified by the rmon event command matches the user name specified by the snmp-server host command.
5. The supported OIDs in the event group are as follows.

    rmon(1.3.6.1.2.1.16)
     +- event(1.3.6.1.2.1.16.9)
         +- eventTable(1.3.6.1.2.1.16.9.1)
                 + eventEntry(1.3.6.1.2.1.16.9.1.1) { eventIndex }
                     +- eventIndex(1.3.6.1.2.1.16.9.1.1.1)        (read-only)
                     +- eventDescription(1.3.6.1.2.1.16.9.1.1.2)  (read-create)
                     |     Event description
                     +- eventType(1.3.6.1.2.1.16.9.1.1.3)         (read-create)
                     |     Type of event
                     +- eventCommunity(1.3.6.1.2.1.16.9.1.1.4)    (read-create)
                     |     Community name
                     +- eventLastTimeSent(1.3.6.1.2.1.16.9.1.1.5) (read-only)
                     |     Event execution time
                     +- eventOwner(1.3.6.1.2.1.16.9.1.1.6)        (read-create)
                     |     Owner name
                     +- eventStatus(1.3.6.1.2.1.16.9.1.1.7)       (read-create)
                           Status of event group


3.6 Setting by SetRequest from an SNMP manager

The same content as the commands of each group can be specified by using SetRequest from an SNMP manager.

The procedure for making settings from an SNMP manager is as follows.

As an example, we explain how to make new settings for the Ethernet statistics information (etherStatsTable) group to port1.1 using index number 1.

Similar operations can be used to make settings for a supported MIB on other groups.

1. Make SNMP settings to allow the MIB to be written.

   For details, refer to the SNMP technical reference.

2. For etherStatsStatus.1, specify "2" (createRequest).

   The ".1" of etherStatsStatus.1 is the etherStatsTable index.

3. For etherStatsDataSource.1, specify iFindex.5001 as the interface to be monitored.

   ifIndex.5001 indicates port1.1.

4. Specifying "owner" is optional, but if you do, specify the text string in etherStatsOwner.1.
5. For etherStatsStatus, specify "1" (valid).

When you perform the above steps, the following commands are specified for port1.1.

We assume that "RMON" was set as the "owner" setting.

rmon statistics 1 owner RMON

Below we show how to disable the RMON function system-wide from the SNMP manager.

1. Make SNMP settings to allow the MIB to be written.

   For details, refer to the SNMP technical reference.

2. For ysrmonSetting(1.3.6.1.4.1.1182.3.7.1), specify "2" (disabled).

When you perform the above steps, the following commands are specified.

rmon disable

To specify enable, set ysrmonSetting(1.3.6.1.4.1.1182.3.7.1) to "1" (enabled).

4 Related Commands

Related commands are shown below.

For details on the commands, refer to the Command Reference.

List of related commands

5 Examples of Command Execution

5.1 Set Ethernet statistical information group

Make Ethernet statistical information group settings for port 1.1, and from the SNMP manager, retrieve the MIB of the Ethernet statistical information group.

1. Enable the Ethernet statistical information group setting for port1.1.

   The index of the Ethernet statistical information group is "1."

   Yamaha(config)#interface port1.1
   Yamaha(config-if)#rmon statistics 1 ... (Enable the Ethernet statistical information group setting)


2. From the SNMP manager, make SNMP settings that the MIB of the Ethernet statistical information group can be retrieved.

   In this example, we use "private" access on SNMPv1 or SNMPv2c.

   Yamaha(config)#snmp-server community private rw ... (Set the readable/writable community name to "private")


3. From the SNMP manger, it will be possible to retrieve the etherStatsTable(.1.3.6.1.2.1.16.1.1) with the community name "private."

5.2 Set history group

Make settings for the history group of port1.1 and retrieve the MIB of the history group from the SNMP manager.

1. Enable the port1.1 history group setting.

   The index of the history group is "1."

   Yamaha(config)#interface port1.1
   Yamaha(config-if)#rmon history 1 ... (Enable the history group setting)


2. From the SNMP manager, make SNMP settings that the MIB of the history group can be retrieved.

   In this example, we use "private" access on SNMPv1 or SNMPv2c.

   Yamaha(config)#snmp-server community private rw ... (Set the readable/writable community name to "private")


3. From the SNMP manger, it will be possible to retrieve the etherHistoryTable(.1.3.6.1.2.1.16.2.2) with the community name "private."

5.3 Set alarm event group

Use the alarm group to monitor the statistical information values of the Ethernet statistical information group.

The conditions for monitoring are as follows.

• The MIB to be monitored is port1.1's etherStatsPkts(.1.3.6.1.2.1.16.1.1.1.5).
• The sampling interval is 180 seconds.
• The sampling type is delta.
• The upper threshold value is 2000.
• The lower threshold value is 1000.

When the above monitoring conditions are matched, the following event group is executed.

• Record to log and send SNMP trap
• Community name is "RMON"

1. Make the required settings for SNMP trap transmission.

   Yamaha(config)#snmp-server host 192.168.100.3 traps version 2c RMON ... (Specify the transmission destination for traps)
   Yamaha(config)#snmp-server enable trap rmon                         ... (Enable transmission of RMON function traps)


2. Make event group settings.

   The index of the event group is "1."

   Yamaha(config)#rmon event 1 log-trap RMON ... (Enable the event group setting)


3. In order to set the alarm group's monitoring target MIB object, enable the port1.1 Ethernet statistical information group setting.

   The index of the Ethernet statistical information group is "1."

   Yamaha(config)#interface port1.1
   Yamaha(config-if)#rmon statistics 1 ... (Enable the Ethernet statistical information group setting)

4. Set the alarm group with the listed conditions.

   The index of the alarm group is "1."

   Yamaha(config)#rmon alarm 1 etherStatsPkts.1 interval 180 delta rising-threshold 3000 event 1 falling-threshold 2000 event 1 ... (Enable the alarm group)

6 Points of Caution

None

7 Related Documentation

• SNMP

SYSLOG

1 Function Overview

This product provides the SYSLOG functions shown below as a means to ascertain the operating state.

1. Functions to accumulate a log inside this product, and to reference or delete the log.
2. Functions for output to the console simultaneously with logging
3. Functions for transmitting to a previously-registered notification destination (SYSLOG server) simultaneously with logging

Logging, output to console, and notifications to the SYSLOG server are performed according to the output level specified by the user. Processing occurs only for the permitted messages.

Logging occurs in RAM, and is automatically backed up to Flash ROM or can be backed up manually.

Notifications to the SYSLOG server are done simultaneously with logging, but only if a SYSLOG server has been registered.

2 Definition of Terms Used

None

3 Function Details

The SYSLOG function is described below.

1. Logging occurs in RAM, and can accumulate up to 10,000 items.

   The following two types of backup to Flash ROM are provided.

   • Automatic backup performed every hour since system boot
   • Manual backup performed by the save logging command

2. The accumulated log can be viewed by the show logging command.

   It can also be deleted by the clear logging command.

   The show logging command shows the information in RAM.

   For the log information of this product, it is assumed that the information in RAM always matches the information in Flash ROM.

   (When the system starts, the log information in Flash ROM is applied to RAM, and the service is started. The log information in RAM is not deleted following execution of a backup.)

3. Log transmission occurs only if the notification destination (SYSLOG server) has been registered.

   You can use the logging host command to register up to two notification destinations.

   Specify the notification destination either by IP address or FQDN.

   As the port number of the notification destination, the default port number 514 is used. (This setting cannot be freely set by the user.)

4. The level of log that is transmitted (SYSLOG priority) can be set using the logging trap command.

   This product allows you to enable or disable output for each level of log.

   With the factory settings, the output level enables only Information and Error.

4. List of related commands

Related commands are shown below.

For details, refer to the Command Reference.

List of related commands

5 Examples of Command Settings

1. Enable debug-level log output, and start log output to the SYSLOG server (192.168.1.100).

   Also output informational-level log to the console.

   Yamaha(config)# logging trap debug         … (Enable debug-level log output)
   Yamaha(config)# logging host 192.168.1.100 … (Register the syslog server)
   Yamaha(config)# logging stdout info        … (Output informational-level log to console)

2. Stop notifications to the SYSLOG server.

   Yamaha(config)# no logging host

3. Save and show the accumulated log information.

   Yamaha# save logging … (Save log in RAM to Flash ROM)
   Yamaha# show logging … (Show accumulated log)
   2018/03/08 20:42:46: [ SESSION]:inf: Login succeeded as (noname) for HTTP: 192.168.1.40
   2018/03/09 10:06:42: [     NSM]:inf: Interface port1.1 changed state to down
   2018/03/09 10:09:48: [ SESSION]:inf: Logout timer expired as (noname) from HTTP: 192.168.1.40
   2018/03/09 16:19:36: [     NSM]:inf: Interface port1.2 changed state to up
    :

4. Clear the accumulated log information.

   Yamaha# clear logging … (Delete the entire accumulated log)
   Yamaha# show logging … (Show log)
    (Since it was deleted, nothing is shown)

6 Points of Caution

None

7 Related Documentation

None

Firmware update

1 Function Overview

This product offers the following three firmware update functions, in order to correct problems in the program and to add new functionality.

1. Firmware updates can be transmitted and applied to this product from a remote terminal such as a PC.
2. This product's built-in HTTP client can access an HTTP server, to download and apply the latest firmware.

These update functions can be used to upgrade or downgrade the version of firmware used on this product.

While firmware is being updated, all port LEDs flash green regardless of the LED display mode.

When the firmware update has been correctly written, the system will reboot in order to apply the new firmware.

For details on how to specify reboot, refer to 3.3 Reboot following writing.

2 Definition of Terms Used

None

3 Function Details

3.1 Update by transmitting the firmware update

This function transmits firmware updates to this product from a remote terminal, such as a PC, and applies it as boot firmware.

The update process is executed using a TFTP client or the Web GUI.

3.1.1 Using a TFTP client to update the firmware

A TFTP client installed on a PC or other remote terminal can be used to transmit the firmware update to this product and apply it.

In order to operate this product's TFTP server, use the steps shown below to set up a network environment that allows remote access.

1. Decide on the VLAN that will be used for maintenance.
2. Set the IPv4 address on the maintenance VLAN. Use the ip address command for this setting.
3. Permit access from the maintenance VLAN to the TFTP server. To make this setting, use the tftp-server interface command or the management interface command.
4. Enable the TFTP server. Use the tftp-server enable command for this setting.

Follow the rules below when sending the firmware update using the TFTP client.

• Set the transmission mode to "binary mode".
• As shown in the table below, specify the remote path to which the firmware update is sent.
• If an administrative password has been specified for this product, use the form "/PASSWORD" to specify the administrative password following the remote path.

For a firmware update using a TFTP client, the following three types of update can be performed.

Updated firmware

If there is no problem with the firmware update that was sent, the firmware update will be saved.

3.1.2. Firmware update by specifying the Web GUI local file

Specify the firmware update located on the terminal accessing the Web GUI, and applies it to this product.

This function does not do a version comparison with the existing firmware, and will overwrite the specified firmware regardless of version.

Firmware updates by specifying a local file are done by updating the firmware via Update firmware from PC located in [Maintenance] - [Firmware update] of the Web GUI. (Refer to the part shown in a red frame on the screenshot below.)

Refer to the help contents within the GUI for the specific operation method.

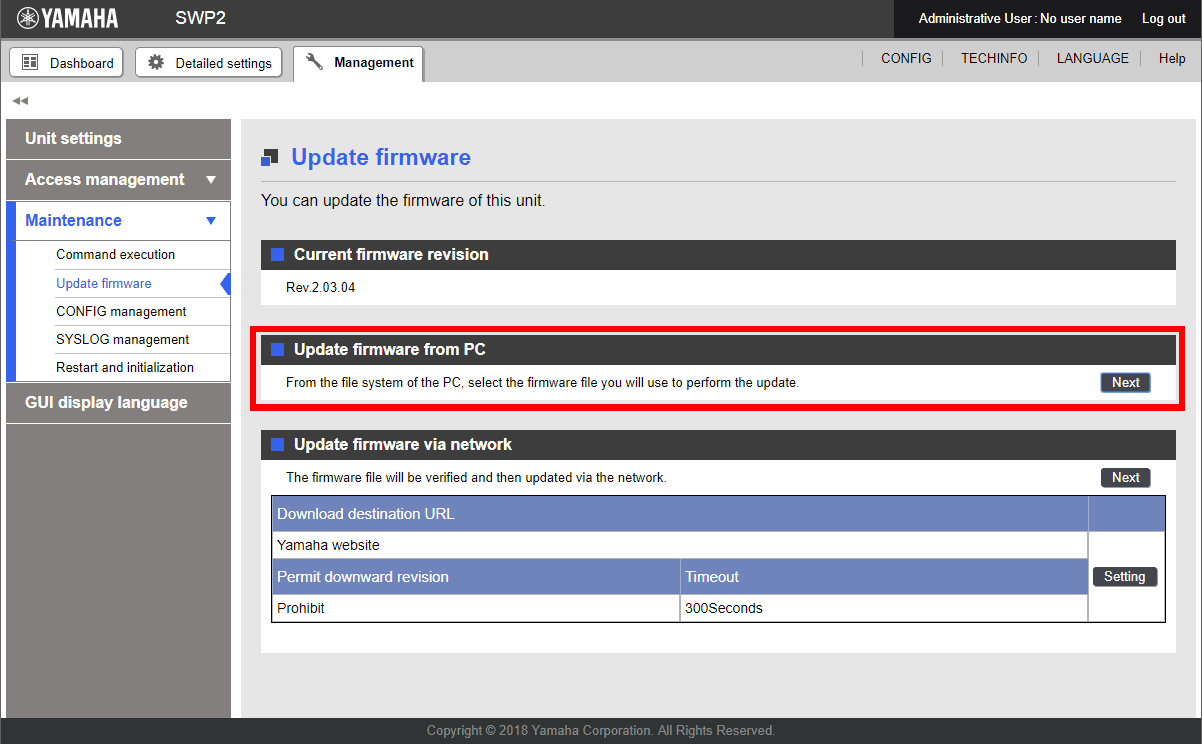

Initial screen on the Web GUI for updating firmware using a PC

3.2 Using an HTTP client to update the firmware

This method of firmware update uses an HTTP client to obtain the firmware update from a specified URL, and then apply it to this product.

This function assumes that the firmware version will be upgraded. Downgrading to a previous version will only be permitted if "revision-down" is allowed.

The firmware cannot be rewritten with the same version of firmware.

An HTTP client can be used to update the firmware using the methods below.

• Use the firmware-update command from the CLI (Command-line interface)
• Execute the firmware update over the network using the Web GUI

Updating the firmware with an HTTP client is done by using the settings value shown in the table below.

Firmware update using an HTTP client: setting parameters

Refer to "5 Examples of Command Execution" or to the "Command Reference" for more information on how to use the firmware-update command.

To update firmware over the network using the Web GUI, execute the [Maintenance] - [Firmware update] command from the Web GUI. (Refer to the part shown in a red frame on the screenshot below.)

Refer to the help contents within the GUI for the specific operation method.

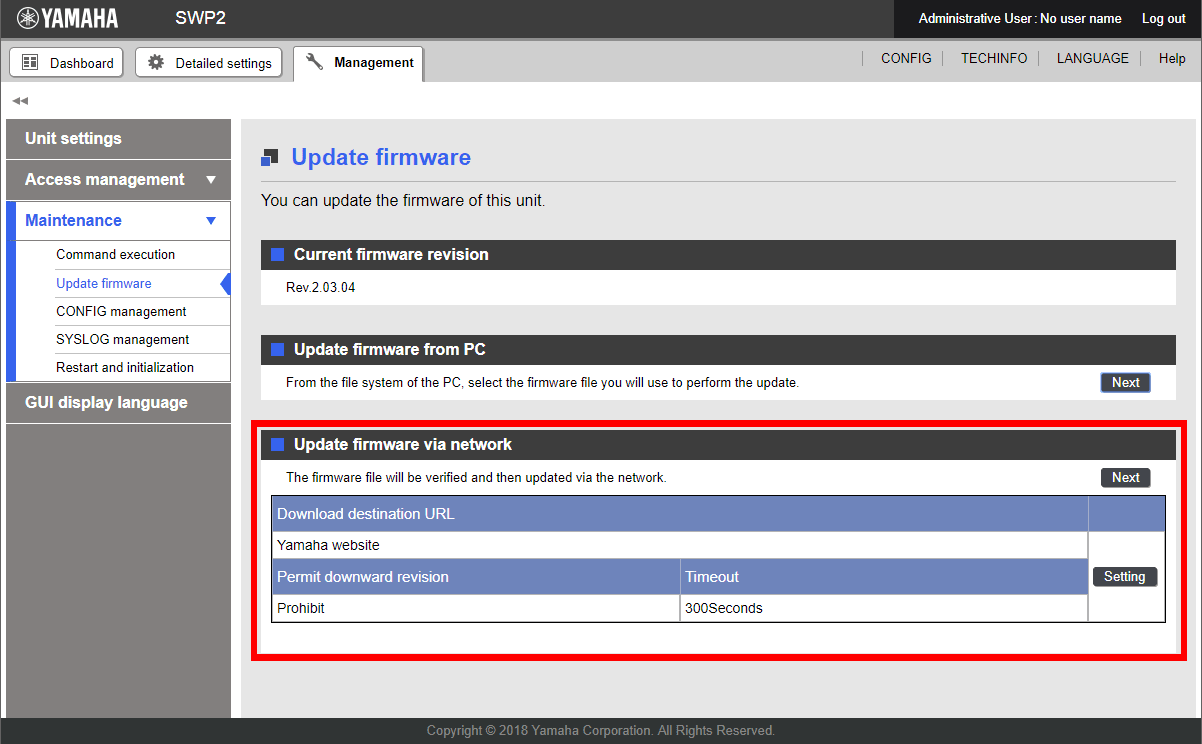

Initial screen for updating the firmware over the network using the Web GUI

3.3 Reboot after writing

When the firmware update has been successfully written, the unit will reboot in accordance with the reboot time specified by the firmware-update reload-time command.

If the reboot time was not specified, the unit reboots immediately. If the reboot time was specified, the unit reboots at the specified time.

4 Related Commands

Related commands are shown below.

For details, refer to the Command Reference.

List of related commands

5 Examples of Command Execution

5.1 Using an HTTP client to update the firmware

In this example, the firmware update is stored on the local HTTP server, and this product is set to manage the firmware in order to perform the update.

• Change the download URL to http://192.168.100.1/swp2.bin.
• The revision-down option is left in disabled mode.
• The timeout value is left at 300 sec.
• We will not specify a reboot time, but will reboot immediately after update.

1. The download URL is changed, and the firmware update settings are confirmed.

   Yamaha(config)#firmware-update url http://192.168.100.1/swp2.bin … (Set download destination URL)
   Yamaha(config)#exit
   Yamaha#show firmware-update … (Show firmware update function setting)
   url:http://192.168.100.1/swp2.bin
   timeout:300 (seconds)
   revision-down:Disable

2. The firmware update is executed.

   Yamaha#firmware-update execute … (Execute firmware update)
   Found the new revision firmware
   Current Revision: Rev.2.03.01
   New Revision:     Rev.2.03.02
   Downloading...
   Update to this firmware? (Y/N)y … (Enter "y")
   Updating...
   Finish

   (Reboots automatically)

3. Pressing "CTRL+C" during the firmware update process will interrupt the update.

   Yamaha#firmware-update execute
   Found the new revision firmware
   Current Revision: Rev.2.03.01
   New Revision:     Rev.2.03.02
   Downloading...                  … (Enter Ctrl-C)
   ^CCanceled the firmware download

6 Points of Caution

None

7 Related Documentation

• LED control

L2MS control

1 Function Overview

L2MS (Layer2 Management Service) is a function that manages Yamaha network devices at the layer 2 level.

L2MS consists of one L2MS master which performs centralized management and multiple L2MS slave units (subsequently called slaves) which are controlled from the L2MS master (subsequently called the master).

Connections for the master and slaves are described below.

L2MS connections

Yamaha LAN Monitor on the computer is used as the master.

From Yamaha LAN Monitor, you can monitor information for Yamaha switches and Yamaha wireless LAN access points, and monitor and control connected devices.

The SWP2 operates as a slave.

The master and slaves are connected via Ethernet cables, and use a proprietary protocol for communication.

The principal functionality of Yamaha LAN Monitor is as follows.

For details on use, refer to Yamaha LAN Monitor.

• Ascertains the network topology, allowing you to visualize the entire network.
• Allows you to check the port status, bandwidth usage, and PoE power supply status of Yamaha switches and Yamaha wireless LAN access points.
• Allows you to monitor the status of each Dante-enabled device existing on the network.
• Recall Dante Controller with one click, allowing you to unify the Dante network from a single computer.
• Allows you to check the existence (live/dead monitoring) of network cameras and other terminals.
• By stopping and resuming the PoE supply of a Yamaha PoE switch, allows you to automatically or manually restart devices that are connected to a Yamaha PoE switch.
• Allows you to recall the Web GUI of a Yamaha switch on the network, so that you can view or edit their settings.
• Provides a snapshot function that is helpful for automatically detecting network abnormalities and for ascertaining the cause when a problem occurs.
• Allows you to attach labels that clarify the role of each device.

2 Definition of Terms Used

Master

The device that manages Yamaha network devices that are operating as L2MS and switch control function slaves.

It manages the Yamaha switches in the network.

Slave

A Yamaha switch that is managed by the L2MS and switch control function master.

Its settings can be viewed or changed from the master.

3 Function Details

3.1 L2MS protocol

The proprietary communication protocol used by L2MS is the same protocol as the communication used by the switch control functionality supported by the SWR series.

This means that the master is able to manage the SWR series.

L2MS control is performed using the L2 frames described below.

Contents of the L2MS protocol's L2 frames

If there is a firewall between the master and slave, the firewall must be set to pass these L2 frames.

3.2 Slave ownership

One slave cannot be simultaneously controlled by multiple masters.

For this reason, you must ensure that there is one master in a network.

If a slave receives a query frame after boot, that slave will be managed by the master that transmitted that query frame.

This state is canceled by any of the following conditions.

• If a query frame was not received for 30 seconds.
• If the master was restarted.

3.3 About the Web GUI and IP address settings

With the factory settings, the IP address is set to DHCP.

The IP address is assigned from the DHCP server in the network.

If there is no DHCP server, the Auto IP function automatically generates an IPv4 link local address.

Access to the Web GUI is available via the Web GUI button in the "Device detail" view of Yamaha LAN Monitor.

If the Web GUI is not shown, it might be that the IP address and subnet settings of the Yamaha switch or Yamaha wireless LAN access point do not match the settings of the computer. Check the IP address and subnet settings.

The IP address settings of the slaves can be made from the "Device settings" dialog box of Yamaha LAN Monitor.

3.4 Information notified from the slave

A slave that is managed by the master informs the master when its own state changes or if a fault is detected.

Information from a slave is shown in the master's device details, or in the notification area or the history area.

For details on the messages that are output to SYSLOG, refer to "7. SYSLOG message list."

• The information sent by the SWP2 is as follows.
  • Port link-up/down
  • Loop detection by the proprietary loop detection function
  • SFP optical reception level fault
  • Egress queue usage ratio fault

4 Related Commands

Related commands are shown below.

For details, refer to the Command Reference.

List of L2MS-related commands

5 Examples of Command Execution

5.1 Set terminal management function

This indicates whether the unit is managed by the master.

If it is managed, the master's MAC address is shown.

Yamaha#show l2ms
Role : Slave

Status : Managed by Master (3c52.82da.eee7)

5.2 Set L2MS control frame transmission/reception

Make settings so that L2MS control frames are not transmitted and received on port 1.5.

Yamaha(config)#interface port1.5
Yamaha(config-if)#l2ms filter enable

6 Points of Caution

6.1 Regarding device configuration

If slaves are used in a series connection, the maximum number of slave units that can be connected is eight units counting from the master.

Counting slaves from the master, a ninth or subsequent slave unit cannot be connected in series.

If nine or more slave units are connected in series, counting from the master, L2MS communication will be delayed, possibly preventing slaves from being correctly detected or controlled.

If a switch made by a different manufacturer exists in the L2MS communication route, such as if a switch made by a different manufacturer is inserted between the master and a slave, it might not be possible to correctly control the slave.

If you are configuring a network that includes a switch made by a different manufacturer, verify operation beforehand.

6.2 Regarding use in conjunction with other functions

6.2.1 Use in conjunction with mirroring

When the mirroring function is used, L2MS communication sent and received at the monitor port is also copied.

For this reason, connecting a master or slave to the mirror port might cause L2MS to not operate correctly; do not make such a connection.

6.2.2 Use with ACL

L2MS communication is not subject to ACL control.

Although the ACL discards frames that are not specified in the permission list (tacit rejection), L2MS communication is not subject to control, and therefore will be forwarded without being discarded.

6.2.3 Use with STP and the loop detection function

L2MS communication cannot be performed on a port that is in a blocked state because of STP or the loop detection function.

7. SYSLOG message list

The SYSLOG messages output by L2MS are shown below.

The messages that are output are given the prefix "[ L2MS]."

8 Related Documentation

None

Mail notification

1 Function Overview

Mail notification is a function in which information detected by the terminal monitoring function is conveyed via email.

By making the following settings, you can be notified of the information detected by various functions.

• Specify the mail server used when sending the mail.
• Specify the mail template.

2 Definition of Terms Used

Mail template

A definition that collects the following information needed when sending mail.

• Mail server to use
• Sender's mail address
• Recipient's mail address
• Subject of mail
• Content of notification
• Transmission wait time

3 Function Details

3.1 Operation

With the mail server settings and mail template settings having been made correctly, when a notification event occurs for a function that supports mail notification, the mail notification function will enter the send-standby state.

The mail notification function that is now in the send-standby state will wait until the mail transmission wait time specified for each mail template has elapsed.

When the mail transmission wait time has elapsed, the mail notification function combines the notification events that have occurred during the wait time into a single mail, and sends it to the recipient.

3.2. Mail server setting

This can be set in List of registered mail servers in the Web GUI's [Advanced settings]-[Mail notification].

Press the New button or the Setting button of an existing setting to move to Mail server settings.

In Mail server settings, make the following settings.

• Account identification name

  A name that distinguishes the mail server settings. This may be omitted.

• SMTP server address
• Port number of the SMPT server
• SMTP encryption
  You can choose to encrypt with SMTP over SSL or with STARTTLS
• SMTP authentication
  When performing MTP authentication, enter the user name and password

3.3 Mail template settings

This can be set in List of mail notification settings in the Web GUI's [Advanced settings]-[Mail notification].

Press the New button or the Setting button of an existing setting to move to Mail notification settings.

In Mail notification settings, make the following settings.

• Sender (From)
• Recipient (To)
• Subject

  If Use prescribed subject has a check mark, the subject line of the mail will be Notification from (device name).

• Content of notification
• Mail transmission wait time

3.4 Functions that support mail notification

The following functions support mail notification.

Terminal monitoring function

The following notification events will be the subject of mail notification.

3.5 Mail body example

The body of a notification mail includes content such as the following.

For details, refer to the technical reference for each function.

Up to 100 items can be shown in one notification mail.

Model: SWP2                          *Model name
Revision: Rev.2.03.01                *Firmware version
Name: SWP2_XXXXXXXX                  *Host name
Time: 2018/01/01 12:34:56            *Mail transmission time
Template ID: 1                       *Mail template ID

<<<<<<<<<<<<<<<<<<    Terminal Monitoring Information    >>>>>>>>>>>>>>>>>>>

[via Ping]

 Date                      Status    IP Address        Description
----------------------------------------------------------------------------
 2017/06/13 Thu 10:42:56   UP        192.168.100.155   IP_Camera_1
 2017/06/13 Thu 10:51:00   DOWN      192.168.100.155   IP_Camera_1
 2017/06/13 Thu 10:54:02   UP        192.168.100.10    Wireless_AP_1
 2017/06/13 Thu 11:29:27   UP        192.168.100.155   IP_Camera_1
 2017/06/13 Thu 11:30:31   DOWN      192.168.100.10    Wireless_AP_1

[via Bandwidth Usage]

 Date                      Status    Interface         Description
----------------------------------------------------------------------------
 2017/06/13 Thu 10:45:43   UP        port1.4           IP_Camera_2
 2017/06/13 Thu 10:45:56   UP        port1.6           Note_PC_1
 2017/06/13 Thu 10:50:00   DOWN      port1.6           Note_PC_1
 2017/06/13 Thu 10:53:27   DOWN      port1.4           IP_Camera_2

[via LLDP]

 Date                      Status    Interface         Description
----------------------------------------------------------------------------
 2017/06/13 Thu 10:53:56   UP        port1.3           Note_PC_2
 2017/06/13 Thu 11:11:54   DOWN      port1.3           Note_PC_2
 2017/06/13 Thu 11:14:24   UP        port1.3           Note_PC_2

4 Related Commands

5 Points of Caution

Notes on firmware that does not support the email notification function command.

• If you upgrade from firmware that does not support the command to firmware does support it, the settings configured with Web GUI will continue to be used as the command settings.
• When returning to firmware that does not support the command, the settings that have been changed in the firmware that supports the command cannot continue to be used. Therefore, after revision downgrade, resetting is required.
• If you have not changed the settings, you can keep them as they are.

6 Related Documentation

• Terminal monitoring

LLDP

1 Function Overview

LLDP is a protocol for passing device management information between a device and its neighboring devices.

This is a simple protocol in which a device unidirectionally advertises its own information and neighbor devices receive this information. However, since LLDP-compliant devices maintain the information received from neighbor devices as MIB objects, the user can access this information via SNMP and ascertain what type of devices are connected to which interfaces are.

2 Definition of Terms Used

LLDP

Link Layer Discovery Protocol.

This is defined in IEEE 802.1ab.

LLDP-MED

LLDP for Media Endpoint Devices.

This is defined in ANSI/TIA-1057.

3 Function Details

3.1 Operating Specifications

3.1.1 Basic Specifications

This product supports the following operations.

• LLDP frames are transmitted from any LAN/SFP+ port to convey information about the device itself.
• LLDP frames are received at any LAN/SFP+ port to obtain information about neighboring devices.
• Information transmitted via LLDP about the device itself, and information obtained via LLDP about neighbor devices, etc., can be referenced via SNMP.

LLDP sends and receives information using Type, Length, and Value (TLV) attributes.

For details on the TLV information sent by this product, refer to 3.2 TLV list.

This product's LLDP supports the following MIBs of SNMP. For details, refer to 3.3 Supported MIBs.

• LLDP-MIB
• LLDP-V2-MIB
• LLDP-EXT-MED-MIB

The following settings are required in order to use the LLDP function.

• Use the lldp run command to enable the system-wide LLDP function.
• Use the lldp-agent command to create an LLDP agent for the applicable interface.
• Use the set lldp command to specify the LLDP frame transmit/receive mode.

With the default settings of this product, the LLDP function is disabled.

LLDP frames are always transmitted without tags, regardless of the VLAN settings of the transmitting switch port.

They are also transmitted without tags from a trunk port without a native VLAN.

3.1.2 Transmitted information settings

Use the following commands to specify the LLDP frames that are transmitted from the device itself. There are also some TLVs (required TLVs) that are transmitted regardless of the settings of the following commands.

• tlv-select basic-mgmt command (basic management TLV)
• tlv-select ieee-8021-org-specific command (IEEE 802.1 TLV)
• tlv-select ieee-8023-org-specific command (IEEE 802.3 TLV)
• tlv-select med command (LLDP-MED TLV)

The system name and description that are transmitted in the basic management TLVs are specified by the lldp system-name command and the lldp system-description command.

The type of management address is set by the set management-address-tlv command.

3.1.3 Transmission timer setting

The interval at which LLDP frames are sent is specified by the set timer msg-tx-interval command.

The multiplier for calculating the hold time (TTL) for device information is set by the set msg-tx-hold command.

The TTL for LLDP transmission is the result of the following calculation. The default is 121 seconds.

• TTL = ( value set by the "set timer msg-tx-interval" command ) × ( value set by the "set msg-tx-hold" command ) ＋ 1 (second)

When a neighbor device is connected to a LAN/SFP+ port for which LLDP frame transmission is enabled, LLDP frames are transmitted rapidly at a fixed interval according to the high-speed transmission interval setting.

The transmission interval and the number of transmissions for high speed transmission are set by the set timer msg-fast-tx command and the set tx-fast-init.

If from a state in which LLDP frame transmission is enabled, the set lldp command is used to disable it, this product transmits a shut-down frame, notifying the neighbor device that LLDP frame transmission has stopped.

Subsequently, even if LLDP frame transmission is once again enabled, LLDP frame transmission to the neighbor device is stopped for a time.

The stopped duration until the next transmission occurs after transmitting the shutdown frame is set by the set timer reinit-delay command.

3.1.4 Maximum connected devices setting

The maximum number of connected devices that can be managed by the corresponding port is set by the set too-many-neighbors limit command.

The default value for the maximum number of connected devices is 5 devices.

3.1.5 Checking LLDP information

LLDP interface settings and received information about neighbor devices can be checked by using the show lldp interface command or the show lldp neighbors command.

To clear the LLDP frame counter, use the clear lldp counters command.

3.1.6 Other functions using LLDP

This product provides a function that uses LLDP to automatically make optimal settings for the Dante digital audio network.

The Dante optimization settings function is set by the lldp auto-setting command.

For details, refer to Dante optimization setting function.

This product also provides a function that uses LLDP to monitor the live/dead state of a specific connected terminal.

For details, refer to Terminal monitoring.

For the voice VLAN function, LLDP-MED can be used to specify voice traffic for IP phones.

For details, refer to VLAN.

3.2 TLV list

The TLVs supported by this product are listed below.

• Required TLVs
• Basic management TLVs
• IEEE 802.1 TLV
• IEEE 802.3 TLV
• LLDP-MED TLV

For the detailed specification of each TLV, refer to IEEE 802.1ab (LLDP) and ANSI/TIA-1057 (LLDP-MED).

The TLVs that are transmitted by this product are explained below.

3.2.1 Required TLVs

If LLDP frame transmission is enabled, these TLVs are always transmitted.

Three TLVs are transmitted: chassis ID, port ID, and TTL.

The required TLVs are shown below.

Required TLVs

3.2.2 Basic management TLVs

These TLVs are transmitted if LLDP frame transmission is enabled and the tlv-select basic-mgmt command is specified.

System-related management information is transmitted, such as name, system capabilities, and address.

The basic management TLVs are as follows.

Basic management TLVs

3.2.3 IEEE 802.1 TLV

These TLVs are transmitted if LLDP frame transmission is enabled and the tlv-select ieee-8021-org-specific command is specified.

These transmit information such as VLAN and link aggregation for the corresponding port.

The IEEE 802.1 TLVs are shown below.

IEEE 802.1 TLV

3.2.4 IEEE 802.3 TLV

These TLVs are transmitted if LLDP frame transmission is enabled and the tlv-select ieee-8023-org-specific command is specified.

Auto negotiation support information etc. for the corresponding port is transmitted.

The IEEE 802.3 TLVs are shown below.

IEEE 802.3 TLV

3.2.5 LLDP-MED TLV

These TLVs are transmitted if LLDP frame transmission is enabled and the tlv-select med command is specified.

These transmit information such as network policy information.

The LLDP-MED TLVs are shown below.

LLDP-MED TLV

Network Policy is transmitted only from a port that is set as voice VLAN.

3.3 Supported MIB

For supported private MIBs, refer to the following SNMP MIB reference.

• SNMP MIB Reference

4 Related Commands

Related commands are shown below.

For details on the commands, refer to the Command Reference.

List of related commands

5 Examples of Command Execution

5.1 Set LLDP frame transmission/reception

For port1.1, enable LLDP frame transmission/reception.

Basic management TLVs, IEEE 802.1 TLVs, IEEE 802.3 TLVs, and LLDP-MED TLVs are transmitted.

Set the LLDP frame transmission interval to 60 seconds. Set the LLDP frame TTL to 181 seconds.

Set "SWITCH1" as the name of the transmitting system.

Specify 10 as the maximum number of connected devices managed by the port.

Yamaha#configure terminal
Yamaha(confif)#lldp system-name SWITCH1 ... (Set system name)
Yamaha(config)#interface port1.1
Yamaha(config-if)#lldp-agent ... (Create LLDP agent, change modes)
Yamaha(lldp-agent)#tlv-select basic-mgmt ... (Set basic management TLV)
Yamaha(lldp-agent)#tlv-select ieee-8021-org-specific ... (Set IEEE 802.1 TLV)
Yamaha(lldp-agent)#tlv-select ieee-8023-org-specific ... (Set IEEE 802.3 TLV)
Yamaha(lldp-agent)#tlv-select med ... (Set LLDP-MED TLV)
Yamaha(lldp-agent)#set timer msg-tx-interval 60 ... (Set transmission interval)
Yamaha(lldp-agent)#set msg-tx-hold 3 ... (Set multiplier for TTL calculation: TTL = 60 x 3 + 1 = 181 seconds)
Yamaha(lldp-agent)#set too-many-neighbors limit 10 ... (Set maximum number of connected units)
Yamaha(lldp-agent)#set lldp enable txrx ... (Set LLDP transmission/reception mode)
Yamaha(lldp-agent)#exit
Yamaha(config-if)#exit
Yamaha(config)#lldp run ... (Enable LLDP function)
Yamaha(config)#exit

5.2 Show LLDP interface status

Show the port1.1 LLDP interface status.

Yamaha#show lldp interface port1.1  ... (Show interface information)
Agent Mode                    : Nearest bridge
Enable (tx/rx)                : Y/Y
Message fast transmit time    : 1
Message transmission interval : 30
Reinitialization delay        : 2
MED Enabled                   : Y
Device Type                   : NETWORK_CONNECTIVITY
LLDP Agent traffic statistics
  Total frames transmitted       : 0

5.3 Show LLDP connected device information

Show LLDP connected device information.

Yamaha#show lldp neighbors  ... (Show information for connected devices)
Interface Name           : port1.1
System Name              : SWP2
System Description       : SWP2 Rev.2.03.01
Port Description         : port1.3
System Capabilities      : L2 Switching
Interface Numbering      : 2
Interface Number         : 5003
OID Number               :
Management MAC Address   : ac44.f230.0000
Mandatory TLVs
  CHASSIS ID TYPE
    IP ADDRESS           : 0.0.0.0
  PORT ID TYPE
    INTERFACE NAME       : port1.3
  TTL (Time To Live)     : 41
8021 ORIGIN SPECIFIC TLVs
  Port Vlan id                : 1
  PP Vlan id                  : 0
  Remote VLANs Configured
    VLAN ID                   : 1
    VLAN Name                 : default
  Remote Protocols Advertised :
    Multiple Spanning Tree Protocol
  Remote VID Usage Digestt    : 0
  Remote Management Vlan      : 0
  Link Aggregation Status     :
  Link Aggregation Port ID    :
8023 ORIGIN SPECIFIC TLVs
  AutoNego Support            : Supported Enabled
  AutoNego Capability         : 27649
  Operational MAU Type        : 30
  Power via MDI Capability (raw data)
    MDI power support         : 0x0
    PSE power pair            : 0x0
    Power class               : 0x0
    Type/source/priority      : 0x0
    PD requested power value  : 0x0
    PSE allocated power value : 0x0
  Link Aggregation Status     :
  Link Aggregation Port ID    :
  Max Frame Size              : 1522
LLDP-MED TLVs
  MED Capabilities            :
    Capabilities
    Network Policy
  MED Capabilities Dev Type   : End Point Class-3
  MED Application Type        : Reserved
  MED Vlan id                 : 0
  MED Tag/Untag               : Untagged
  MED L2 Priority             : 0
  MED DSCP Val                : 0
  MED Location Data Format    : ECS ELIN
    Latitude Res      : 0
    Latitude          : 0
    Longitude Res     : 0
    Longitude         : 0
    AT                : 0
    Altitude Res      : 0
    Altitude          : 0
    Datum             : 0
    LCI length        : 0
    What              : 0
    Country Code      : 0
    CA type           : 0
  MED Inventory

6 Points of Caution

None

7 Related Documentation

• SNMP
• Terminal monitoring
• Dante optimization setting function
• VLAN

Terminal monitoring

1 Function Overview

The terminal monitoring function checks the dead-or-alive state of specific terminals connected to the network switch.

The operating specifications for the terminal monitoring function are shown below.

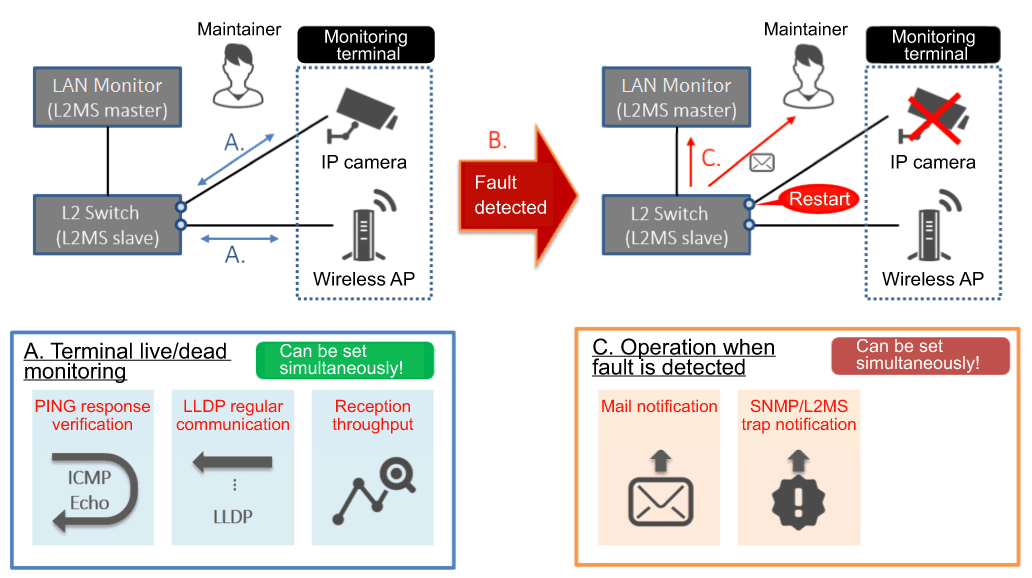

Terminal monitoring function overview

This is an example with Yamaha LAN Monitor as the L2MS master and an intelligent L2 switch as the L2MS slave.

As dead/alive monitoring methods, the following three types are provided.

1. Monitoring by ping

   Ping (ICMP Echo request/reply) is issued at regular intervals to a terminal that has an IP address, and the terminal is determined to be down if there is no longer a response.

   The user can specify the interval at which ping is transmitted, the time to wait for ping response, and the number of failures until the terminal is determined to be down.

2. Frame reception amount monitoring

   The frame reception amount is monitored at regular intervals for an individual port, and the terminal is determined to be down if the traffic falls below a specified amount.

   The user can specify the monitoring start threshold value and the threshold value at which a down condition is determined.

   Monitoring starts when the traffic exceeds the monitoring start threshold value, and a down condition is determined when the traffic falls below the down decision threshold.

3. LLDP reception interval monitoring

   The LLDP received at regular intervals by an individual port is monitored.

   Using the TTL which is a required item in the data portion of an LLDP packet, a down condition is determined if LLDP is not received within the TTL interval.

If monitoring detects a terminal fault (down), the following processing is automatically performed.

1. Alert shown in dashboard screen

   An indication that a fault (down) occurred for the monitored terminal is displayed in the alert screen of the dashboard.

2. Alert shown in LAN map screen

   The L2MS trap function is used to notify the L2MS master.

   The L2MS master that receives the notification indicates in the LAN map screen that the monitored terminal has experienced a fault (down).

By the user's choice, the following operations can be applied in parallel.

1. Fault detection notification by mail

   Notification that a monitored terminal has experienced a fault is sent to the desired recipient.

2. Notification to the SNMP manager

   A trap is sent to the SNMP manager specified by a command.

2 Definition of Terms Used

None

3 Function Details

3.1 Monitoring by ping (ICMP Echo request/reply)

Specifications for terminal monitoring by ping are given below.

1. The interval of ICMP Echo request transmission from the network switch is fixed at 5 seconds.
2. The ICMP Echo request that is transmitted has the following format.
   • As the ID field of the ICMP header, the unique ID assigned to each monitored terminal is specified.
   • As the sequence field of the ICMP header, a number that is sequentially incremented from 0 is specified.
3. The validity of the ICMP Echo reply is checked as follows.
   • Whether the ID field of the ICMP header contains the ID that was specified when sending the request
   • Whether the sequence field of the ICMP header contains the sequence number that was specified when sending the request
4. The wait time for ICMP Echo reply can be changed in the range of 1–60 seconds, and the default is 2 seconds.
5. The number of failures to receive the ICMP Echo reply from the monitored terminal after which a fault is determined can be set in the range of 1–100, and the default is twice.
6. Monitoring via ping can be done for a maximum of 64 units.

3.2 Monitoring by frame reception amount

The way in which this device monitors by frame reception amount is described below.

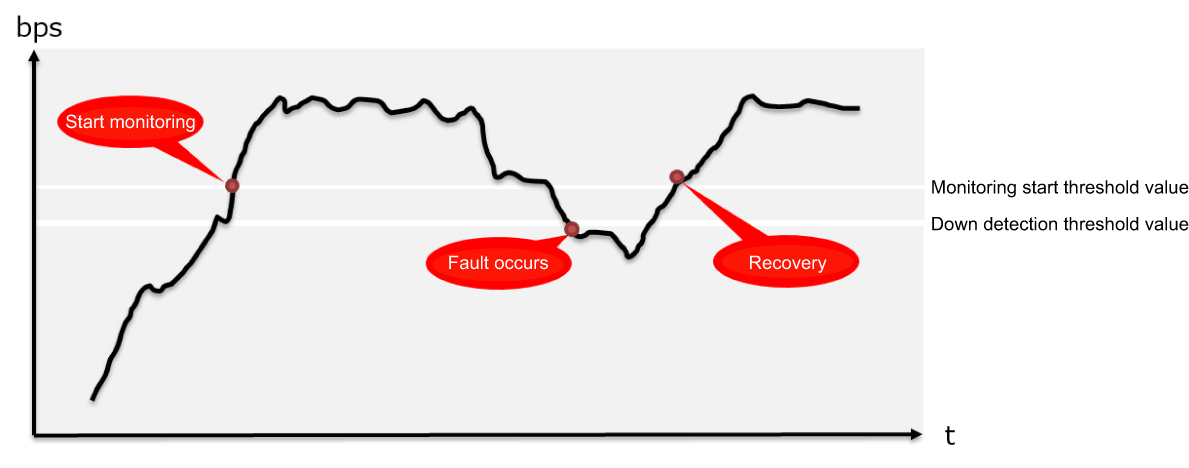

Overview of frame reception amount monitoring

1. At one-second intervals, the number of octets received at the port is referenced, and the number of octets received during one second is calculated.
   • All ports are the object of observation.
2. Using the number of octets received during one second and the link speed, the reception throughput (bps) and reception ratio (%) are calculated.
3. Monitoring by frame reception amount starts when the monitoring start threshold value (bps) specified by the user is exceeded.
4. After monitoring has started, a fault (down) is detected if the amount falls below the down detection threshold value (bps) specified by the user.

3.3 Monitoring by LLDP

Using the TTL which is a required item in the data portion of an LLDP frame, a down condition is determined if LLDP is not received within the TTL time.

Monitoring starts when an LLDP frame is first received.

This monitoring can be specified individually by port.

4 Related Commands

This function does not support settings via commands.

5. Settings via the Web GUI

Terminal monitoring settings can be done from [Advanced settings]-[Terminal monitoring] of the Web GUI.

Details on the settings in each screen can be referenced via the Web GUI help.

5.1 Terminal monitoring top page

The top page of terminal monitoring is shown below.

Terminal monitoring top page

• If you want to newly add a terminal for monitoring, press the New icon.
• If you want to change a currently-specified monitored terminal, press the Settings button in the list.

  If you want to delete a currently-specified monitored terminal, select the check box of that terminal, and press the delete button.

• If you want to ascertain the current state of the monitored terminal for which you are making settings, press the update button to acquire the latest state.

5.2 Adding or modifying a monitored terminal

The method for adding a new monitored terminal, or for making changes, is shown below for each method of monitoring.

1. Monitoring by ping



2. Monitoring by frame reception amount



3. Monitoring by LLDP



• When specifying the monitoring start threshold value and the down detection threshold value for frame reception amount monitoring, it is useful to use the traffic observation function.
• If you want mail notification to be sent in the event of a fault, you must separately make mail notification settings.

  For details, refer to Technical reference: [Management/operation functions] - [Mail notification] and to Web GUI help: [Advanced settings] - [Mail notification].

5.3. Checking the state of a monitored terminal

The state of a specified monitored terminal can be checked in the terminal monitoring gadget of the dashboard.

Dashboard terminal monitoring gadget

• For each monitored terminal, this shows the monitoring target, model name, monitoring type, and status.
• The following three states are shown as the state of the monitored terminal.
  • Idle: Monitoring is not yet being performed:
  • Up: The monitored terminal is operating correctly:
  • Down: The monitored terminal is not operating correctly:
• When you place the mouse cursor on the status field, the status of the monitored terminal is shown.
• If you click the Idle , Up, or Down button in the upper part of the dashboard, only the monitored terminals that are in the corresponding state are shown. (The All button shows terminals of all states.)
• If not even one monitor terminal is registered, the display indicates "No monitored terminals are registered."

6 Points of Caution

None

7 Related Documentation

• Performance observation

Performance observation

1 Function Overview

This product provides a mechanism for constantly observing the system's performance.

An overview of the function is given below.

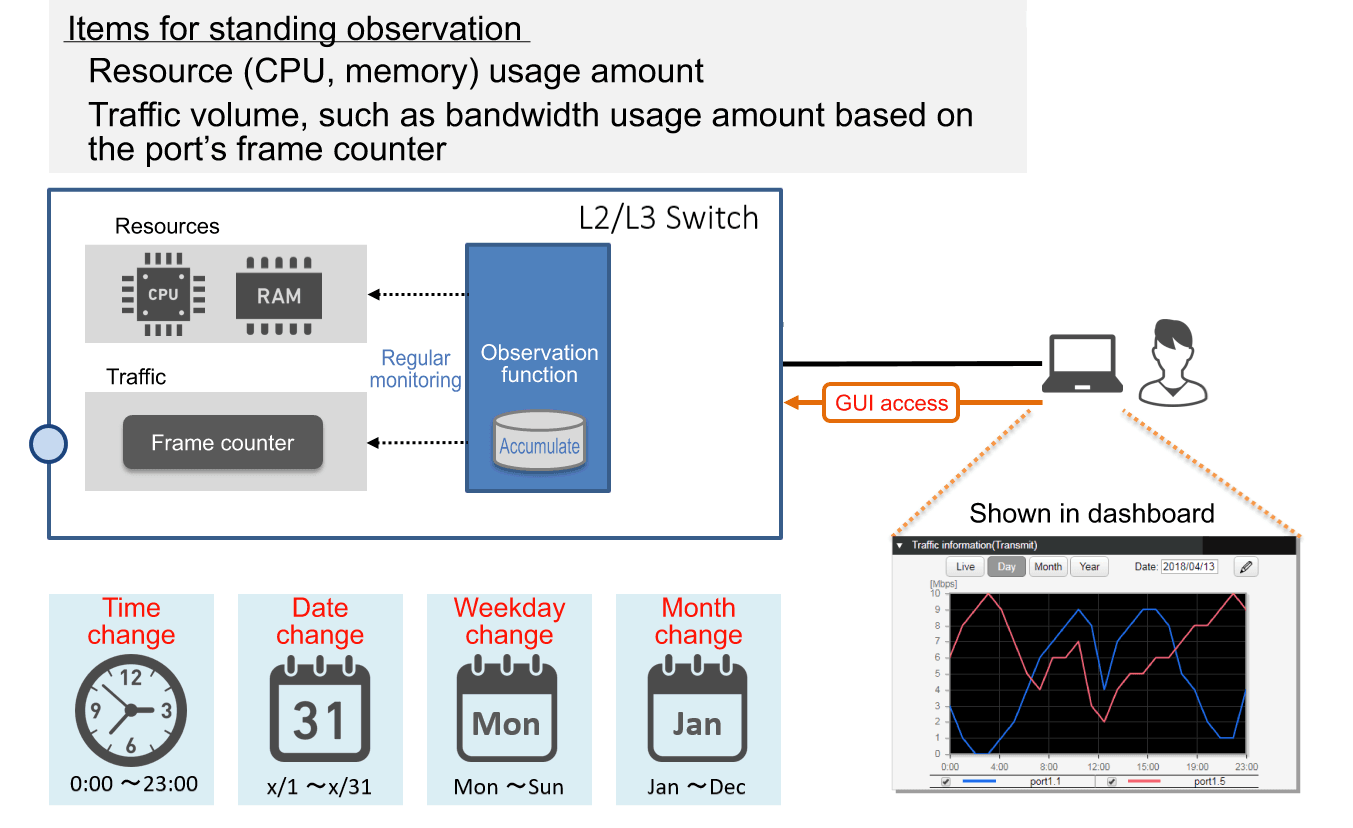

Performance observation

This product constantly observes the following two types of data.

1. Resource usage: CPU and memory usage
2. Traffic amount: The amount of communication port bandwidth used (transmission/reception)

Based on the results of observation, one year's worth of the following change data is accumulated inside this product.

• Hourly change: Change for each hour (e.g. 0:00, 1:00, ...)
• Daily change: Change for each day of each month (e.g. 1/1, 1/2, ...)
• Weekly change: Change for each day of the week (e.g. SUN, MON, ...)
• Monthly change: Change for each month (e.g. Jan, Feb, ...)

By accessing this product via the Web GUI, the maintainer can view the various types of change data including live data in the dashboard.

This function can be utilized for the following purposes:

• Ascertain the short-term communication status
• Predict long-term future demand for network facilities

2 Definition of Terms Used

None

3 Function Details

3.1 Resource and traffic usage observation

Starting immediately after boot, this device automatically observes the CPU and memory and the transmit/receive throughput of each port every second.

The observed data is normalized using a moving average, and one year of data is saved in RAM.

4 Related Commands

This function does not support settings via commands.

5. Settings via the Web GUI

Performance observation can be controlled from the following pages of the Web GUI.

• Viewing the resource usage amount
  • This can be viewed in the [Dashboard] item [Resource information (graph)].
• Viewing the traffic usage amount
  • This can be viewed in the [Dashboard] item [Traffic information (graph)].

Details on how to view and make settings in each screen can be referenced via the Web GUI help.

5.1 Viewing the resource usage amount

The resource information (graph) screen is shown below.

Example when Live is selected for resource information (graph)

1. The graph rendering can be changed using the following buttons.

   • Current status: Live

     The various current usage ratios are obtained at one-second intervals and shown on the graph.

   • Hourly change: Day

     The various usage ratios for the specified day are shown at one-hour intervals on the graph.

     To specify the day, use the day-specifying box in the upper right of the gadget.

   • Daily change: Month

     The various usage ratios for the specified month are shown at one-day intervals.

     To specify the month, use the month-specifying box in the upper right of the gadget.

   • Monthly change: Year

     The various usage ratios for the specified year are shown at one-month intervals.

     To specify the year, use the select box in the upper right of the gadget.

   • It is not currently possible to reference changes in the day of the week.
2. If the CPU and memory usage ratios exceed 80%, then a warning message is shown on the dashboard.

   If the ratio falls below 80% after having exceeded 80%, the warning is automatically cleared.

5.2 Viewing the traffic usage amount

The traffic usage amount (graph) screen is shown below.

Example of when traffic usage amount (graph) Day is selected / Example of transmission traffic

1. The traffic usage amount of each port can be shown separately for transmission and reception.
2. The graph rendering can be changed using the following buttons.

   • Current status: Live

     The various current usage ratios are obtained at one-second intervals and shown on the graph.

     The most recent two minutesof the obtained data is held and rendered on the graph.

   • Hourly change: Day

     The various usage ratios for the specified day are shown at one-hour intervals on the graph.

     To specify the day, use the day-specifying box in the upper right of the gadget.

   • Daily change: Month

     The various usage ratios for the specified month are shown at one-day intervals.

     To specify the month, use the month-specifying box in the upper right of the gadget.

   • Monthly change: Year

     The various usage ratios for the specified year are shown at one-month intervals.

     To specify the year, use the select box in the upper right of the gadget.

   • It is not currently possible to reference changes in the day of the week.
3. To select the interface to be shown, click the interface select button (), and then make a selection in the following screen.



4. If the traffic usage ratio exceeds 60%, a warning message is shown on the dashboard.

   If the ratio falls below 50% after having exceeded 60%, the warning is automatically cleared.

6 Points of Caution

None

7 Related Documentation

None

Dante optimization setting function

1 Function Overview

Dante optimization settings is a function that makes it easy to specify the optimal environment for the Dante digital audio network.

This allows the user to easily make settings such as QoS settings, IGMP snooping settings, flow control disable settings, and EEE disable settings.

The items set by the Dante optimization setting function are as follows.

Use the Dante optimization setting function after you have made all of the basic switch settings (such as VLAN and IP).

If you make new changes to the settings, the Dante optimization settings will not follow.

2 Definition of Terms Used

Dante

A digital audio network specification developed by the Audinate Corporation.

3 Function Details

This function provides automatic optimization settings using LLDP.

3.1 Automatic optimization settings using LLDP

By receiving special LLDP frames from certain Dante-enabled devices made by Yamaha, optimal settings for using Dante can be automatically applied.

Automatic optimization settings via LLDP are set by the lldp auto-setting command.

By default, this product is set to disable automatic optimization settings via LLDP.

Certain Dante-enabled devices made by Yamaha transmit Yamaha-proprietary LLDP frames that include the following content.

• EEE (Energy-Efficient Ethernet) disable setting
• Flow control disable setting
• Diffserve base QoS setting
• IGMP snooping settings

If this function is enabled and the corresponding LLDP frame is received, the following settings are automatically applied to running-config.

• [System-wide]

  flowcontrol disable ... (Disable flow control)
  qos enable ... (Enable QoS)
  qos dscp-queue 0 0 ... (DSCP-transmit queue ID conversion table setting, same for below)
  qos dscp-queue 1 0
  qos dscp-queue 2 0
  qos dscp-queue 3 0
  qos dscp-queue 4 0
  qos dscp-queue 5 0
  qos dscp-queue 6 0
  qos dscp-queue 7 0
  qos dscp-queue 8 2
  qos dscp-queue 9 0
  qos dscp-queue 10 0
  qos dscp-queue 11 0
  qos dscp-queue 12 0
  qos dscp-queue 13 0
  qos dscp-queue 14 0
  qos dscp-queue 15 0
  qos dscp-queue 16 0
  qos dscp-queue 17 0
  qos dscp-queue 18 0
  qos dscp-queue 19 0
  qos dscp-queue 20 0
  qos dscp-queue 21 0
  qos dscp-queue 22 0
  qos dscp-queue 23 0
  qos dscp-queue 24 0
  qos dscp-queue 25 0
  qos dscp-queue 26 0
  qos dscp-queue 27 0
  qos dscp-queue 28 0
  qos dscp-queue 29 0
  qos dscp-queue 30 0
  qos dscp-queue 31 0
  qos dscp-queue 32 0
  qos dscp-queue 33 0
  qos dscp-queue 34 0
  qos dscp-queue 35 0
  qos dscp-queue 36 0
  qos dscp-queue 37 0
  qos dscp-queue 38 0
  qos dscp-queue 39 0
  qos dscp-queue 40 0
  qos dscp-queue 41 0
  qos dscp-queue 42 0
  qos dscp-queue 43 0
  qos dscp-queue 44 0
  qos dscp-queue 45 0
  qos dscp-queue 46 5
  qos dscp-queue 47 0
  qos dscp-queue 48 0
  qos dscp-queue 49 0
  qos dscp-queue 50 0
  qos dscp-queue 51 0
  qos dscp-queue 52 0
  qos dscp-queue 53 0
  qos dscp-queue 54 0
  qos dscp-queue 55 0
  qos dscp-queue 56 7
  qos dscp-queue 57 0
  qos dscp-queue 58 0
  qos dscp-queue 59 0
  qos dscp-queue 60 0
  qos dscp-queue 61 0
  qos dscp-queue 62 0
  qos dscp-queue 63 0


• [VLAN interface that received LLDP]

  interface vlanX *Access VLAN is the object ip igmp snooping enable
    ip igmp snooping enable ... (Enable IGMP snooping)
    ip igmp snooping query-interval 30 ... (Set query transmission interval)
    ip igmp snooping querier ... (Set query)
    ip igmp snooping check ttl disable ... (Disable TTL value check function for IGMP packets)


• [LAN/SFP+ port that received LLDP]

  interface portX.X
    qos trust dscp ... (Set DSCP trust mode)
    flowcontrol disable ... (Disable flow control)
    eee disable ... (Disable EEE)

In the case of USER mode, if you use the copy running-config startup-config command or the write command to save, the settings also apply to the startup-config that is used at next startup.

Even if the port to which the device is connected experiences a link-down state after automatic optimization settings, the automatically added settings are maintained.

This function can be used only for a physical interface (LAN/SFP+ port). It cannot be used with a link aggregated logical interface.

This does not apply to the trunk port.

In order to use this function, reception of LLDP frames must be enabled.

For this reason, make the following settings beforehand.

• Use the lldp run command to enable the system-wide LLDP function.
• Use the lldp-agent command to create an LLDP agent for the applicable interface.
• Use the set lldp command to specify the LLDP frame transmit/receive mode.

With the default settings of this product, LLDP frame transmission and reception is disabled.

4 Related Commands

Related commands are shown below.

For details on the commands, refer to the Command Reference.

List of related commands

5 Examples of Command Execution

5.1 Automatic optimization settings using LLDP

Enable automatic optimization settings using LLDP.

Enable LLDP transmission and reception on port1.1.

Yamaha#configure terminal
Yamaha(config)#interface port1.1
Yamaha(config-if)#lldp-agent ... (Create LLDP agent, change modes)
Yamaha(lldp-agent)#set lldp enable txrx ... (Set LLDP transmission/reception mode)
Yamaha(lldp-agent)#exit
Yamaha(config-if)#exit
Yamaha(config)#lldp run ... (Enable LLDP function)
Yamaha(config)#lldp auto-setting enable ... (Enable automatic optimization settings via LLDP)

6 Points of Caution

• Note that if you use this function when settings such as QoS settings, flow control settings, EEE settings, and IGMP snooping have already been made, those settings are overwritten by Dante-optimized settings.
• It is assumed that you will use the Dante optimization setting function after you have made all of the basic switch settings (such as VLAN and IP).

  If you make new changes to the settings (such as adding a VLAN), the Dante optimization settings will not follow.

• The setting values requested from Dante-enabled devices must be consistent between all devices. If the values are different, operation cannot be guaranteed.
• In general, IGMP snooping operates as version "3".

7 Related Documentation

• LLDP
• QoS
• Flow control
• IGMP Snooping
• Interface basic functions

List of preset settings

The default settings of the SWP2 series are shown here, first the setting values of preset common parameters, followed by the setting values for specific preset types.

SWP2 Preset Common Parameters

System-wide default settings

Common settings for each LAN/SFP+ port

SWP2 Preset Type: Normal

Settings for the LAN/SFP+ ports

• Settings for VLAN
  • VLAN #1 (for Dante and Control)
    • IPv4 Address : DHCP
    • IGMP Snooping: Enable
      • Querier : Enable
      • Querier-Interval : 30 sec
      • Fast-leave : Disable
      • Check TTL : Disable

SWP2 Preset Type: A

Settings for the LAN/SFP+ ports

• Settings for VLAN
  • VLAN #1 (for Dante)
    • IPv4 Address : DHCP
    • IGMP Snooping: Enable
      • Querier : Enable
      • Querier-Interval : 30 sec
      • Fast-leave : Disable
      • Check TTL : Disable
  • VLAN #2 (for Control)
    • IGMP Snooping: Disable

SWP2 Preset Type: B

Settings for the LAN/SFP+ ports

• Settings for VLAN
  • VLAN #1 (for Dante)
    • IPv4 Address : DHCP
    • IGMP Snooping: Enable
      • Querier : Enable
      • Querier-Interval : 30 sec
      • Fast-leave : Disable
      • Check TTL : Disable
  • VLAN #2 (for Control)
    • IGMP Snooping: Disable

SWP2 Preset Type: C

Settings for the LAN/SFP+ ports

• Settings for VLAN
  • VLAN #1 (for Dante)
    • IPv4 Address : DHCP
    • IGMP Snooping: Enable
      • Querier : Enable
      • Querier-Interval : 30 sec
      • Fast-leave : Disable
      • Check TTL : Disable
  • VLAN #2 (for Control)
    • IGMP Snooping: Enable
      • Querier : Enable
      • Querier-Interval : 30 sec
      • Fast-leave : Disable
      • Check TTL : Disable

Interface control functions

• Interface basic functions
• Link aggregation
• Port authentication functions
• Port security functions

Interface basic functions

1 Function Overview

Here we explain the basic interface functions of this product.

2 Definition of Terms Used

None

3 Function Details

3.1 Interface types

This product can handle the five interface types shown in the table below.

Interface list

3.2 Interface control

The interface on this product can be controlled as shown in the table below.

Interface control items

Command control of the interface is performed as shown on the table below.

Interface control functionality chart

*1: As the communication speed / communication mode setting for a LAN port, it is not possible to select 10 Gbps / full-duplex.

*2: The communication speed / communication mode setting for an SFP+ port will be either auto negotiation or 10 Gbps / full-duplex.

3.3 LAN/SFP+ port defaults

Initially, this product's LAN/SFP+ ports will be in the following state.

• All LAN/SFP+ ports function as access ports (ports that handle untagged frames), and belong to the default VLAN (VLAN #1).
• The following functions are enabled for the default VLAN (VLAN #1) to which all LAN/SFP+ ports belong.
  • MSTP: Multiple Spanning Tree Protocol
  • IGMP Snooping
  • IPv4 address (192.168.100.240/24)
  • Access from a TELNET client
  • Access from a web client

3.4 Port mirroring

This product provides a port mirroring function, which copies the data traffic from a selected LAN/SFP+ port to another specified port.

The communication status can be analyzed by collecting the copied packets.

This product allows you to specify one mirror port, making all other LAN/SFP+ port allocable as "monitor ports".

The monitoring direction (transmit/receive, transmit only, receive only) can be selected for the monitor ports.

The mirror command can be used to set the port mirroring.

The mirror port setting is disabled by default.

3.5 Frame counter

This product counts the number of frames transmitted/received for each LAN/SFP+ port. (This is called a "frame counter".)

To reference the frame counter, use the show frame counter command.

The table below shows the display items for the frame counter and their maximum values.

Received frame counter display items

(*1): Packets is the total value of the (*2) packets.

(*3): This will change, depending on the MRU that is set for the LAN/SFP+ port.

(4): This is shown only if tail drop is disabled.

Transmitted frame counter display items

(*1): The packet value is the total of the (*2) packets.

(3): This is shown only if tail drop is enabled.

Transmitted/received frame counter display items

(*1): This will change, depending on the MRU that is set for the LAN/SFP+ port.

The frame counter can also be cleared by using the clear counters command.

When you execute the show interface command to show the state of the LAN/SFP+ ports, the number of transmitted/received frames is shown, but this information is shown based the information of the frame counter.

The number of frames transmitted/received that is displayed using the show interface command and how the frame counter is handled are shown below.

Number of frames transmitted/received that is displayed by the show interface command, and how the frame counter is handled

(*1) If tail drop is enabled this shows only the transmission information; if it is disabled this shows only the reception information.

3.6 SFP+ module optical receive level monitoring

This product provides functionality for monitoring the optical receive level of an SFP+ module connected to the SFP+ port.

If a fault occurs in an SFP+ module's optical receive level, this product's port lamp indications change to a dedicated state, and a SYSLOG message is output.

An optical receive level fault state can be forcibly cleared by holding down the MODE switch for three seconds.

When the optical receive level returns to the normal range, this product's port lamp indications will recover, and a SYSLOG message is output.

A SYSLOG message is not output if the corresponding port's link status goes down, or if the optical receive level fault state is forcibly cleared.

The SFP+ module's optical receive level monitoring settings can be made using the sfp-monitor command.

By default, SFP+ module optical receive level monitoring is enabled.

3.7 Transmit queue usage monitoring

If the transmit queue's usage ratio becomes high (above 60%, above 100%), a SYSLOG message is output.

A SYSLOG message is also output when the transmit queue's usage ratio returns to the normal range (below 50%).

Transmit queue usage monitoring is always enabled.

4 Related Commands

The related commands are shown below.

For details on the commands, refer to the Command Reference.

Basic interface functions: list of related commands

5 Examples of Command Execution

5.1 Basic LAN port settings

Some examples of basic LAN port settings are shown below.

For details on how to make the settings, refer to the Command Reference.

• Set the description text for LAN port #1 (port1.1).

  Yamaha(config)#interface port1.1
  Yamaha(config-if)#description Connected to rtx1200-router

• Disable LAN port #1 (port1.1).

  Yamaha(config)#interface port1.1
  Yamaha(config-if)#shutdown

• Enable LAN port #1 (port1.1).

  Yamaha(config)#interface port1.1
  Yamaha(config-if)#no shutdown

• Set the communication speed and communication mode for LAN port #1 (port1.1) to 100Mbps/Full.

  Yamaha(config)#interface port1.1
  Yamaha(config-if)#speed-duplex 100-full

5.2 Mirroring settings

In this example, we will set LAN port #1 to monitor the frames transmitted/received by LAN port #4 and the frames transmitted by LAN port #5.

The roles of the ports are shown below.

• Mirror port: LAN port #1 (port1.1)
• Monitor port: LAN port #4 (port1.4), LAN port #5 (port1.5)

1. Set the monitor port for mirror port LAN port #1 (port1.1).

   Yamaha(config)#interface port1.1
   Yamaha(config-if)#mirror interface port1.4 direction both ... (monitor transmitted/received frames)
   Yamaha(config-if)#mirror interface port1.5 direction transmit ... (monitor transmitted frames)

2. Confirm the mirroring settings.

   Yamaha#show mirror
   Monitor Port  Mirror Port  Mirror Option  Direction
   ============= ============ ============== ==========
   port1.1       port1.4      enable         both
                 port1.5      enable         transmit


5.3 Show LAN/SFP+ port information

• Confirm the status of LAN port #1 (port1.1).

  Yamaha#show interface port 1.1
  Interface port1.1
    Link is UP
    Hardware is Ethernet
    HW addr: 00a0.deae.b89f
    Description: Connected to router
    ifIndex 5001, MRU 1522
    Speed-Duplex: auto(configured), 1000-full(current)
    Auto MDI/MDIX: on
    Vlan info :
      Switchport mode        : access
      Ingress filter         : enable
      Acceptable frame types : all
      Default Vlan           :    1
      Configured Vlans       :    1
    Interface counter:
      input  packets          : 0
             bytes            : 0
             multicast packets: 0
      output packets          : 0
             bytes            : 0
             multicast packets: 0
             broadcast packets: 0
             drop packets     : 0


6 Points of Caution

None

7 Related Documentation

None

Link aggregation

1 Function Overview

Link aggregation is a function used to combine multiple LAN/SFP+ ports that connect network devices, and handle them as a single logical interface.

Link aggregation is a technology that is useful when multiple communications occur. Communications can be distributed by using a load balance function within the combined lines.

If one LAN/SFP+ port fails within the lines that were combined using link aggregation, and communications cannot be made, the other ports will continue communicating.

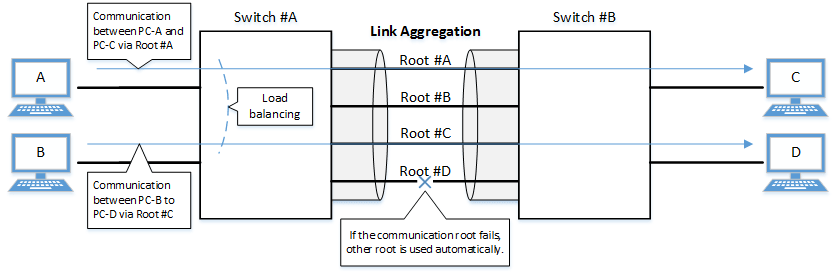

Link aggregation function overview

The link aggregation functions in this switch are shown below.

Link aggregation functions

2 Definition of Terms Used

LACP

Abbreviation for "Link Aggregation Control Protocol". This is a technology standardized in IEEE802.3ad,

and is also called EtherChannel.

• IEEE 802.3 Study Group Interim meeting

Load balance

This is a function to distribute forwarded frames between the LAN/SFP+ ports that are associated with the logical interface.

As a distribution rule, the L2/L3/L4 information within frames is used.

3 Function Details

3.1 Static/LACP link aggregation: common specifications

The common specifications for the static/LACP link aggregation functions of this switch are shown below.

1. The link aggregation on this switch can be defined for 127 interfaces, including both static and LACP.

   A single logical interface can be associated with up to eight LAN/SFP+ ports.

2. The settings shown below must be the same for each of the LAN/SFP+ ports contained within.
   • Communication speed/communication mode

     If auto negotiation is enabled, only the same port that was used in the contained ports for the initial negotiation results will be contained.

   • Port mode (access/trunk [including native VLAN settings])
   • Associated VLAN
   • QoS trust mode (including port priority and default CoS settings)
3. The following operations are performed when a LAN/SFP+ port is associated with a logical interface.
   • LAN/SFP+ ports that are linked up will be linked down.

     The logical interface's default value will be set to shutdown, in order to safely integrate the logical interface into the system.

   • MSTP settings will be discarded and will revert to their defaults.

     When dissociating a LAN/SFP+ port from the logical link, the MSTP settings for the relevant port will revert to their defaults as well.

4. The following operations can be performed for the logical interface.
   • Add description text (description command)
   • Enable/disable the interface (shutdown command)
5. Another LAN/SFP+ port cannot be associated with a logical interface in operation.

   To associate a LAN/SFP+ port, make sure to shut down the logical interface before associating.

6. LAN/SFP+ ports that are associated with a logical interface that is in operation cannot be removed.

   When dissociating a LAN/SFP+ port, make sure to shut down the logical interface before dissociating.

   LAN/SFP+ ports that have been dissociated from a logical interface will be in shutdown mode. Enable the ports as necessary (using "no shutdown").

7. Load balance settings can be made on the logical interface. The rules that can be set for this are shown below.

   The default value when defining a logical interface is the destination/source MAC address.

   • Destination MAC address
   • Source MAC address
   • Destination/source MAC address
   • Destination IP address
   • Source IP address
   • Destination/source IP address
   • Destination port number
   • Source port number
   • Destination/source port number

3.2 Static link aggregation

The operating specifications for static link aggregation are shown below.

1. An interface number from 1–96 can be assigned to the static logical interface.
2. Use the static-channel-group command to associate a LAN/SFP+ port with a static logical link interface.
   • When associating a LAN/SFP+ port with an interface number for which there is no static logical interface, a new logical interface will be generated.
   • When the associated port no longer exists as a result of removing a LAN/SFP+ port from a static logical interface, the relevant logical interface will be deleted.
3. Use the show static-channel-group command to show the static logical link interface's status.

3.3 LACP link aggregation

The operating specifications for LACP link aggregation are shown below.

Refer to "3.1 Static/LACP link aggregation: common specifications" for the common specifications of static link aggregation.

1. An interface number from 1–127 can be assigned to the LACP logical interface.
2. Use the channel-group command to associate a LAN/SFP+ port with an LACP logical link interface.
   • When associating an LAN/SFP+ port, specify the following operating modes. (It is recommended to specify "active mode".)
     • Active mode

       The LACP frame will be voluntarily transmitted, and negotiation with the opposing device's port will begin.

     • Passive mode

       The LACP frame will not be voluntarily transmitted, but will instead be transmitted when a frame is received from the opposing device.

   • When associating a LAN/SFP+ port with an interface number for which there is no LACP logical interface, a new logical interface will be generated.
   • When the associated port no longer exists as a result of removing a LAN/SFP+ port from an LACP logical interface, the relevant logical interface will be deleted.
3. The parameters that influence the operations of the LACP logical interface are shown below.
   • LACP timeout

     LACP timeout indicates the down time that was determined, when an LACP frame has not been received from the opposing device.

     Specify either "Long" (90 sec.) or "Short" (3 sec.) using the lacp timeout command.

     The LACP timeout value is stored in the LACP frame and transmitted to the opposing device.

     The opposing device that received the frame will transmit the LACP frames it has stored at intervals equaling 1/3 of the LACP timeout value.

     The default value when the logical interface is generated is "Long (90 sec.)".

   • LACP system priority

     The LACP system priority is used when deciding which device will control the logical interface, when communicating with the opposing device.

     The device with the highest combined system priority exchanged with the opposing device and MAC address (together called the "system ID") is selected.

     The LAN/SFP+ port associated with the logical interface that is to be enabled (active) is determined for the selected device.

     The LACP system priority can be specified from a range of 1–65,535 by the lacp system-priority command. (Lower numbers have higher priority.)

     The default value when the logical interface is generated is set to 32,768 (0x8000).*

   • LACP port priority

     LACP port priority is used to control active/standby for the LAN/SFP+ ports that are associated with the logical interface.

     When there are more LAN/SFP+ ports associated to the logical interface than the 8-port maximum, the port status is controlled based on a combination of the LACP port priority and the port number (which is called "port ID").

     As the maximum number of LAN/SFP+ ports associated to a logical interface is currently eight, this function is disabled.

     The LACP system priority for opposing devices is transmitted at a fixed value (32,768 (0x8000)).

4. Use the show etherchannel command to show the LACP logical interface status.

4 Related Commands

The related commands are shown below.

For details on the commands, refer to the Command Reference.

List of related commands

5 Examples of Command Execution

5.1 Setting the static logical interface

In this example, we will set link aggregation to use four LAN ports, in order to communicate between switches.

Static logical interface setting example

• Static link aggregation is set to static.

  The logical interface numbers are set to switch A: #2 and switch B: #5.

• The LAN ports associated with the logical interface are all access ports, and are associated with the VLAN #1000.

1. Define [switch A] VLAN #1000, and associate it with LAN ports (#1, #2, #3, #4, #8).

   Together with this, associate LAN ports (#1, #2, #3, #4) with the logical interface #2.

   Yamaha(config)#vlan database ... (define VLAN-ID #1000)
   Yamaha(config-vlan)#vlan 1000
   Yamaha(config-vlan)#exit Yamaha(config)#interface port1.8 ... (set LAN port #8)
   Yamaha(config-if)#switchport access vlan 1000 ... (set as access port, and associate to VLAN #1000)
   Yamaha(config-if)#interface port1.1 ... (set LAN #1)
   Yamaha(config-if)#switchport access vlan 1000 ... (set as access port, and associate to VLAN #1000)
   Yamaha(config-if)#static-channel-group 2 ... (associate to logical interface #2)
   Yamaha(config-if)#interface port1.2
   Yamaha(config-if)#switchport access vlan 1000
   Yamaha(config-if)#static-channel-group 2
   Yamaha(config-if)#interface port1.3
   Yamaha(config-if)#switchport access vlan 1000
   Yamaha(config-if)#static-channel-group 2
   Yamaha(config-if)#interface port1.4
   Yamaha(config-if)#switchport access vlan 1000
   Yamaha(config-if)#static-channel-group 2

2. Confirm the setting status of [switch A] logical interface #2.

   Yamaha#show static-channel-group
   % Static Aggregator: sa2
   % Member:
      port1.1
      port1.2
      port1.3
      port1.4

3. Define [switch B] VLAN #1000, and associate it with LAN ports (#1, #2, #3, #4, #7).

   Together with this, associate LAN ports (#1, #2, #3, #4) with the logical interface #5.

   Yamaha(config)#vlan database
   Yamaha(config-vlan)#vlan 1000
   Yamaha(config-vlan)#exit
   Yamaha(config)#interface port1.7
   Yamaha(config-if)#switchport access vlan 1000
   Yamaha(config-if)#interface port1.1
   Yamaha(config-if)#switchport access vlan 1000
   Yamaha(config-if)#static-channel-group 5
   Yamaha(config-if)#interface port1.2
   Yamaha(config-if)#switchport access vlan 1000
   Yamaha(config-if)#static-channel-group 5
   Yamaha(config-if)#interface port1.3
   Yamaha(config-if)#switchport access vlan 1000
   Yamaha(config-if)#static-channel-group 5 Yamaha(config-if)#interface port1.4 Yamaha(config-if)#switchport access vlan 1000 Yamaha(config-if)#static-channel-group 5

4. Confirm the setting status of [switch B] logical interface #5.

   Yamaha#show static-channel-group
   % Static Aggregator: sa5
   % Member:
      port1.1
      port1.2
      port1.3
      port1.4


5. Enable [switch A] logical interface.

   Yamaha(config)#interface sa2 ... (set logical interface #2)
   Yamaha(config-if)#no shutdown ... (enable logical interface)

6. Enable [switch B] logical interface.

   Yamaha(config)#interface sa5 ... (set logical interface #5)
   Yamaha(config-if)#no shutdown ... (enable logical interface)

7. Confirm the setting status of [switch A] logical interface.

   Yamaha#show interface sa2
   Interface sa2
     Link is UP ... (enabled)
     Hardware is AGGREGATE
     ifIndex 4502, MRU 1522
     Vlan info :
       Switchport mode        : access
       Ingress filter         : enable
       Acceptable frame types : all
       Default Vlan           : 1000
       Configured Vlans       : 1000
     Interface counter:
       input  packets          : 1020
              bytes            : 102432
              multicast packets: 1020
       output packets          : 15
              bytes            : 1845
              multicast packets: 15
              broadcast packets: 0


8. Confirm the setting status of [switch B] logical interface.

   Yamaha#show interface sa5
   Interface sa5
     Link is UP
     Hardware is AGGREGATE
     ifIndex 4505, MRU 1522
     Vlan info :
       Switchport mode        : access
       Ingress filter         : enable
       Acceptable frame types : all
       Default Vlan           : 1000
       Configured Vlans       : 1000
     Interface counter:
       input  packets          : 24
              bytes            : 2952
              multicast packets: 24
       output packets          : 2109
              bytes            : 211698
              multicast packets: 2109
              broadcast packets: 0


5.2 Setting the LACP logical interface

In this example, we will set link aggregation to use four LAN ports, in order to communicate between switches.

LACP logical interface setting examples

• Use LACP for link aggregation.

  The logical interface numbers are set to switch A: #10 and switch B: #20.

  Set the switch A logical interface to active status, and the switch B logical interface to passive status.

• The LAN ports associated with the logical interface are all access ports, and are associated with the VLAN #1000.
• For load balance, set the destination/source IP address.

1. Define [switch A] VLAN #1000, and associate it with LAN ports (#1, #2, #3, #4, #8).

   Together with this, associate LAN ports (#1, #2, #3, #4) in active status with the logical interface #10.

   The logical interface at this point in time will be in shutdown mode.

   Yamaha(config)#vlan database
   Yamaha(config-vlan)#vlan 1000 ... (define VLAN #1000)
   Yamaha(config-vlan)#exit
   Yamaha(config)#interface port1.8
   Yamaha(config-if)#switchport access vlan 1000 ... (set as access port, and associate to VLAN #1000)
   Yamaha(config-if)#interface port1.1
   Yamaha(config-if)#switchport access vlan 1000 ... (set as access port, and associate to VLAN #1000)
   Yamaha(config-if)#channel-group 10 mode active ... (associate to logical interface #10 in active state)
   Yamaha(config-if)#interface port1.2
   Yamaha(config-if)#switchport access vlan 1000
   Yamaha(config-if)# channel-group 10 mode active
   Yamaha(config-if)#interface port1.3
   Yamaha(config-if)#switchport access vlan 1000
   Yamaha(config-if)# channel-group 10 mode active
   Yamaha(config-if)#interface port1.4
   Yamaha(config-if)#switchport access vlan 1000
   Yamaha(config-if)# channel-group 10 mode active


2. Confirm the setting status of [switch A] logical interface #10.

   Yamaha#show etherchannel
   % Lacp Aggregator: po10
   % Member:
      port1.1
      port1.2
      port1.3
      port1.4
   Yamaha#show lacp sys-id ... (confirm LACP system ID: it is set to the default value (0x8000))
   % System 8000,00-a0-de-ae-b9-1f
   Yamaha#show interface po10
   Interface po10
     Link is DOWN ... (it is in the link-down state)
     Hardware is AGGREGATE
     ifIndex 4610, MRU 1522
     Vlan info :
       Switchport mode        : access
       Ingress filter         : enable
       Acceptable frame types : all
       Default Vlan           : 1000
       Configured Vlans       : 1000
     Interface counter:
       input  packets          : 0
              bytes            : 0
              multicast packets: 0
       output packets          : 0
              bytes            : 0
              multicast packets: 0
              broadcast packets: 0


3. Define [switch B] VLAN #1000, and associate it with LAN ports (#1, #2, #3, #4, #7).

   Together with this, associate LAN ports (#1, #2, #3, #4) in passive status with the logical interface #20.

   The logical interface at this point in time will be in shutdown mode.

   Yamaha(config)#vlan database
   Yamaha(config-vlan)#vlan 1000 ... (define VLAN #1000)
   Yamaha(config-vlan)#exit
   Yamaha(config)#interface port1.7
   Yamaha(config-if)#switchport access vlan 1000 ... (set as access port, and associate to VLAN #1000)
   Yamaha(config-if)#interface port1.1
   Yamaha(config-if)#switchport access vlan 1000 ... (set as access port, and associate to VLAN #1000)
   Yamaha(config-if)#channel-group 20 mode passive ... (associate to logical interface #20 in passive state)
   Yamaha(config-if)#interface port1.2
   Yamaha(config-if)#switchport access vlan 1000
   Yamaha(config-if)# channel-group 20 mode passive
   Yamaha(config-if)#interface port1.3
   Yamaha(config-if)#switchport access vlan 1000
   Yamaha(config-if)# channel-group 20 mode passive
   Yamaha(config-if)#interface port1.4
   Yamaha(config-if)#switchport access vlan 1000
   Yamaha(config-if)# channel-group 20 mode passive


4. Confirm the setting status of [switch B] logical interface #20.

   Yamaha#show etherchannel
   % Lacp Aggregator: po20
   % Member:
      port1.1
      port1.2
      port1.3
      port1.4
   Yamaha#show lacp sys-id ... (confirm LACP system ID: it is set to the default value (0x8000))
   % System 8000,00-a0-de-ae-b8-7e
   Yamaha#show interface po20
   Interface po20
     Link is DOWN ... (it is in the link-down state)
     Hardware is AGGREGATE
     ifIndex 4620, MRU 1522
     Vlan info :
       Switchport mode        : access
       Ingress filter         : enable
       Acceptable frame types : all
       Default Vlan           : 1000
       Configured Vlans       : 1000
     Interface counter:
       input  packets          : 0
              bytes            : 0
              multicast packets: 0
       output packets          : 0
              bytes            : 0
              multicast packets: 0
              broadcast packets: 0


5. Set the load balance of [switch A] to the destination/source IP address, and enable.

   Yamaha(config)#port-channel load-labance src-dst-ip ... (set load balance)
   Yamaha(config)#interface po10 ... (set logical interface #10)
   Yamaha(config-if)#no shutdown ... (enable logical interface)

6. Set the load balance of [switch B] to the destination/source IP address, and enable.

   Yamaha(config)#port-channel load-labance src-dst-ip ... (set load balance)
   Yamaha(config)#interface po20 ... (set logical interface #20)
   Yamaha(config-if)#no shutdown ... (enable logical interface)

7. Confirm the setting status of [switch A] logical interface.

   Link up and confirm whether frames are being sent and received.

   Yamaha#show interface po10
   Interface po10
     Link is UP
     Hardware is AGGREGATE
     ifIndex 4610, MRU 1522
     Vlan info :
       Switchport mode        : access
       Ingress filter         : enable
       Acceptable frame types : all
       Default Vlan           : 1000
       Configured Vlans       : 1000
     Interface counter:
       input  packets          : 560
              bytes            : 58239
              multicast packets: 560
       output packets          : 98
              bytes            : 12474
              multicast packets: 98
              broadcast packets: 0
   Yamaha#
   Yamaha#show lacp-counter
   % Traffic statistics
   Port       LACPDUs         Marker         Pckt err
           Sent    Recv    Sent    Recv    Sent    Recv
   % Aggregator po10 , ID 4610
   port1.1      50      47      0       0       0       0
   port1.2      49      46      0       0       0       0
   port1.3      49      46      0       0       0       0
   port1.4      49      46      0       0       0       0


8. Confirm the setting status of [switch B] logical interface.

   Link up and confirm whether frames are being sent and received.

   Yamaha#show interface po20
   Interface po20
     Link is UP
     Hardware is AGGREGATE
     ifIndex 4620, MRU 1522
     Vlan info :
       Switchport mode        : access
       Ingress filter         : enable
       Acceptable frame types : all
       Default Vlan           : 1000
       Configured Vlans       : 1000
     Interface counter:
       input  packets          : 78
              bytes            : 9914
              multicast packets: 78
       output packets          : 438
              bytes            : 45604
              multicast packets: 438
              broadcast packets: 0
   Yamaha#
   Yamaha#show lacp-counter
   % Traffic statistics
   Port       LACPDUs         Marker         Pckt err
           Sent    Recv    Sent    Recv    Sent    Recv
   % Aggregator po20 , ID 4620
   port1.1      55      57      0       0       0       0
   port1.2      54      56      0       0       0       0
   port1.3      54      56      0       0       0       0
   port1.4      54      56      0       0       0       0


6 Points of Caution

• A host port that is associated with a private VLAN cannot be aggregated as a link aggregation logical interface.
• If access list settings exist for the received frame of a LAN/SFP port, the ports cannot be aggregated as a link aggregation logical interface.

7 Related Documentation

• Interface basic functions

Port authentication functions

1 Function Overview

Port authentication is a function that authenticates devices or users.

This authenticates a device connected to the LAN/SFP+ port, and permits LAN access only for devices that succeeded in authenticating.

Devices that are not yet authenticated or that failed to authenticate can be denied access to the LAN, or permitted to access only a specific VLAN.

2 Definition of Terms Used

IEEE 802.1X

The authentication standard used when connecting to the LAN.

Authenticator

A device or software that authenticates a supplicant connected to a LAN/SFP+ port.

It mediates between the supplicant and the authentication server, controlling access to the LAN according to the success or failure of authentication.

Supplicant

A device or software that connects to an authenticator and receives authentication.

Authentication server

A device or software that authenticates a supplicant that is connected via the authenticator.

This manages authentication information such as user names, passwords, MAC addresses, and associated VLANs.

EAP (Extended authentication protocol)

This is an authentication protocol that extends PPP, allowing various authentication methods to be used.

This is defined in RFC3748.

EAP over LAN (EAPOL)

This is a protocol for conveying EAP packets between the supplicant and the authenticator.

EAP over Radius

This is a protocol for conveying EAP packets between the authenticator and the authentication server (RADIUS server).

EAP-MD5 (Message digest algorithm 5)

Client authentication using user name and password.

This uses an MD5 hash value to authenticate.

EAP-TLS (Transport Layer Security)

This uses the digital certificates of the server and the client to authenticate.

With the transport layer encrypted, the digital certificates are exchanged and authenticated.

This is defined in RFC2716 and RFC5216.

EAP-TTLS (Tunneled TLS)

This is an extended version of EAP-TLS.

This uses the digital signature of the server to establish a TLS communication route, and within this encrypted communication route uses a password to authenticate the client.

This is defined in RFC5281.

EAP-PEAP (Protected EAP)

The principle of operation is equivalent to EAP-TTLS (the only difference is the protocol inside the encrypted tunnel).

This uses the digital signature of the server to establish a TLS communication route, and within this encrypted communication route uses a password to authenticate the client.

3 Function Details

The operating specifications for port authentication are shown below.

As port authentication functions, this product supports IEEE 802.1X authentication, MAC authentication, and web authentication.

The following table shows the distinctive features of each authentication method.

Port authentication method features

This product assumes a RADIUS server as the authentication server.

Note that the port authentication functionality of this product has the following limitations.

• It cannot be used on a private VLAN port.
• It cannot be used on a voice VLAN port.
• If port authentication is enabled, a spanning tree topology change will occur according to the authentication result.

  If you want to avoid this, specify "spanning-tree edgeport" for the authentication port to which the supplicant will be connected.

• The number of supplicants that can be authenticated is one for each port in single host mode or multi-host mode, and in multi-supplicant mode is a maximum of 512 for the entire system.
• Web authentication can be used only in multi-supplicant mode.
• Web authentication cannot be used together with a guest VLAN.
• The L2MS functions cannot be used if settings are made with the trunk port without a native VLAN.
• A guest VLAN cannot be used on a trunk port.
• If the following supplicant VLAN is changed by the authentication VLAN, the authentication function might not work correctly.
• DHCP server
• L2MS compatible device

3.1 IEEE 802.1X authentication

IEEE 802.1X authentication uses EAP to authenticate in units of devices or users.

The supplicant receiving authentication must support IEEE 802.1X authentication.

This product operates as an authenticator that communicates with the supplicant using EAP over LAN, and with the RADIUS server using EAP over RADIUS.

The authentication process itself occurs directly between the supplicant and the RADIUS server.

As authentication methods, this product supports EAP-MD5, EAP-TLS, EAP-TTLS, and EAP-PEAP.

The features of each authentication method are shown in the following table.

Features of each authentication method

Make settings for the supplicant and the RADIUS server as appropriate for the authentication method you use.

The basic procedure for IEEE 802.1X authentication is shown in the following diagram.

Basic procedure for IEEE 802.1X authentication

The supplicant is connected to the LAN, and transmits a communication start message (EAPOL-Start) message to start authentication.

When authentication succeeds, authentication success (Success) notification is sent to the supplicant, and the supplicant's MAC address is registered in the FDB, allowing the supplicant to access the network.

If authentication fails, an authentication failure (Failure) notification is sent to the supplicant, and network access is denied for the supplicant.

(Even without authentication, it is possible to allow access to a specific VLAN if a guest VLAN has been specified.)

3.2 MAC authentication

MAC authentication uses the MAC address of a device to authenticate an individual device.

Since the supplicant does not need special functionality to be authenticated, authentication is possible even for devices that do not support IEEE 802.1X.

The basic procedure for MAC authentication is shown in the following diagram.

When this product receives any Ethernet frame from the supplicant, it queries the RADIUS server with the supplicant's MAC address as the user name and password.

EAP-MD5 is used as the authentication mode between this product and the RADIUS server.

When authentication succeeds, the supplicant's MAC address is registered in the FDB, allowing the supplicant to access the network.

If authentication fails, the supplicant is denied network access.

(Even without authentication, it is possible to allow access to a specific VLAN if a guest VLAN has been specified.)

The supplicant's MAC address must be registered as the user name and password in the RADIUS server, in one of the following formats.

• XX-XX-XX-XX-XX-XX (hyphen delimited)
• XX:XX:XX:XX:XX:XX (colon delimited)
• XXXXXXXXXXXX (not delimited)

This product lets you use the auth-mac auth-user command to change the format of the MAC address query that is made to the RADIUS server.

Specify the appropriate command according to the format of the MAC addresses that are registered in the RADIUS server.

3.3 Web authentication

Web authentication is a function that authenticates a user when a user name and password are entered from the supplicant's web browser.

HTTP is supported as the communication method between the web browser and the switch.

Because web authentication performs authentication by communicating via HTTP, it is necessary for IP communication between this product and the supplicant to be possible even before authentication.

Either the DHCP server must assign an IP address to the supplicant, or the supplicant must specify an IP address statically.

Web authentication operates only in multi-supplicant mode.

Also, this cannot be used together with a guest VLAN.

The basic procedure for web authentication is shown in the following diagram.

This product queries the RADIUS server using the user name and password that were entered in the supplicant's web browser.

EAP-MD5 is used as the authentication mode between this product and the RADIUS server.

When authentication succeeds, the supplicant's MAC address is registered in the FDB, allowing the supplicant to access the network.

If authentication fails, the supplicant is denied network access.

3.3.1 Operations on the supplicant

When the supplicant's web browser accesses IPv4 TCP port 80, the following authentication screen appears.

To be authenticated, enter a user name and password, and click the "log in" button.

The supplicant's MAC address is registered in the FDB, allowing the supplicant to access the network.

If authentication fails three times in succession, authentication is temporarily restricted.

3.4 Using multiple authentication functions

This product lets you use IEEE802.1X authentication, MAC authentication, and web authentication together on the same port.

When multiple methods are used together, IEEE 802.1X authentication takes priority.

Web authentication can be attempted at any time as long as another of the multiple authentication methods is not currently communicating with the RADIUS server.

If multiple authentication methods are being used simultaneously, operation is as follows.

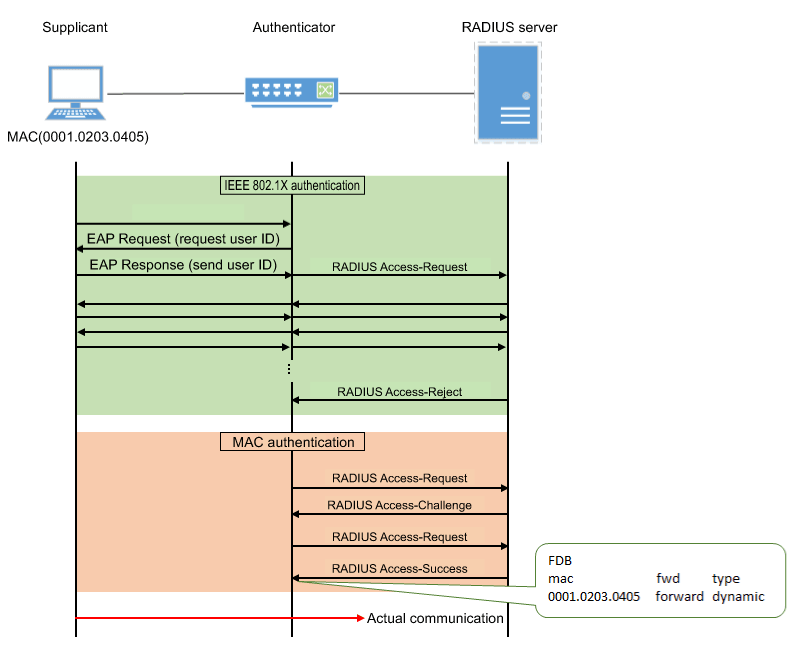

Procedure if the supplicant supports IEEE 802.1X authentication

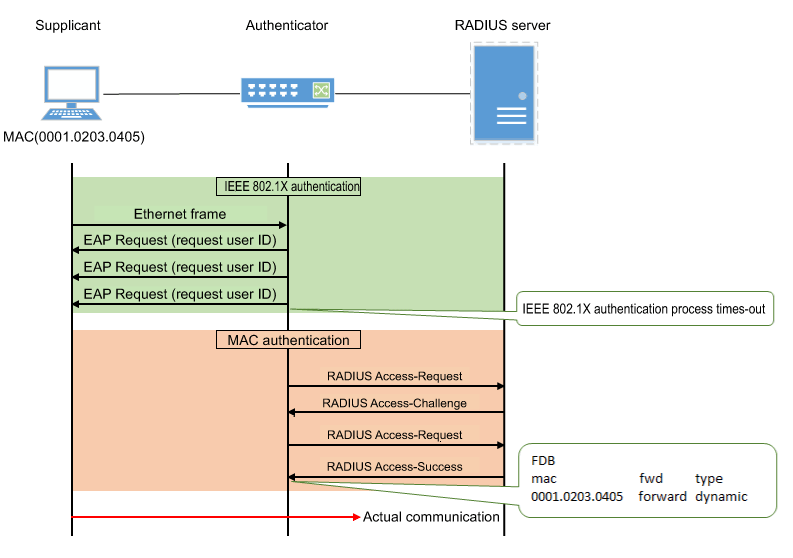

Procedure if the supplicant does not support IEEE 802.1X authentication

• If authentication succeeds with any one of the methods, authentication has succeeded.
• If the reauthentication setting is enabled, then reauthentication is performed using the method with which authentication succeeded.
• If multiple authentication methods are being used simultaneously, the forwarding control setting of an unauthenticated port will be to discard reception.
• If EAPOL start is received from an unauthenticated supplicant, operation will transition to IEEE 802.1X authentication even if authentication operation is already in progress using MAC authentication or web authentication.

• If 802.1X authentication and MAC authentication are being used simultaneously, the authentication restriction interval does not start even if 802.1X authentication fails.
• If 802.1X authentication and MAC authentication are being used simultaneously, and any Ethernet frame is received from the supplicant, an EAP Request is transmitted from this product.

• If web authentication is also being used, unauthenticated supplicants are registered in FDB as static/discard.

3.5 Host mode

This product lets you select the host mode for the port authentication function.

Host mode indicates how an applicable supplicant's communication will be permitted on the authentication port.

This product lets you choose from the following host modes.

• Single host mode

  This mode permits communication for only one supplicant for each LAN/SFP+ port.

  Communication is permitted only for the first supplicant that successfully authenticates.

• Multi-host mode

  This mode permits communication for multiple supplicants for each LAN/SFP+ port.

  When a supplicant has successfully authenticated and is permitted to communicate, other supplicants connected to the same LAN/SFP+ port are likewise permitted to communicate on the same VLAN as the successfully authenticated supplicant.

• Multi-supplicant

  This mode permits communication for multiple supplicants for each LAN/SFP+ port.

  Each supplicant is distinguished by its MAC address, permitting communication in units of supplicants.

  When using dynamic VLAN functions, you can specify the VLAN for each supplicant.

3.6 Authentication VLAN

This product supports authentication VLAN with IEEE802.1X, MAC and Web authentication.

An authentication VLAN is a function that changes the authentication port's associated VLAN according to the VLAN attributes of authentication data received from the RADIUS server.

As shown in the illustration above, if a port's associated VLAN is 1, and the received authentication data has a VLAN attribute of 10, then following successful authentication, the authentication port's associated VLAN is 10, and communication on VLAN 10 is permitted.

For the RADIUS server, make settings so that the authentication information sent from the server includes the following attribute values.

• Tunnel-Type = VLAN (13)
• Tunnel-Medium-Type = IEEE-802 (6)
• Tunnel-Private-Group-ID = VLAN ID

If an authentication VLAN is used, operation in the various host modes will be as follows.

• Single host mode

  The authentication port's associated VLAN is changed according to the VLAN attribute value of the supplicant that successfully authenticates.

• Multi-host mode

  The authentication port's associated VLAN is changed according to the VLAN attribute value of the supplicant that successfully authenticates.

  Other supplicants that are connected to the same port are also permitted to communicate on the same VLAN.

• Multi-supplicant mode

  The authentication port's associated VLAN is changed according to the VLAN attribute value of the supplicant that successfully authenticates.

  You can specify the VLAN for each supplicant.

3.7 VLAN for unauthenticated or failed-authentication ports

This product's IEEE 802.1X authentication and MAC authentication allows you to specify a guest VLAN so that unauthenticated ports or ports that failed authentication will be assigned to a specific VLAN.

In multi-supplicant mode, you can specify this for each supplicant.

This is useful when you want to provide partial functionality on a limited network even to a supplicant that has not succeeded in authenticating, as shown in the illustration above.

3.8 EAP pass-through function

You can switch between enable and disable for EAP pass-through and configure whether EAPOL frames are to be forwarded.

The authentication function will be prioritized for interfaces on which the 802.1X authentication function is enabled, and EAP pass-through will not be applied.

3.9 Attribute values notified to RADIUS server

The RADIUS server can be notified of the NAS-Identifier attribute value.

Notifies the RADIUS server of the character string set by the auth radius attribute nas-identifier command as a NAS-Identifier attribute value.

4 Related Commands

The related commands are shown below.

For details on the commands, refer to the Command Reference.

List of related commands

5 Examples of Command Execution

5.1 Set IEEE 802.1X authentication

Make settings so that IEEE 802.1X authentication can be used.

• We will use LAN port #1 as the authentication port to which the supplicant is connected.
• We will set the host mode to multi-supplicant mode.
• We will use VLAN #10 as the guest LAN.
• We will use 192.168.100.101 as the IP address of the RADIUS server that is connected.

1. Define VLAN #10 as the guest VLAN.

   Yamaha(config)#vlan database
   Yamaha(config-vlan)#vlan 10               ... (Define VLAN #10)
   Yamaha(config-vlan)#exit

2. Enable the IEEE 802.1X authentication function for the entire system.

   Yamaha(config)#aaa authentication dot1x

3. Set IEEE 802.1X authentication for LAN port #1.

   Yamaha(config)#interface port1.1
   Yamaha(config-if)#dot1x port-control auto         ... (Set IEEE 802.1X authentication operating mode to auto)
   Yamaha(config-if)#auth host-mode multi-supplicant ... (Set host mode to multi-supplicant mode)
   Yamaha(config-if)#auth guest-vlan 10              ... (Set VLAN as VLAN #10)
   Yamaha(config-if)#exit

4. Set RADIUS server settings.

   Yamaha(config)#radius-server host 192.168.100.101 key test1
                        (Set host as 192.168.100.101, and shared password "test1")

5. Check RADIUS server settings.

   Yamaha#show radius-server
   Server Host : 192.168.100.101
     Authentication Port : 1812
     Secret Key          : test1
     Timeout             : 5 sec
     Retransmit Count    : 3
     Deadtime            : 0 min


6. Check port authentication settings.

   Yamaha#show auth status
   [System information]
     802.1X Port-Based Authentication : Enabled
     MAC-Based Authentication         : Disabled
     WEB-Based Authentication         : Disabled

     Clear-state time : Not configured

     Redirect URL :
       Not configured

     RADIUS server address :
       192.168.100.101 (port:1812)

   [Interface information]
     Interface port1.1 (up)
       802.1X Authentication   : Force Authorized (configured:auto)
       MAC Authentication      : Disabled (configured:disable)
       WEB Authentication      : Enabled (configured:disable)
       Host mode               : Multi-supplicant
       Dynamic VLAN creation   : Disabled
       Guest VLAN              : Enabled (VLAN ID:10)
       Reauthentication        : Disabled
       Reauthentication period : 3600 sec
       MAX request             : 2 times
       Supplicant timeout      : 30 sec
       Server timeout          : 30 sec
       Quiet period            : 60 sec
       Controlled directions   : In (configured:both)
       Protocol version        : 2
       Clear-state time        : Not configured


5.2 Set MAC authentication

Make settings so that MAC authentication can be used.

• We will use LAN port #1 as the authentication port to which the supplicant is connected.
• We will set the host mode to multi-supplicant mode.
• We will use 192.168.100.101 as the IP address of the RADIUS server that is connected.

1. Enable the MAC authentication function for the entire system.

   Yamaha(config)#aaa authentication auth-mac

2. Set MAC authentication for LAN port #1.

   Yamaha(config)#interface port1.1
   Yamaha(config-if)#auth-mac enable                  ... (Enable MAC authentication)
   Yamaha(config-if)#auth host-mode multi-supplicant  ... (Set host mode to multi-supplicant mode)
   Yamaha(config-if)#exit

3. Set RADIUS server settings.

   Yamaha(config)#radius-server host 192.168.100.101 key test1
                        (Set host as 192.168.100.101, and shared password "test1")

4. Check RADIUS server settings.

   Yamaha#show radius-server
   Server Host : 192.168.100.101
     Authentication Port : 1812
     Secret Key          : test1
     Timeout             : 5 sec
     Retransmit Count    : 3
     Deadtime            : 0 min


5. Check port authentication settings.

   Yamaha#show auth status
   [System information]
     802.1X Port-Based Authentication : Disabled
     MAC-Based Authentication         : Enabled
     WEB-Based Authentication         : Disabled

     Clear-state time : Not configured

     Redirect URL :
       Not configured

     RADIUS server address :
       192.168.100.101 (port:1812)

   [Interface information]
     Interface port1.1 (up)
       802.1X Authentication   : Force Authorized (configured:-)
       MAC Authentication      : Enabled (configured:enable)
       WEB Authentication      : Disabled (configured:disable)
       Host mode               : Multi-supplicant
       Dynamic VLAN creation   : Disabled
       Guest VLAN              : Disabled
       Reauthentication        : Disabled
       Reauthentication period : 3600 sec
       MAX request             : 2 times
       Supplicant timeout      : 30 sec
       Server timeout          : 30 sec
       Quiet period            : 60 sec
       Controlled directions   : In (configured:both)
       Protocol version        : 2
       Clear-state time        : Not configured
       Authentication status   : Unauthorized


5.3 Set web authentication

Make settings so that web authentication can be used.

• We will use LAN port #1 as the authentication port to which the supplicant is connected.
• We will assume that 192.168.100.10 the IP address of the supplicant.
• We will use 192.168.100.101 as the IP address of the RADIUS server that is connected.

1. Assign an IP address to the authenticator for IP communication.

   Yamaha(config)#interface valn1
   Yamaha(config-if)#ip address 192.168.100.240/24
   Yamaha(config-if)#exit

2. Enable the web authentication function for the entire system.

   Yamaha(config)#aaa authentication auth-web

3. Set web authentication for LAN port #1.

   Yamaha(config)#interface port1.1
   Yamaha(config-if)#auth host-mode multi-supplicant     ... (Set host mode to multi-supplicant mode)
   Yamaha(config-if)#auth-web enable                     ... (Enable web authentication)
   Yamaha(config-if)#exit

4. Set RADIUS server settings.

   Yamaha(config)#radius-server host 192.168.100.101 key test1
                        (Set host as 192.168.100.101, and shared password "test1")

5. Check RADIUS server settings.

   Yamaha#show radius-server
   Server Host : 192.168.100.101
     Authentication Port : 1812
     Secret Key          : test1
     Timeout             : 5 sec
     Retransmit Count    : 3
     Deadtime            : 0 min


6. Check port authentication settings.

   Yamaha#show auth status
   [System information]
     802.1X Port-Based Authentication : Disabled
     MAC-Based Authentication         : Disabled
     WEB-Based Authentication         : Enabled

     Clear-state time : Not configured

     Redirect URL :
       Not configured

     RADIUS server address :
       192.168.100.101 (port:1812)

   [Interface information]
     Interface port1.1 (up)
       802.1X Authentication   : Force Authorized (configured:-)
       MAC Authentication      : Disabled (configured:disable)
       WEB Authentication      : Enabled (configured:enable)
       Host mode               : Multi-supplicant
       Dynamic VLAN creation   : Disabled
       Guest VLAN              : Disabled
       Reauthentication        : Disabled
       Reauthentication period : 3600 sec
       MAX request             : 2 times
       Supplicant timeout      : 30 sec
       Server timeout          : 30 sec
       Quiet period            : 60 sec
       Controlled directions   : In (configured:both)
       Protocol version        : 2
       Clear-state time        : Not configured


6 Points of Caution

Using dynamic VLAN or guest VLAN in multi-supplicant mode will consume internal resources.

These resources are also used by the ACL and QoS functions. There may not be enough resources according to the settings.

Use caution, since communications may not be possible if there are not enough resources, even though authentication might succeed.

7 Related Documentation

None

Port security functions

1 Function Overview

Port security is a function that limits communication to only permitted terminals, preventing access from illegal terminals.

2 Definition of Terms Used

None

3 Function Details

For ports for which the port security function is enabled, you can in advance register the MAC address of terminals that you want to allow to communicate, thereby allowing only the permitted terminals to communicate.

Conversely, if there is access from a terminal that is not registered (an illegal terminal), this is considered illegal access, and the packets are discarded.

Depending on the settings, the corresponding port can also be shut down.

The port security function cannot be used simultaneously with the port authentication function.

3.1 Limiting the terminals that can access

To limit the terminals that can access the port, simply enable the port security function and use the port-security mac-address command to register the MAC address of a terminal for which you want to allow communication.

4 Related Commands

The related commands are shown below.

For details on the commands, refer to the Command Reference.

List of related commands

5 Examples of Command Execution

5.1 Limiting the terminals that can access

Manually specify the MAC address so that only the permitted terminal can communicate.

1. Enable port security on LAN port #1.

   Yamaha(config)#interface port1.1
   Yamaha(config-if)#port-security enable

2. Register the MAC address that you want to permit.

   Yamaha(config)#port-security mac-address 00A0.DE00.0001 forward port1.1 vlan 1
   Yamaha(config)#port-security mac-address 00A0.DE00.0002 forward port1.1 vlan 1

3. Check the port security status.

   Yamaha#show port-security status
    Port      Security  Action     Status    Last violation
    --------- --------- ---------- --------- ---------------------
    port1.1   Enabled   Discard    Normal    00A0.DE00.0003
    port1.2   Disabled  Discard    Normal
    port1.3   Disabled  Discard    Normal
    port1.4   Disabled  Discard    Normal
    port1.5   Disabled  Discard    Normal
    port1.6   Disabled  Discard    Normal
    port1.7   Disabled  Discard    Normal
    port1.8   Disabled  Discard    Normal
    port1.9   Disabled  Discard    Normal
    port1.10  Disabled  Discard    Normal


6 Points of Caution

• Use the no shutdown command to restore a port that has been shut down due to detection of unauthorized access.
  The status of the show port-security status command does not return to the Normal state until the port links up (it remains in the Shutdown state).
• If an incorrect port is specified with the port-security mac-address command, communication and violation frame detection will not be performed correctly.

7 Related Documentation

None

Layer 2 functions

• FDB
• VLAN
• Multiple VLAN
• Spanning tree
• Proprietary loop detection

FDB

1 Function Overview

The Forwarding Database (subsequently referred to as the FDB) manages the combination of destination MAC addresses, transmission ports, and VLANs.

This product uses the FDB to determine the forwarding destination port for the received frames.

1. Enable/disable acquisition function
2. Timeout adjustment for FDB entries acquired
3. Timeout clear for FDB entries acquired
4. Manual registration of FDB entries (static entries)

2 Definition of Terms Used

FDB

Abbreviation of "Forwarding Database."

This database manages the combination of destination MAC address, transmission port, and VLAN.

FDB entry

This is data registered in the FDB, and consists of multiple elements.

3 Function Details

3.1 FDB entry

On this product, the contents listed in the table below are registered as a single entry in the FDB.

3.1.1 MAC address

This is one of the FDB key items; the VLAN-ID and MAC address are combined to become the record key.

Operation differs depending on whether the MAC address is unicast or multicast.

• Unicast

  Since the forwarding destination interface ID must be uniquely determined for a given record key, duplication is not allowed.

  (Multiple combinations of the same VLAN-ID and MAC address do not exist.)

• Multicast

  Multiple forwarding destination interface IDs may exist for a given key record.

  In this case, frames are sent to multiple forwarding destination interface IDs.

Up to 16,384 addresses (described later*) can be registered on this product, including entries registered via automatic acquisition and manual registration.

The MAC addresses of all received frames can be acquired, and the source MAC address is acquired and registered in the FDB.

(However, if the transmission source MAC address is multicast, this is considered an invalid frame and is discarded without being registered.)

Automatically acquired MAC address information is maintained until the ageing timeout.

If multiple multicast MAC addresses are specified, all are considered as one in this case.

VLAN  port    mac             fwd      type    timeout
   1  port1.1 0100.0000.1000  forward  static       0
   1  port1.2 0100.0000.1000  forward  static       0
   1  port1.3 0100.0000.1000  forward  static       0
   1  port1.4 0100.0000.1000  forward  static       0
   1  port1.5 0100.0000.1000  forward  static       0
   1  port1.6 0100.0000.1000  forward  static       0

3.1.2 VLAN-ID

MAC address acquisition is done per VLAN, and the MAC address and VLAN are managed in the FBD as a pair.

For different VLANs, identical MAC addresses are also acquired.

3.1.3 Forwarding destination interface ID

The following IDs are registered.

• LAN/SFP+ port (port)
• Static/LACP logical interface (sa,po)

3.1.4 Action

This defines the action for a received frame that matches a key record.

If the MAC address is unicast, the actions are as follows.

• forward ... Forward to the forwarding destination interface ID.
• discard ... Discard without forwarding.

If the MAC address is multicast, the actions are as follows.

• forward ... Forward to the forwarding destination interface ID.
• discard ... Cannot be specified.

  (The discard setting cannot be made if the MAC address is multicast.)

3.1.5 Registration types

• dynamic ... Registered and deleted automatically. The registration result does not remain in the config settings file.
• static ... Registered and deleted manually, and therefore remains in the config settings file.
• multicast ... Automatically registered and deleted by the IGMP/MLD snooping function. The registration result does not remain in the config settings file.

3.2 Automatic MAC address acquisition

Automatic MAC address acquisition refers to the active creation of FBD entries based on the information for the source MAC address of the received frame, and the reception port.

Entries registered through automatic acquisition are called "dynamic entries".

A timer (ageing time) is used to monitor individual entries.

Entries for MAC addresses that have not received frames within a certain amount of time will be deleted from the FDB (see below*).

This prevents invalid device entries from being left over in the FDB due to power shutoff, being moved and so on.

If a frame is received within the specified amount of time, the monitoring timer will be reset.

The control specifications for automatic acquisition are shown below.

1. Automatic MAC address acquisition can be enabled or disabled using the mac-address-table learning command.

   The setting is enabled by default.

2. If automatic acquisition is changed from enabled to disabled, all dynamic entries that have been learned will be deleted.

   The acquisition function "disable" setting is useful when you want to flood all ports with all received frames.

3. The ageing time for dynamic entries can be adjusted by specifying a value from 10–400 seconds, using the mac-address-table ageing-time command.

   This value is set to 300 seconds by default.

4. Clear the dynamic entries that have been acquired by using the clear mac-address-table dynamic command.

   The entire contents of the FDB can be cleared at once; or a VLAN number can be specified and all MAC addresses acquired by that VLAN can be cleared from the FDB.

   Specifying the port number will clear all MAC addresses from the FDB that were acquired from that port.

5. Use the show mac-address-table command to check the automatic acquisition status.

• With the ageing time as "T," it is the time from "T" seconds that does not exceed 2*T seconds.

3.3 Setting MAC addresses manually

In addition to automatic acquisition using received frames, MAC addresses can be set on this product by using user commands.

Entries that have been registered by using commands are called "static entries".

The specifications for manual settings are shown below.

1. Use the mac-address-table static command to register static entries.
2. When registering static entries, dynamic acquisition will not be performed on the corresponding MAC addresses.

   Entries that have already been acquired will be deleted from the FDB, and will be registered as static entries.

3. Use the no mac-address-table static command to delete static entries.
4. Either "forward" or "discard" can be specified for the destination MAC address of a received frame.
   • When forwarding is specified, either the LAN/SFP+ port forwarding destination or the static/LACP logical interface can be specified.
   • When discarding is specified, frames received by the MAC address will not be forwarded to any port, and will be discarded.
5. If registering a multicast MAC address, you cannot specify "discard."

   Also, MAC addresses cannot be registered.

   • 0000.0000.0000
   • 0100.5e00.0000–0100.5eff.ffff
   • 0180.c200.0000–0180.c200.000f
   • 0180.c200.0020–0180.c200.002f
   • 3333.0000.0000–3333.ffff.ffff
   • ffff.ffff.ffff

4 Related Commands

4.1 List of related commands

5 Examples of Command Execution

5.1 Referring to the FDB

Yamaha#show mac-address-table
VLAN  port     mac             fwd      type     timeout
   1  port1.2  00a0.de11.2233  forward  static        0
   1  port1.1  1803.731e.8c2b  forward  dynamic     300
   1  port1.1  782b.cbcb.218d  forward  dynamic     300

5.2 Deleting a dynamic entry

Deleting an FDB entry registered in the FBD (MAC address 00:a0:de:11:22:33)

Yamaha#clear mac-address-table dynamic address 00a0.de11.2233

5.3 Changing the dynamic entry ageing time

This example shows how to change the dynamic entry ageing time to 400 seconds.

Yamaha(config)#mac-address-table ageing-time 400

5.4 Registering a static entry

This example shows how frames addressed to a device associated with VLAN #10 (MAC address 00:a0:de:11:22:33) can be forwarded to LAN port 2 (port1.2).

Yamaha(config)#mac-address-table static 00a0.de11.2233 forward port1.2 vlan 10

This example shows how to discard the frames sent to a device associated with VLAN #10 (MAC address 00:a0:de:11:22:33).

Specifying the interface name ("port1.2" in the example) will have no effect on operations. Since this cannot be omitted, specify the LAN/SFP+ port.

Yamaha(config)#mac-address-table static 00a0.de11.2233 discard port1.2 vlan 10

5.5 Deleting a static entry

This example shows how to delete the forwarding settings sent to a device associated with VLAN #10 (MAC address 00:a0:de:11:22:33).

Yamaha(config)#no mac-address-table static 00a0.de11.2233 forward port1.2 vlan 10

6 Points of Caution

If the l2-unknown-mcast command is set to discard unknown multicast frames, there is no effect even if the ac-address-table static command is registered to forward the multicast MAC address statically.

7 Related Documentation

None

VLAN

1 Function Overview

VLAN (Virtual LAN) is technology that allows a LAN to be constructed virtually, without regard to the physical structure of connections.

This product lets you use VLANs to divide the LAN into multiple broadcast domains.

The VLANs that are supported by this product are shown below.

Supported VLAN types

2 Definition of Terms Used

Broadcast domain

This is a range in which broadcast frames can be delivered in a network, such as an Ethernet.

Devices that are connected by relaying a data link layer (MAC layer), such as switches, can belong to the same broadcast domain.

A broadcast domain generally refers to the network in an Ethernet.

3 Function Details

3.1 Defining a VLAN ID

On product, a maximum of 255 VLANs can be defined, with VLAN IDs ranging from 2–4094. (ID #1 is used as the default VLAN ID.)

VLAN IDs are defined using the vlancommand, after the vlan database command is used to enter VLAN mode.

For details, refer to the Command Reference.

3.2 VLAN settings for the LAN/SFP+ ports

The following settings must be configured after defining the VLANs to use, in order to make use of VLAN on this product.

• LAN/SFP+ port mode settings
• VLAN associations for LAN/SFP+ ports

1. The LAN/SFP+ ports on this product are set to one of the following modes.
   • Access port

     This is a port that handles untagged frames. It can be associated with one VLAN.

   • Trunk port

     This is a port that handles both tagged and untagged frames.

     It can be associated with multiple VLANs, and is mainly used to connect switches to one another.

     This product only supports IEEE 802.1Q. (Cisco ISL is not supported.)

2. Use the switchport mode command to set the LAN/SFP+ port mode.

   When setting the trunk port, use the input filter ("ingress-filter") to control whether frames not belonging to the specified VLAN ID will be handled.

   • Input filter enabled: only frames set to the specified VLAN ID will be handled.
   • Input filter disabled: all VLAN IDs will be handled.
3. Use the show interface switchport command to check the LAN/SFP+ port setting mode.
4. Use the switchport access vlan command to set which VLANs belong to the access port.
5. Use the switchport trunk allowed vlan command to set which VLANs belong to the trunk port.

   As the trunk port can be associated with multiple VLANs, use the "all", "none", "except", "add" and "remove" settings as shown below.

   • add

     Adds the specified VLAN ID.

     VLAN IDs that can be added are limited by the IDs that are defined by the VLAN mode.

   • remove

     Deletes the specified VLAN ID.

   • all

     Adds all VLAN IDs specified by the VLAN mode.

     The VLAN IDs added by the VLAN mode can also be added after this command is executed.

   • none

     The trunk port will not be associated with any VLAN.

   • except

     Adds all other VLAN IDs except for the ones specified.

     The VLAN IDs added by the VLAN mode can also be added after this command is executed.

6. A VLAN that uses untagged frames (native VLAN) can be specified for the trunk port.
7. Tagged audio frames can be transferred by specifying a voice VLAN for an access port.
8. Use the show vlan command to check which VLANs belong to a LAN/SFP+ port.

3.3 VLAN access control

This product provides an VLAN access map function, to control access to the VLAN.

The VLAN access map can be associated with a standard/extended IP access control list and a MAC address control list as VLAN ID filtering parameters.

The VLAN access map is operated using the commands shown below.

• Create VLAN access map: vlan access-map command
• Set VLAN access map parameters: match access-list command
• Assign VLAN access map: vlan filter command
• Show VLAN access map: show vlan access-map command

3.4 Default VLAN

The default VLAN is VLAN #1 (vlan1), which exists in this switch by default.

As the default VLAN is a special VLAN, it always exists and cannot be deleted.

The following operations can be used to automatically delete the relevant port from the default VLAN.

• Setting the VLAN for an access port
• Setting any VLAN other than the default as the native VLAN for the trunk port
• Setting the native VLAN for the trunk port to "none"

3.5 Native VLAN

A native VLAN is a VLAN that associates untagged frames received by the LAN/SFP+ port that was set as a trunk port.

Defining a LAN/SFP+ port as a trunk port will set the default VLAN (VLAN #1) as the native VLAN.

Use the switchport trunk native vlan command when specifying a certain VLAN as the native VLAN.

The native LAN can be set to none, when setting the relevant LAN/SFP+ port to not handle untagged frames. (Specify "none" in the switchport trunk native vlan command.)

3.6 Private VLAN

This product can configure a private VLAN for further dividing up groups that can communicate within the same subnet.

The operating specifications are shown below.

1. A private VLAN contains the following three VLAN types.
   • Primary VLAN

     This is the parent VLAN of the secondary VLAN.

     Only one primary VLAN can be set per private VLAN.

   • Isolated VLAN

     This is a kind of secondary VLAN, which only sends traffic to a primary VLAN.

     Only one primary VLAN can be set per private VLAN.

   • Community VLAN

     This is a kind of secondary VLAN, which only sends traffic to VLANs in the same community and to a primary VLAN.

     Multiple community VLANs can be set for each private VLAN.

2. A primary VLAN may contain multiple promiscuous ports.

   Access ports, trunk ports, or static/LACP logical interfaces are the ports that can be used as promiscuous ports.

3. Only access ports can be used as host ports for a secondary VLAN (isolated VLAN, community VLAN).
4. A secondary VLAN (isolated VLAN, community VLAN) can be associated with one primary VLAN.

   Use the switchport private-vlan mapping command to create the association.

   • An isolated VLAN can be associated with multiple promiscuous ports contained within a private VLAN.
   • A community VLAN can be associated with multiple promiscuous ports contained within a private VLAN.

3.7 Voice VLAN

Voice VLAN is a function that can prevent audio from being adversely affected even when IP phone voice traffic is mixed with PC data traffic.

Some IP phones have two ports: a port for connection to the switch and a port for connection to the PC.

By connecting the switch to the IP phone, and the IP phone to the PC, it is possible to use one port of the switch to handle the IP phone audio traffic and the PC's data traffic.

Using the voice VLAN function in this type of configuration allows the audio data and the PC data to be separated so that noise is less likely to occur on the IP phone, or to handle the audio data with a higher priority.

Use the switchport voice vlan command to make voice LAN settings.

Make settings so that one of the following is handled as voice traffic.

• Frames with the 802.1p tag
• Priority tagged frames (VLAN ID of 0, and a 802.1p tag that specifies only the CoS value)
• Untagged frames

When handling tagged frames as voice traffic, untagged frames are handled as data traffic.

By using LLDP, this product can automatically apply settings to a connected IP phone.

Conditions for automatic settings are as follows.

• LLDP-MED TLV transmission is enabled on the port for which voice VLAN is enabled.
• The IP phone to be connected supports settings via LLDP-MED.

If the above conditions are satisfied, voice VLAN information (tagged/untagged, VLAN ID, CoS value to be used, DSCP value) is notified via the LLDP-MED Network Policy TLV when an IP phone is connected to the corresponding port.

The IP phone will be able to transmit voice data in accordance with the information that was provided to it by this product.

The CoS value to be specified for the IP phone is set by the switchport voice cos command, and the DSCP value is set by the switchport voice dscp command.

In order to prioritize audio traffic handling, you must make QoS settings (enable QoS and set the trust mode) as appropriate for the settings of the IP phone.

Limitations for a voice VLAN are as follows.

• It can be used only for a physical interface that is specified as an access port.

  It cannot be used with a link aggregated logical interface or a VLAN logical interface.

• The voice VLAN function cannot be used together with the port authentication function.

4 Related Commands

4.1 List of related commands

• The related commands are shown below.

  Operations	Operating commands
  Enter VLAN mode	vlan database
  Define VLAN interface, or change a predefined VLAN	vlan
  Define a private VLAN	private-vlan
  Set the secondary VLAN for a private VLAN	private-vlan association
  Create VLAN access map	vlan access-map
  Set VLAN access map parameters	match
  Assign VLAN access map to VLAN	vlan filter
  Set access port (untagged port)	switchport mode access
  Set associated VLAN of an access port (untagged port)	switchport access vlan
  Set trunk port (tagged port)	switchport mode trunk
  Set associated VLAN for trunk port (tagged port)	switchport trunk allowed vlan
  Set native VLAN for trunk port (tagged port)	switchport trunk native vlan
  Set ports for private VLAN (promiscuous port, host port)	switchport mode private-vlan
  Configure VLAN for private VLAN port and host port	switchport private-vlan host-association
  Configure VLAN for private VLAN port and promiscuous port	switchport private-vlan mapping
  Configure voice VLAN	switchport voice vlan
  Set CoS value for voice VLAN	switchport voice cos
  Set DSCP value for voice VLAN	switchport voice dscp
  Show VLAN information	show vlan
  Show private VLAN information	show vlan private-vlan
  Show VLAN access map	show vlan access-map
  Show VLAN access map filter	show vlan filter

5 Examples of Command Execution

5.1 Port-based VLAN settings

In this example, a port-based VLAN is configured for this product in order to allow communication between hosts A–B and hosts C–D.

Port VLAN setting example

The LAN port settings for this product are as follows.

• Set LAN ports #1/#2 as access ports, and associate them with VLAN #1000.
• Set LAN ports #3/#4 as access ports, and associate them with VLAN #2000.

1. Move to VLAN mode using the vlan database command, and define two VLANs using the vlan command.

   Yamaha(config)# vlan database … (Move to VLAN mode)
   Yamaha(config-vlan)# vlan 1000 … (Create VLAN #1000)
   Yamaha(config-vlan)# vlan 2000 … (Create VLAN #2000)
   Yamaha(config-if)# exit

2. Set LAN ports #1–2 as access ports, and associate them with VLAN #1000.

   Yamaha(config)# interface port1.1-2 … (Move to interface mode)
   Yamaha(config-if)# switchport mode access … (Set as an access port)
   Yamaha(config-if)# switchport access vlan 1000 … (Set VLAN ID)
   Yamaha(config-if)# exit

3. Set LAN ports #3–4 as access ports, and associate them with VLAN #2000.

   Yamaha(config)# interface port1.3-4
   Yamaha(config-if)# switchport mode access
   Yamaha(config-if)# switchport access vlan 2000
   Yamaha(config-if)# exit

4. Confirm the VLAN settings.

   Yamaha#show vlan brief
   (u)-Untagged, (t)-Tagged
   VLAN ID  Name            State   Member ports
   ======= ================ ======= ===============================
   1       default          ACTIVE  port1.5(u) port1.6(u)
                                    port1.7(u) port1.8(u)
   1000    VLAN1000         ACTIVE  port1.1(u) port1.2(u)
   2000    VLAN2000         ACTIVE  port1.3(u) port1.4(u)


5.2 Tagged VLAN settings

In this example, a tagged VLAN is configured between #A and #B of this product, in order to communicate between hosts A–B and hosts C–D.

Tagged VLAN setting example

The LAN port settings for #A and #B of this product are as follows.

• Set LAN port #1 as an access port, and associate it with VLAN #1000
• Set LAN port #2 as an access port, and associate it with VLAN #2000
• Set LAN port #3 as a trunk port, and associate it with LAN #1000 and VLAN #2000

1. [Switch #A/#B] Define VLAN.

   Yamaha(config)#vlan database … (Move to vlan mode)
   Yamaha(config-vlan)#vlan 1000 … (Define vlan1000)
   Yamaha(config-vlan)#vlan 2000 … (Define vlan2000)

2. [Switch #A/#B] Set LAN port #1 as the access port, and associate it with VLAN #1000.

   Yamaha(config)#interface port1.1 … (Move to interface mode)
   Yamaha(config-if)#switchport mode access … (Set as an access port)
   Yamaha(config-if)#switchport access vlan 1000 … (Associate to vlan1000)
   Yamaha(config-if)#exit

3. [Switch #A/#B] Set LAN port #2 as the access port, and associate it with VLAN #2000.

   Yamaha(config)#interface port1.2 … (Move to interface mode)
   Yamaha(config-if)#switchport mode access … (Set as an access port)
   Yamaha(config-if)#switchport access vlan 2000 … (Associate to vlan2000)
   Yamaha(config-if)#exit

4. [Switch #B] Set LAN port #3 as a trunk port, and associate it with VLAN #1000/#2000.

   Yamaha(config)#interface port1.3 … (Move to interface mode)
   Yamaha(config-if)#switchport mode trunk … (Set as a trunk port)
   Yamaha(config-if)#switchport trunk allowed vlan add 1000 … (Add vlan1000)
   Yamaha(config-if)#switchport trunk allowed vlan add 2000 … (Add vlan2000)
   Yamaha(config-if)#exit

5. Confirm the VLAN settings.

   Yamaha#show vlan brief
   (u)-Untagged, (t)-Tagged

   VLAN ID  Name                            State   Member ports
   ======= ================================ ======= ======================
   1       default                          ACTIVE  port1.3(u)
   1000    VLAN1000                         ACTIVE  port1.1(u) port1.3(t)
   2000    VLAN2000                         ACTIVE  port1.2(u) port1.3(t)


5.3 Private VLAN settings

This example makes private VLAN settings for this product, to achieve the following.

Hosts connected to ports 1–7 will connect to the Internet and other external lines, through the line to which port 8 is connected

Communications between hosts connected to ports 1–4 are blocked (isolated VLAN: VLAN #21)

Communications between hosts connected to ports 5–7 are permitted (community VLAN: VLAN #22)

Communications between hosts connected to ports 1–4 and ports 5–7 are blocked

Private VLAN setting example

1. Define the VLAN ID to be used for the private VLAN.

   Yamaha(config)# vlan database … (Move to vlan)
   Yamaha(config-vlan)# vlan 2 … (Create VLAN)
   Yamaha(config-vlan)# vlan 21
   Yamaha(config-vlan)# vlan 22
   Yamaha(config-vlan)# private-vlan 2 primary … (Primary VLAN setting)
   Yamaha(config-vlan)# private-vlan 21 isolated … (Isolated VLAN setting)
   Yamaha(config-vlan)# private-vlan 22 community … (Community VLAN setting)
   Yamaha(config-vlan)# private-vlan 2 association add 21 … (Associate with Primary VLAN)
   Yamaha(config-vlan)# private-vlan 2 association add 22
   Yamaha(config-vlan)# exit

2. Configure the isolated VLAN (VLAN #21) for LAN ports 1–4.

   Yamaha(config)#interface port1.1-4 … (Move to interface mode)
   Yamaha(config-if)#switchport mode access … (Set as an access port)
   Yamaha(config-if)#switchport access vlan 21 .. (Associate to VLAN #21)
   Yamaha(config-if)#switchport mode private-vlan host … (Set as host port of private VLAN)
   Yamaha(config-if)#switchport private-vlan host-association 2 add 21
   Yamaha(config-if)#exit

3. Configure the community VLAN (VLAN #22) for LAN ports 5–7.

   Yamaha(config)#interface port1.5-7 … (Move to interface mode)
   Yamaha(config-if)#switchport mode access … (Set as an access port)
   Yamaha(config-if)#switchport access vlan 22 … (Associate to VLAN #22)
   Yamaha(config-if)#switchport mode private-vlan host … (Set as host port of private VLAN)
   Yamaha(config-if)#switchport private-vlan host-association 2 add 22
   Yamaha(config-if)#exit

4. Configure the primary VLAN (VLAN #2) for LAN port 8. (Promiscuous port)

   Yamaha(config)#interface port1.8 … (Move to interface mode)
   Yamaha(config-if)#switchport mode access … (Set as an access port)
   Yamaha(config-if)#switchport access vlan 2 … (Associate to VLAN #2)
   Yamaha(config-if)#switchport mode private-vlan promiscuous … (Set as promiscuous port of private VLAN)
   Yamaha(config-if)#switchport private-vlan mapping 2 add 21
   Yamaha(config-if)#switchport private-vlan mapping 2 add 22
   Yamaha(config-if)#exit

5. Confirm the VLAN settings.

   Yamaha#show vlan brief
   (u)-Untagged, (t)-Tagged

   VLAN ID  Name                            State   Member ports
   ======= ================================ ======= ======================
   1       default                          ACTIVE
   2       VLAN0002                         ACTIVE  port1.8(u)
   21      VLAN0021                         ACTIVE  port1.1(u) port1.2(u)
                                                    port1.3(u) port1.4(u)
   22      VLAN0022                         ACTIVE  port1.5(u) port1.6(u)
                                                    port1.7(u)

   Yamaha#show vlan private-vlan
    PRIMARY        SECONDARY          TYPE          INTERFACES
    -------        ---------       ----------      ----------
          2              21          isolated       port1.1 port1.2
                                                    port1.3 port1.4
          2              22         community       port1.5 port1.6
                                                    port1.7


5.4 Voice VLAN settings

This example makes voice VLAN settings for this product, to achieve the following.

Connect an IP phone to port 1. Connect a PC to the other LAN port of the IP phone.

Using LLDP-MED, make the following settings from this product for the IP phone.

• As the voice traffic of the IP phone, transmit and receive 802.1q tagged frames of VLAN #2.
• Data communication of the PC transmits and receives untagged frames.
• When transmitting voice traffic, use a CoS value of 6.

1. Define the VLAN ID to be used for the voice VLAN.

   Yamaha(config)# vlan database … (Move to vlan mode)
   Yamaha(config-vlan)# vlan 2 … (Create VLAN)
   Yamaha(config-vlan)# exit

2. Configure the voice VLAN for LAN port #1.

   Yamaha(config)#interface port1.1 … (Move to interface mode)
   Yamaha(config-if)#switchport mode access … (Set as access port)
   Yamaha(config-if)#switchport voice vlan 2 … (Set voice traffic as tagged frames of VLAN #2)
   Yamaha(config-if)#switchport voice cos 6 … (Set voice traffic to a CoS value of 6)
   Yamaha(config-if)#exit

3. Set the QoS for LAN port #1.

   Yamaha(config)#qos enable … (Enable QoS)
   Yamaha(config)#interface port1.1 … (Move to interface mode)
   Yamaha(config-if)#qos trust cos ... (Set trust mode to CoS)
   Yamaha(config-if)#exit

4. Set LLDP-MED transmission and reception for LAN port #1.

   Yamaha(config)#interface port1.1 … (Move to interface mode)
   Yamaha(config-if)#lldp-agent ... (Create LLDP agent, transition modes)
   Yamaha(lldp-agent)#tlv-select med ... (Set LLDP-MED TLV)
   Yamaha(lldp-agent)#set lldp enable txrx ... (Set LLDP transmission/reception mode)
   Yamaha(lldp-agent)#exit
   Yamaha(config-if)#exit
   Yamaha(config)#lldp run … (Enable LLDP function)
   Yamaha(config)#exit

6 Points of Caution

A host port that is associated with a private VLAN cannot be aggregated as a link aggregation logical interface; this limitation is specific to host ports.

7 Related Documentation

• Multiple VLAN

Multiple VLAN

1 Function Overview

On a multiple VLAN, by associating a port with a multiple VLAN group, you can block traffic from ports that do not belong to the same multiple VLAN group.

You can also join a single port to multiple VLAN groups.

By using this function, it is easy to handle requests to block only traffic between terminals, such as the example below.

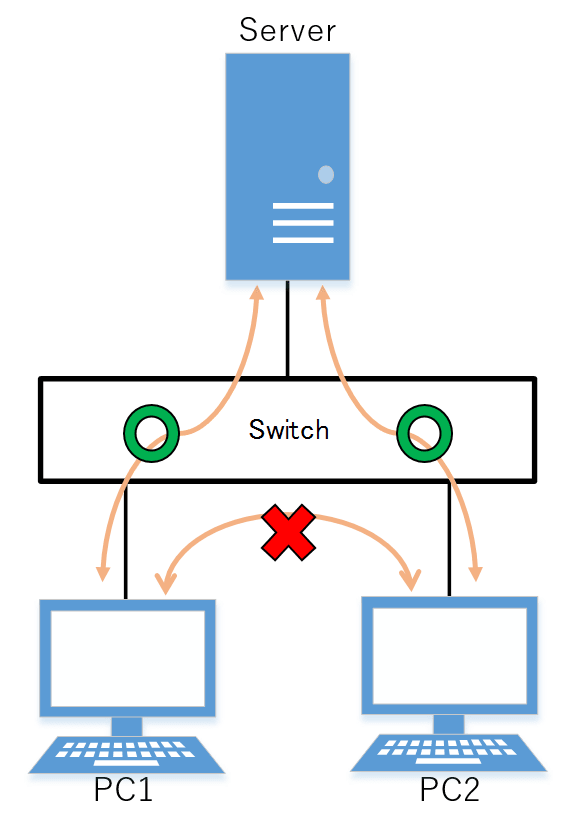

Example of using multiple VLANs

2 Definition of Terms Used

None

3 Function Details

3.1 Operating Specifications

Use the switchport multiple-vlan group command to configure a multiple VLAN group.

Multiple VLANs can be configured as LAN/SFP ports and link aggregation logical interfaces.

If you wish to configure a multiple VLAN group for a trunk port, this will be applied to all relevant VLANs that belong to the port in question.

The VLAN group settings will also be applied to a multicast frame.

This can be used together with the following functions. Control of traffic enable/disable for these functions is set according to the multiple VLAN settings.

• Port-based VLAN/tagged VLAN/voice VLAN
• Port authentication

A multiple VLAN can contain up to 256 groups.

Use the show vlan multiple-vlan group command to confirm the setting status for the interface of each multiple VLAN group.

3.2 Examples of traffic between multiple VLAN groups

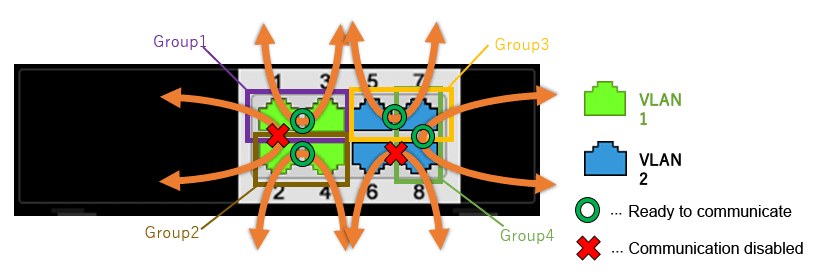

Example of traffic for a multiple VLAN group

When using multiple VLAN group settings (Group #1 through #4) as shown in the diagram above, enabling/disabling traffic between specific ports A/B and the reasons for such as shown in the table below.

Traffic enabled/disabled between specific ports A/B

Also, traffic can be established between ports that are not associated with a multiple VLAN group, so long as it is within the same VLAN.

4 Related Commands

Related commands are shown below.

For details on the commands, refer to the Command Reference.

List of related commands

5 Examples of Command Execution

5.1 Multiple VLAN settings

This configures multiple VLAN settings to achieve the following.

Hosts connected to ports 1–7 will connect to the Internet and other external lines, through the line to which port 8 is connected

Communications between hosts connected to ports 1–4 are blocked

Communications between hosts connected to ports 5–7 are permitted

Communications between hosts connected to ports 1–4 and ports 5–7 are blocked

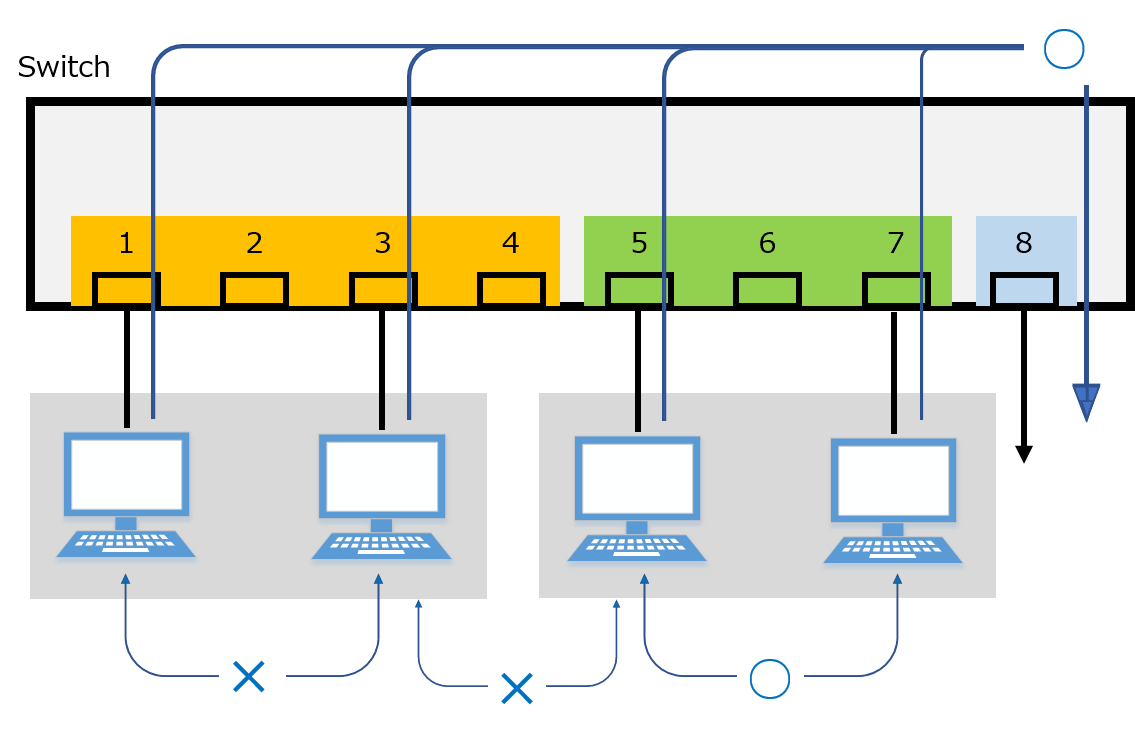

Examples of multiple VLAN settings

The multiple VLAN group settings are as follows.

• port1.1: Associated with multiple VLAN group #1
• port1.2: Associated with multiple VLAN group #2
• port1.3: Associated with multiple VLAN group #3
• port1.4: Associated with multiple VLAN group #4
• port1.5: Associated with multiple VLAN group #5
• port1.6: Associated with multiple VLAN group #5
• port1.7: Associated with multiple VLAN group #5
• port1.8: Associated with multiple VLAN groups #1, #2, #3, #4, #5

1. This sets the name of multiple VLAN group #1 to “Network1”.


   Yamaha(config)# multiple-vlan group 1 name Network1 …(settings for the name of multiple VLAN group #1)

2. This sets the name of multiple VLAN group #5 to “Network5”.


   Yamaha(config)# multiple-vlan group 1 name Network5 …(settings for the name of multiple VLAN group #5)

3. Associates port1.1 through port1.4 with multiple VLAN groups #1 through #4 respectively.


   Yamaha(config)# interface port1.1 … (transition to interface mode)
   Yamaha(config-if)# switchport multiple-vlan group 1 … (multiple VLAN group settings)
   Yamaha(config-if)# exit
   Yamaha(config)# interface port1.2 … (transition to interface mode)
   Yamaha(config-if)# switchport multiple-vlan group 2 … (multiple VLAN group settings)
   Yamaha(config-if)# exit
   Yamaha(config)# interface port1.3 … (transition to interface mode)
   Yamaha(config-if)# switchport multiple-vlan group 3 … (multiple VLAN group settings)
   Yamaha(config-if)# exit
   Yamaha(config)# interface port1.4 … (transition to interface mode)
   Yamaha(config-if)# switchport multiple-vlan group 4 … (multiple VLAN group settings)
   Yamaha(config-if)# exit


4. This associates port1.5 through port1.7 with multiple VLAN group #5.


   Yamaha(config)# interface port1.5–7 … (transition to interface mode)
   Yamaha(config-if)# switchport multiple-vlan group 5 … (specify multiple VLAN group)
   Yamaha(config-if)# exit

5. This associates port1.8 with multiple VLAN groups #1, #2, #3, #4, #5.


   Yamaha(config)# interface port1.8 … (transition to interface mode)
   Yamaha(config-if)# switchport multiple-vlan group 1–5 … (specify multiple VLAN group)
   Yamaha(config-if)# exit

6. This checks the multiple VLAN group settings.


   Yamaha>show vlan multiple-vlan group
   GROUP ID  Name                            Member ports
   ======== ================================ ======================
   1        Network1                         port1.1 port1.8
   2        GROUP002                         port1.2 port1.8
   3        GROUP003                         port1.3 port1.8
   4        GROUP004                         port1.4 port1.8
   5        Network5                         port1.5 port1.6
                                             port1.7 port1.8



6 Points of Caution

The points of caution regarding this function are as follows.

• The function cannot be used in conjunction with a private VLAN.

• The multiple VLAN group to associate with a link aggregation logical interface must be the same.

• A multiple VLAN group is only applicable to forwarding between ports. Voluntary packets will not be affected by the settings of a multiple VLAN group.

• Even if a multiple VLAN is configured, communication may not work correctly due to the following influences.
  • Block status of spanning tree
  • IGMP snooping/MLD snooping status
  • Blocked status of loop detection

7 Related Documentation

• Layer 2 functions: VLAN

Spanning tree

1 Function Overview

The spanning tree is a function that maintains redundancies in the network routes while preventing loops.

Normally, the L2 switch floods the adjacent switch with the broadcast packets.

If the network is constructed as a loop, the switches will flood each other, causing the loop to occur.

This results in a major degradation of bandwidth and CPU resources in the switches.

The spanning tree determines the roles of each port and establishes a network construction where the broadcast packets do not keep traveling around, for networks that contain physical loops as well.

When there are problems linking, the problem is detected and the tree is reconstructed in order to restore the system.

This product supports STP, RSTP, and MSTP.

Spanning tree function overview

2 Definition of Terms Used

STP: Spanning Tree Protocol (802.1d)

The spanning tree protocol (STP) exchanges BPDU (bridge protocol data unit) messages, in order to avoid loops.

This product supports IEEE802.1d and RFC4188.

STP: Spanning Tree Protocol (802.1d)

The rapid spanning tree protocol (RSTP) is an extension of STP. It can recover the spanning tree more quickly than STP, when the network architecture has changed or when there is a problem linking.

This product supports IEEE802.1w and RFC4318.

MSTP: Multiple Spanning Tree Protocol (802.1s)

Multiple spanning tree protocol (MSTP) is a further extension of STP and RSTP. It groups the VLAN into instances, and constructs a spanning tree for each group.

This can be used to distribute load within the network routes.

This product supports IEEE802.1s.

3 Function Details

This product supports the following functions in order to flexibly handle the construction of routes based on MSTP.

• Set priority
  • Set bridge priority
  • Set port priority
• Set path cost
• Set timeout
  • Set forward delay time
  • Set maximum aging time
• Specify edge port (Port Fast settings)
• BPDU guard
• BPDU filtering
• Route guard

4 Related Commands

The related commands are shown below.

For details on the commands, refer to the Command Reference.

List of related commands

5 Examples of Command Execution

5.1 MSTP setting example

Use this product to realize the architecture shown in the diagram below.

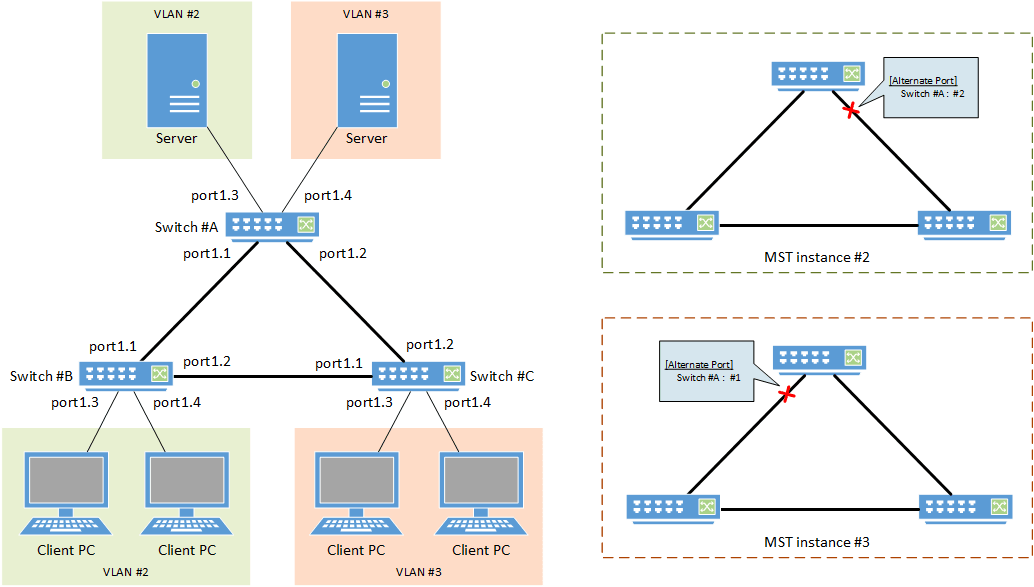

MSTP architecture diagram

• In this example, MST instances are used to construct the spanning tree.
• A different route is set for each MST instance (VLAN), in order to distribute network load.
• The LAN port that is connected to the PC is set as the edge port.

1. [Switch #A] Define VLAN #2 and VLAN #3.

   Yamaha(config)#vlan database
   Yamaha(config-vlan)#vlan 2                              ... (Define VLAN #2)
   Yamaha(config-vlan)#vlan 3                              ... (Define VLAN #3)
   Yamaha(config-vlan)#exit


2. [Switch #A] Set the CIST priority.

   Yamaha(config)#spanning-tree priority 8192              ... (Set CIST priority to 8192)


3. [Switch #A] Set the MST.

   Yamaha(config)#spanning-tree mst configuration
   Yamaha(config-mst)#region Sample                        ... (Set MST region name to "Sample")
   Yamaha(config-mst)#revision 1                           ... (Set MST revision number to 1)
   Yamaha(config-mst)#instance 2 vlan 2                    ... (Define MST instance #2, and associate it with VLAN #2)
   Yamaha(config-mst)#instance 3 vlan 3                    ... (Define MST instance #3, and associate it with VLAN #3)
   Yamaha(config-mst)#exit


4. [Switch #A] Set LAN ports #1–#2 as trunk ports, and associate them with VLAN #2–#3.

   Also, set the MST instances #2–#3.

   Yamaha(config)#interface port1.1
   Yamaha(config-if)#switchport mode trunk                 ... (Set as trunk port)
   Yamaha(config-if)#switchport trunk allowed vlan add 2,3 ... (Associate to VLAN #2–#3)
   Yamaha(config-if)#spanning-tree instance 2              ... (Set MST instance #2)
   Yamaha(config-if)#spanning-tree instance 3              ... (Set MST instance #3)
   Yamaha(config-if)#exit
   (Perform the above settings for LAN port #2 as well.)


5. [Switch #A] Set LAN port #3 as the access port, and associate it with VLAN #2.

   Also, set the MST instance #2, and make it an edge port.

   Yamaha(config)#interface port1.3
   Yamaha(config-if)#switchport mode access                ... (Set as access port)
   Yamaha(config-if)#switchport access vlan 2              ... (Associate to VLAN #2)
   Yamaha(config-if)#spanning-tree instance 2              ... (Set MST instance #2)
   Yamaha(config-if)#spanning-tree edgeport                ... (Set as edge port)
   Yamaha(config-if)#exit


6. [Switch #A] Set LAN port #4 as the access port, and associate it with VLAN #3.

   Also, set the MST instance #3, and make it an edge port.

   Yamaha(config)#interface port1.4
   Yamaha(config-if)#switchport mode access                ... (Set as access port)
   Yamaha(config-if)#switchport access vlan 3              ... (Associate to VLAN #3)
   Yamaha(config-if)#spanning-tree instance 3              ... (Set MST instance #3)
   Yamaha(config-if)#spanning-tree edgeport                ... (Set as edge port)
   Yamaha(config-if)#exit


7. [Switch #B] Define VLAN #2 and VLAN #3.

   Yamaha(config)#vlan database
   Yamaha(config-vlan)#vlan 2                              ... (Define VLAN #2)
   Yamaha(config-vlan)#vlan 3                              ... (Define VLAN #3)
   Yamaha(config-vlan)#exit


8. [Switch #B] Set the CIST priority.

   Yamaha(config)#spanning-tree priority 16384             ... (Set CIST priority to 16384)


9. [Switch #B] Set the MST.

   Yamaha(config)#spanning-tree mst configuration
   Yamaha(config-mst)#region Sample                        ... (Set MST region name to "Sample")
   Yamaha(config-mst)#revision 1                           ... (Set MST revision number to 1)
   Yamaha(config-mst)#instance 2 vlan 2                    ... (Define MST instance #2, and associate with VLAN #2)
   Yamaha(config-mst)#instance 2 priority 8192             ... (Set MST instance #2 priority to 8192)
   Yamaha(config-mst)#instance 3 vlan 3                    ... (Define MST instance #3, and
   associate with VLAN #3)
   Yamaha(config-mst)#instance 3 priority 16384            ... (Set MST instance #3 priority to 16384)
   Yamaha(config-mst)#exit


10. [Switch #B] Set LAN ports #1–#2 as trunk ports, and associate them with VLAN #2–#3.

    Also, set the MST instances #2–#3.

    Yamaha(config)#interface port1.1
    Yamaha(config-if)#switchport mode trunk                 ... (Set as trunk port)
    Yamaha(config-if)#switchport trunk allowed vlan add 2,3 ... (Associate to VLAN #2–#3)
    Yamaha(config-if)#spanning-tree instance 2              ... (Set MST instance #2)
    Yamaha(config-if)#spanning-tree instance 3              ... (Set MST instance #3)
    Yamaha(config-if)#exit
    (Perform the above settings for LAN port #2 as well.)


11. [Switch #B] Set LAN port #3 as the access port, and associate it with VLAN #2.

    Also, set the MST instance #2, and make it an edge port.

    Yamaha(config)#interface port1.3
    Yamaha(config-if)#switchport mode access                ... (Set as access port)
    Yamaha(config-if)#switchport access vlan 2              ... (Associate to VLAN #2)
    Yamaha(config-if)#spanning-tree instance 2              ... (Set MST instance #2)
    Yamaha(config-if)#spanning-tree edgeport                ... (Set as edge port)
    Yamaha(config-if)#exit
    (Perform the above settings for LAN port #4 as well.)


12. [Switch #C] Define VLAN #2 and VLAN #3.

    Yamaha(config)#vlan database
    Yamaha(config-vlan)#vlan 2                              ... (Define VLAN #2)
    Yamaha(config-vlan)#vlan 3                              ... (Define VLAN #3)
    Yamaha(config-vlan)#exit


13. [Switch #C] Set the MST.

    Yamaha(config)#spanning-tree mst configuration
    Yamaha(config-mst)#region Sample                        ... (Set MST region name to "Sample")
    Yamaha(config-mst)#revision 1                           ... (Set MST revision number to 1)
    Yamaha(config-mst)#instance 2 vlan 2                    ... (Define MST instance #2, and associate with VLAN #2)
    Yamaha(config-mst)#instance 2 priority 16384            ... (Set MST instance #2 priority to 16384)
    Yamaha(config-mst)#instance 3 vlan 3                    ... (Define MST instance #3, and associate with VLAN #3)
    Yamaha(config-mst)#instance 3 priority 8192             ... (Set MST instance #3 priority to 8192)
    Yamaha(config-mst)#exit


14. [Switch #C] Set LAN ports #1–#2 as trunk ports, and associate them with VLAN #2–#3.

    Also, set the MST instances #2–#3.

    Yamaha(config)#interface port1.1
    Yamaha(config-if)#switchport mode trunk                 ... (Set as trunk port)
    Yamaha(config-if)#switchport trunk allowed vlan add 2,3 ... (Associate to VLAN #2–#3)
    Yamaha(config-if)#spanning-tree instance 2              ... (Set MST instance #2)
    Yamaha(config-if)#spanning-tree instance 3              ... (Set MST instance #3)
    Yamaha(config-if)#exit
    (Perform the above settings for LAN port #2 as well.)


15. [Switch #C] Set LAN port #3 as the access port, and associate it with VLAN #3.

    Also, set the MST instance #3, and make it an edge port.

    Yamaha(config)#interface port1.3
    Yamaha(config-if)#switchport mode access                ... (Set as access port)
    Yamaha(config-if)#switchport access vlan 3              ... (Associate to VLAN #3)
    Yamaha(config-if)#spanning-tree instance 3              ... (Set MST instance #3)
    Yamaha(config-if)#spanning-tree edgeport                ... (Set as edge port)
    Yamaha(config-if)#exit
    (Perform the above settings for LAN port #4 as well.)


16. Connect the LAN cable.
17. [Switch #A] Check the CIST architecture.

    Yamaha>show spanning-tree | include Root Id
    % Default: CIST Root Id 200100a0deaeb920      ... (The higher-priority switch #A is the CIST root bridge)
    % Default: CIST Reg Root Id 200100a0deaeb920

    Yamaha>show spanning-tree | include Role
    %   port1.1: Port Number 905 - Ifindex 5001 - Port Id 0x8389 - Role Designated - State Forwarding
    %   port1.2: Port Number 906 - Ifindex 5002 - Port Id 0x838a - Role Designated - State Forwarding
    %   port1.3: Port Number 907 - Ifindex 5003 - Port Id 0x838b - Role Designated - State Forwarding
    %   port1.4: Port Number 908 - Ifindex 5004 - Port Id 0x838c - Role Designated - State Forwarding
    %   port1.5: Port Number 909 - Ifindex 5005 - Port Id 0x838d - Role Disabled - State Discarding
    %   port1.6: Port Number 910 - Ifindex 5006 - Port Id 0x838e - Role Disabled - State Discarding
    %   port1.7: Port Number 911 - Ifindex 5007 - Port Id 0x838f - Role Disabled - State Discarding
    %   port1.8: Port Number 912 - Ifindex 5008 - Port Id 0x8390 - Role Disabled - State Discarding
    %   port1.9: Port Number 913 - Ifindex 5009 - Port Id 0x8391 - Role Disabled - State Discarding
    %   port1.10: Port Number 914 - Ifindex 5010 - Port Id 0x8392 - Role Disabled - State Discarding


18. [Switch #B] Check the CIST architecture.

    Yamaha>show spanning-tree | include Root Id
    % Default: CIST Root Id 200100a0deaeb920      ... (The higher-priority switch #A is the CIST root bridge)
    % Default: CIST Reg Root Id 200100a0deaeb920

    Yamaha>show spanning-tree | include Role
    %   port1.1: Port Number 905 - Ifindex 5001 - Port Id 0x8389 - Role Rootport - State Forwarding
    %   port1.2: Port Number 906 - Ifindex 5002 - Port Id 0x838a - Role Designated - State Forwarding
    %   port1.3: Port Number 907 - Ifindex 5003 - Port Id 0x838b - Role Designated - State Forwarding
    %   port1.4: Port Number 908 - Ifindex 5004 - Port Id 0x838c - Role Designated - State Forwarding
    %   port1.5: Port Number 909 - Ifindex 5005 - Port Id 0x838d - Role Disabled - State Discarding
    %   port1.6: Port Number 910 - Ifindex 5006 - Port Id 0x838e - Role Disabled - State Discarding
    %   port1.7: Port Number 911 - Ifindex 5007 - Port Id 0x838f - Role Disabled - State Discarding
    %   port1.8: Port Number 912 - Ifindex 5008 - Port Id 0x8390 - Role Disabled - State Discarding
    %   port1.9: Port Number 913 - Ifindex 5009 - Port Id 0x8391 - Role Disabled - State Discarding
    %   port1.10: Port Number 914 - Ifindex 5010 - Port Id 0x8392 - Role Disabled - State Discarding


19. [Switch #C] Check the CIST architecture.

    Yamaha>show spanning-tree | include Root Id
    % Default: CIST Root Id 200100a0deaeb920      ... (The higher-priority switch #A is the CIST root bridge)
    % Default: CIST Reg Root Id 200100a0deaeb920

    Yamaha>show spanning-tree | include Role
    %   port1.1: Port Number 905 - Ifindex 5001 - Port Id 0x8389 - Role Alternate - State Discarding ... (LAN #1 port of the lower-priority switch #C is the alternate CIST port)
    %   port1.2: Port Number 906 - Ifindex 5002 - Port Id 0x838a - Role Rootport - State Forwarding
    %   port1.3: Port Number 907 - Ifindex 5003 - Port Id 0x838b - Role Designated - State Forwarding
    %   port1.4: Port Number 908 - Ifindex 5004 - Port Id 0x838c - Role Designated - State Forwarding
    %   port1.5: Port Number 909 - Ifindex 5005 - Port Id 0x838d - Role Disabled - State Discarding
    %   port1.6: Port Number 910 - Ifindex 5006 - Port Id 0x838e - Role Disabled - State Discarding
    %   port1.7: Port Number 911 - Ifindex 5007 - Port Id 0x838f - Role Disabled - State Discarding
    %   port1.8: Port Number 912 - Ifindex 5008 - Port Id 0x8390 - Role Disabled - State Discarding
    %   port1.9: Port Number 913 - Ifindex 5009 - Port Id 0x8391 - Role Disabled - State Discarding
    %   port1.10: Port Number 914 - Ifindex 5010 - Port Id 0x8392 - Role Disabled - State Discarding


20. [Switch #A] Check the architecture of MST instance #2.

    Yamaha>show spanning-tree mst instance 2 | include Root Id
    % Default: MSTI Root Id 200200a0deaeb879      ... (The higher-priority switch #B is the root bridge for MST instance #2)

    Yamaha>show spanning-tree mst instance 2 | include Role
    %   port1.1: Port Number 905 - Ifindex 5001 - Port Id 0x8389 - Role Rootport - State Forwarding
    %   port1.2: Port Number 906 - Ifindex 5002 - Port Id 0x838a - Role Alternate - State Discarding ... (LAN #2 port of lower-priority switch #A is the alternate port for MST instance #2)
    %   port1.3: Port Number 907 - Ifindex 5003 - Port Id 0x838b - Role Designated - State Forwarding


21. [Switch #B] Check the architecture of MST instance #2.

    Yamaha>show spanning-tree mst instance 2 | include Root Id
    % Default: MSTI Root Id 200200a0deaeb879      ... (The higher-priority switch #B is the root bridge for MST instance #2)

    Yamaha>show spanning-tree mst instance 2 | include Role
    %   port1.1: Port Number 905 - Ifindex 5001 - Port Id 0x8389 - Role Designated - State Forwarding
    %   port1.2: Port Number 906 - Ifindex 5002 - Port Id 0x838a - Role Designated - State Forwarding
    %   port1.3: Port Number 907 - Ifindex 5003 - Port Id 0x838b - Role Designated - State Forwarding
    %   port1.4: Port Number 908 - Ifindex 5004 - Port Id 0x838c - Role Designated - State Forwarding


22. [Switch #C] Check the architecture of MST instance #2.

    Yamaha>show spanning-tree mst instance 2 | include Root Id
    % Default: MSTI Root Id 200200a0deaeb879      ... (The higher-priority switch #B is the root bridge for MST instance #2)

    Yamaha>show spanning-tree mst instance 2 | include Role
    %   port1.1: Port Number 905 - Ifindex 5001 - Port Id 0x8389 - Role Rootport - State Forwarding
    %   port1.2: Port Number 906 - Ifindex 5002 - Port Id 0x838a - Role Designated - State Forwarding


23. [Switch #A] Check the architecture of MST instance #3.

    Yamaha>show spanning-tree mst instance 3 | include Root Id
    % Default: MSTI Root Id 200300a0deaeb83d      ... (The higher-priority switch C# is the root
    bridge for MST instance #3)

    Yamaha>show spanning-tree mst instance 3 | include Role
    %   port1.1: Port Number 905 - Ifindex 5001 - Port Id 0x8389 - Role Alternate - State Discarding ... (The higher-priority switch C# is the root bridge for MST instance #3)
    %   port1.2: Port Number 906 - Ifindex 5002 - Port Id 0x838a - Role Rootport - State Forwarding
    %   port1.4: Port Number 908 - Ifindex 5004 - Port Id 0x838c - Role Designated - State Forwarding


24. [Switch #B] Check the architecture of MST instance #3.

    Yamaha>show spanning-tree mst instance 3 | include Root Id
    % Default: MSTI Root Id 200300a0deaeb83d      ... (The higher-priority switch C# is the root bridge for MST instance #3)

    Yamaha>show spanning-tree mst instance 3 | include Role
    %   port1.1: Port Number 905 - Ifindex 5001 - Port Id 0x8389 - Role Designated - State Forwarding
    %   port1.2: Port Number 906 - Ifindex 5002 - Port Id 0x838a - Role Rootport - State Forwarding


25. [Switch #C] Check the architecture of MST instance #3.

    Yamaha>show spanning-tree mst instance 3 | include Root Id
    % Default: MSTI Root Id 200300a0deaeb83d      ... (The higher-priority switch C# is the root bridge for MST instance #3)

    Yamaha>show spanning-tree mst instance 3 | include Role
    %   port1.1: Port Number 905 - Ifindex 5001 - Port Id 0x8389 - Role Designated - State Forwarding
    %   port1.2: Port Number 906 - Ifindex 5002 - Port Id 0x838a - Role Designated - State Forwarding
    %   port1.3: Port Number 907 - Ifindex 5003 - Port Id 0x838b - Role Designated - State Forwarding
    %   port1.4: Port Number 908 - Ifindex 5004 - Port Id 0x838c - Role Designated - State Forwarding


6 Points of Caution

• STP and RSTP on this product are supported by backward-compatibility provided by MSTP.

7 Related Documentation

• VLAN
• STP
  • IEEE802.1d
  • RFC4188
• RSTP
  • IEEE802.1w
  • RFC4318
• MSTP
  • IEEE802.1s

Proprietary loop detection

1 Function Overview

This product offers a proprietary system to detect whether there is a loop in the network environment that was configured.

A proprietary loop detection frame is sent from the LAN/SFP+ port, and the unit monitors whether the frame returns or not.

If the transmitted frame returns, the system determines that there is a loop in the port in question.

2 Definition of Terms Used

LDF (Loop Detection Frame)

This is a Yamaha proprietary Ethernet frame that is used to detect loops.

3 Function Details

3.1 Loop detection operating specifications

The loop detection specifications for this product are shown below.

1. In addition to enabling/disabling the entire system, the loop detection on this product can enable/disable individual LAN/SFP+ ports.

   When detecting loops in LAN/SFP+ ports, the system-wide setting must be set to enable.

   • Use the loop-detectcommand in global configuration mode for system-wide settings.
   • Use the loop-detect command in the interface mode of the relevant port for individual LAN/SFP+ port settings.
2. The default settings for the loop detection function are as shown below. (In the initial state, this function is not operating.)
   • System-wide settings: disabled
   • LAN/SFP+ port settings: enabled
3. If the system-wide settings for loop detection and spanning tree protocol are both enabled, the LAN/SFP+ port settings give priority to spanning tree protocol.

4. If the loop detection function is enabled for this product, the following operations are performed.
   • Loop detection frames (hereafter "LDF") are sent every two seconds from the linked-up LAN/SFP+ port.

     The loop detection function cannot be used on static/LACP logical interfaces, and ports on which mirror settings have been made (mirror ports).

   • When the transmitted loop detection frame receives itself, it determines that a loop has occurred, and the following operations are performed.
     • Port Shutdown

       When both the transmitting and the receiving LAN/SFP+ port is the same, the relevant port is shut down.

       The linkup will be made five minutes after shutdown, and LDF transmission will resume. (If a loop has occurred, this operation will repeat.)

       When a linkup to the relevant port is desired within five minutes of monitored time, the no shutdown command is used.

     • Port Blocking

       When the port number of the transmitting LAN/SFP+ port is smaller than the receiving port number, all frames except for LDF are blocked.

       The LDF will be transmitted periodically, but LDF will not be forwarded from other devices.

       For the LAN/SFP+ ports that were blocked, if the LDF that was transmitted does not return within five seconds, it is determined that the loop has been resolved, and normal communications are resumed.

     • Port Detected

       When the port number of the LAN/SFP+ port that was transmitted is larger than the port number during reception, blocking is occurring on another port, so communication continues as normal.

   • When a loop is detected, the port lamp display on this product changes to a dedicated status, and the following SYSLOG message is output.
     • [LOOP]: inf: Detected Loop!: port1.1, 1.3 … (displayed in a five-second cycle, starting from the detection of the loop)
   • The port lamp display on this product is restored as communications are resumed after the loop is resolved, and the following SYSLOG message is output.
     • [LOOP]: inf: Recovered Loop! : port1.1, 1.3
5. The "detected" operation can be forcibly performed without performing shutdown/blocking of the LAN/SFP+ port on which the loop was detected.
   • Use the loop-detect blocking-disable command for this setting.
   • If this setting is "enabled", port blocking will be implemented on the next largest port number. (Shutdown operations will not occur.)
6. A force-clear can be performed on the loop detection status (detected, blocking) by using the loop-detect reset command. (On models equipped with a MODE button, this can be also done by holding down the MODE button for three seconds.)

   If a linkdown has occurred on the port where a loop has been detected, the detection status will be cleared. (The port lamp display is restored, and the following syslog message is outputted.)

7. The status of the loop detection function can be checked using the show loop-detect command. The following is displayed.
   • System Enable/disable status
   • Loop detection status (status for each LAN/SFP+ port)
8. When an LDF is received by a LAN/SFP+ port when the loop detection function is disabled, the received frames from all other ports will be forwarded as-is.

   However, frames will not be forwarded for static/LACP logical interfaces and ports on which mirror settings have been made (mirror ports).

9. In the following kinds of situations, loops in switches that are connected to this product might not be detected.
   • Loops are being detected in a currently connected switch
   • Loop detection frames are not being forwarded by a currently connected switch

3.2 Loop detection example

The following shows examples of loop detection in this product.

Loop detection example

Loop detection case	Configuration example	Loop detection status
1		A loop is detected when the device receives the LDF that it has transmitted. port1.1 : Shutdown
2		When loops are detected in multiple ports on the same terminal, the port with the largest number is blocked. port1.1 : Detected port1.3 : Blocking
3		The loop is avoided by blocking multiple ports. The blocking port is selected using the same rules as case 2. port1.1 : Detected port1.2 : Blocking port1.3 : Blocking
4		When loops are detected in multiple groups, the port with the largest number in each group is blocked. port1.1 : Detected, port1.2 : Blocking port1.3 : Detected, port1.4 : Blocking
5		When a loop occurs between two switches, one of the switches detects the loop. ○When detected in port1.3 of switch #A port1.1: Detected, port1.3: Blocking ○When detected in port1.7 of switch #B port1.5: Detected, port1.7: Blocking
6		Out of the six ports that are connected by cable, the port for which the loop is most quickly detected is the one that is blocked. ○When detected in port1.2 of switch #A port1.1: Detected, port1.2: Blocking ○When detected in port1.4 of switch #B port1.3: Detected, port1.4: Blocking ○When detected in port1.6 of switch #C port1.5: Detected, port1.6: Blocking
7		Because the LDF transmitted from each port returns to these ports, port1.5 and port1.6 will both shut down. port1.5 : Shutdown port1.6 : Shutdown
8		Port1.6 of switch #B is blocked. Depending on the timing, port1.1 of switch #A will shut down, but the loop in port 1.1 of switch #A is resolved by blocking port1.6 of switch #B. xx xx Switch #A port1.1: Shutdown Switch #B port1.5: Detected Switch #B port1.6: Blocking

4 Related Commands

The related commands are shown below.

For details on the commands, refer to the Command Reference.

List of related commands

5 Examples of Command Execution

This example detects any loops occurring on this product using the following configuration, when the loop detection function is enabled.

[Example 1] Loop occurring within this product

[Example 2] Loop occurring in a third-party hub connected to this product

This sets LAN ports #1 and #2 to detect loops.

1. Enable the loop detection function for the entire system.

   Yamaha(config)#loop-detect enable             ... (Enable the system-wide loop detection function)

2. Enable the loop detection function for LAN ports #1 and #2.

   Yamaha(config)#interface port1.1
   Yamaha(config-if)#spanning-tree disable             ... (Disable the spanning tree function for each LAN port)
   Yamaha(config-if)#loop-detect enable                ... (Enable the loop detection function for each LAN port)
   Yamaha(config-if)#loop-detect blocking enable       ... (Enable blocking)
   (Make the above settings for LAN port #2 as well.)

   • The loop detection function for each LAN port and blocking are both enabled by default, so there is no need to set them.
3. Confirm that the loop detection function has been set.

   Confirm whether the loop detection function is enabled(*) for LAN ports #1 and #2.

   Yamaha>show loop-detect
   loop-detect: Enable

   port      loop-detect    port-blocking           status
   -------------------------------------------------------
   port1.1        enable(*)        enable           Normal
   port1.2        enable(*)        enable           Normal
   port1.3        enable           enable           Normal
   port1.4        enable           enable           Normal
   port1.5        enable           enable           Normal
   port1.6        enable           enable           Normal
      :             :                :                :
   -------------------------------------------------------
   (*): Indicates that the feature is enabled.


4. If a loop has been detected, the loop detection status can be checked.
   • In the case of example 1:

     Yamaha>show loop-detect
     loop-detect: Enable

     port      loop-detect    port-blocking           status
     -------------------------------------------------------
     port1.1        enable(*)        enable         Detected    ... (The status of LAN port #1 is "Detected")
     port1.2        enable(*)        enable         Blocking    ... (The status of LAN port #2 is "Blocking")
     port1.3        enable           enable           Normal
     port1.4        enable           enable           Normal
     port1.5        enable           enable           Normal
     port1.6        enable           enable           Normal
        :             :                :                :
     -------------------------------------------------------
     (*): Indicates that the feature is enabled.


   • In the case of example 2:

     Yamaha>show loop-detect
     loop-detect: Enable

     port      loop-detect    port-blocking           status
     -------------------------------------------------------
     port1.1        enable(*)        enable         Shutdown    ... (The status of LAN port #1 is "Shutdown")
     port1.2        enable(*)        enable           Normal
     port1.3        enable           enable           Normal
     port1.4        enable           enable           Normal
     port1.5        enable           enable           Normal
     port1.6        enable           enable           Normal
        :             :                :                :
     -------------------------------------------------------
     (*): Indicates that the feature is enabled.


6 Points of Caution

None

7 Related Documentation

• Spanning tree
• LED control

Layer 3 functions

• IPv4/IPv6 common settings
• IPv4 basic settings
• IPv6 basic settings
• Static routing

IPv4/IPv6 common settings

1 Function Overview

This product is compatible with the following network environment settings that are common to IPv4 and IPv6, mainly for the purpose of maintenance (configuring the settings of the switch).

1. DNS client settings

2 Definition of Terms Used

None

3 Function Details

3.1 DNS client settings

This product supports DNS (Domain Name System) clients.

If a FQDN (Fully Qualified Domain Name) has been set for an NTP server or a syslog server, an inquiry is made to the DNS server to retrieve the IPv4/IPv6 address.

This product provides the following DNS client control functions.

• Set IP address of the DNS server
• Set default domain name
• Set query domain list

Inquiries to the DNS server are enabled by default, and the setting can be changed by using the dns-client enable/disable command.

3.1.1 Set IP address of the DNS server

Up to three IP addresses can be set for the DNS server, using the methods shown below.

• Manual setting using the dns-client name-server command
  • This lets you specify the IPv4/IPv6 address.
• Automatic setting via DHCP
  • The highest default gateway value takes priority if there is more than one.

This product always gives priority to the information that was set via commands.

Check the configured DNS servers by using the show dns-client command.

3.1.2 Set default domain

Only one default domain can be set using the methods shown below. The domain can be specified using up to 256 characters.

• Manual setting using the dns-client domain-name command
• Automatic setting via DHCP
  • The highest default gateway value takes priority if there is more than one.

As with the IP addresses of the DNS server, this product gives priority to the information that was set via commands.

Check the default domain that was set by using the show dns-client command.

The use of a default domain is only allowed if there are no listings in the search domain list.

3.1.3 Set query domain list

This product uses a query domain list to manage the domain names used when inquiring with the DNS.

Up to six domain names can be set on the query domain list using the method below.

• Manual setting using the dns-client domain-list command

The query domain list that has been set can be checked using the show dns-client command.

The query domain list must be within 256 characters total for all domain names registered.

4 Related Commands

The related commands are shown below.

For details on the commands, refer to the Command Reference.

List of related commands

5 Examples of Command Execution

5.1 DNS client settings

Set DNS client settings for this product to prepare an environment for DNS queries.

• Specify 192.168.100.1 and 192.168.100.2 as the IP addresses of the servers for DNS queries.
• Specify example.com as the default domain used for DNS queries.

1. Enable the DNS query functionality.

   Yamaha(config)#dns-client enable

   • Since this is specified as the default value, we do not need to do set this specifically.
2. Specify the DNS servers.

   Yamaha(config)#dns-client name-server 192.168.100.1
   Yamaha(config)#dns-client name-server 192.168.100.2

3. Set the default domain.

   Yamaha(config)#dns-client domain-name example.com

4. Check the DNS client information that was set.

   Yamaha#show dns-client

   DNS client is enabled
    Default domain  : example.com
    Domain list     :
    Name Servers    : 192.168.100.1 192.168.100.2

    * - Values assigned by DHCP Client.


6 Points of Caution

None

7 Related Documentation

None

IPv4 basic settings

1 Function Overview

This product is compatible with the following IPv4 network environment settings , mainly for the purpose of maintenance (configuring the settings of the switch).

1. IPv4 address settings
2. Route information settings
3. ARP table settings

2 Definition of Terms Used

IPv4 link local address

This is an address that is only valid within the same segment, within the range of 169.254.0.0/16 to 169.254.255.255/16.

3 Function Details

3.1 IPv4 address settings

This product lets you specify the IPv4 address and subnet mask for a VLAN interface.

As the setting method, both fixed settings and automatic settings via DHCP are supported.

• To set the fixed/automatic IPv4 address, use the ip address command.
• The actions when specifying automatic settings via DHCP are shown below.
  • The HostName option (option code 12) can be added to the Discover/Request message.
  • The lease time requested from the DHCP server is fixed at 72 hours. (The actual lease time will depend on the setting of the DHCP server.)
  • If the no ip addresscommand is executed with automatic settings, a release message for the IPv4 address obtained is sent to the DHCP server.
  • The information obtained from the DHCP server can be checked using the show dhcp lease.
• An IPv4 address can be set for up to eight VLAN interfaces.

  The IPv4 address that is allocated to a VLAN interface can be checked using the show ip interface command.

• In the initial state, automatic setting by DHCP is specified for the default VLAN (VLAN #1).

3.2 Auto IP function

As part of the IPv4 address setting functionality, this product provides an auto IP function which automatically generates IPv4 link local addresses based on the MAC address.

The auto IP function only works when an IPv4 address has not been allocated from the DHCP server. (The IPv4 address must be set to "DHCP" as a prerequisite.)

This function confirms whether the automatically-generated IPv4 link local address does not already exist on the network via ARP.

If it has been confirmed that the address does not already exist, the generated address will start to be used.

If the IPv4 address was allocated from the DHCP server after the IPv4 link local address was determined via auto IP, the IPv4 link local address is discarded, and the IP address obtained from the DHCP server is used.

• To enable the Auto IP function, use the auto-ip enable command.
• The Auto IP function can be enabled for only one VLAN interface. In the initial state, the default VLAN (VLAN #1) is enabled.

3.3 Route information settings

This product refers to a routing table when sending syslog messages and when sending out voluntary IPv4 packets as a IPv4 host for NTP-based time adjustments and so on.

This product uses the following functions to perform the routing table operations.

• Set VLAN interface route information
• Set default gateway
• Set static route information
• Show route information

3.3.1 VLAN interface route information

When setting an IPv4 address on this product for a VLAN interface, the correspondence between the network address and VLAN ID is automatically set as route information.

When releasing IPv4 addresses set for the VLAN interface, the above settings will be deleted.

3.3.2 Set default gateway

The destination for IPv4 packets sent to network addresses that are not set in the routing table can be set as the default gateway on this product.

• To set the default gateway, use the ip route command.
• To show the default gateway, use the show ip route command.

3.3.3 Set static route information

A static route to the destination network address (the gateway address to which packets will be sent) can be set on this product.

• Static route information is set using the ip route command.
• Static route information is displayed using the show ip route command.

3.3.4 Routing table and route selection

You will use the following two types of table to specify routing information.

• RIB (Routing Information Base: IP routing table)
• FIB (Forwarding Information Base: IP forwarding table)

The roles of each are explained below.

• RIB

  RIB (Routing Information Base: IP routing table) is a database that stores various routing information.

  • A route is registered in the RIB in the following cases.
    • When an IPv4 address is assigned to a VLAN interface
    • When a static route or a default gateway are specified manually
    • When a default gateway is learned via a DHCP message
  • To check the RIB, use the show ip route database command.

• FIB

  FIB (Forwarding Information Base: IP forwarding table) is a database that is referenced when deciding how to forward IP packets.

  Of the routes that are registered in the RIB, the FIB registers only the route that is determined to be "optimal" and is actually used for forwarding packets.

  • The conditions by which a route is determined to be optimal are as follows.
    • The corresponding VLAN interface is in the link up state
    • If multiple routes to the same destination are registered in the RIB, only one is decided in the following order of priority
      1. A manually specified route takes priority over a route learned via a DHCP message.
      2. A route whose gateway has a higher IP address value takes priority
  • To check the FIB, use the show ip route command.

3.4 ARP table settings

When sending IPv4 packets, this product uses ARP (Address Resolution Protocol) to obtain the MAC addresses from the IPv4 addresses.

The correspondence between IPv4 address and MAC address is saved in the ARP table with the following specifications.

• The ARP entries saved in the ARP table manage the following information.
  • IPv4 address
  • MAC address
  • VLAN interface
• Up to 508 entries are stored in the ARP table, including dynamic and static entries.
• With the default settings, dynamic entries saved in the ARP table are maintained for 300 sec.

  The entry timeout value can be changed using the arp-ageing-timeout command.

• Dynamic entries saved in the ARP table can be cleared regardless of the timeout value, by using the clear arp-cache command.
• Settings for the static entries in the ARP table are made using the arp command. Up to 255 items can be registered.
• Use the show arp command to check the ARP table.

4 Related Commands

The related commands are shown below.

For details on the commands, refer to the Command Reference.

List of related commands

5 Examples of Command Execution

5.1 Set IPv4 network environment (DHCP)

In this example, the IPv4 addresses are set on this product, and an environment is set up for accessing the unit from a remote terminal.

• Maintenance for this product is done using the default VLAN (VLAN #1).
• The IPv4 address is set automatically by DHCP for the default VLAN (VLAN #1).
• Permit Web/TFTP access from hosts connected to VLAN #1.

1. Check the IPv4 address that is currently set.

   If the default settings are still in effect, the fixed IPv4 address (192.168.100.240/24) is set.

   Yamaha#show ip interface brief
   Interface            IP-Address                Status                Protocol
   vlan1                192.168.100.240/24        up                    up


2. Specify DHCP for the default VLAN (VLAN #1).

   Yamaha#configure terminal
   Enter configuration commands, one per line.  End with CNTL/Z.
   Yamaha(config)#interface vlan1
   Yamaha(config-if)#ip address dhcp


3. Check the information that was provided by the DHCP server.

   Yamaha(config-if)#end
   Yamaha#show dhcp lease
   Interface vlan1
   --------------------------------------------------------------------------------
   IP Address:                   192.168.1.3
   Expires:                      YYYY/MM/DD 05:08:41
   Renew:                        YYYY/MM/DD 19:08:41
   Rebind:                       YYYY/MM/DD 02:38:41
   Server:
   Options:
     subnet-mask                 255.255.255.0
     default-gateway             192.168.1.1
     dhcp-lease-time             72000
     domain-name-servers         192.168.1.1
     dhcp-server-identifier      192.168.1.1
     domain-name                 xxx.xxxxx.xx.xx


4. Set the default VLAN (VLAN #1) to permit access from HTTP servers and TFTP servers.

   Access using a remote host over the Web after settings are made.

   Yamaha(config)#http-server interface vlan1 ... (Allow HTTP server access)
   Yamaha(config)#tftp-server interface vlan1 ... (Allow TFTP server access)

6 Points of Caution

None

7 Related Documentation

• VLAN
• Remote access control

IPv6 basic settings

1 Function Overview

This product is compatible with the following IPv6 network environment settings , mainly for the purpose of maintenance (configuring the settings of the switch).

1. IPv6 address settings
2. Route information settings
3. Neighbor cache table settings

2 Definition of Terms Used

RA (Router Advertisement)

This is a system that automatically sets address information and network settings for devices of the network that is associated with a router.

IPv6 address

The IPv6 address is 128 bits expressed as hexadecimal. The address is divided into eight fields delimited by ":" with 16 bits in each field.

• 2001:02f8:0000:0000:1111:2222:0000:4444

The expression can be abbreviated according to the following rules.

• If the beginning of a field is a zero, the zero can be omitted.
• A field that consists of four zeros can be abbreviated as a single zero.
• Multiple fields consisting only of consecutive zeros can be abbreviated as "::" in only one location for the entire address.

Applying these rules to the above address, we get the following.

• 2001:2f8::1111:2222:0:4444

IPv6 link local address

This is an address that is only valid within the same segment, and is in the following range.

• [Start]FE80:0000:0000:0000:0000:0000:0000:0000
• [End]FE80:0000:0000:0000:FFFF:FFFF:FFFF:FFFF

3 Function Details

3.1 IPv6 address settings

This product lets you specify the IPv6 address and prefix length for a VLAN interface.

As the setting method, both fixed settings and automatic settings via RA (router advertisement) are supported.

• In order to specify an IPv6 address, IPv6 functionality must be enabled for the corresponding VLAN interface.
  • To enable IPv6 functionality, use the ipv6 enable command.
  • When IPv6 functionality is enabled, an IPv6 link local address is automatically assigned.
• To set a fixed/automatic IPv6 address, use the ip address command.
• An IPv6 address can be set for up to eight VLAN interfaces.

  The IPv6 address that can be set for one VLAN interface will be either a fixed setting or an automatic setting.

  The IPv6 address that is allocated to a VLAN interface can be checked using the show ipv6 interface command.

3.2 Route information settings

This product refers to a routing table when sending syslog messages and when sending out voluntary IPv6 packets as a IPv6 host for NTP-based time adjustments and so on.

This product uses the following functions to perform the routing table operations.

• Set VLAN interface route information
• Set default gateway
• Set static route information
• Show route information

3.2.1 VLAN interface route information

When an IPv6 address is specified for a VLAN interface, the correspondence between the network address and the VLAN ID is automatically specified by this product as route information.

When IPv6 addresses set for the VLAN interface are released, the above settings are deleted.

3.2.2 Set default gateway

The destination for IPv6 packets sent to network addresses that are not set in the routing table can be set as the default gateway on this product.

• To set the default gateway, use the ipv6 route command.
• To show the default gateway, use the show ipv6 route command.

3.2.3 Set static route information

A static route to the destination network address (the gateway address to which packets will be sent) can be set on this product.

• Static route information is set using the ipv6 route command.
• Static route information is displayed using the show ipv6 route command.

3.2.4 Routing table and route selection

You will use the following two types of table to specify routing information.

• RIB (Routing Information Base: IP routing table)
• FIB (Forwarding Information Base: IP forwarding table)

The roles of each are explained below.

• RIB

  RIB (Routing Information Base: IP routing table) is a database that stores various routing information.

  • A route is registered in the RIB in the following cases.
    • When an IPv6 address is assigned to a VLAN interface
    • When a static route or a default gateway are specified manually
  • To check the RIB, use the show ipv6 route database command.

• FIB (Forwarding Information Base: IP forwarding table) is a database that is referenced when deciding how to forward IP packets.

  Of the routes that are registered in the RIB, the FIB registers only the route that is determined to be "optimal" and is actually used for forwarding packets.

  • The conditions by which a route is determined to be optimal are as follows.
    • The corresponding VLAN interface is in the link up state
    • If multiple routes to the same destination are registered in the RIB, only one is decided in the following order of priority
      1. A route whose gateway has a higher IP address value takes priority
  • To check the FIB, use the show ipv6 route command.

3.3 Neighbor cache table settings

When sending IPv6 packets, this product uses Neighbor Discovery Protocol to obtain the MAC addresses from the IPv6 addresses.

The correspondence between IPv6 address and MAC address is saved in the neighbor cache table with the following specifications.

• The neighbor cache entries saved in the neighbor cache table manage the following information.
  • IPv6 address
  • MAC address
  • VLAN interface
• Up to 124 entries are stored in the neighbor cache table, including dynamic and static entries.
• Dynamic entries saved in the neighbor cache table can be cleared by using the clear ivp6 neighbors command.
• Settings for the static entries in the neighbor cache table are made using the ipv6 neighbor command. Up to 63 items can be registered.
• Use the show ipv6 neighbor command to check the neighbor cache table.

4 Related Commands

The related commands are shown below.

For details on the commands, refer to the Command Reference.

List of related commands

5 Examples of Command Execution

5.1 Setting up a IPv6 network environment (fixed settings)

In this example, the IPv6 addresses are manually set on this product, and an environment is set up for accessing the unit from a remote terminal.

• Maintenance for this product is done using the default VLAN (VLAN #1).
• The IPv6 address is set manually for the default VLAN (VLAN #1).
• Permit Web/TFTP access from hosts connected to VLAN #1.

1. This sets 2001:db8:1::2/64 for the default VLAN (VLAN #1).

   Yamaha#configure terminal
   Enter configuration commands, one per line.  End with CNTL/Z.
   Yamaha(config)#interface vlan1
   Yamaha(config-if)#ipv6 enable                     ... (Enable IPv6)
   Yamaha(config-if)#ipv6 address 2001:db8:1::2/64   ... (Set IPv6 address)


2. Check the IPv6 address that was set.

   Yamaha(config-if)#end
   Yamaha#show ipv6 interface brief
   Interface        IP-Address                                  Status                Protocol
   vlan1            2001:db8:1::2/64                            up                    up
                    fe80::2a0:deff:fe:2/64


3. Set the default VLAN (VLAN #1) to permit access from HTTP servers and TFTP servers.

   Access using a remote host over the Web after settings are made.

   Yamaha(config)#http-server interface vlan1 ... (Allow HTTP server access)
   Yamaha(config)#tftp-server interface vlan1 ... (Allow TFTP server access)

5.2 Setting up a IPv6 network environment (automatic settings using RA)

In this example, the IPv6 addresses are automatically set on this product, and an environment is set up for accessing the unit from a remote terminal.

• Maintenance for this product is done using the default VLAN (VLAN #1).
• The IPv6 address is set automatically by RA for the default VLAN (VLAN #1).
• Permit Web/TFTP access from hosts connected to VLAN #1.

1. Specify RA for the default VLAN (VLAN #1).

   Yamaha#configure terminal
   Enter configuration commands, one per line.  End with CNTL/Z.
   Yamaha(config)#interface vlan1
   Yamaha(config-if)#ipv6 enable                     ... (Enable IPv6)
   Yamaha(config-if)#ipv6 address autoconfig         ... (Set RA)


2. Check the IPv6 address that was obtained from RA.

   Yamaha(config-if)#end
   Yamaha#show ipv6 interface brief
   Interface        IP-Address                                  Status                Protocol
   vlan1            2001:db8::2a0:deff:fe:2/64                  up                    up
                    fe80::2a0:deff:fe:2/64


3. Set the default VLAN (VLAN #1) to permit access from HTTP servers and TFTP servers.

   Access using a remote host over the Web after settings are made.

   Yamaha(config)#http-server interface vlan1 ... (Allow HTTP server access)
   Yamaha(config)#tftp-server interface vlan1 ... (Allow TFTP server access)

6 Points of Caution

None

7 Related Documentation

• VLAN
• Remote access control

Static routing

1 Function Overview

With this product, static routing (static route information) can be used for route control in IP networks.

The administrator can explicitly store route information by entering a command.

Both static routes for IPv4 networks and static routes for IPv6 networks can be set.

There are the following two types of static route information.

Use the show ip/ipv6 route command to display the routing table.

2 Definition of Terms Used

None

3 Function Details

3.1 VLAN interface route information

Route information that is automatically stored when the IP address is set using the ip/ipv6 address command.

This is the route information of the network directly connected to this product, and is associated with the interface.

Set 192.168.100.1/24 as the IP address to the VLAN1 interface and show the routing table.

Yamaha(config)# interface vlan1
Yamaha(config-if)# ip address 192.168.100.1/24
Yamaha(config-if)# exit
Yamaha(config)# exit
Yamaha#show ip route
Codes: C - connected, S - static
       * - candidate default

C       192.168.100.0/24 is directly connected, vlan1

Gateway of last resort is not set

3.2 Static route information

Route information stored by route setting by ip/ipv6 route command.

You can set a static route for a specific network or set a default gateway.

When setting the default gateway, specify 0.0.0.0/0 as the destination network.

Up to 128 IPv4 static routes can be set using the ip route command.

Up to 32 IPv6 static routes can be set using the ipv6 route command.

Set the gateway of the route 172.16.0.0/16 to 192.168.100.254 and show the routing table.

Yamaha(config)# ip route 172.16.0.0/24 192.168.100.254
Yamaha(config)# exit
Yamaha# show ip route
Codes: C - connected, S - static
       * - candidate default

S       172.16.0.0/24 [1/0] via 192.168.100.254, vlan1
C       192.168.100.0/24 is directly connected, vlan1

Gateway of last resort is not set

Set 192.168.100.200 as the default gateway and show the routing table.

Yamaha(config)# ip route 0.0.0.0/0 192.168.100.200
Yamaha(config)# exit
Yamaha# show ip route
Codes: C - connected, S - static
       * - candidate default

Gateway of last resort is 192.168.100.200 to network 0.0.0.0

S*      0.0.0.0/0 [1/0] via 192.168.100.200, vlan1
S       172.16.0.0/24 [1/0] via 192.168.100.254, vlan1
C       192.168.100.0/24 is directly connected, vlan1

3.3 Show the routing table

There are two types of routing table: the IP forwarding table (FIB), which stores only the route information actually used in packet transfer, and the IP routing table (RIB), which stores all the route information.

All VLAN interface route information and static route information are stored in the IP routing table. Then, only the route information actually used in the packet transfer process is stored in the IP forwarding table.

Use the show ip/ipv6 route command to show the IP forwarding table and IP routing table.

In the routing table, VLAN interface route information and static route information are shown as follows.

If no option is specified for show ip/ipv6 route, the IP forwarding table is displayed.

The IP routing table can be shown by specifying the database option with show ip/ipv6 route.

You can also specify other options to show only summary information or information for a specific route.

For details on how to use the show ip route command, see the command reference.

3.4 Priority of route information (management distance)

Route information has a priority that is generally called Administrative Distance.

This is used when the route information to the same destination is stored in the VLAN interface route information and the static route information, to decide which one has priority.

The priority of route information can be applied not only to static routing but also to dynamic routing.

The priority of route information for static routing can be specified in the range from 1 to 255 by the option at the end of the ip route command.

The smaller the value, the higher the priority. In the initial state, the priority is as follows.

3.5 Enabling the routing function

Use the ip/ipv6 forwarding command to enable/disable the routing function.

In the initial state, the routing function is disabled for both IPv4 and IPv6.

4 Related Commands

The related commands are shown below.

For details on the commands, refer to the Command Reference.

List of related commands
