SWR2310 Series Technical Data (Basic Functions)

SWR2310 Series Technical Reference

Firmware revision: Rev.2.04.01

Thank you for your purchase of the Yamaha SWR2310 Series.

Please read this manual carefully, correctly installing the unit and making the proper settings before use.

Make sure to observe the warnings and cautions listed in this manual, in order to use the unit correctly and safely.

Startup guide

This explains the procedure for preparing to set up the SWR2310 Series that you purchased.

Settings for the SWR2310 Series can be made using the following four methods.

  • Make settings via the Web GUI
  • Make settings via commands using the CONSOLE port
  • Make settings via commands using Telnet
  • Make settings via commands using SSH

This document explains “Preparing to make settings via the Web GUI” and “Preparing to make settings via the CONSOLE port.”

Preparing to make settings via the Web GUI

You’ll log into the Web GUI from Yamaha LAN Monitor, so install Yamaha LAN Monitor before you proceed.

Before you log in, connect the computer to the same network.

For details on supported web browsers, refer to the Yamaha Pro Audio website.
http://www.yamaha.com/proaudio/

  1. Prepare the computer and other items you’ll need when making settings.
    • Obtain an Enhanced Category 5 cable (CAT5e) for connecting to this unit.
    • The following web browsers are recommended for use.
      • Windows
        • Internet Explorer 11, EDGE, Google Chrome, Mozilla FireFox
      • Mac, iOS
        • Apple Safari 7.0 or later
  2. Connect this unit to the computer via an Enhanced Category 5 cable (CAT5e).
  3. Power-on this unit. This unit takes approximately 70 seconds to start up.

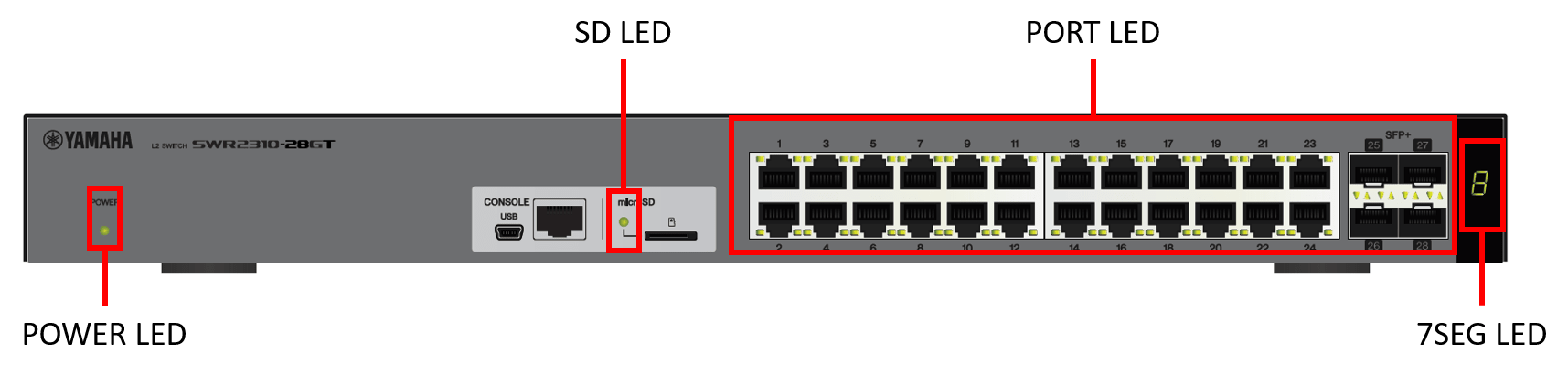

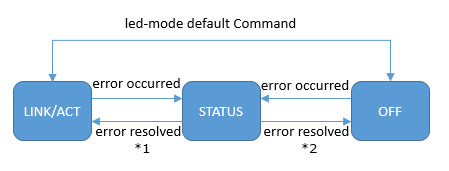

    When startup is completed, the indicator of the LAN port to which the Ethernet cable is connected will light according to the communication speed and mode.
  4. Start Yamaha LAN Monitor.
  5. Select the device for which you want to make settings, and in the “Device details” view, click the Web GUI button.
    When access succeeds, a dialog box asking you to enter a user name and password appears.
  6. If you have previously specified them, enter a user name and password, and click the [Login] button.
    With the factory settings, no user name or password have been specified, so you don’t need to enter a user name or password.
  7. Subsequently, make settings as appropriate for the system in which this unit is being used.
    • For details on settings via the Web GUI, refer to Help within the GUI that you accessed.

Preparing to make settings via the CONSOLE port

  1. Prepare the computer and other items you’ll need when making settings.
    When making settings via the CONSOLE port, use a USB cable or RJ-45/DB-9 console cable.
    As the USB cable for connection to the mini-USB CONSOLE port, use a USB cable that supports data transfer and is equipped with a USB Type A connector and a mini-USB Type B (5-pin) connector. Charging-only cables cannot be used.
    You’ll also need terminal software for controlling the serial (COM) port of the computer.
    Set the communication settings of the console terminal as follows.
    • Baud rate
    • Data
    • Parity
    • Stop bit
    • Flow control
    		: 9600 bps
    : 8 bits
    : none
    : 1 bit
    : Xon/Xoff
  2. For the connection between the computer and this unit, use a USB cable or a RJ-45/DB-9 console cable.
  3. Power-on this unit. This unit takes approximately 70 seconds to start up.
    Immediately after startup, the serial console screen appears as follows.
    SWR2310-28GT BootROM Ver.1.00

Starting .............................

SWR2310-28GT Rev.2.04.01 (Thu Sep 26 17:35:20 2019)
  Copyright (c) 2018-2019 Yamaha Corporation. All Rights Reserved.
  4. Log in to this unit.
    In the initial state, a user name and password have not been specified, so you’ll be able to log in by pressing the “Enter” key at the user name input prompt and the password input prompt.
    Username: (Input the “Enter” key)
Password: (Input the “Enter” key)

SWR2310-28GT Rev.2.04.01 (Thu Sep 26 17:35:20 2019)
  Copyright (c) 2018-2019 Yamaha Corporation. All Rights Reserved.

SWR2310>
  5. Subsequently, make settings as appropriate for the system in which this unit is being used.
    • For details on settings via the serial console, refer to Command Reference.

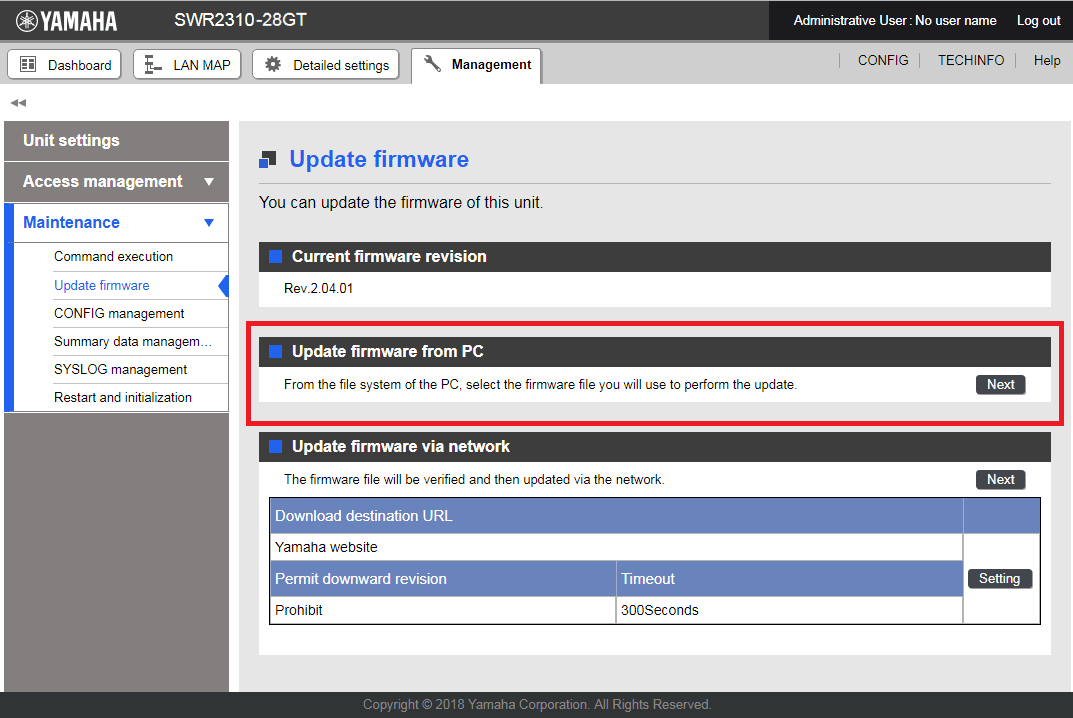

Firmware Updates

For stable operation, we recommend that you apply the latest firmware updates, which include new functionality and bug fixes.

Please confirm your system version before applying updates.

  • Use the show environment command to check the system version.

Web GUI Function

The latest firmware for this unit supports the following settings and functions.

  • Detailed settings
    • Interface settings

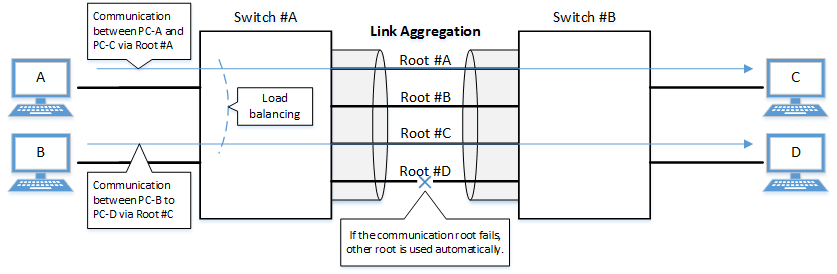

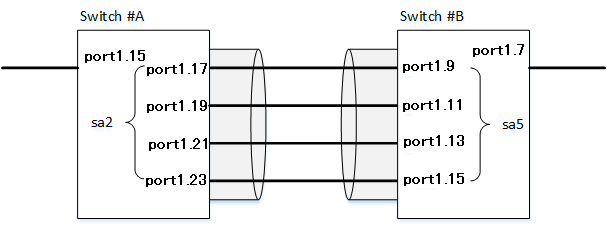

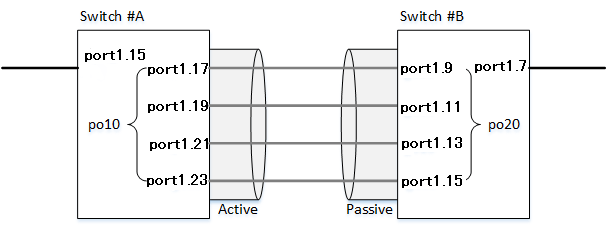

    • Link aggregation

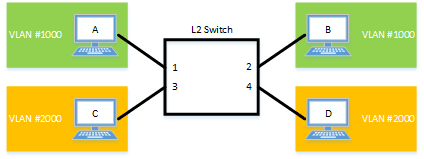

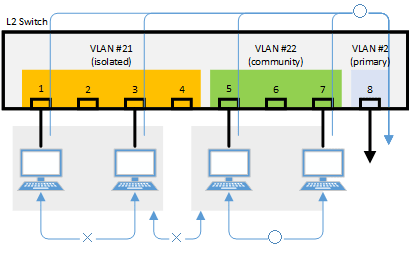

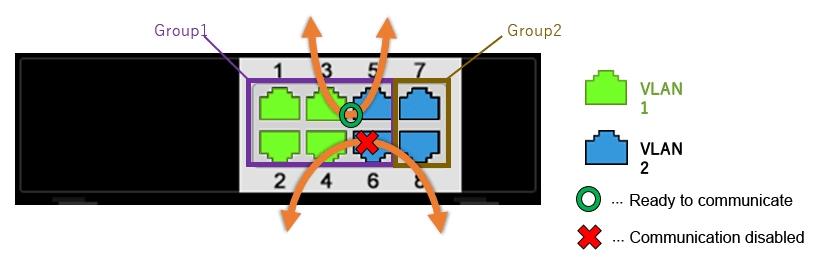

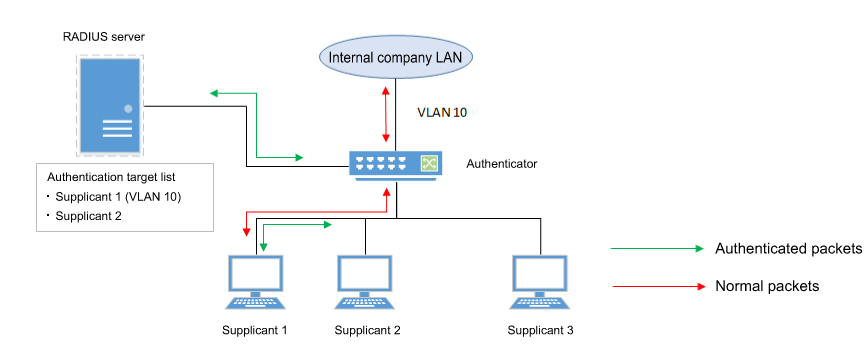

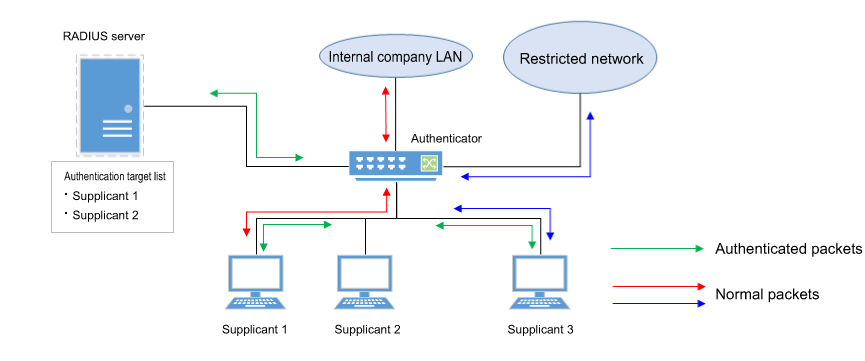

    • VLAN
    • MAC address table
    • Routing
    • DNS client

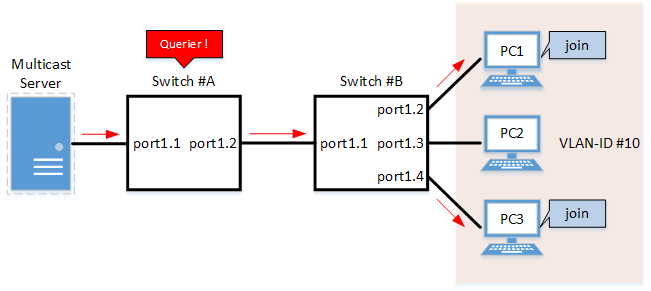

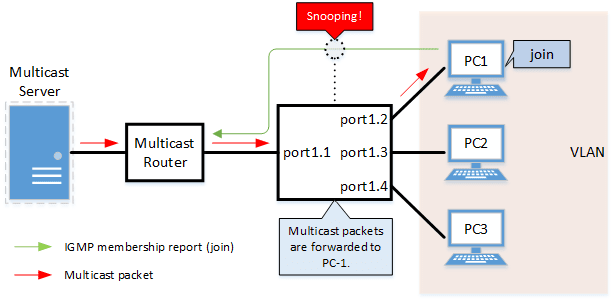

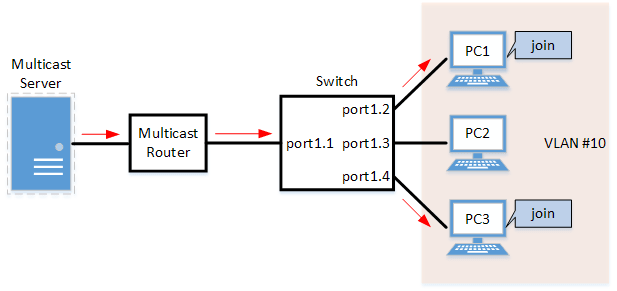

    • IGMP Snooping

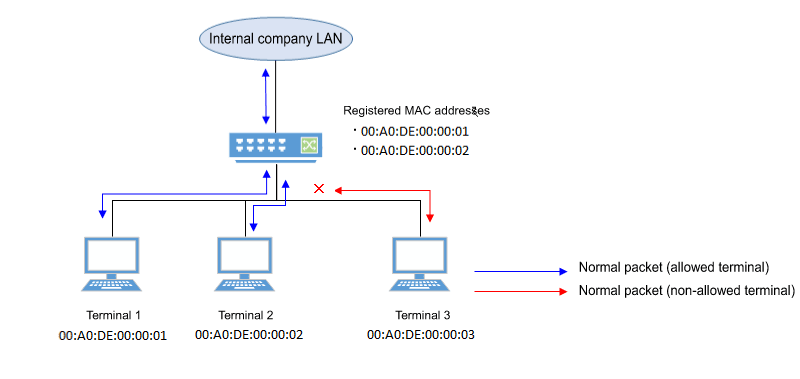

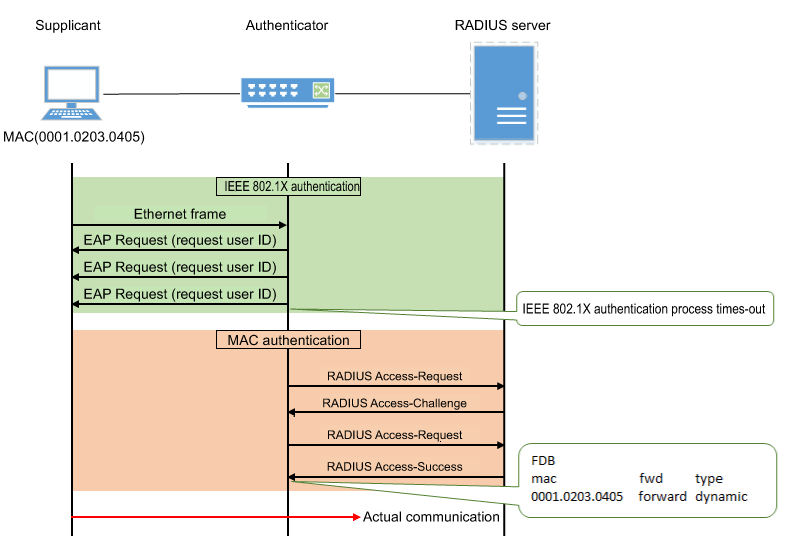

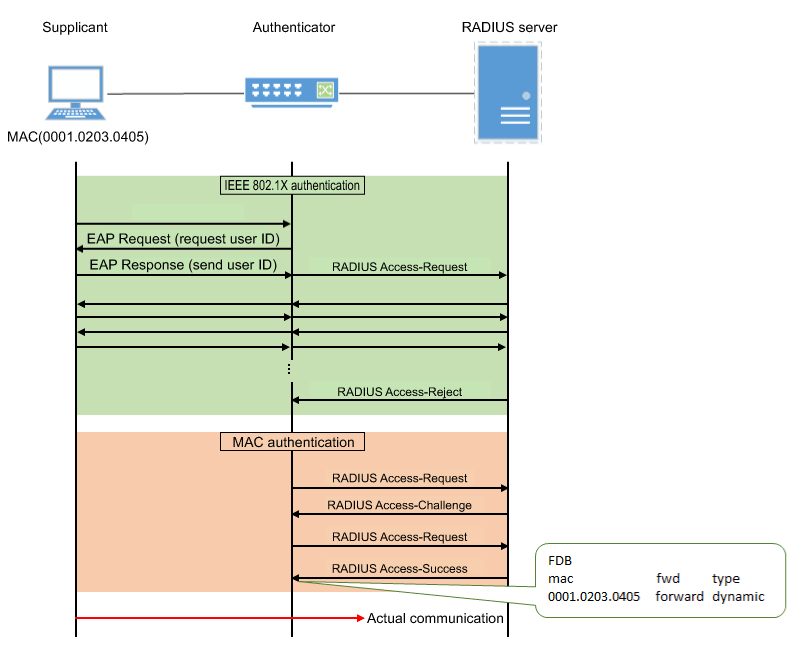

    • Access list

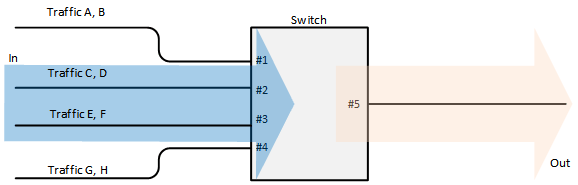

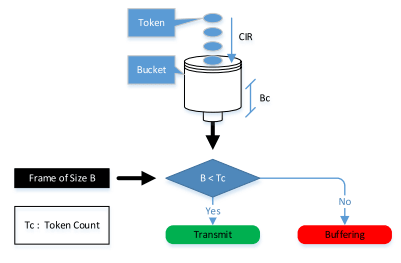

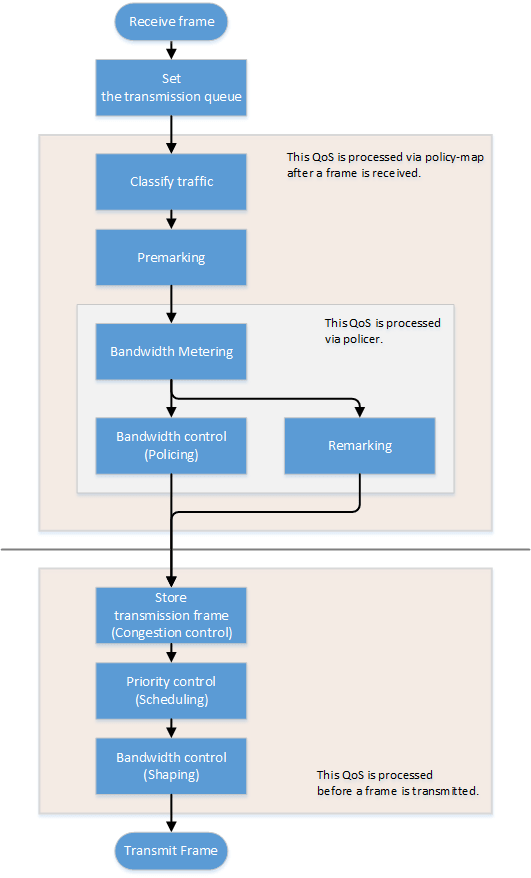

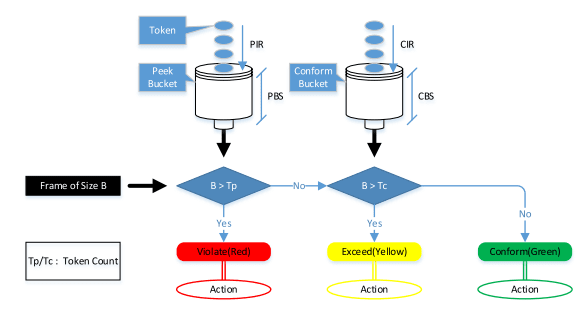

    • QoS
    • Mail notification

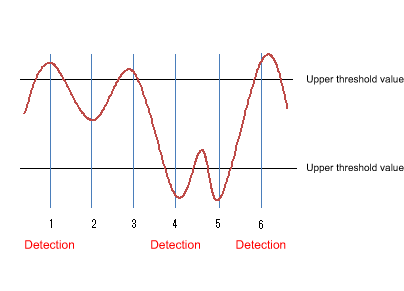

    • Terminal monitoring
  • Management
    • Unit settings
      • Time settings
    • Access management
      • User settings
      • Server settings
    • External device linking
      • microSD
    • Dante optimization settings
    • Maintenance
      • Command execution (For details on the commands, refer to the Command Reference.)
      • Firmware update
      • CONFIG file management

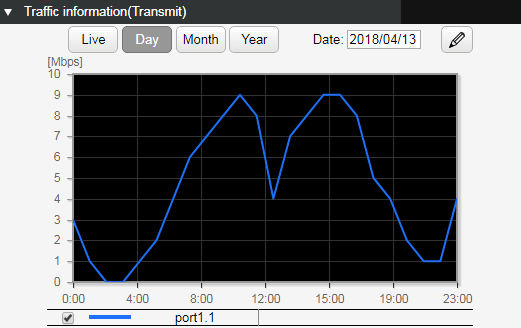

      • Statistical data management
      • SYSLOG management
      • Restart and initialization
    • Web GUI language

Precautions

  • Do not touch the inside of ports with fingers or metallic objects, etc. Doing so might cause malfunctions.
  • Do not use this unit in locations of direct sunlight (such as inside a car located in the sun), in extremely hot locations such as near a stove, in extremely cold locations, nor in locations that are excessively dusty or are subject to strong vibration. Such conditions might cause this unit’s panel to deform or internal components to malfunction, or might cause unstable operation.
  • Products made of vinyl, plastic, or rubber should not be placed on this unit. Such objects might cause this unit’s panel to be discolored or damaged.
  • To clean this unit, use a soft dry cloth. Do not use benzene, thinner, detergent, or a chemically treated cloth, such things might cause discoloration or damage.
  • If the ambient temperature in which this unit is located undergoes extreme change (such as when the unit is moved or is subject to aggressive air-conditioning or heating), and there is a danger that condensation has formed within the unit, leave the unit unpowered for several hours to ensure that condensation has disappeared before using the unit. Using the unit when condensation is present might cause malfunctions.
  • Before touching this unit, remove static charge from yourself and your clothing. Static charge might cause malfunctions.
  • Do not place this unit in locations where there is a strong magnetic field. Such conditions might cause malfunctions.
  • Do not connect equipment that generates noise to the same electrical power supply line as this unit. Such conditions might cause malfunctions or faulty operation.
  • Do not route communication cables near power cords. High voltages might be induced, causing faulty operation.
  • When using a 1000BASE-T connection, use enhanced category 5 (CAT5e) or better LAN cable.
  • Do not connect any SFP module to the SFP port other than the separately sold SFP-SWRG-SX or SFP-SWRG-LX. Operation cannot be guaranteed if any other SFP module is connected.
  • Do not connect any SFP module or DAC other than the separately sold SFP-SWRT-SR, SFP-SWRT-LR, SFP-SWRG-SX, SFP-SWRG-LX, DAC-SWRT-1M, DAC-SWRT-3M in the SFP+ port. Operation cannot be guaranteed if any SFP module or DAC other than the above is connected.
  • Attach the dust cover to SFP ports that are not in use. Foreign objects that enter the port might cause malfunctions. Keep the dust covers in a safe place so that they will not be lost.
  • SFP modules and optical fiber cables can suffer problems such as loss of accuracy caused by damage or abrasion to their connector, or dirty contacts, causing insufficient light reception or failure to link up.
  • The legs (rubber feet) included with this unit are to prevent slipping. Use them when placing this unit on a table or stand that is prone to slipping.
