SWX3220 Series Technical Reference

Firmware revision: Rev.4.02.13

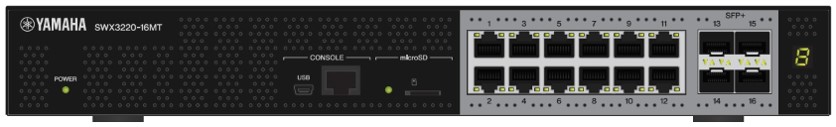

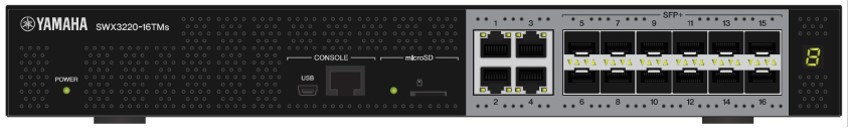

Thank you for purchasing a Yamaha SWX3220 series switch.

Before using the product, be sure to read this manual carefully to ensure the product is installed and settings are configured properly.

Be sure to observe the warnings and cautions indicated in this manual and use the product correctly and safely.

Startup Guide

This guide describes the setup procedure up to the point SWX3220 series settings can start being specified.

Settings for the SWX3220 series can be specified using any of the following four methods.

  • Specify settings by executing commands using the CONSOLE port.
  • Specify settings by executing commands using Telnet.
  • Specify settings by executing commands using SSH.
  • Specify settings using a web browser.

Preparation for Specifying Settings via the CONSOLE Port

  1. Prepare the computer and other items needed for specifying settings.
    If specifying settings via the CONSOLE port, use a USB cable or RJ-45/DB-9 console cable (YRC-RJ45).
    Use a USB cable that supports data transfer via both a USB Type A connector and a mini-USB Type B (5-pin) connector to connect to the mini-USB CONSOLE port. Charge-only cables cannot be used.
    Terminal software is also needed for controlling the computer serial (COM) port.
    Configure communication settings for the CONSOLE terminal as follows.
    • Baud rate: 9600 bps (default setting is 9600 bps, which can be changed using commands)
    • Data: 8 bits
    • Parity: none
    • Stop bit: 1 bit
    • Flow control: Xon/Xoff
  2. Use a USB cable or an RJ-45/DB-9 console cable (YRC-RJ45) to connect a computer to the product.
    • A USB serial driver must be installed before the mini-USB CONSOLE port can be used.
    • For details on how to install the USB serial driver, refer to “Yamaha Network Device USB Serial Driver Installation Guide.”

      The Yamaha Network Device USB Serial Driver Installation Guide and the installer can be downloaded from the following website.

    • https://usa.yamaha.com/support/updates/yamaha_network_usb_serial.html
  3. Switch ON the unit. The unit takes approximately 60 seconds to start up.

    Immediately after startup, the following is displayed on the serial console screen.

    SWX3220 BootROM Ver.1.00

    Starting .............................

    SWX3220-16MT Rev.4.02.XX (Fri Jan  1 00:00:00 2021)
      Copyright (c) 2018-2020 Yamaha Corporation. All Rights Reserved.


  4. Log in to this unit.

    For factory default settings, log in by entering “admin” as the default administrative username (and “admin” as the password).

    After using “admin” to log in, the password must be changed to specify a new password.

    Username: admin
    Password: admin

    SWX3220-16MT Rev.4.02.XX (Fri Jan  1 00:00:00 2021)
      Copyright (c) 2018-2020 Yamaha Corporation. All Rights Reserved.

    Please change the default password for admin.
    New Password:                            ... (Enter the new password.)
    New Password(Confirm):                   ... (Enter the same password again.)
    Saving ...
    Succeeded to write configuration

    SWX3220>

  5. After that, specify settings as appropriate for the given product operating environment.
    • For details on settings via the serial console, refer to Command Reference.

Preparation for Specifying Settings via Telnet, SSH, or a Web Browser

  1. Prepare the computer and other items needed for specifying settings.
    • Prepare an Ethernet cable for connecting to the product.
    • To access the unit via Telnet or SSH, Telnet or SSH terminal software must be installed on the computer.
    • For a list of compatible web browsers, see the website below.
      • http://www.rtpro.yamaha.co.jp/RT/FAQ/gui/browser.html
  2. Change the IP address of the computer used to specify settings.
    The default setting of 192.168.100.240/24 is specified in the unit.
    Change the IP address for the computer used to specify settings so that it includes the segment 192.168.100.0/24.
    • If a fixed computer IP address is specified, write it down.
    • For instructions on how to change computer IP addresses, refer to the computer instruction manual.
  3. Use an Ethernet cable to connect the unit to a computer.
  4. Switch ON the unit. The unit takes approximately 60 seconds to start up.

    When startup is completed, the indicators for the LAN port to which the Ethernet cable is connected will light up according to the communication speed and mode.

  5. Access the unit using the computer for specifying settings.
    • Access from a Telnet Client

      Access the unit (192.168.100.240) using terminal software.

      When access is successful, a screen that prompts for a username and password is displayed.

      For factory default settings, log in by entering “admin” as the default administrative username (and “admin” as the password).

      After using “admin” to log in, the password must be changed to specify a new password.

      Username: admin
      Password: admin

      SWX3220-16MT Rev.4.02.XX (Fri Jan  1 00:00:00 2021)
        Copyright (c) 2018-2020 Yamaha Corporation. All Rights Reserved.

      Please change the default password for admin.
      New Password:                            ... (Enter the new password.)
      New Password(Confirm):                   ... (Enter the same password again.)
      Saving ...
      Succeeded to write configuration

      SWX3220>

    • Access from an SSH Client
      To access the unit from an SSH client, specify the following unit settings in advance.
      • Generate a SSH server host key and enable SSH server functionality.

        Yamaha>enable
        Yamaha#ssh-server host key generate  (Generates host key)
        Yamaha#configure terminal
        Yamaha(config)#ssh-server enable             (Enables functionality)

      • Register a username and password.

        Yamaha(config)#username yamaha privilege on password 1a2b3c4d	(Registers username “yamaha” and password “1a2b3c4d”)
        Yamaha(config)#exit

        If specified in advance, save settings as necessary.

        Yamaha#write
        Succeeded to write configuration
        Yamaha#


        With the above settings specified, access the unit (192.168.100.240) using terminal software.
        When access is successful, a screen that prompts for a username and password is displayed.
        Enter the username and password to enable login.

        Username: yamaha   (If “yamaha” was specified)
        Password: 1a2b3c4d (If “1a2b3c4d” was specified)

        SWX3220-16MT Rev.4.02.XX (Fri Jan  1 00:00:00 2021)
          Copyright (c) 2018-2020 Yamaha Corporation. All Rights Reserved.

        Yamaha>


        Note that the product does not support the following SSH server functionality.
      • SSH protocol version 1
      • User authentication other than password authentication

        (host-based authentication, public-key authentication, challenge–response authentication, GSSAPI authentication)

      • Port forwarding (X11/TCP forwarding)
      • Gateway ports
      • Allowing blank passwords

    • Access from a web browser

      Launch the web browser on the computer for specifying settings and access 192.168.100.240.

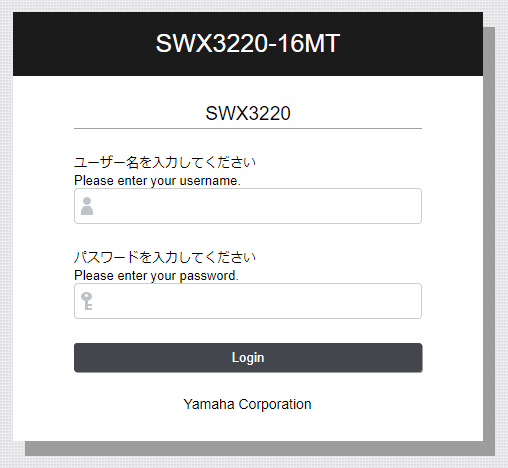

      When access is successful, the following login screen is displayed.

      If default settings are configured, log in by entering “admin” as the default administrative username (and “admin” as the password).

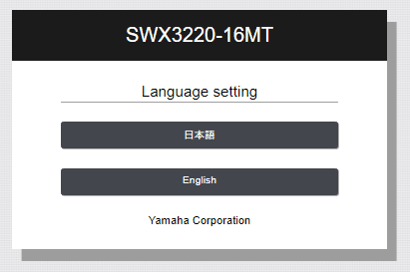

      Given factory settings, when access from the browser and login is successful, a language selection screen is displayed.

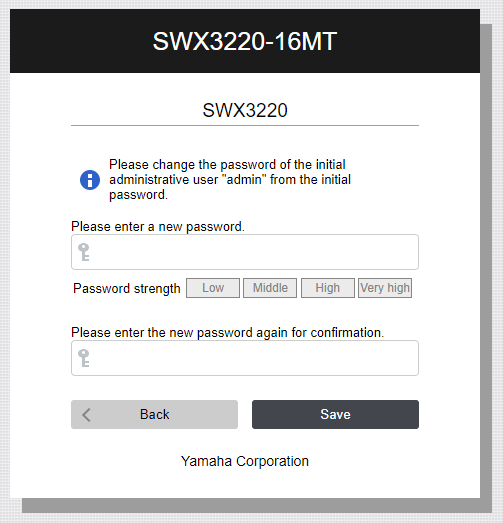

      Then specify a new password later, when prompted to change the default administrative password.

  6. After that, specify settings as appropriate for the given product operating environment.
    • For details on specifying settings from a Telnet client or SSH client, refer to Command Reference.
    • For details on specifying settings via a web browser, refer to Help within the GUI accessed.

Updating Firmware

To ensure reliable operation, we recommend applying the most recent firmware updates, which include new functionality and bug fixes.

Please verify your system version before applying updates.

  • Use the show environment command to check the system version.

Precautions

  • Please note that Yamaha accepts no responsibility for damage or losses that result from using the product or specifying settings incorrectly.
  • If plugged into a 200 V AC power supply outlet, the customer is responsible for supplying an appropriate power cord. Note that Yamaha accepts no responsibility for any of various types of damage or losses caused by the power cord.
  • Do not touch the inside of ports with fingers or metallic objects, etc.
  • Do not install the product where it is exposed to direct sunlight or unusually high temperatures (such as next to a heater).
  • Do not use the product in a location subject to sudden changes in ambient temperature. Sudden changes in ambient temperature could cause condensation to form on the product. If condensation forms, let it dry for a while before switching ON the power supply.
  • Before touching this unit, remove static charge from yourself and your clothing.
  • Do not place this unit in locations where there is a strong magnetic field.
  • Do not connect equipment that generates noise to the same electrical power supply line as this unit. Such conditions might cause malfunctions or faulty operation.
  • Using the product could cause noise to occur in nearby devices, such as telephones, radios, or televisions. If noise occurs, try relocating or reorienting the product.
  • Do not route communication cables near power cords. Power cords could induce high voltages that might cause malfunction.
  • Unplug the product from the power outlet while not in use.
  • Use enhanced category 5 (CAT5e) or better LAN cable for 1000BASE-T connections.
  • Use category 6 (CAT6) or better LAN cable for 10GBASE-T connections. However, the maximum transmission distance might be shorter than specified if used for 2.5GBASE-T/5GBASE-T/10GBASE-T connections, due to noise from adjacent cables or other external sources.
  • If ownership of this product is conveyed to another party, be sure to provide this manual as well.
  • This product includes a lithium-ion battery for backup power for clock functionality. Therefore, the product and its accessories are disposed of in accordance with local laws and regulations.
  • To use an SFP+ port, install one of the following Yamaha modules sold separately. Functionality is not guaranteed if any module other than those indicated below is installed.
    • YSFP-G-SXA、YSFP-G-LXA、SFP-SWRG-SX、SFP-SWRG-LX
    • YSFP-10G-SR、YSFP-10G-LR、SFP-SWRT-SR、SFP-SWRT-LR
    • YDAC-10G-3M、YDAC-10G-1M、DAC-SWRT-3M、DAC-SWRT-1M
  • Attach a dust cover to all unused SFP and SFP+ ports. If foreign matter gets inside the port, it could cause a malfunction. Keep the dust covers carefully stored so they are not lost.
  • SFP modules and optical fiber cables can have problems with insufficient light input, failure to link up, or other issues due to loss of accuracy caused by connector damage or abrasion, dirty contacts, or other factors. In particular, single mode fiber should be handled especially carefully because it is more prone to suffer such effects than multi mode fiber. Clean the contacts before making connections. Also, attach the protective cap when not in use.
Back to home
  • SWX3220 Series Technical Data (GUI)
  • General

General

  • Introduction
  • Login/Logout
  • About each screen
back to home
  • SWX3220 Series Technical Data (GUI)
  • General
  • Introduction

Introduction

1. What you can do using the Web GUI

The Web GUI lets you perform basic settings and management of the Yamaha switch (this unit). The Web GUI contains the following screens for you to make settings and perform management.

  • Dashboard
  • LAN MAP
  • Detailed settings
  • Management
  • CONSOLE
  • CONFIG
  • SYSLOG
  • TECHINFO

2. Operating environment

Here we explain the environment that is required in order to use the Web GUI.

Recommended web browser

We recommend the following web browser for use with the Web GUI.

  • Windows
    • Microsoft Edge
    • Google Chrome
    • Mozilla Firefox
  • Mac
    • Apple Safari
  • iPadOS
    • Apple Safari

The latest version of each browser is recommended.

Microsoft Internet Explorer is not supported.

<NOTE>

  • Do not use the [Back] or [Forward] buttons of the web browser.
  • In some cases, the display layout of a page may become disordered. If this occurs, please access that page once again.

<Memo>

  • The Web GUI uses UTF-8 character encoding.

JavaScript settings

The Web GUI uses JavaScript. If your web browser is set to disable JavaScript, you might not be able to use the Web GUI itself.

In advance, please enable JavaScript as described in the following procedure.

  • Settings for Google Chrome (Windows version)
    1. Press the Google Chrome menu button.
    2. On the menu that appears, select “Settings (S)”.
    3. Select the “Advanced settings” in the lower part of the page.
    4. In the “Privacy and security” section, select “Content settings”.
    5. Select “JavaScript”.
    6. Move the slider to the right to “Allowed (recommended)”.
    1. For details on JavaScript settings for Google Chrome, refer to the Google Chrome support page (external site).
  • Settings for Mozilla Firefox (Windows version)
    1. For details on JavaScript settings for Firefox, refer to the Firefox support page (external site).
  • Settings for Safari (Mac version)
    1. On the menu, select “Safari” and choose “Preferences.”
    2. In the window that appears, choose “Security.”
    3. Add a check mark for “Allow plug-ins” and “Enable JavaScript.”
  • Settings for Safari (iPadOS version)
    1. On the home screen, select “Settings”.
    2. Select “Safari”.
    3. Select “Advanced”.
    4. Move the “JavaScript” slider to the right to enable.

Cookie settings

The Web GUI uses cookies. If your web browser is set to disable cookies, you might not be able to use the Web GUI itself.

Follow the steps below to allow cookies in order to use the Web GUI.

  • Settings for Google Chrome (Windows version)
    1. Press the Google Chrome menu button.
    2. On the menu that appears, select “Settings (S)”.
    3. Select the “Advanced settings” in the lower part of the page.
    4. In the “Privacy and security” section, select “Content settings”.
    5. Select “Cookies”.
    6. Move the topmost slider to the right, to enable “Allow sites to save and read cookie data (recommended)”.
  • Settings for Mozilla Firefox (Windows version)
    1. Press the Mozilla Firefox menu button.
    2. In the menu that appears, choose “Preferences”.
    3. Select the “Privacy” panel.
    4. Select “Remember history” from the drop-down list box in the “History” section.
  • Settings for Safari (Mac version)
    1. On the menu, select “Safari” and choose “Preferences”.
    2. In the window that appears, choose “Privacy”.
    3. For the “Cookies and website data” setting, select a setting other than “Always block”.
  • Settings for Safari (iPadOS version)
    1. On the home screen, select “Settings”.
    2. Select “Safari”.
    3. Select “Block Cookies”.
    4. Select a setting other than “Always block”.

3. User access rights

Users who log in to the Web GUI are divided into two types: general users and administrative users. These are referred to as “access levels.” The differences between the access levels are described below.

  • For general users

    Can view the settings of the unit, operate the Web console, and obtain SYSLOG. Cannot change the settings.

  • For administrative users

    Can view and change the settings of the unit. Can obtain CONFIG and TECHINFO in addition to operating the Web console and obtaining SYSLOG.

4. Note when using together with command input

Settings for this unit can be made not only via the Web GUI but also from the command console screen by directly entering commands. Command input allows a broader range of settings than when using the Web GUI, and also lets you make settings for functions that are not supported in the Web GUI. If you use both command input and the Web GUI to make settings, be aware that the commands that you input may be overwritten, or the settings may be cleared.

<Memo>

  • The command console screen contains the following items.
    • Management -> “Maintenance” -> “Command execution”
  • For details on commands, refer to “Command reference.”

5. Language

The Web GUI allows you to switch the display language. To switch the display language, press the “Language Switch” button on the top menu, and select a language you want.

The supported languages are as follows.

  • Japanese
  • English
back to home
  • SWX3220 Series Technical Data (GUI)
  • General
  • Login/Logout

Login/Logout

1. Login page

Start your web browser, and access “http://(the IP address you assigned to this unit)/” to display the login page.

The following items are shown on the login page.

  • Model name ( Ex. : SWX3220-16MT )
  • hostname ( Name configured using the hostname command )
  • Input box for user name
  • Input box for password
  • Login button

If login fails, the following error messages are displayed.

  • Incorrect user name or password Incorrect username or password, or login as XXXX is restricted.
  • Incorrect password three times in a row Blocked upon 3 failed login attempts for XXXX. Please try again later.
  • Maximum number of sessions have been reached Login failed. The maximum number of sessions has been reached.
    Note: Refer to “4. About sessions” for details on sessions.

2. Login method

Here we explain how to log in to the Web GUI of this unit.

  1. Start your web browser, and access the login page.
  2. Enter the user name and password set by the username command, then press the [Login] button.

<About users>

  • To access this unit in the factory-set state, log in with the user name “admin” and the password “admin”.
  • When logging in as a user without administrative privileges, you will be logged in as a general user.
  • When logging in as a user with administrative privileges, you will be logged in as an administrative user.

<About general users and administrative users>

  • General User If you log in as a general user, you will be able to view this unit’s settings and operating status. You will not be able to make settings for this unit.
  • Administrative User If you log in as an administrative user, you will be able to perform all Web GUI operations. You can view the unit’s settings and operating status, and configure the settings for this unit.

<About passwords>

  • You must enter the password as single-byte characters. Double-byte characters may not be used. Uppercase and lowercase characters are distinguished.
  • Take care not to forget the password that you assigned. If you have forgotten the password, ask the administrator who set up this unit for the correct password.

<NOTE>

  • You will not be able to properly login if the browser is configured to block cookies.
  • In this case, refer to the “Introduction  2. Operating environment” section to set up your cookies.

3. Logout method

  • In the upper right of the screen, press the [Log out] button to display the “Log out” dialog box.
  • Press the “Login screen” button in the dialog box to go to the login page.

4. About sessions

  • If you can successfully login to the Web GUI, a session will be established between the browser in use and this unit.
  • Each time you login from a different browser or device, a new session is established.
  • The session will be maintained until you log out or the session times out.
  • Sessions that have been established will time out after five minutes have elapsed from the last data communication.
  • Up to four sessions can be established at one time.
  • Information for a session can be checked using the “show users” command.

5. Change password of initial administrative user “admin”

  • If you log in as the initial administrative user “admin” and the password is “admin”, a screen to change the password will appear.
  • Enter the password and set it, then the setting is saved.

6. Select display language

  • A screen for selecting a language appears right after you log in, only if you log in to the Web GUI as an administrative user in the factory-set state.
  • Once you select a language, the Web GUI displays in the language.
back to home
  • SWX3220 Series Technical Data (GUI)
  • General
  • About each screen

About each screen

1. Dashboard

It shows the various system information of this device in visual form. You can check and monitor the following status.

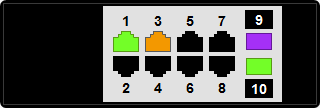

  • Interface information
  • System information
  • Resource information ( CPU Utilization / MemoryUtilization )
  • SYSLOG
  • Terminal monitoring
  • Traffic information ( Transmit / Reception )
  • Resource information ( Graph )
  • Stack information

2. LAN MAP

In this page you can view, manage, and make settings for the Yamaha network devices managed by the LAN interface, and any equipment under its management.

The LAN map is shown only if this unit is operating as a manager.

3. Detailed settings

In this page you can make detailed network-related settings for this unit. The following items are provided.

  • Interface settings
    • Physical interface
    • Port mirroring
    • Link aggregation
    • Port authentication
      • Port authentication settings
      • Server settings
      • Authentication management
      • Web authentication screen
    • L2MS filter
    • Tx queue usage monitoring
  • VLAN
    • Create VLAN
    • Tag VLAN
    • Multiple VLAN
  • Layer 2 functions
    • MAC address table
    • Spanning tree
    • Loop detection
    • Pass through
  • Layer 3 functions
    • DNS client
    • Routing
  • PBR
    • Creating a route map
    • Applying a route map
  • Multicast
    • Multicast basic settings
    • IGMP snooping
    • MLD snooping
  • Traffic control
    • Access list
      • Create Access list
      • Apply Access list
    • QoS
    • Flow control
    • Storm control
  • Application layer
    • DHCP server
    • RADIUS server
      • Server settings
      • User management
      • Managing certificates

4. Management

In this page you can make settings for this unit, and perform maintenance. The following items are provided.

  • Unit settings
  • Access management
    • User settings
    • Various server settings
  • External devices
    • microSD
  • Schedule execution
  • SNMP
    • MIB
    • Community
    • SNMPv3 User
    • SNMP trap
  • LLDP
  • Mail notification
  • Terminal monitoring
  • Dante optimization
  • SDVoE optimization
  • PTP
  • Maintenance
    • Command execution
    • System self-diagnostics
    • Cable diagnostics
    • Update firmware
    • CONFIG management
    • Summary data management
    • SYSLOG management
    • Backup / Restoration
    • Restart and initialization
  • Find this switch

5. CONSOLE

You can access the console screen from the “CONSOLE” menu. A new browser window opens, and a login prompt appears. Enter your username and password to log in.

  • Constraints
    • The Key input does not work correctly in Safari for macOS. Please use a browser (Chrome, Edge, Firefox) other than Safari.
    • Launching multiple web consoles is not supported. If you open a new web console, the current session is disconnected.
    • There are the following restrictions when accessing an L2MS agent’s web console from the LAN map via an HTTP proxy.
      • If the L2MS manager is a router, it is not supported.
      • If the L2MS manager is a switch, make sure that the firmware supports the web console.
      • Do not launch multiple web consoles. You may temporarily lose access to the Web GUI of the L2MS manager.
  • About copy and paste
    • You can copy text to the clipboard by pressing “Ctrl+C” after selecting the text.
    • “Copy” and “Paste” functions in the right-click menu are available only on the Web Console screen.
    • You can paste text from the clipboard by selecting “Paste from browser” from the right-click menu.

6. CONFIG

The results of running the “show running-config” command (a setting of this unit) can be viewed in a web browser or acquired as a text file.

  • Viewing CONFIG
    • In the “CONFIG” menu, press the “Show in browser” button. The execution result of the “show running-config” command is shown in a sub-window.
    • To close, press the web browser’s close button.
  • Obtaining CONFIG as a text file
    • In the “CONFIG” menu, press the “Obtain as text file” button to start the download automatically.
    • The name of the acquired file is “running-config_YYYYMMDDhhmmss.txt”.
      YYYY...A.D. ( 4 Digit )
      MM...Month ( 2 Digit )
      DD...Day ( 2 Digit )
      hh...Hours ( 2 Digit )
      mm...Minutes ( 2 Digit )
      ss...Seconds ( 2 Digit )

7. SYSLOG

This feature outputs the log of this unit’s operation status in the order of the oldest occurrence time.

In the “SYSLOG” menu, the result of running the show logging command can be viewed in a web browser or acquired as a text file.

  • Viewing SYSLOG
    • In the “SYSLOG” menu, press the [Show in browser] button. The execution result of the “show logging” command is shown in a sub-window.
    • To close, press the web browser’s close button.
  • Obtaining SYSLOG as a text file
    • In the “SYSLOG” menu, press the [Obtain as text file] button to start the download automatically.
    • The name of the acquired file is “running-config_YYYYMMDDhhmmss.txt”.
      YYYY...A.D. ( 4 Digit )
      MM...Month ( 2 Digit )
      DD...Day ( 2 Digit )
      hh...Hours ( 2 Digit )
      mm...Minutes ( 2 Digit )
      ss...Seconds ( 2 Digit )
  • Constraints
    • If the stack function is enabled, only the SYSLOG of the main switch can be displayed.

8. TECHINFO

The “show tech-support” command lets you view status information for all of this unit’s functions.

In the “TECHINFO” menu, the results of running the “show tech-support” command can be viewed in a web browser or acquired as a text file.

  • Viewing TECHNIFO
    • In the “TECHINFO” menu, press the [Show in browser] button. The execution result of the “show tech-support” command is shown.
    • To close, press the web browser’s close button.
  • Obtaining TECHNIFO as a text file
    • In the “TECHINFO” menu, press the [Obtain as text file] button to start the download automatically.
    • The name of the acquired file is “technifo_YYYYMMDDhhmmss.txt”.
      YYYY...A.D. ( 4 Digit )
      MM...Month ( 2 Digit )
      DD...Day ( 2 Digit )
      hh...Hours ( 2 Digit )
      mm...Minutes ( 2 Digit )
      ss...Seconds ( 2 Digit )
  • Notes
    • It may take some time to obtain TECHNIFO.
    • This unit may undergo loading while the information is being acquired.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Dashboard

Dashboard

  • About the dashboard
  • About the gadgets
back to home
  • SWX3220 Series Technical Data (GUI)
  • Dashboard
  • About the dashboard

About the dashboard

Using the dashboard
  • What is the dashboard?
    • The page that provides visualization and monitoring of various system information and status information is called the “dashboard.”
    • When a parameter being monitored exceeds the threshold value, it is shown in a warning field, helping you to determine the cause of a problem or to perform troubleshooting.
  • What is a gadget?
    • Each window shown in the dashboard is called a “gadget.”
    • A gadget that you want to monitor can be placed anywhere you like.
    • Information for each gadget is automatically updated at regular intervals.

The dashboard shows the following buttons.

  • About the [Stack switch] button
    • If the stack configuration is enabled, the [Stack switch] button will be displayed at upper left.
    • Select a stack ID to display the stack information selected on the following gadgets.
      • System information
      • Resource information
      • Interface information
      • Resource information ( Graph )
    • This can only be selected for stacks with active status.
    • The main switch will be selected on the initial screen.
    • Information for selected stacks for separated gadgets will be shown per gadget at the next update timing.
  • gadget_buttonAbout the “Gadget” button
    • From the “gadget” buttons (gadget_button) in the upper right, select the gadgets that you want to be displayed.
  • alert_buttonAbout the “Warning” button
    • A maximum of 32 warnings are shown, from newest to oldest.
    • Each of the displayed gadgets monitors the situation, and when an abnormal situation or a high load is detected, the “Warning” button (alert_button) flashes and a list of warnings appears under the “Warning” button.
    • The list of warnings shows the contents of the currently detected warnings in order of recentness.
      • Date and time that the abnormality was detected
      • Gadget that detected the abnormality
      • Detected content
    • The bar of the gadget that is the object of the warning is also shown with a flashing “Warning” button.
    • When the following conditions are satisfied, the warning will stop being displayed (the conditions differ depending on the detected content).
      • Recovered from an abnormal state (for example, the usage ratio or the throughput fell below the threshold)
      • The state was cleared (for example, the settings were changed or the port linked down)
      • The “Clear” button (alert_cancel_button) of the warning list was pressed (*)

        (*) Note that even if you press the “Clear” button so that the warning is not shown in the warning list, it is not the case that the abnormal state has been resolved.

    • If all warning indications disappear, the “Warning” button stops flashing, and the warning list disappears.
    • You can press the “Warning” button to open or close the warning list.
    • You cannot open the warning list and the warning history list at the same time.
  • alert_history_buttonAbout the “History” button
    • The warning history is shown in order of newness, for a maximum of 64 items.
    • The warning history is shown in bold, but warnings that were cleared by the “Clear” button in the warning list are shown in thin characters.
    • If there are unconfirmed warning history items that have not been cleared, the lower right of the “History” button (alert_history_button) shows the number of those items (in other words the number of warning history items shown in bold) (alert_history_num).

      If this number is displayed, check the contents of the warnings that have occurred in the warning history list.

    • When you press the [OK] button (history_check_button) of each item in the warning history list, it changes to thin characters as a confirmed history item, and the [OK] button disappears.
    • In the warning history list, pressing the “Confirm all” button (history_allcheck_button) changes all history entries to a confirmed state.
    • In the warning history list, pressing the “Delete all” button (history_dust_button) deletes all history.
    • You can press the “History” button to open or close the warning history list.
    • You cannot open the warning list and the warning history list at the same time.
Using the gadgets

The following gadgets can be used.

  • System information
  • Resource information
  • Interface information
  • SYSLOG
  • Terminal monitoring
  • Traffic information ( Transmit / Reception )
  • Resource information ( Graph )
  • Stack information

Each gadget has the following functions.

  • Add gadget:
    • Press the “Gadget” button (gadget_button) in the upper right, select the gadget that you want to use from the gadget list, and then press the [Apply] button.
    • Gadgets are always added to the far upper left of the dashboard.
  • Delete gadget:
    • Press the “Gadget” button (gadget_button) in the upper right, clear a selection from the gadget list, and then press the [Apply] button.
    • You can also delete a gadget by pressing the “Close” button () in the upper right of each gadget.
  • Move gadget:
    • When you place the mouse over each gadget, the mouse pointer changes to a move symbol, allowing you to drag the gadget to a desired position.
    • Candidates for the gadget’s movement destination are shown in gray.
    • The interface information gadget cannot be moved.
  • Separate the gadget screen:
    • A “Separate” button () is shown in the upper right of each gadget.
    • If you press the “Separate” button, that gadget alone is shown in a different window.
    • At this time, the corresponding gadget in the dashboard is indicated as “In separate window.”
    • If a gadget is separated, the following occurs.
      • The “Separate” button is no longer shown for the separated gadget.
      • When you update the dashboard display, all separated gadgets return to the dashboard and are shown.
      • When you close the dashboard, all separated gadgets are also closed.
    • Separated gadgets can also be displayed by specifying a URL directly in the browser.

      When a URL has been directly specified, the main switch will be displayed.

      Example) System information gadget:http://192.168.100.1/dashboard/system.html

  • Minimize gadget:
    • When you press the minimize icon () in the upper left of each gadget, the icon turns sideways () and the gadget display is minimized.
    • When you press it again, the icon returns to its original downward orientation () and the gadget returns to its original size.
  • Save gadget position information:
    • When you add, delete, or move a gadget, or when you minimize and restore it, the position data of the gadget is saved.
    • This information is also saved when the power is turned off and on again.
    • This data is initialized if you return the device to its factory-set state.
    • If a general user logs in, the gadget position information is not saved.
  • Auto-update gadget:
    • All gadgets are automatically updated at regular intervals.
    • The update interval differs depending on the gadget.
  • Warning display:
    • When an abnormal condition or a high load is detected by a gadget, a flashing “Warning” button (alert_button) is displayed beside the minimize icon of that gadget.
    • The following states will initiate this warning.
      GadgetTrigger
      System informationWhen reboot because of startup is detected
      The CPU temperature exceeds 105°C or 115°C.
      The MAC temperature exceeds 80°C or 110°C.
      The PHY temperature exceeds 103°C or 115°C.
      The SFP module temperature exceeds 70°C or 85°C.
      The fan stops.
      The fan speed increases.
      Resource informationWhen CPU usage exceeds 80%
      When memory usage exceeds 80%
      Interface informationAn loop occurs.
      The SFP optical Rx level exceeds the upper limit.
      The SFP optical Rx level falls below the lower limit.
      Traffic informationThe throughput exceeds the link speed of 60%.
      Stack informationThe stack port changed state to down.
      The heartbeat error was detected.
      This unit was selected as the main switch.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Dashboard
  • About the gadgets

About the gadgets

Interface information

Displays the link status of the ports.

  • The “Port” icon display lets you check the link status of the ports.
  • When you move the mouse cursor over the “Port” icon, detailed port information is shown.
  • The “Port” icon will display as follows, according to the link status.

Link status:For a LAN port

IconDescription
Link up (port speed 10GBASE-T)
Link up (port speed 5GBASE-T)
Link up (port speed 2.5GBASE-T)
Link up (port speed 1000BASE-T)
Link up (port speed 100BASE-TX)
Link down
Error occurrence( Loop detection, Shutdown by BPDU guard, Shutdown by port-security, The throughput has exceeded link speed 60. )

The STP state of the port is discarding. (CIST only)
It means that the STP is blocking frames even though the link is up.

* This icon is overlaid on the link-up icon.

Link status:For an SFP port

IconDescription
Link up (port speed 10GbE)
Link up (port speed 1GbE)
Link down
Error occurrence( Loop detection, Shutdown by BPDU guard, Shutdown by port-security, Optical RX power error, The throughput has exceeded link speed 60. )

The STP state of the port is discarding. (CIST only)
It means that the STP is blocking frames even though the link is up.

* This icon is overlaid on the link-up icon.

Link status:Stack port

IconDescription
Link up
Link down

System information

The following information is displayed.

  • Device name:
    • Display the device name of the switch.
  • Firmware revision:
    • Firmware revision
  • Serial number:
    • Serial number of the device
    • This is also shown by a label on the rear of the chassis.
  • MAC address:
    • MAC address of the device
    • This is also shown by a label on the rear of the chassis.
  • Currently-running firmware:
    • The currently started firmware is shown..
    • When it starts from firmware stored in an external memory, shown like “exec(SD)”.
  • Currently-running settings file:
    • The currently used CONFIG file is shown.
    • Select config0 - config4 using the startup-config select command.
  • Serial baud rate:
    • Displays the baud rate of the console port.
  • System time:
    • Current device date and time
    • If the date and time are incorrect, set the date and time either in the Web GUI’s “Management” -> “Device settings” page, or by using the clock set command or the ntpdate command.
  • Startup time:
    • System startup date and time
  • Startup reason:
    • Reason for startup
    • Start from power-off state, reload command, revision up, etc.
    • If reboot is detected as the startup reason, the background turns red, and a warning indication () occurs.
      • Check with the network administrator.
      • In the warning list, press the “Clear” button () to clear the warning indication.
  • Fan speed :
    • Displays the speed of each fan.
  • Internal chassis temperature :
    • Displays the temperature inside the chassis.
  • Fan speed :
    • Displays the speed of each fan.
  • Internal chassis temperature :
    • Displays the temperature inside the chassis.
  • SFP optical RX level :
    • Displays the SFP optical Rx level state and the connection module.

Resource information

This page shows the CPU usage and memory usage.

  • The current values and peak values of CPU usage and memory usage are shown.
  • The number at the right of the meter is the current usage, and the number at the left is the peak value.
  • You can clear the previous peak value from [Clear peak values].
    • Peak values are also cleared when you restart the device.
  • When you move the mouse cursor to each meter, the peak value and the date and time at which the peak value was recorded are shown.
  • If the CPU usage exceeds 80% , a warning display () is shown.
    • Note the date and time at which the peak value was recorded, and from other gadgets, note the traffic and the log that were occurring during that time.
  • If the memory usage exceeds 80% , a warning display () is shown.
    • Note the date and time at which the peak value was recorded, and from other gadgets, note the traffic and the log that were occurring during that time.

SYSLOG

This shows the most recent SYSLOG.

  • The most recent log is at the top.
  • In the select menu you can change the number of lines that are displayed (default: 10 lines).

Terminal monitoring

Displays a list of monitored devices and the status of each.

  • Devices that are determined to be up, down, not started yet (“Idle”) and all monitored devices (“All”) are counted respectively.
  • Displays the monitored target, device name, monitoring type and status for each monitored device.
  • Point the mouse cursor above a status column to show the status for that monitored device.
  • Press the [Up], [Down], [Idle], and [All] buttons to show only the monitored devices for those statuses.
  • When not even one monitored device is registered, “The monitoring devices have not been registered” will be displayed.

Traffic information

The physical interface traffic is displayed on a graph.

There are different gadgets for the transmission traffic and for the reception traffic.

  • Use the [Live], [Day], [Month], and [Year] buttons to change the graph rendered.
    • [Live]
      • Traffic can be viewed for the previous two minutes.
      • The graph will be automatically refreshed each second.
    • [Day]
      • Displays traffic per hour for the specified date.
      • The day can be set using the day specification box at the top right of the gadget.
      • Press the date specification box to display the calendar, and select the day to show the graph for the day specified.
      • A date within one year to the past can be set using the calendar.
    • [Month]
      • Displays traffic per day for the specified month.
      • The month can be set using the month specification box at the top right of the gadget.
      • Press the month specification box to display the calendar, and select the month to show the graph for the day specified.
      • A past month within one year can be set using the calendar.
    • [Year]
      • Displays traffic per month for the specified year.
      • The year can be set using the year specification box at the top right of the gadget.
      • Press the year specification box to display the calendar, and select the year to show the graph for the year specified.
      • The year specification box can be used to specify either the current year or the previous year.
  • Press the “Interface selection” button () to display the “Interface selection” dialog box.
  • Select the interface to display on the graph, from the “Interface selection” dialog box.
  • The average traffic per hour for the interface is rendered on the graph.
  • Up to 8 lines can be displayed on the graph using the colors blue, salmon pink, yellow, green, gray, sky blue, pink and purple for a total of 8 colors.
    • These colors are allocated in the order that they are rendered on the graph, from the newest interface numbers onwards.
  • The Y-axis upper limit grows with the traffic, from a minimum of 10 [kbps] to a maximum of 10 [Gbps].
  • The information shown below is shown on the graph for the specified period that is rendered.
    • Live : Current time - time 120 sec. ago (hh:mm:ss format)
    • Day : 0 o’clock - 23 o’clock
    • Month : 1st - 28th, 29th, 30th, 31st
    • Year : Jan - Dec
  • Point the mouse cursor above a line on the graph to show the interface information, date and traffic amount.
  • A legend for the currently displayed graph is shown at the lowermost part of the gadget.
  • Using the legend
    • Only the lines on the graph that are enabled using the check boxes in the legend will be displayed.
    • Deselecting the check boxes will hide the corresponding lines from the graph.
    • This is useful when multiple lines are overlapping or when you wish to temporarily monitor a specific interface only.
    • If the interface you are currently monitoring does not exist, the message “The currently monitored interface is not selected” will display.
  • Refresh the screen to restore the rendered time period and the selections on the legend to their defaults, as shown below.
    • Rendered period : Live
    • Legend check boxes : All applied
  • If the traffic exceeds 60%, a warning () will be displayed.
  • If the traffic falls below 50%, the warning will be cancelled.
  • When displaying a gadget in a separate window using the “Separate” button ()
    • The settings prior to being separated will be reflected in the settings for the interface currently being monitored.
    • The rendered time period and the selections on the legend return to their defaults.
    • The settings for the interface selected in a separated window will be reflected in the dashboard gadget when the separated screen is closed.
  • When directly inputting the URL for a separated window and displaying a gadget
    • The rendered time period and the selections on the legend return to their defaults.

Resource information(Graph)

This shows the CPU usage and memory usage in graph format.

  • Use the [Live], [Day], [Month], and [Year] buttons to change the graph rendered.
    • [Live]
      • Traffic can be viewed for the previous two minutes.
      • The graph will be automatically refreshed each second.
    • [Day]
      • Displays traffic per hour for the specified date.
      • The day can be set using the day specification box at the top right of the gadget.
      • Press the date specification box to display the calendar, and select the day to show the graph for the day specified.
      • A date within one year to the past can be set using the calendar.
    • [Month]
      • Displays traffic per day for the specified month.
      • The month can be set using the month specification box at the top right of the gadget.
      • Press the month specification box to display the calendar, and select the month to show the graph for the day specified.
      • A past month within one year can be set using the calendar.
    • [Year]
      • Displays traffic per month for the specified year.
      • The year can be set using the year specification box at the top right of the gadget.
      • Press the year specification box to display the calendar, and select the year to show the graph for the year specified.
      • The year specification box can be used to specify either the current year or the previous year.
  • The average usage ratio is rendered per hour for the monitored period.
  • The CPU usage is shown on the graph using blue lines, and the memory usage is shown using salmon pink lines.
  • The upper limit for the graph’s Y axis is 100 [%].
  • The information shown below is shown on the graph for the specified period that is rendered.
    • Live : Current time - time 120 sec. ago (hh:mm:ss format)
    • Day : 0 o’clock - 23 o’clock
    • Month : 1st - 28th, 29th, 30th, 31st
    • Year : Jan - Dec
  • Point the mouse cursor above a line on the graph to show the monitored period, date and time and usage ratio.
  • A legend for the currently displayed graph is shown at the lowermost part of the gadget.
  • Using the legend
    • Only the lines on the graph that are enabled using the check boxes in the legend will be displayed.
    • Deselecting the check boxes will hide the corresponding lines from the graph.
  • Refresh the screen to restore the rendered time period and the selections on the legend to their defaults, as shown below.
    • Rendered period : Live
    • Legend check boxes : All applied
  • If the CPU usage exceeds 80%, a warning () will be displayed.
  • If the CPU usage falls below 80%, the warning will be cancelled.
  • If the memory usage exceeds 80%, a warning () will be displayed.
  • If the memory usage falls below 80%, the warning will be cancelled.
  • When displaying a gadget in a separate window using the “Separate” button ()
    • The rendered time period and the selections on the legend return to their defaults.
  • When directly inputting the URL for a separated window and displaying a gadget
    • The rendered time period and the selections on the legend return to their defaults.

Stack information

The following information is displayed.

  • Stack function
    • Displays whether the stack function is enabled.
  • Members
    • Displays the member switch types and roles.
  • Status
    • Displays the member switch status.
    • Only displayed when the stack function is enabled.
  • Subnet on stack port
    • Displays a range of IP addresses to use for stacked ports.
  • Virtual MAC-Address
    • Displays the MAC address used in the stack configuration.
back to home
  • SWX3220 Series Technical Data (GUI)
  • LAN MAP

LAN MAP

  • Atout the LAN map
  • Detail
back to home
  • SWX3220 Series Technical Data (GUI)
  • LAN MAP
  • Atout the LAN map

Atout the LAN map

1. Summary

The LAN map shows terminal information for the agent devices (Yamaha switches, Yamaha wireless AP) that are connected to the network, providing a visualization of the entire network. You can use the GUI to view the agent status and make VLAN settings. You can also detect network problems to gather information when troubleshooting a problem.

* The switch that controls the LAN map (this unit) is called the “manager,” and the Yamaha switches and Yamaha wireless AP units that are controlled by the manager are called “agentes.”

2. Using the LAN map

Here we explain how to use the LAN map.

2-1. About the buttons

  • snapshot Snapshot button

    You can save the current agent and terminal connection status as a snapshot. You can also export, import, or delete snapshots.

    *In order to use the snapshot function, you must enable the snapshot function from setting “Settings”.

    *Depending on the network structure, it may take several minutes for saving to be completed. During this time, other processing can still be executed.

    * When exporting a snapshot, please allow pop-ups in your browser settings.

  • notice Notifications button

    Messages for the current network are displayed. This notifies you of agent problems such as a stopped fan or a loop that has occurred.

  • history History button

    This displays the history of notification messages. The history can save up to 1000 items.

    delete If you press the “Delete all” button, all history is deleted.

  • terminal_db Device list button

    The "Device list page" is shown in a separate window. In the device list page you can view a list of the terminals and agentes managed in the LAN map, and manage terminal information.

  • whole_map “Whole map” button

    The "Whole map page" is shown in a separate window. On the whole map page, the devices connected to the LAN are displayed on the same map.

  • setting Settings button

    Here you can make settings for the LAN map function.

2-2. Using the LAN map

To use the LAN map, open the “LAN map settings” dialog box from the “Settings” button, and select the “Manager” check box in the basic settings under “L2MS operation mode”.

If “L2MS operation mode” is set to “Agent” or “Do not use”, you cannot use the LAN map for this unit. If this unit is operating as a agent, use the LAN map on the manager that is controlling this unit.

2-3. Change pages

The LAN map consists mainly of map, tag VLAN, and multiple VLAN pages.

To switch the page that is displayed, use the page selection toggle switch located in the upper part of the screen.

2-4. Use the snapshot function

The snapshot function compares the current network connection state to the previously saved network connection state (snapshot), and if a change is detected, displays a warning message. To use the snapshot function, perform the following operations.

  1. Use the setting“Settings” button to open the “LAN map settings” dialog box, and in the snapshot function settings section, select “Use the snapshot function”. If you want terminals to also be included in the comparison, select either “Include all terminals in comparison” or “Include only wired terminals in comparison” depending on the terminals that you want to compare.

  2. Use the snapshot“Snapshot” button to save the snapshot. If you want to apply an exported snapshot to a manager, import that snapshot.

3. Differences in what administrative users and general users can do

Basically, a general user can only view information, and cannot perform operations that modify settings, manage snapshots, edit or operate the terminal DB and so on. An administrative user can perform all operations.

The following operations cannot be performed by a general user.

  • Agent management

  • settingUsing the “Settings” button to change LAN map settings

  • getUsing the “Acquire” button to acquire device information.

  • snapshotUsing the “Snapshot” button to manage snapshots

  • Editing, deleting, newly registering, importing, and exporting a terminal DB

  • Procedure for saving a terminal list and agent list in CSV format

back to home
  • SWX3220 Series Technical Data (GUI)
  • LAN MAP
  • Detail

Detail

  • Map
  • Tag VLAN
  • Multiple VLAN
  • Device list
  • Whole map
back to home
  • SWX3220 Series Technical Data (GUI)
  • LAN MAP
  • Detail
  • Map

Map

1. Summary

This visualizes the network status. You can check the connection status of the devices, and change the settings of a Yamaha switch or Yamaha wireless AP.

2. Structure of the map page

The map page provides a “Tree view,” “Device detail and settings view,” and “Connected devices view” to show the state of the network.

2-1. Tree view

The agent topology starting at the manager is shown in the lower left of the screen. Network devices of other manufacturers are not shown. In the “Tree view,” press the “Devices” icon to see device information in the “Device details and settings view” and “Connected devices view.”

2-2. Device details and settings view

Detailed information and device detail images for the manager or agent selected in the “Tree view” are shown in the upper part of the screen.

2-3. Connected devices view

Devices that are connected to the manager or agent selected in the “Tree view” are shown in the lower right of the screen. If “Device management” is not enabled in “LAN map settings,” equipment information (e.g., PC or mobile devices) is not shown.

  • Acquisition date and time

    This is the time at which information was last obtained for equipment that is connected to the manager or agent selected in the “Tree view.” This is not shown if “Device management” is not enabled in “LAN map settings.”

  • Acquire button

    This obtains information for terminal that is connected to the manager or agent selected in the “Tree view.” This is not shown if “Device management” is not enabled in “LAN map settings.”

  • Select page

    Page numbers are shown for the list of currently-displayed terminal. Press or or enter a numeric value to move between pages.

  • Show all button

    All items of device information are shown in the list. While all are displayed, press this again to return to the previous display.

  • List

    Information is listed for equipment that is connected to the manager or agent selected in the “Tree view." You can press each item’s Sort switch to sort the list. The initial screen is sorted in order of port.

    The VLAN ID item shows (A) for an access VLAN or (T) for a trunk VLAN.

    If the port is being used as a port for a private VLAN, the VLAN ID is not shown, and (P) is shown.

    If the port is being used as a port for a voice VLAN, the VLAN ID is not shown, and (V) is shown.

3. Checking the status of devices

In “Device details and settings view” you can view detailed device information such as device name and MAC address, and also check the port link status, power supply status, and wireless communication status.

  • Device name
  • MAC address
  • Port link status
  • Power supply status
  • Wireless communication status

For devices in a stack configuration, you will be able to switch stack ID with the toggle button.

3-1. Checking the link status of ports

In “Device details and settings view,” you can use the “Port” icon display to check the link status of the port.

If a agent is selected in the “Tree view,” you can press the “Port” icon in the “Device details and settings view” to see detailed port information. If a “Port” icon shows an ↑, this indicates that the port is an uplink port.

The “Port” icon is shown as follows depending on the link status.

For a LAN port

IconDescription
Link up (port speed 10GBASE-T)
Link up (port speed 5GBASE-T)
Link up (port speed 2.5GBASE-T)
1000base_tLink up (port speed 1000BASE-T)
100base_txLink up (port speed 100BASE-TX)
10base_tLink up (port speed 10BASE-T)
irregularError occurrence
link_downLink down

For an SFP port

IconDescription
Link up (port speed 10GbE)
Link up (port speed 1GbE)
Error occurrence
Link down

For an Stack port

IconDescription
Link up
Link down

3-2. Checking the power supply status of a switch that supports PoE

In the “Tree view,” press the “Device” icon of a switch that supports PoE, and in “Device details and settings view,” press the “Power supply status” button to check the PoE power supply status.

The “Port” icon is shown as follows depending on the power supply status.

For the SWX2322P Series ,SWX2310P Series, SWR2311P Series, SWX2221P Series, SWX2210P Series, SWX2200-8PoE, SWX2110P-8G

IconDescription
poe_class0-3PoE is being supplied (supply Class0--3)
poe_class4PoE is being supplied (supply Class4--8)
poe_no_supplyPoE is not being supplied
Power supply stopped (error occurred)
poe_stopPower supply stopped

Note: On the SWX2200-8PoE the power supply class is not displayed in the icon.

For the SWX2100-10PoE and SWX2100-5PoE

IconDescription
poe_30wPoE is being supplied (supply Class0--4)
poe_no_supplyPoE is not being supplied
Power supply stopped (error occurred)
poe_stopPower supply stopped

3-3. Checking the wireless communication status of a wireless AP

In the “Tree view,” press the “Device” icon of a Yamaha wireless AP, and in “Device details and settings view,” press the “Wireless” icon to check the wireless communication status.

If wireless communication is enabled, the “Wireless” icon is displayed for each frequency band (2.4 Ghz band, 5 Ghz band) that is used.

4. Monitoring network errors

The LAN map monitors the network and notifies you of errors. If an error is detected on the network, a message is displayed below.

  • Notification area

    Press the “Notifications” button to see the messages regarding the current network status. The notification area is also shown automatically when a new message is added. If there is a device for which an error was detected, a is shown beside the “Device” icon of the Tree view, and the device information of “Connected device view” is highlighted in red.

  • History area

    When you press the “History” button, the history of the notification messages is shown.

4-1. Monitoring the operating status and errors of a switch

In the LAN map, when the following operations or error are detected, a message is displayed in the “Notification area” or “History area.” Some messages are displayed in both the “Notification area” and the “History area,” and some are displayed in only one.

Troubleshooting itemsNotification areaHistory area
The fan of a Yamaha switch is stopped✓✓
The fan speed of the Yamaha switch has increased✓✓
The fan speed of the Yamaha switch has decreased-✓
The power supply voltage of the Yamaha switch has exceeded the upper threshold✓✓
A line surge has occurred in the power supply of the Yamaha switch✓✓
The temperature ( CPU, PHY, SFP module, Unit, MAC, PSE ) of the Yamaha switch has exceeded the upper threshold✓✓
The temperature of the Yamaha switch has returned to normal-✓
A loop is occurring at ports of a Yamaha switch✓✓
Optical Rx level of the SFP port of the Yamaha switch has reached an abnormal level✓✓
Optical Rx level of the SFP port of the Yamaha switch has returned to normal level-✓
Transmission queue usage ratio for the port on the Yamaha switch is high✓✓
Transmission queue usage ratio for the port on the Yamaha switch has returned to normal-✓
The power being supplied from the Yamaha switch has entered the guard band range-✓
Power is no longer supplied from a port of a Yamaha switch-✓
Power has begun being supplied from the port of a Yamaha switch (for each Supply Class).-✓
Power supplied from a port of a Yamaha switch has halted abnormally✓✓
The power being supplied from a Yamaha switch has exceeded the maximum power supply capacity✓✓
An error occurred in the power supply of a Yamaha switch✓✓
The monitoring device is DOWN✓✓
The monitoring device is UP-✓
The stack port has linked down✓✓
The stack port has linked up-✓
Duplication of L2MS managers has been detected✓✓
Duplication of L2MS managers has been resolved-✓

Enable the event monitor function on “LAN map settings” to periodically acquire the current status of the monitoring target event (event information) for the agent.

The monitoring target events and compatible agentes are as follows.

Monitoring target eventCompatible models
Changes in optical Rx level of the SFP portSWX2300 Series, SWX2310P Series, SWX2310 Series, SWR2311P-10G, SWR2310 Series, SWX3100 Series, SWX3200 Series, SWX2320 Series, SWX2322P Series, SWX3220 Series
Changes in usage ratio for the port transmission queue
Status notification for device monitoring
Changes in temperature and FAN speedSWX2310P Series, SWR2311P-10G, SWX2310-52GT, SWX3200 Series, SWX2320 Series, SWX2322P Series, SWX3220 Series
Changes in power voltageSWX3200-28GT/52GT

Normally, since a notification is sent to the manager whenever an event occurs on a agent, the agent event that occurs will be detected even if the event monitoring function is disabled. However, we recommend that the event monitoring function be enabled, in case the manager cannot receive the notification for some reason.

4-2. Monitoring the network connection status

In order to monitor the network connection status, enable the snapshot function using the procedure described “About the LAN map”-“2-4. Using the snapshot function” in this help.

The snapshot function compares the current network status with the snapshot, and if there is a difference, determines that a network error has been detected. When you press the “Snapshot” button, the snapshot management dialog box appears, allowing you to save, export, import, or delete snapshots.

  • Save

    Save a snapshot. If “Update network connection status before saving” is enabled, the network connection status information is updated before saving.

  • Export

    The agent snapshot and terminal snapshot are downloaded.

  • Import

    A snapshot saved on the PC is applied to the manager. Use the “File select” button to select a agent snapshot and a terminal snapshot. If you don’t select a terminal snapshot, the existing snapshot is deleted, and an empty terminal snapshot is created.

    *If you use an edited snapshot, it might not work correctly.

  • Delete

    Delete a snapshot.

If the snapshot function is enabled, the agent is always the object of warnings, but the terminal is the object of warnings if all of the following conditions are fulfilled.

  • The snapshot function’s “Include terminals in comparison” is enabled
  • The snapshot function is set to “Include in monitoring” on the terminal DB

If you want all terminals on the network to be excluded from warnings, disable the snapshot function’s “Include terminals in comparison”. If you want only a specific terminal to be excluded from warnings, enable the snapshot function’s “Include terminals in comparison,” and edit the terminal DB settings so that the snapshot function of the terminal to be excluded from warnings is set to “Don’t include in monitoring”. In the case of a terminal that is excluded from warnings, it will not be determined that a network error has been detected even if there is a difference between the connection status and the snapshot.

The snapshot function allows you to check the following operating status and errors. Some messages are displayed in both the “Notification area” and the “History area,” and some are displayed in only one.

Troubleshooting itemsNotification areaHistory area
An unregistered agent and terminal are connected✓✓
There is a agent and terminal whose connection ports differ✓✓
There is a agent and terminal that cannot be found✓✓
There is a discrepancy between the states of the agent and terminal-✓
A snapshot has not been created✓-
Creation of a snapshot has started-✓
Creation of a snapshot has finished-✓
A snapshot is being created✓-
Creation of a snapshot was interrupted-✓
Creation of a snapshot failed-✓

5. Searching for a device

To search for a device, input the keywords in the search box and press the “Search” button. All devices whose information matches the keywords will be shown in “Connected devices view”. The “Device” icon for connected devices matching the keywords inputted in the tree view will be highlighted in blue-gray.

To cancel the search, press the “X” button.

Devices are searched by comparing the keywords with the following device information.

  • Route
  • SSID
  • VLAN ID
  • Manufacturer
  • Device name
  • Comment
  • MAC address
  • IP address
  • Model name
  • OS
  • Frequency

Pressing the “Device” icon highlighted blue-gray in the tree view will highlight the devices found in the search performed in “Connected devices view” in blue-gray. When the search results overlap with the red highlights due to error detection, blue-gray-colored results will be given priority. Lowercase and capital letters are treated the same for keywords.

You can use regular expressions in keywords. Below is an example of regular expressions you can use in the LAN map.

SyntaxExplanation
AThe character “A”
ABCThe characters “ABC”
[ABC]One character, either “A”, “B” or “C”
[A-C]One character between “A” and “C”
[^ABC]An arbitrary character that is neither “A”, “B” or “C”
.An arbitrary character
A+At least one “A” character
A*At least zero “A” characters
A?Zero or one “A” character
^AA string that begins with “A”
A$A string that ends with “A”
ABC|DEF|GHI“ABC”, “DEF” or “GHI”
A{2}Two “A” characters (AA)
A{2,}Two or more “A” characters (AA, AAA, AAAA...)
A{2,3}Two to three “A” characters (AA, AAA)
\bWord breaks, such as spaces
\BAny character besides \b
\dAn arbitrary number (same as [0-9])
\DAny character besides numbers (same as [^0-9])
\sSingle breaking character
\SAny single character besides \s
\wAlphanumeric characters including underlines (same as [A-Za-z0-9_])
\WAny character besides \w

6. Setting and managing agentes

You can set and manage agentes using the buttons that are shown in “Device details and settings view.” The buttons shown in “Device details and settings view” will differ depending on the device that is selected in “Tree view.”

6-1. Managing agentes

If in “Tree view” you press the manager’s “Device” icon, and in “Device details and settings view” press the “Manage agentes” button, the agent management settings dialog box appears, allowing you to view information for each device and set the IP address.

The items that can be set and managed for each device are the following.

Note: The following settings can be made on the SWX2110 Series, SWX2110P Series, SWX2210 Series, SWX2210P Series, SWX222X Series, the SWX2300 Series, the SWX2310 Series, the SWX2310P Series, the SWR2310 Series, the SWR2311P Series, the SWX3100 Series, the SWX3200 Series, SWX2320 Series, SWX2322P Series, SWX3220 Series, the WLX202, the WLX212, the WLX222, the WLX302, the WLX313, the WLX402 and the WLX413.

  • IP Address Settings

    This configures the IP address.

    The IP address displayed are agentes at the time that the screen is displayed.

    The IP address prior to making the settings may be shown, depending on the timing.

  • CONFIG Save/Restore/Delete

    Saves, restores or deletes the configuration.

    This can be used for bulk operations on multiple agentes as well.

  • Specification method

    This sets the method of specifying the switch.

    This can be configured on the SWX2200 Series as well.

6-2. Setting and maintaining switches

In the “Tree view,” press the “Device” icon of the Yamaha switch, and in the “Device details and settings view,” press the button (the name depends on the switch) to see a dialog box or setting screen.

Here you can make settings for the various functions of the switch, and perform maintenance such as updating the firmware or restarting. The items that can be set or viewed, and the maintenance functions that can be executed, will differ depending on the model.

【 For the SWX2300, SWX2310, SWX2310P, SWR2310, SWR2311P, SWX3100, SWX3200, SWX2320, SWX2322P and SWX3220 Series 】

When you press the “Open the GUI” button, the web setting screen of the switch opens in another window.

【 For the SWX222X Series, SWX2210 Series, SWX2210P Series 】

Press the “Switch settings and maintenance” button to open the dialog box.

  • Device name

    Specify the device name of the switch.

    • When “Default device name” is selected, the default names that are predetermined for each device will be set. Normally, this is text that shows the model name and serial number.
    • When “Manual settings” is selected, the device name that was inputted in the input box right afterwards will be set. Input a device name of up to 32 single-byte characters. You can only use single-byte alphanumeric characters and symbols.
  • LED mode

    This lets you configure the LED mode settings.

  • Port mirroring

    This lets you configure the sniffer ports, monitor ports and monitoring direction.

  • QoS function

    This lets you specify whether QoS is used.

  • Maintenance

    The following can be executed for a switch.

    • Reset the frame counter
    • Restart

When you press the “Open the GUI” button, the web setting screen of the switch opens in another window.

【 For the SWX2200 Series 】

Press the “Switch settings and maintenance” button to open the dialog box.

  • Device name

    Specify the device name of the switch.

    Input a device name of up to 32 single-byte characters. You can only use single-byte alphanumeric characters, hyphens (-) amd underline characters (_).

  • Power conservation

    The following settings can be made for the power-conservation function.

    • Operation mode
  • Loop detection

    The following settings can be made for the loop detection function.

    • MAC address movement number threshold
    • Action when a loop is detected
  • Port mirroring

    The following settings can be made for the port mirroring function.

    • Operation mode
    • Sniffer port and monitoring direction
  • Maintenance

    The following can be executed for a switch.

    • Reset the frame counter
    • Resume supplying power (for a model that provides PoE)
    • Update firmware
    • Restart
    • Initialize

【 For the SWX2110 Series, SWX2110P Series 】

Press the “Switch settings and maintenance” button to open the dialog box.

  • Device name

    Specify the device name of the switch.

    Input a device name of up to 32 single-byte characters. You can only use single-byte alphanumeric characters, hyphens (-) amd underline characters (_).

  • LED mode

    This lets you configure the LED mode settings.

  • Flow control

    This lets you specify whether the flow control function is used.

  • Loop detection

    This lets you specify whether the loop detection function is used.

  • EEE

    This lets you specify whether the EEE function is used.

  • Port mirroring

    This lets you configure the sniffer ports, monitor ports and monitoring direction.

  • QoS

    This lets you specify whether QoS is used.

  • IGMP snooping

    This lets you specify whether the IGMP snooping function is used.

  • Maintenance

    The following can be executed for a switch.

    • Reset the frame counter
    • Update firmware
    • Restart
    • Initialize

【 For the SWX2100 Series 】

Press the “Switch settings view and maintenance” button to open the dialog box.

  • Device name

    Display the device name of the switch.

  • Port common settings

    Display common settings for the ports.

  • Link aggregation settings

    Displays the link aggregation type and load balance rules.

    This item is shown only for the SWX2100-24G.

  • Maintenance

    The following can be executed for a switch.

    • Reset the frame counter
    • Update firmware
    • Restart

6-3. Making port settings for a switch

In the tree view, press the “Device” icon corresponding to the Yamaha switch; and on the detailed image of the device in “Device details and settings view,” select a port and press the “Port settings” button to display the port settings dialog box. If a port is not selected in the detailed image of the device in “Device details and settings view,” you will not be able to configure the port settings. The port settings can be changed on the Smart L2 switch, SWX2110 series, and SWX2110P series.

【 For the SWX222X Series, SWX2210 Series, SWX2210P Series 】

The port settings dialog box appears.

  • Basic

    The following settings can be made for basic functions.

    • Port operation
    • Automatic cross/straight detection
    • Speed
    • Flow control
    • EEE
    • Loop detection
  • QoS

    The following settings can be made for QoS.

    • Trust mode
    • Remarking of received packets
    • Remarking value
  • Tag VLAN

    The following settings can be made for tag VLAN.

    • Operation mode
    • Access VLAN ID or native VLAN ID
    • Trunk VLAN ID

    For ports joined to a logical interface, configure the settings from the link aggregation settings.

  • Multiple VLAN

    The following settings can be made for multiple VLAN.

    • Joined group

    For ports joined to a logical interface, configure the settings from the link aggregation settings.

【 For the SWX2200 Series 】

The port settings dialog box appears.

  • Basic

    The following settings can be made for basic functions.

    • Port operation
    • Automatic cross/straight detection
    • Speed
    • Link speed downshift
    • Flow control
    • Loop detection
  • QoS

    The following settings can be made for QoS.

    • DSCP remarking
    • Transmit shaping
    • Receive policing
    • Port priority
  • Tag VLAN

    The following settings can be made for tag VLAN.

    • Operation mode
    • Access VLAN ID
    • Trunk VLAN ID
  • Multiple VLAN

    The following settings can be made for multiple VLAN.

    • Joined group
  • Frame counter

    The following settings can be made for the frame counter.

    • Transmitted frame
    • Received frame
  • Power supply function (for a model that provides PoE)

    The following settings can be made for the power supply function.

    • PoE supply class settings

【 For the SWX2110 Series, SWX2110P Series 】

The port settings dialog box appears.

  • Basic

    The following settings can be made for basic functions.

    • Port operation
    • Automatic cross/straight detection
    • Speed
    • L2MS filter
  • Tag VLAN

    The following settings can be made for tag VLAN.

    • Operation mode
    • Access VLAN ID or native VLAN ID
    • Trunk VLAN ID

6-4. Performing power supply operations for the switch port

In the tree view, press the “Device” icon corresponding to the Yamaha switch; and on the detailed image of the device in “Device details and settings view,” select a port and press the “Port power supply operations” button to display the port power supply settings dialog box. If a port is not selected in the detailed image of the device in “Device details and settings view,” and the selected port does not support power supply, you will not be able to perform power supply operations with this port. Power supply settings can be configured for each port from the port power supply operation dialog.

This can be set only on the SWX2100-10PoE, the SWX2100-5PoE, the SWX2110P-8G, the SWX2210P Series, the SWX2310P Series, the SWR2311P Series, and the SWX2322P Series.

6-5. Configuring the link aggregation settings

In the tree view, press the “Device” icon corresponding to the Yamaha switch; and press the “Link aggregation settings” button in “Device details and settings view” to display the link aggregation settings dialog box. This lets you configure settings regarding link aggregation, add a logical interface or configure the VLAN settings and so on.

This can be set only on the SWX222X Series, and the SWX2210 Series, SWX2210P Series.

  • Link aggregation and load balancing rules

    This lets you configure the load balancing rule settings.

  • Interface settings

    The following settings can be made for the logical interface.

    • Link aggregation

      The following basic settings can be made.

      • Logical interface name
      • Joined port
      • Interface action
    • Tag VLAN

      The following settings can be made for tag VLAN.

      • Operation mode
      • Access VLAN ID or native VLAN ID
      • Trunk VLAN ID
    • Multiple VLAN

      The following settings can be made for multiple VLAN.

      • Joined group

6-6. Wireless AP settings

In the “Tree view,” press the “Device” icon of a Yamaha wireless AP, and in “Device details and settings view,” press the “Open the GUI” button to view the web settings screen of the Yamaha wireless AP in a separate window. Settings for the Yamaha wireless AP can be made from the web settings window.

6-7. Find this switch

The “Find this switch” function uses LED and buzzer to notify the user of the device’s location in an easy-to-understand way.

Press the “Device” icon of a Yamaha switch in the “Tree view” and then press the “Find this switch” button in “Device details and settings view” to display the dialog.

Note that this function is available only for the SWX222X series.

  • The dialog shows the current operating status.
    There is a Start/Stop button on the right side that allows you to start or stop the notification.
  • Notification start dialog
    You can start notification by selecting the notification method and the notification period.
    Select one or more notification methods.
    • Blink the LED
    • Sound the buzzer
  • Notification stop dialog
    You can stop any notification method.
back to home
  • SWX3220 Series Technical Data (GUI)
  • LAN MAP
  • Detail
  • Tag VLAN

Tag VLAN

1. Summary

You can create VLANs to organize Yamaha switches or Yamaha wireless APs into groups.

Tagged VLANs can be set for the following agentes.

  • Yamaha network switch
    • SWX2110-5G, SWX2110-8G, SWX2110-16G, SWX2110P-8G
    • SWP2-10SMF, SWP2-10MMF
    • SWX2220-10NT, SWX2221P-10NT
    • SWP1-16MMF, SWP1-8MMF, SWP1-8
    • SWR2311P-10G
    • SWR2310-10G, SWR2310-18GT, SWR2310-28GT
    • SWX3100-10G, SWX3100-18GT
    • SWX3200-28GT, SWX3200-52GT
    • SWX2320-16MT, SWX2322P-16MT, SWX3220-16MT, SWX3220-16TMs
  • Yamaha wireless access point
    • WLX202
    • WLX212
    • WLX222
    • WLX302
    • WLX313
    • WLX402
    • WLX413

2. Notes

  • If a switch of a different manufacturer is connected below a manager, the manager will be unable to recognize the corresponding device, and the topology will therefore not be displayed. If communication from the terminal becomes impossible even though the tag VLAN settings are correct, it might be that a switch made by another manufacturer which is blocking VLAN tagged frames is connected below the manager.
  • If a Yamaha switch of a model that cannot be determined is connected below the manager, it might be that the VLAN tagged frames cannot pass through that device, depending on the settings of that device.
  • Configurations that include MST instances in the spanning tree are not supported.

3. Tag VLAN page structure

3-1. Button

  • add “New” button

    Create a new VLAN group.

    In order to join a port to a VLAN group, the VLAN group must first be created.

  • refresh “Refresh display” button

    Obtain topology information and VLAN settings information, and redraw the tag VLAN group list and the topology.

    Depending on the number of agent units, it may take several seconds to several tens of seconds for the agent VLAN settings information to be reflected.

3-2. Tag VLAN group list

Display the list of VLAN groups that are registered to the manager, and the list of VLAN groups that the agent ports have joined.

However, the list does not show private VLANs or VLAN groups for which frame forwarding is disabled.

The port color is assigned to each VLAN group.

3-3. Topology

The topology starting at the manager is shown in the lower part of the screen.

By noting the color of the port, you can determine the VLAN group to which it is joined.

4. Make tag VLAN group settings

4-1. Create new

To create a new VLAN group, press the add“New” button.

The following settings can be made.

Item nameDescription
VLAN-IDSet the ID of the VLAN.
NameYou can assign a name to the VLAN ID.

After input, press the [Confirm] button to register the VLAN group.

4-2.Change settings

If you want to change the VLAN group settings, press the [Setting] button located in the column at the right of the “Tag VLAN group list”.

You can edit the name setting.

4-3.Register

If a agent port is joined to a VLAN group that is not registered to a manager, it is shown as an “Unknown” VLAN group in “Tag VLAN group list”.

By pressing the [Register] button located in the column at the right of “Tag VLAN group list”, you can register a VLAN group to a manager.

4-4. Delete

If you want to delete a VLAN group, press the [Delete] button located in the column at the right of the “Tag VLAN group list”.

Then press the [Confirm] button to delete the settings of the specified VLAN group and also delete the settings of the VLAN group that is applied to the agent.

5. Join a tag VLAN group

To select a agent port within the topology, press the [Select joined port] button button in the right column of “Tag VLAN group list”.

The color of the port indicates the setting status of the VLAN group.

The following is a depiction of when the port color is set to for a VLAN group when selecting the joined ports.

LANSFPDescription
This is an access port that is joined to the specified VLAN group.
This is an access port that is joined to the default VLAN group.
This is an access port that is joined to the specified VLAN group.

To determine the joined VLAN group, note the color of the port that is assigned in “Tag VLAN group list”.

This is a trunk port or hybrid port. This is joined to the specified VLAN group.
This is a trunk port or hybrid port. This is not joined to the specified VLAN group.

When you select a port, the color of the port changes, allowing you to join it to the specified VLAN group.

By re-selecting a port, you can un-join it.

When operating the VLAN join status of the port that belongs to the logical interface, the same settings will be applied to all ports belonging to the same logical interface.

After selecting a port, press the [Confirm] button to apply the setting.

* If a Yamaha switch of a model that cannot be determined is connected, it might be that the VLAN tagged frames cannot pass through that device, depending on the settings of that device.

  • Automatically joining uplink ports and downlink ports

    If you join a port to a VLAN group, the port that connects from the manager to the corresponding agent (uplink/downlink) will automatically be either a trunk port or a hybrid port.

  • Constraints when joining a VLAN group

    The following constraints apply when making SWX2300 Series, SWX2310 Series, SWX2310P Series, SWR2310 Series, SWR2311P Series, SWX3100 Series, SWX3200 Series, SWX2320 Series, SWX2322P Series, SWX3220 Series settings.

    • If the specified VLAN group is used as a private VLAN by a agent, a port of the corresponding agent cannot be joined to the specified VLAN group.
    • If a port is specified as a private VLAN’s promiscuous port, or as a host port, settings for that port cannot be made.
    • If a port is used by the link aggregation function, settings for that port cannot be made.(only SWP1 Series)

    Also, you cannot change the stack port settings for devices in a stack configuration.

6. Show tag VLAN group settings

In “Tag VLAN group list”, colors are assigned to the ports for each VLAN group.

By noting the color of a agent port in the topology, you can see the VLAN group to which it is joined.

Examples are shown below.

LANSFPDescription
This is an access port that is joined to a VLAN group other than the default VLAN.

To determine the joined VLAN group, note the color of the port that is assigned in “Tag VLAN group list”.

This is a trunk port or hybrid port.
This is an access port that is joined to the default VLAN group.

You can also check the tag VLAN group settings from the tool tip that appears when you mouse-over.

The items shown in the tool tip are as follows.

  • Port number
    • For logical interfaces, the logical interface name and the numbers of all ports belonging to the logical interface will be shown.
    • saX is the name of the logical interface for a static link aggregation.
    • poX is the name of the LACP virtual interface.
  • Port type ( Access, Trunk, Hybrid )
  • VLAN group joined

Supplementary information related to SWX2300 Series, SWX2310 Series, SWX2310P Series, SWR2310 Series, SWR2311P Series, SWX3100 Series, SWX3200 Series, SWX2320 Series, SWX2322P Series, SWX3220 Series settings is shown below.

  • About native VLAN

    The uplink/downlink ports are the trunk ports, and the default VLAN is specified as the native VLAN. If the frame received by the trunk port is untagged, the native VLAN is the VLAN group joined by untagged frames.

  • About promiscuous ports and host ports of a private VLAN

    If the port is specified as a private VLAN’s promiscuous port or a host port, the port type in the tool tip is shown as “Private,” and the joined VLAN group is not shown.

back to home
  • SWX3220 Series Technical Data (GUI)
  • LAN MAP
  • Detail
  • Multiple VLAN

Multiple VLAN

1. Summary

You can divide the ports of a single switch into multiple groups, and block communication between groups. In addition to grouping ports into multiple groups, a single port can also be joined to multiple groups. For example, a port that is connected to a terminal that must communicate with all groups, such as a server or router, would be joined to each and every group.

For multiple VLANs, the same IP address is assigned even if the group is different.

The agentes for which a multiple VLAN can be set, as well as the maximum number of groups that can be set for each agent on this page are shown below.

Supported agentesMaximum number of groups
SWX2220-10NT
SWX2221P-10NT
10
SWP2-10SMF
SWP2-10MMF
256
SWR2311P-10G256
SWR2310-28GT
SWR2310-18GT
SWR2310-10G
256
SWX2320-16MT
SWX2322P-16MT
SWX3220-16MT
SWX3220-16TMs
256

2. Multiple VLAN page structure

The multiple VLAN page consists of three views: tree view, multiple VLAN settings view, and connected devices view.

2-1. Tree view

These are the same as shown in the map.

The agent topology starting at the manager is shown in the lower left of the screen. Network devices of other manufacturers are not shown. In the “Tree view,” press the “Devices” icon to see device information in the “Connected devices view”. If a agent that supports multiple VLANs is selected, settings are shown in “Multiple VLAN settings view”.

2-2. Multiple VLAN settings view

The multiple VLAN settings of the agent selected in “Tree view” are shown. This is not shown if a manager or agent that does not support multiple VLANs is selected in “Tree view”.

  • List of multiple VLAN group settings

    The status of the joined ports for each group of the multiple VLAN are shown in the form of a table. The horizontal direction of the table shows the ports, and the vertical direction shows the groups.

    In the table, you can press the Port icon to change the port join status of the corresponding group. A Port icon that is in the joined state will change to the color that corresponds to the group (example: ). If you once again press a port icon that is in the joined state, it returns to the non-joined state.

    Pressing the [Port number] button in the upper edge of the table will select the ports of all groups in the Port column, and pressing the [Group number] button in the left edge of the table will select all ports in the Group line. By pressing the “↘” button in the upper left of the table, you can select diagonally staggered ports from the upper left.

    Ports that are not disabled will not be changed status by any specify method.

    All ports that belong to the logical interface will be shown together, as displayed on the right side of the table.The logical interface type and number will be shown as a two-row label above the port numbers.

    The logical interface type (sa or po) is shown on the upper row, and the interface number is shown on the bottom row.

    Static link aggregation is shown for “sa”, and LACP link aggregation is shown for “po”.

    When operating the group join status of the ports that belong to the logical interface, the same settings will be applied to all ports belonging to the same logical interface.

    • Ports/groups to display

      Move the slider on the bar to change the ports and groups shown on the screen.

      The upper bar is for ports, and the lower bar is for groups.

      The left-hand slider changes the minimum value, and the right-hand slider changes the maximum value.

    • Minimized view

      Select the check box to display a minimized view of the port and group icons.

      When using the minimized view, the arrows for port uplinks and downlinks will not be displayed.

    • [Return all groups to the state prior to the change] button

      Return the ports joined to the multiple VLAN to the state prior to the change.

    • [OK] button

      Apply the settings of the ports joined to the multiple VLAN.

      These settings will also apply to ports that are hidden.

    The “Multiple VLAN group setting list” can be switched between displayed and hidden by pressing the togglebutton in the upper left.

The contents of the settings for a previously-specified multiple VLAN group are shown by the switch graphic in the lower part of “Multiple VLAN settings view”.

  • Group select pulldown menu

    Select the multiple VLAN group that is shown by the switch image at the right side.

  • Switch image

    Ports that are joined to the group currently selected in the group select pulldown menu are shown.

2-3. Connected devices view

These are the same as shown in the map.

Devices that are connected to the manager or agent selected in the “Tree view” are shown in the lower right of the screen. If “Device management” is not enabled in “LAN map settings,” terminal information (e.g., PC or mobile devices) is not shown.

If a switch is selected as a agent, you can check the type of device that is connected to each port of the switch, and use this as a reference when making multiple VLAN group settings.

  • Acquisition date

    This is the time at which information was last obtained for equipment that is connected to the manager or agent selected in the “Tree view”. This is not shown if “Device management” is not enabled in “LAN map settings”.

  • Select page

    Page numbers are shown for the list of currently-displayed terminals. Press page_prev or page_next or enter a numeric value to move between pages.

  • get “Acquire” button

    This obtains information for terminals that are connected to the manager or agent selected in the “Tree view”. This is not shown if “Device management” is not enabled in “LAN map settings”.

  • List

    Information is listed for equipment that is connected to the manager or agent selected in the “Tree view”. You can press each item’s sort_switchSort switch to sort the list. The initial screen is sorted in order of port.

    The VLAN ID item shows (A) for an access VLAN or (T) for a trunk VLAN.

    If the port is being used as a port for a private VLAN, the VLAN ID is not shown, and (P) is shown.

    If the port is being used as a port for a voice VLAN, the VLAN ID is not shown, and (V) is shown.

3. Making settings for multiple VLAN groups

To make multiple VLAN group settings, first select the switch that you want to set from the “Tree view”. When you make a selection, the “Multiple VLAN group settings list” appears in the “Multiple VLAN settings view”.

When the “Multiple VLAN group settings list” appears, select the ports that you want to join to each group by pressing the corresponding Port icon. When making settings, refer to the following tips.

When you finish selecting the ports to join, press the [OK] button to apply the settings to the switch and complete the settings.

Tips when selecting multiple VLAN settings

  • You want to select ports efficiently

    By using the [Port number] button in conjunction with the “↘” button you can select ports efficiently.

    You can use the [Port number] button to allow a specific port to communicate with all other ports. For example, the uplink port normally needs to be able to communicate with all other ports, so it is joined to all groups; by pressing the [Port number] button in the column of the uplink port, you can avoid the trouble of selecting them individually.

    Use the “↘” button when you want to join each port to a different group. For example, if you want to block all communication between each downlink port, and allow communication only with the uplink port, press the [Port number] button and “↘” button in the uplink port column; each group is joined to the uplink port and to one downlink port, allowing you to easily obtain the desired settings. Such settings are often used for a network in an Internet-equipped apartment building.

  • When you want to restrict the ports and groups to configure

    Adjust the bars for the “Ports/groups to display” to show only the ports and groups that you need.

  • You want to re-do the settings

    By pressing the [Return all groups to the state prior to change] button you can return the joined port selection state to the state prior to change.

4. Showing settings for multiple VLAN groups

Multiple VLAN groups that have already been specified are indicated by the switch graphic that is shown at the bottom of the “Multiple VLAN settings view”. From the pulldown at the left, select the group that you want to check; the ports that are joined to that group change to the color corresponding to the group.

The contents of the settings shown here are the settings that have been actually applied to the switch by pressing the [OK] button. The content that is currently being edited in the “Multiple VLAN group settings list” is not reflected in the display.

back to home
  • SWX3220 Series Technical Data (GUI)
  • LAN MAP
  • Detail
  • Device list

Device list

1. Summary

In the device list you can view a list of the terminals and agentes managed in the LAN map, and use the terminal DB to centrally manage terminal information.

2. Terminal list

The terminal list page is explained here.

2-1. Summary

The terminal list page shows a list of the terminals that are managed by the LAN map. You can use the list to check the time that a terminal was detected or the time that it was lost. You can also edit terminal information in the list, or register it to the terminal DB.

2-2. About the buttons

  • delete “Delete” button

    Delete information of the selected lost terminal from the terminal list.

  • refresh “Refresh display” button

    Refresh the terminal list page.

  • [Save as CSV] button

    Save the terminal list as a CSV file.

  • [Edit] button

    Edit terminal information. Edited information is registered in the terminal DB.

2-3. Checking terminal information

In the list you can check the terminal information that is managed by the LAN map. You can press each item’s sortSort switch to sort the list. The initial screen is sorted in order of route. Lost terminals are shown highlighted in gray.

The VLAN ID item shows (A) for an access VLAN or (T) for a trunk VLAN.

If the port is being used as a port for a private VLAN, the VLAN ID is not shown, and (P) is shown.

If the port is being used as a port for a voice VLAN, the VLAN ID is not shown, and (V) is shown.

2-4. Editing terminal information and registering it to the terminal DB

You can edit the information for the terminals that are managed by the LAN map. Edited information is registered in the terminal DB. Press the [Edit] button of the terminal information that you want to edit, and then edit the information. You can edit the following items.

  • Type

    Select the type from the selection menu.

    * This is shown as an icon in the map page and multiple VLAN page “Connected device view”.

  • Manufacturer

    Enter the manufacturer name.

    Enter up to 128 single-byte alphanumeric characters or single-byte symbols.

  • Model name

    Enter the model name.

    Enter up to 128 single-byte alphanumeric characters or single-byte symbols.

  • Device name

    Enter the device name.

    Enter up to 128 single-byte alphanumeric characters or single-byte symbols.

  • OS

    Enter the OS name.

    Enter up to 128 single-byte alphanumeric characters or single-byte symbols.

  • Comment

    Enter up to 128 single-byte alphanumeric characters or single-byte symbols.

  • Snapshot

    Select whether the terminal is or is not included in monitoring for the snapshot function.

* Terminal information that has been registered can also be edited from the terminal DB page.

Note: When inputting “”” or “,” for parameters where text is inputted, the maximum number of allowable characters will be less than 128.

2-5. Deleting a lost terminal

You can delete information of a lost terminal from the terminal list. Select the lost terminal information that you want to delete, and press the delete “Delete” button. The lost terminal information that you selected is deleted.

2-6. Saving a list to a CSV file

You can save the terminal list as a CSV file. Press the [Save as CSV] button. The terminal list is saved as a CSV file.

3. Terminal DB

The terminal DB page is explained here.

3-1. Summary

The terminal DB page shows a list of the terminals that are registered in the terminal DB. You can newly register, edit, or delete terminal information, and import or export terminal DB settings.

3-2. About the buttons

  • delete “Delete” button

    Delete the selected terminal information from the terminal DB.

  • new “Register new” button

    Newly register terminal information in the terminal DB.

  • refresh “Refresh display” button

    Refresh the terminal DB page display.

  • import “Import” button

    Apply the terminal DB saved on the PC to the manager.

  • export “Export” button

    Save the terminal DB as a CSV file.

  • [Edit] button

    You can edit the terminal information that has been registered in the terminal DB.

3-3. Checking terminal information

You can identify the terminal DB in the list. You can press each item’s sortSort switch to sort the list. The initial screen is sorted in order of MAC address.

3-4. Registering new terminal information

You can newly register terminal information in the terminal DB. Press the new “Register new” button, and enter the content to be registered. You can register the following items.

  • MAC address

    Enter the MAC address of the terminal.

    Enter single-byte characters delimited by a “:” (example: 00:a0:de:00:00:00).

  • Type

    Select the type from the selection menu.

    * This is shown as an icon in the map page and multiple VLAN page “Connected device view”.

  • Manufacturer

    Enter the manufacturer name.

    Enter up to 128 single-byte alphanumeric characters or single-byte symbols.

  • Model name

    Enter the model name.

    Enter up to 128 single-byte alphanumeric characters or single-byte symbols.

  • Device name

    Enter the device name.

    Enter up to 128 single-byte alphanumeric characters or single-byte symbols.

  • OS

    Enter the OS name.

    Enter up to 128 single-byte alphanumeric characters or single-byte symbols.

  • Comment

    Enter up to 128 single-byte alphanumeric characters or single-byte symbols.

  • Snapshot

    Select whether the terminal is or is not included in monitoring for the snapshot function.

3-5. Editing terminal information

You can edit the terminal information that has been registered in the terminal DB. Press the “Edit” button of the terminal information that you want to edit, and then edit the information. You can edit the following items.

  • Type

    Select the type from the selection menu.

    * This is shown as an icon in the map page and multiple VLAN page “Connected device view”.

  • Manufacturer

    Enter the manufacturer name.

    Enter up to 128 single-byte alphanumeric characters or single-byte symbols.

  • Model name

    Enter the model name.

    Enter up to 128 single-byte alphanumeric characters or single-byte symbols.

  • Device name

    Enter the device name.

    Enter up to 128 single-byte alphanumeric characters or single-byte symbols.

  • OS

    Enter the OS name.

    Enter up to 128 single-byte alphanumeric characters or single-byte symbols.

  • Comment

  • Snapshot

    Select whether the terminal is or is not included in monitoring for the snapshot function.

3-6. Deleting terminal information

You can delete the selected terminal information from the terminal DB. Select the terminal that you want to delete, and press the delete “Delete” button. The selected terminal information is deleted.

3-7. Importing a terminal DB

Apply the terminal DB saved on the PC to the manager. Press the import “Import” button, and use the [File select] button to select the terminal DB. The selected terminal DB is applied to the manager.

When directly editing the terminal DB, use no more than 128 single-byte alphanumeric or symbol characters for each item.

A character string that includes multi-byte characters is detected as an empty character string, and a character string that exceeds 128 characters is truncated at 128 characters.

3-8. Exporting a terminal DB

You can save the terminal DB as a CSV file. Press the export “Export” button. The terminal DB is saved as a CSV file.

4. Agent list

The agent list page is explained here.

4-1. Summary

The agent list page shows a list of the agentes that are managed by the LAN map. You can use the list to check the time that a agent was detected or the time that it was lost. You can also change the settings of a agent in the list.

4-2. About the buttons

  • delete “Delete” button

    Delete information of the selected lost agent from the agent list.

  • refresh “Refresh display” button

    Refresh the agent list page display.

  • [Save as CSV] button

    Save the agent list as a CSV file.

  • [Settings] button

    Make agent settings.

4-3. Checking a agent

In the list you can check the agent information that is managed by the LAN map. You can press each item’s sortSort switch to sort the list. The initial screen is sorted in order of route. Lost agentes are shown highlighted in gray.

4-4. Making agent settings

You can edit the settings for the agentes that are managed by the LAN map. Settings can be changed on some Yamaha switches. Press the [Settings] button of the agent whose settings you want to change, and then change the settings. You can set the following items.

  • Device name

    Specify the device name of the agent.

    • When “Default device name” is selected, the default names that are predetermined for each device will be set. Normally, this is text that shows the model name and serial number.
    • When “Manual settings” is selected, the device name that was inputted in the input box right afterwards will be set. Input a device name of up to 32 single-byte characters. The characters that can be input will differ depending on the target agent. See “6-2. Setting and maintaining switches” in “Map” for details.

4-5. Deleting a lost agent

You can delete information of a lost agent from the agent list. Select the lost agent information that you want to delete, and press the delete “Delete” button. The lost agent information that you selected is deleted.

4-6. Saving a list to a CSV file

You can save the agent list as a CSV file. Press the [Save as CSV] button. The agent list is saved as a CSV file.

back to home
  • SWX3220 Series Technical Data (GUI)
  • LAN MAP
  • Detail
  • Whole map

Whole map

1. Summary

The whole map shows all devices connected to the network, using a single topology.You can switch the topology display range and the device information view, to customize the display and make it easier to view.Use the print function to print the whole map displayed, in order to make use of the map in various network operation management-related situations.

2. Notes

  • Cookies are used and saved for the whole map view settings.Enable cookies on your browser to save the whole map view settings.See the help content supplied with your browser for instructions on how to enable cookies.If you have made changes to the settings but the changes are not reflected when accessing the whole map once more, cookies may be disabled or have been deleted in your browser.
  • You can confirm the link speed between devices (the link speed of the port belonging to higher devices) and link speed, by checking the color and shape of the connector lines between the device icons.
    • See the legend at the top right of the screen for how the colors correspond to link speeds.
    • The link speeds of terminals connected to a Yamaha wireless AP or agentes for which the type cannot be determined are shown using gray-colored connector lines.

3. About the buttons

  • “Top” button

    Used for the focus function.See 8. Using the focus function for details.

  • “Up” button

    Used for the focus function.See 8. Using the focus function for details.

  • “Refresh display” button

    The page will reload.

  • “View settings” button

    Here you can configure the information shown on the whole map.For details, see “5. Switching the device information view”, “6. Displaying/hiding a terminal” and “7. Switching the port information view.”

  • “Print preview” button

    This opens the screen for printing.See "9. Printing the whole map" for details.

4. About the mini whole map

The mini whole map is a reduced version of the whole map.Use this to get a birds’-eye view of the entire map.You can also use the focus function to understand which agent is getting the focus.See 8. Using the focus function for details.

Note: If the total number of managers, agentes and SSIDs on the whole map exceed 200, the mini whole map will not be displayed.

5. Switching the device information view

You can switch the device information shown on the right-hand side of the device icons.You can set the items to be displayed for the agentes and terminals individually.Use the following operations to configure the settings.

  1. Press the “View settings” button at the upper right-hand part of the screen.The view settings screen will display directly below.

  2. Select the items to view using the drop-down list boxes to the right of the “agent information” and “terminal information” on the view settings screen.When these items are selected, the device information shown at the right of the device icons on the whole map will switch to the selected item.The settings will automatically be saved at the timing in which they are switched.

    Note: The four drop-down list boxes are lined up vertically corresponding to the order in which the device information to the right of the device icons on the whole map is displayed.

Agent information to view can be selected from the following.

  • Device name
  • MAC address
  • Model name
  • IP address
  • Hide

Terminal information to view can be selected from the following.

  • IP address
  • Manufacturer
  • Device name
  • MAC address
  • Model name
  • Comment
  • OS
  • Hide

Note: Up to 30 single-byte characters are displayed for the device information. If the text length exceeds 30 single-byte characters, the rest of the item will be omitted.

6. Displaying/hiding a terminal

You can switch between displaying or hiding terminals shown on the whole map.If you do not need to manage terminals, you can hide the terminals and show only the agentes, making the view easier to read.Use the following operations to configure the settings.

  1. Press the “View settings” button at the upper right-hand part of the screen.The view settings screen will display directly below.

  2. Select the check box to the left of the “Terminal information” text on the view settings screen to display the terminal, and deselect the check box to hide the terminal.The settings will automatically be saved at the timing in which they are switched.

7. Switching the port information view

You can switch between displaying or hiding the connecting port and VLAN information shown on the topology of the whole map.Use the following operations to configure the settings.

  1. Press the “View settings” button at the upper right-hand part of the screen.The view settings screen will display directly below.

  2. Select the check boxes in “Port information” on the view settings screen for the “Port number” and “VLAN-ID” to view this information, and deselect the check boxes to hide the information.The settings will automatically be saved at the timing in which they are switched.

8. Using the focus function

Press the agent icon on the whole map for a focused view of the topology, including the selected agentes and the devices that they control.

Focusing on this view will enable the “Top” button and the “Up” button in the top left part of the screen.Press the “Top” button to return to a view of the overall topology, centered on the manager.Press the “Up” button on the top left part of the screen to view the topology, centered on the agentes or managers one level above.The agentes that are at the center of the topology’s focus are shown within a blue border on the mini whole map at the right side of the screen, which helps you to understand their location.You can also view the “Route” in the upper left part of the screen to confirm the location of a agent.

9. Printing the whole map

Using the whole map, you can print the currently viewed whole map from the Print preview.Use the following operations to print.

  1. Press the “Print preview” button at the upper right part of the screen.The Print preview will display in a separate window.

  2. Check the Print preview and press the “Print this page” button on the upper part of the screen if everything looks the way you want it.The browser’s print preview will be displayed.Set the paper size to A4 or larger when printing.

    Note: When changing the focus or device information view after displaying the Print preview, close the Print preview first, make changes to the focus or device information view on the whole map, and then press the “Print preview” button again to open the Print preview.The settings cannot be changed from the Print preview.

    Note: When opening a agent configuration series for a topology that is long (in other words, a topology that is too wide to fit) in the Print preview, the width of the topology on the Print preview will be adjusted to horizontally accommodate A4-sized paper.

10. Checking the terminals connected to wireless AP

The terminals connected to a wireless AP will be shown for each SSID on the whole map.

Note: Some devices connected to a wireless AP may not display, depending on the firmware version of the wireless AP.

The SSIDs that are set for the wireless AP are shown as icons under the wireless AP icon.Terminals connected by an SSID are displayed under their respective SSID icon.The following information regarding the SSID is displayed to the right of the SSID icon.

  • SSID name
  • Frequency band

Note: The items displayed cannot be switched.

back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings

Detailed settings

  • interface settings
  • VLAN
  • Layer 2 functions
  • Layer 3 functions
  • Multicast
  • Traffic control
  • Application layer
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • interface settings

interface settings

  • Physical interface
  • Port mirroring settings
  • Link aggregation
  • Port authentication
  • L2MS filter
  • Tx queue usage monitoring
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • interface settings
  • Physical interface

Physical interface

1. Summary

This page is for changing the physical interface settings.

2. Top page

This is the top page for the physical interface.

Interface list

  • The current operating status and settings for the physical interface are shown for each interface.
  • The table items are explained below.
    • Check box
      • Select the check box for bulk settings or to initialize the settings.
    • Port
      • Displays the interface name.
    • Link
      • Displays the link status for the interface.
      • Displays the port type in parentheses for other ports besides the LAN.
    • Speed settings
      • Displays the speed and communication mode settings.
      • If “Automatic” is set for the LAN port, the supported communication types are displayed in brackets.
    • EEE
      • Displays the operating status of the EEE function.
    • Description
      • Displays the description text that is set for the interface.
  • Press the [Setting] button to display the page where you can change the settings of the selected interface.
  • If you press the [Specify all] button, the settings can be changed for all interfaces whose check box is selected.
    • Bulk settings cannot be made by selecting ports of different types.
    • The default settings will be applied to the settings on the physical interface settings page.
  • If you press the [Return to defaults] button, the settings will be initialized on all interfaces whose check boxes are selected.
    • Each of the default settings are shown below.
      • Operation : Enable interface
      • Description : Unset
      • Speed/communication mode : Automatic
      • MRU : 1,522 Byte
      • EEE function : Disabled (Don’t use power-conservation Ethernet function)
      • Automatic cross/straight detection : Enable

3. Physical interface settings page

This page is for changing physical interface-related settings.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Physical interface settings

  • Port
    • Displays the name of the interface for which settings will be made.
  • Operation
    • Select from the following interface operations.
      • Enable interface
      • Disable interface
  • Description
    • Sets the interface description text.
    • Characters that can be inputted include single-byte alphanumeric characters and symbols, excluding ?.
    • Up to 80 characters can be inputted.
  • Speed/communication mode
    • Select the interface speed and communication method from the following options.
      • For a LAN port
        • Automatic
        • 100Mbps / Full duplex
        • 100Mbps / Half duplex
      • For an SFP port or combo port
        • Automatic
        • 1Gbps / Full duplex
      • For an SFP+ port
        • Automatic
        • 10Gbps / Full duplex
    • For a LAN port, select communication types to be supported by the "Automatic" setting from the following.
      • 10Gbps / Full duplex
      • 5Gbps / Full duplex
      • 2.5Gbps / Full duplex
      • 1Gbps / Full duplex
      • 100Mbps / Full duplex
      • 100Mbps / Half duplex
  • MRU
    • Specify the maximum amount of data that can be received at one time.
    • The input range is 64 - 10,240 bytes.
  • EEE function
    • EEE functions can only be set for the LAN port and combo port.
    • Select the operation for the EEE function from the following options.
      • Disable (Don’t use power-conservation Ethernet function)
      • Enable (Use power-conservation Ethernet function)
  • Automatic cross/straight detection
    • Select the operation for the automatic cross/straight detection from the following options.
      • Enable
      • Disable
    • If the automatic cross/straight detection is disabled, MDI is used for the cable connection type.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • interface settings
  • Port mirroring settings

Port mirroring settings

1. Summary

This page is for changing the port mirroring settings.

2. Top page

This is the top page for the port mirroring settings.

Port mirroring settings

  • The current settings for the port mirroring are shown.
  • The table items are explained below.
    • Check box
      • Select the check box to delete the sniffer port setting.
    • Sniffer port
      • Displays the interface name of a sniffer port.
    • Monitored port
      • Displays the interface name of monitored ports.
    • Monitoring direction
      • Displays the monitoring direction for a monitored port.
  • Press the [New] button to display a page where you can create new settings for a sniffer port.
  • Press the [Setting] button to display the page where you can change the settings of a sniffer port.
  • If you press the [Delete] button, all sniffer ports whose check boxes are selected will be deleted.
  • Up to 1 sniffer port can be configured.

3. Port mirroring settings page

This page is for changing the port mirroring settings.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Port mirroring settings

  • Sniffer port
    • When configuring new settings
      • This page is for changing the port mirroring settings.
      • Select the interface to operate as a sniffer port.
      • Press the [Select] button to display the “Sniffer port selection” dialog.
    • When changing settings
      • You can select a sniffer port by checking the port check box and clicking the [OK] button in the “Sniffer port selection” dialog.
  • Monitored port
    • Select the ports that will be monitored from a selected sniffer port.
    • Press the [Select] button to display the “Monitored port selection” dialog.
    • Monitored ports can be selected in the “Monitored port selection” dialog by placing a checkmark in the corresponding checkbox, selecting the monitoring direction, and pressing the [OK] button.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • interface settings
  • Link aggregation

Link aggregation

1. Summary

This page is for configuring the link aggregation settings.

2. Top page

This is the top page for link aggregation.

System settings

  • Shows the system settings related to link aggregation.
  • The table items are explained below.
    • LACP system priority
      • Displays the LACP priority set in this system.
    • Mixed-speed mode
      • Displays whether the LACP mixed-speed mode is enabled or not.
    • Load balance rules
      • Displays the load balance settings.
  • Press the [Setting] button to show the page for system settings related to link aggregation.

Interface list

  • The operating status and settings are shown for the logical interface and the physical interface.
  • The table items are explained below.
    • Check box
      • Select the check box to delete the logical interface.
    • Port
      • Displays the interface name.
    • Link
      • Displays the link status for the interface.
    • LACP status
      • One of the following statuses are displayed for the LACP status of the interface.
        • Waiting
        • Negotiating
        • Communication OK
        • -
    • LACP priority
      • During actual operation, the priority will be displayed.
      • Displays a value from 1 to 12 for the priority, calculated based on the LACP priority setting.
    • Explanation
      • Displays the description text that is set for the interface.
  • Press the [New] button to display a page where you can create new settings for a logical interface.
  • Press the [Setting] button to display the page where you can change the settings of the selected logical interface.
  • If you press the [Delete] button, all logical interfaces whose check boxes are selected will be deleted.
    • When deleting a logical interface, you can specify the physical interface operations after deletion as follows.
      • Enable
      • Disable
  • Up to 127 logical interfaces can be configured.
  • Up to 96 static logical interfaces can be configured.

3. System settings page

This page is for configuring link aggregation-related system settings.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

System settings

  • LACP system priority
    • Specify the LACP system priority.
  • LACP mixed-speed mode
    • Select whether to enable the LACP mixed-speed mode from the following.
      • Disable
        • When this function is disabled, physical interfaces with different communication speeds belonging to the LACP logical interface cannot communicate at the same time.
      • Enable
        • When this function is enabled, physical interfaces with different communication speeds belonging to the LACP logical interface can communicate at the same time.
        • Enable this function when you want to aggregate physical interfaces with different communication speeds into an LACP logical interface.
  • Load balance rules
    • The following load balance rules can be selected.
      • Destination MAC address
      • Source MAC address
      • Destination/source MAC address
      • Destination IP address
      • Source IP address
      • Destination/source IP address
      • Destination port number
      • Source port number
      • Destination/source port numbers

4. Logical interface settings page

This page is for changing the logical interface settings.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Logical interface settings

  • Logical interface
    • When configuring new settings
      • The logical interface type can be selected from the following types.
        • Static logical interface
        • LACP logical interface
    • When changing settings
      • Displays the selected logical interface name.
  • Interface number
    • Specifies the interface number.
    • A value from 1 to 96 can be inputted for a static logical interface.
    • A value from 1 to 127 can be inputted for an LACP logical interface.
    • This item will be displayed only when configuring new settings.
  • Associated port
    • Select the port that will be associated with the logical interface.
    • Press the [Select] button to display the “Physical interface list” dialog box.
    • Select the port check box in the “Physical interface list” dialog box and press the [Confirm] button to select the associated port.
    • Up to eight ports can be selected for a static logical interface, and up to 12 ports can be selected for an LACP logical interface.
    • When displaying the dialog box for the “Logical interface” item with the LACP logical interface selected, the following settings can be made for each associated port.
      • Operation mode
        • Active
        • Passive
      • LACP priority
        • 1 - 12
      • LACP timeout
        • 3 Seconds
        • 90 Seconds
  • Operation
    • Select from the following logical interface operations.
      • Enable interface
      • Disable interface
  • Explanation
    • Sets the interface description text.
    • Characters that can be inputted include single-byte alphanumeric characters and symbols, excluding ?.
    • Up to 80 characters can be inputted.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • interface settings
  • Port authentication

Port authentication

  • Port authentication settings
  • Server settings
  • Authentication management
  • Web authentication screen
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • interface settings
  • Port authentication
  • Port authentication settings

Port authentication settings

1. Summary

This page is for configuring the port authentication.

To use port authentication, you need to configure the system settings and the interface settings.

You also need to configure the authentication server in Interface settings > Port authentication > Server settings.

2. Top page

This is the top page for the port authentication settings.

System settings

  • Displays the port authentication settings for the system.
  • The table items are explained below.
    • 802.1X authentication
      • Displays whether 802.1X authentication is enabled or not for the entire system.
    • MAC authentication
      • Displays whether MAC authentication is enabled or not for the entire system.
    • Web authentication
      • Displays whether web authentication is enabled or not for the entire system.
  • Press the [Setting] button to display the page for configuring the system settings.

Interface settings

  • Displays the port authentication settings for the interface.
  • The table items are explained below.
    • I/F
      • Displays the interface name.
    • Enabled authentication functions
      • Displays the enabled authentication functions for the interface.
    • Host mode
      • Displays the authentication operation mode setting.
  • Press the [Setting] button to display the page for changing the settings of the selected interface.
  • Press the [Specify all] button to configure all interfaces with the check box selected.
  • If you press the [Return to defaults] button, the settings will be initialized on all interfaces whose check boxes are selected.

3. System settings page

This page is for configuring the port authentication for the system.

You can also change the detailed settings by pressing the [Advanced settings] button.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

System settings

  • Authentication functions to be enabled
    • Select the authentication functions to be enabled for the entire system from the following.
      • 802.1X authentication
      • MAC authentication
      • Web authentication
  • MAC address format for MAC authentication
    • Select the MAC address format for MAC authentication from the following.
      • Delimiter (-), Lowercase
      • Delimiter (:), Lowercase
      • No delimiter, Lowercase
      • Delimiter (-), Uppercase
      • Delimiter (:), Uppercase
      • No delimiter, Uppercase
  • Redirect URL after successful web authentication
    • Specify the destination URL for redirecting the authenticated device after successful web authentication.
    • Enter up to 256 characters using single-byte alphanumeric characters and symbols, excluding ? symbol.
  • Clearing authentication status
    • Specify whether or not to clear the authentication status of the device periodically.
    • The input range of the time to clear is from 0 to 23 o’clock.
    • If Clearing authentication status is set in the interface settings, the setting in the interface settings takes precedence.

4. Interface settings page

This page is for configuring the port authentication for the interface.

You can also change the detailed settings by pressing the [Advanced settings] button.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Interface settings

  • Applicable interface
    • Displays the name of the interface whose settings are to be changed.
  • Authentication functions to be enabled
    • Select authentication functions to be enabled for the interface from the following.
      • 802.1X authentication
      • MAC authentication
      • Web authentication
  • Host mode
    • Select the authentication operation mode for the authentication function from the following.
      • Single host mode
        • If the device connected to the interface has successfully authenticated, only the device can access.If another device has already authenticated, this device cannot authenticate or access.
      • Multi host mode
        • If any device connected to the interface has successfully authenticated, all devices connected to the interface can access.
      • Multi supplicant mode ( Recommended )
        • All devices connected to the interface can individually authenticate, and only the devices successfully authenticated can access.
  • Authentication order
    • Select which authentication to use first if both 802.1X authentication and MAC authentication are enabled.
      • 802.1X authentication first
      • MAC authentication first
    • Web authentication authenticates when ID and Password are entered regardless of this setting.
  • MAC address registration type after MAC authentication
    • Select a registration type for authenticated MAC addresses to the MAC address table.
      • Register as dynamic entry
      • Register as static entry
    • The aging timer automatically deletes MAC addresses registered as dynamic entries from the MAC address table.
    • The “clear auth state” or the “auth clear-state time” command can delete MAC addresses registered as static entries from the MAC address table.
  • Guest VLAN
    • Specify the guest VLAN.
    • Press the [Select] button, and then select a VLAN ID from the “VLAN list” dialog.
    • When a guest VLAN is configured, devices that have not successfully authenticated can also access the specified VLAN.
    • This cannot be used with web authentication.
  • Dynamic VLAN
    • Specify whether or not to use dynamic VLAN.
    • If you set to use dynamic VLAN, VLANs are dynamically assigned to each device that has successfully authenticated.
    • The VLAN to be assigned depends on the authentication server settings.
  • Waiting time for a response from device
    • Specify the waiting time for a response from the device during authentication.
    • The input range is from 1 to 65535 seconds.
  • Authentication restriction period after authentication failure
    • Specify the period to restrict authentication after the authentication of a device fails.
    • The input range is from 1 to 65535 seconds.
    • While authentication is restricted, all packets received on the target interface are discarded.
  • Re-authentication of authenticated device
    • Specify whether or not to periodically re-authenticate the device that has successfully authenticated.
    • The input range of the re-authentication interval is from 300 to 86400 seconds.
  • Clearing authentication status
    • Specify whether or not to clear the authentication status of the device periodically.
    • The input range of the time to clear is from 0 to 23 o’clock.
  • 802.1X authentication operation mode
    • Select the operation mode for 802.1X authentication from the following.
      • Operate as authentication interface
      • Set as authenticated interface
      • Set as unauthenticated interface
  • Forwarding control on unauthenticated ports for 802.1X authentication
    • When 802.1X authentication is enabled, specify the communication restriction method for devices that have not successfully authenticated from the following.
      • Discard both sending and receiving
      • Discard only receiving
    • If any of the following conditions are met, this setting is ignored, and the function operates as Discard only receiving.
      • Host mode is set to multi-supplicant mode.
      • MAC authentication is enabled.
    • If the guest VLAN is configured, this setting does not affect the communication restrictions.
  • Number of times to send EAPOL packets
    • Specify the maximum number of times to send EAPOL packets.
    • The input range is from 1 to 10 times.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • interface settings
  • Port authentication
  • Server settings

Server settings

1. Summary

This page is for configuring the authentication server.

Configure the authentication server for port authentication.

To use the built-in RADIUS server as an authentication server, you need to configure the built-in RADIUS server in Application layer > RADIUS server > Server settings.

The authentication server can be configured manually as a fixed setting or automatically using the auto-configure via LLDP function.
To enable automatic settings, enable the "auto-configure via LLDP function" in Management > LLDP. Then the RADIUS server notified by LLDP has configured automatically.

2. Top page

This is the top page for the Server settings.

Authentication RADIUS server settings

  • Displays the authentication RADIUS server settings.
  • The table items are explained below.
    • Address
      • Displays the authentication server address.
    • Port number
      • Displays the authentication server port number.
  • Press the [New] button to display the page for configuring a new authentication server.
  • Press the [Setting] button to display the page for changing the selected authentication server’s settings.
  • Press the [Delete] button to delete all authentication servers with the check box selected.
  • Press the [Register] button to configure the auto-configured RADIUS server as a fixed setting.
  • Up to eight authentication server settings can be created, including fixed and automatic settings.
  • If both fixed settings and automatic settings are configured, the fixed settings are used first.
  • If you create a new fixed setting under the number of authentication server settings reached the maximum, the setting with the largest LLDP receiving port number is deleted from the settings configured automatically via LLDP.

Common detailed settings

  • Displays the common detailed settings.
  • The table items are explained below.
    • Waiting time for a response per server
      • Displays the waiting time for a response per server.
    • Number of times to resend requests to server
      • Displays the number of times to resend requests to the server.
    • Server usage restriction period
      • Displays the period for server usage restriction.
    • NAS-Identifier attribute to be notified to the server
      • Displays the NAS-Identifier attribute to be notified to the server.
  • Press the [Setting] button to display the page for changing the common detailed settings.

3. Authentication RADIUS server settings page

This page is for configuring the authentication RADIUS server.

You can also change the detailed settings by pressing the [Advanced settings] button.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Authentication RADIUS server settings

  • Server type
    • Select the authentication server type from the following.
      • Use built-in RADIUS server
      • Use external RADIUS server
    • If you select Use built-in RADIUS server, the following settings are specified with predetermined values.
      • Server address
      • Server port number
      • Shared password with server
    • This item appears only for new settings.
  • Server address
    • Specify the address of the authentication server.
    • Enter the address in one of the following formats.
      • IPv4 address : XXX.XXX.XXX.XXX
      • IPv6 global address : XXXX:XXXX::XXXX:XXXX
      • IPv6 link-local address : fe80::X%vlanN
    • To change the setting, you need to start over from a new setting.
  • Server port number
    • Specify the port number of the authentication server.
    • The input range is from 0 to 65535.
  • Shared password with server
    • Specify the shared password with the authentication server.
    • Enter up to 128 characters using single-byte alphanumeric characters and symbols, excluding ? and space symbols.
    • If you omit the input, the shared password set in the common detailed settings is applied.
  • Waiting time for a response from server
    • Specify the waiting time for a response from the authentication server.
    • The input range is from 1 to 1000 seconds.
    • If you omit the input, the waiting time for a response per server set in the common detailed settings is applied.
  • Number of times to resend requests to server
    • Specify the number of times to resend requests to the server when the authentication server’s response times out.
    • The input range is from 0 to 100 times.
    • If you omit the input, the number of times to resend requests to the server set in the common detailed settings is applied.

4. Common detailed settings page

This page is for changing the common detailed settings of the authentication server.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Common detailed settings

  • Shared password with server
    • Specify the shared password with the authentication server.
    • Enter up to 128 characters using single-byte alphanumeric characters and symbols, excluding ? and space symbols.
  • Waiting time for a response from server
    • Specify the waiting time for a response from the authentication server.
    • The input range is from 1 to 1000 seconds.
  • Number of times to resend requests to server
    • Specify the number of times to resend requests to the server when the authentication server’s response times out.
    • The input range is from 0 to 100 times.
  • Server usage restriction period
    • Specify the period to restrict the use of the authentication server temporarily for when the server does not reply after resending requests.
    • The input range is from 0 to 1,440 minutes.
  • NAS-Identifier attribute to be notified to the server
    • Specify the NAS-Identifier attribute to be notified to the authentication server.
    • Enter up to 253 characters using single-byte alphanumeric characters and symbols, excluding ? symbol.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • interface settings
  • Port authentication
  • Authentication management

Authentication management

1. Summary

This page is for managing authentication.

You can check and delete the authentication information of the device.

2. Top page

This is the top page for the authentication management.

Authentication information of devices

  • Displays the authentication information for each device.
  • The table items are explained below.
    • Port
      • Displays the interface to which the device is connected.
    • Name
      • Displays the name of the device.
    • MAC address
      • Displays the MAC address of the device.
    • Authentication method
      • Displays the authentication method used to authenticate the device.
    • State
      • Displays the authentication status of the device.
    • VLAN
      • Displays the VLAN to which the device belongs.
  • A maximum of 100 items can be displayed for one page. Press page_prev or page_next or enter a numeric value to switch between pages.
  • You can press the sort switch to sort by each item.
  • Press the [Update] button to update the device’s authentication information to the latest status.
  • Press the [Delete] button to delete all authentication information with the check box selected.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • interface settings
  • Port authentication
  • Web authentication screen

Web authentication screen

1. Summary

This page is for customizing the web authentication screen.

You can customize the authentication screen for web authentication.

For the specific customization method, please refer to Interface control functions > Port authentication functions > 3.3.2 Customizing the authentication screen in the technical data for this product in Yamaha Network Devices Technical Documentation.

2. Top page

This is the top page for the web authentication screen.

Customizing the web authentication screen

  • Displays whether customization has been applied or not.
  • If the customization has been applied, you can disable the customization by pressing the [Disable] button.
  • Press the [Next] button to the right of "Download the original files for customization" to download the original files for customization.
  • Press the [Next] button to the right of “Apply the customized files” to open the page to apply the customization.

3. Applying customization page

This page is for customizing the web authentication screen.

Select the customized file from “Select a file”, and press the [Confirm] button. If the information entered in the confirmation screen is correct, press the [OK] button.

Applying customization

  • Logo file (.png)
    • Specify the logo file.
    • The file extension has to be .png.
  • Header file (.html)
    • Specify the header file.
    • The file extension has to be .html.
  • Footer file (.html)
    • Specify the footer file.
    • The file extension has to be .html.
  • CSS file (.css)
    • Specifies the CSS file.
    • The file extension has to be .css.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • interface settings
  • L2MS filter

L2MS filter

1. Summary

This page is for configuring L2MS filter settings.

If you enable L2MS filter, you can block L2MS frames.

2. Top page

Displays a list of L2MS filter settings for interfaces.

Interface list

  • Displays the current L2MS filter settings for each interface.
  • Press the [Setting] button to display the page for configuring the selected interface.
  • Press the [Specify all] button to configure the settings for all interfaces with the check box selected.
  • Press the [Return to defaults] button to initialize the settings for all interfaces with the check box selected. The default setting of L2MS filter is “Disabled”.
  • Constraints If the L2MS operation mode is disabled, L2MS filter does not work.
    L2MS frames are forwarded.

3. Interface settings

This page is for configuring L2MS filter for the interface.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Interface settings

  • L2MS filter Specify whether to enable or disable L2MS filter for the target interface.
    If it is enabled, the filter blocks L2MS frames. If it is disabled, the filter does not block L2MS frames.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • interface settings
  • Tx queue usage monitoring

Tx queue usage monitoring

1. Summary

This page is for configuring the tx queue usage monitoring function.

If you disable this function, notifications about the tx queue are not sent in SYSLOG and mail notifications.

2. Top page

This is the top page for the tx queue usage monitoring.

System settings

  • Displays the configuration of the tx queue usage monitoring function for the entire system.
  • Press the [Setting] button to display the page for configuring the system.

Interface settings

  • Displays the configuration of the tx queue usage monitoring function for each port.
  • The table items are explained below.
    • Port
      • Displays the port name.
    • Tx queue usage monitoring
      • Displays the configuration of the tx queue usage monitoring function for the target port.
  • Press the [Setting] button to display the page for configuring the selected port.
  • Press the [Specify all] button to configure the settings for all ports with the check box selected.
  • Press the [Return to defaults] button to initialize the settings for all ports with the check box selected.

3. System settings page

This page is for configuring the tx queue usage monitoring function for the system.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

System settings

  • Tx queue usage monitoring for the entire system
    • Specify whether to enable or disable the tx queue usage monitoring function for the entire system.
    • If this setting is disabled, notifications about the tx queue are not sent.
    • Even if the entire system setting is enabled, notifications are not sent about the tx queue of ports whose individual setting is disabled.

4. Interface settings page

This page is for configuring the tx queue usage monitoring function for the interface.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Interface settings

  • Port
    • Displays the port name to configure the settings.
  • Tx queue usage monitoring
    • Specify whether to enable or disable the tx queue usage monitoring function for the target port.
    • If this setting is disabled, notifications about the tx queue of the target port are not sent.
    • Even if the individual port setting is enabled, notifications are not sent about the tx queue if the entire system setting is disabled.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • VLAN

VLAN

  • Create VLAN
  • Tag VLAN
  • Multiple VLAN
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • VLAN
  • Create VLAN

Create VLAN

1. Summary

In this page you can create or delete VLANs, and change the IP address.

2. Top page

This is the top page for creating a VLAN.

VLAN list

  • Information for the defined VLANs is displayed
    • IPv4 primary address is displayed in bold.
  • A maximum of 20 items can be displayed for one page. Press page_prev or page_next or enter a numeric value to switch between pages.
  • You can press the sort switch to sort by each item.
  • Press the [New] button to access a page where you can create a new VLAN
  • Press the [Setting] button to access a page where you can change the settings of the selected VLAN
  • If you press the [Delete] button, all VLANs whose check box has a check mark will be deleted
    • The following VLAN cannot be deleted
      • Default VLAN ( VLAN ID = 1 )
      • Private VLAN
  • Up to 256 VLANs can be created including the default VLAN (VLAN ID = 1).

3. VLAN settings page

In this page you can create a new VLAN or edit the settings of an already-defined VLAN.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

VLAN settings

  • VLAN ID
    • To create a new VLAN, enter the desired VLAN ID within the valid range (2-4094)
      • The smallest ID of the unregistered VLAN IDs is entered as the default value
      • If an already-registered VLAN ID is entered, it is handled as a change in settings
    • When changing the settings, it is not possible to change the VLAN ID
  • Name
    • Specify the name of the VLAN using up to 32 single-byte alphanumeric characters and symbols.
      • The default VLAN (VLAN ID = 1) cannot be renamed
      • A space and “?” cannot be used in the name of the VLAN.
  • Frame transmission

    Select frame forwarding from the following items.

    • Enable frame transmission
    • Disable frame transmission
      • Frame forwarding cannot be disabled for the default VLAN (VLAN ID = 1)
  • IPv4 address
    • For IPv4 addresses, you can specify one primary address and up to 4 secondary addresses for each VLAN.
    • You can set up to 256 of these addresses on the entire system.
    • You can set this item only for VLANs with frame forwarding enabled.
    • Set each address as follows.
      • Primary address
        • Select the IP address setting from the following.
          • Not set
          • Obtain automatically using DHCP
            • Selecting the check box for “Setting the link local address when auto-acquire does not work” will enable the Auto IP function.
              • The Auto IP function can be enabled for only one VLAN.
            • You cannot select this item if the stack port is set to use Auto IP.
            • You can specify a host name to notify the DHCP server.
          • Specify a fixed IP address
            • Enter the IP address and subnet mask
            • You can set description or note about the IP address as a label.
        • If you select Obtain automatically using DHCP or Specify a fixed IP address, the various server configurations are changed for the VLAN that you configure as follows.
          • You can access the HTTP server and the TELNET server from the VLAN interface. (To enable access to the SSH server and the TFTP server, you need additional configurations.)
          • No changes are made to the configuration of a server that already has 8 VLAN interfaces registered.
      • Secondary address
        • Enter the following settings in the table.
          • Address
            • Enter the IP address and subnet mask
          • Label
            • You can set description or note about the IP address as a label.
        • Press the icon to add a configuration form.
        • Press the [Delete] button to delete a configuration form.
  • IPv6 address
    • For IPv6 addresses, you can specify up to 5 global addresses and one link-local address for each VLAN.
    • You can set up to 256 of these addresses on the entire system.
    • The IPv6 address cannot be configured when the stack function is enabled.
    • Select whether the IPv6 address will be enabled or disabled from the following items.
      • Disable IPv6
      • Enable IPv6
    • If you select Enable IPv6, the various server configurations are changed for the VLAN that you configure as follows.
      • You can access the HTTP server and the TELNET server from the VLAN interface. (To enable access to the SSH server and the TFTP server, you need additional configurations.)
      • No changes are made to the configuration of a server that already has 8 VLAN interfaces registered.
    • Set each address as follows.
      • Global address
        • Enter the following settings in the table.
          • Type
            • Select from the following items.
              • Obtain automatically using RA
              • Specify the address
          • Address
            • Enter the IP address and subnet mask
        • Press the icon to add a configuration form.
        • Press the [Delete] button to delete a configuration form.
      • Link local address
        • Enter an IP address.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • VLAN
  • Tag VLAN

Tag VLAN

1. Summary

In this page you can make settings for tagged VLANs.

2. Top page

This is the top page for tagged VLANs.

Tag VLAN settings

  • The various settings for tagged VLANs are shown for each LAN/SFP port and logical interface
    • “Frame types that can be received” is displayed according to the operating mode and the VLAN settings. (This item cannot be set in the settings page.)
  • Press the [Setting] button to access a page where you can change the settings for the tagged VLAN of the selected interface
  • If you press the [Specify all] button, the settings can be changed for all LAN/SFP ports and logical interfaces whose check box contains a check mark
  • If you press the [Return to defaults] button, the settings will be initialized for all LAN/SFP ports and logical interfaces whose check box contains a check mark
    • Default settings for a tagged VLAN are as follows
      • Operating mode: Access
      • Assigned VLAN: Default VLAN (VLAN ID = 1)
  • Settings for the LAN/SFP port assigned to a private VLAN cannot be changed
  • Settings for the LAN/SFP port assigned to a voice VLAN cannot be changed
  • If the operation mode is “Trunk,” both the native VLAN and the trunk VLAN are shown as assigned VLANs.

3. Tagged VLAN settings page

In this page you can make various settings related to tagged VLANs.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Tag VLAN settings

  • Port
    • The LAN/SFP port and logical interface for which settings are made is shown
  • Operation mode
    • Access
      • The corresponding port is specified as the access (untagged) port
    • Trunk
      • The corresponding port is specified as the trunk (tagged) port
  • AccessVLAN
    • This item is shown only if the operating mode is “Access”.
    • From the list, select the access port’s assigned VLAN
    • However, the following cannot be selected as access VLAN.
      • PrivateVLAN
      • VoiceVLAN
      • VLAN for which frame forwarding is invalid
  • NativeVLAN
    • This item is shown only if the operating mode is “Trunk”.
    • From the list, select the assignment-destination VLAN (native VLAN) for untagged frames received from the trunk port.
    • However, the following cannot be selected as native VLAN.
      • VLAN selected as trunk VLAN
      • PrivateVLAN
      • VoiceVLAN
      • VLAN for which frame forwarding is invalid
  • TrunkVLAN
    • This item is shown only if the operating mode is “Trunk”.
    • Specify the assignment-destination VLAN (trunk VLAN) for tagged frames received at the trunk port.
    • When you press the [Select] button, a list of the selectable VLAN IDs appears in a separate window
    • However, the following cannot be selected as trunk VLAN.
      • VLAN selected as native VLAN
      • PrivateVLAN
      • VoiceVLAN
      • VLAN for which frame forwarding is invalid
    • Place a check mark in the check box of the VLAN ID that you want to specify, and press the [Confirm] button
  • Ingress filter

    Select the ingress filter from the following items. This item is shown only if the operating mode is “Trunk.”

    • Enabled ( Receive only if the VLAN ID of the incoming frame is the same as the associated VLAN )
    • Disabled ( Receive all frames )
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • VLAN
  • Multiple VLAN

Multiple VLAN

1. Summary

In this page you can make multiple VLAN settings.

The multiple VLAN function is used to divide ports for one switch into different groups and prohibit communication between the groups.

A single port can belong to multiple groups, so that the same network address can be assigned even to different groups.

If both the multiple VLAN and port-based VLAN / tagged VLAN are used, communication is not possible between ports that belong to different VLANs, even if the ports belong to same multiple-VLAN group.

2. Top page

This is the top page for multiple VLANs.

Tag VLAN settings

  • The multiple VLAN group settings are shown for each LAN port and logical interface.
  • Press the [Setting] button to access a page where you can change the settings for the multiple VLAN of the selected interface.
  • If you press the [Specify all] button, the settings can be changed for all LAN ports and logical interfaces whose check box contains a check mark.
  • If you press the [Return to defaults] button, the settings will be initialized for all LAN ports and logical interfaces whose check box contains a check mark.
    • In default settings, no interfaces belong to a group.

3. Multiple VLAN settings page

In this page you can make the multiple VLAN settings.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the setting confirmation screen, press the [OK] button.

Multiple VLAN settings

  • Port
    • The LAN port or logical interface for which settings are made is shown
  • Group
    • Select the VLAN groups to join.
    • Press the [Select] button to display the “Multiple VLAN group selection” dialog box.
    • Groups to join a VLAN can be selected by selecting the corresponding checkboxes in the “Multiple VLAN group selection” dialog and press the [OK] button.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • Layer 2 functions

Layer 2 functions

  • MAC address table
  • Spanning tree
  • Loop detection
  • Pass through
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • Layer 2 functions
  • MAC address table

MAC address table

1. Summary

In this page you can edit the settings of the MAC address table function.

2. Top page

This is the top page for the MAC address table.

Basic settings for MAC address learning function

  • The current settings for the MAC address learning function are shown
  • When you press the [Setting] button, a page where you can change the MAC address learning function settings will appear

Static MAC address table settings

  • The static MAC address table is shown as a list
  • A maximum of 20 items can be displayed for one page. Press page_prev or page_next or enter a numeric value to switch between pages.
  • You can press the sort switch to sort by each item.
  • If you press the [New] button, a page appears in which you can create a new static MAC address entry.
  • If you press the [Setting] button, a page appears in which you can edit the settings of the selected static MAC address entry.
  • If you press the [Delete] button, all static MAC address entries whose check box has a check mark will be deleted
  • Up to 512 static MAC address entries can be created from the Web GUI.

3. MAC address learning function basic settings page

In this page you can make settings for the MAC address learning function.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Basic settings for MAC address learning function

  • MAC address learning function

    Select the MAC address learning function from the following items.

    • Use MAC address learning function
    • Don’t use MAC address learning function
  • Aging time for dynamic entries
    • Specify a setting in the range of 10 seconds to 400 seconds. The default value is 300 seconds

4. Static MAC address table settings page

In this page you can make static MAC address settings.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Static MAC address settings

  • Kind

    Choose from the following items as the type of MAC address to be registered in the static MAC address table.

    • Register a unicast MAC address
    • Register a multicast MAC address
  • Destination MAC address
    • Enter the MAC address in the format hhhh.hhhh.hhhh.
  • Frame processing

    From the following items, select the processing for frames sent to the destination MAC address.

    • Forward frames that are being sent to the destination MAC address
    • Discard frames that are being sent to the destination MAC address
      • If a multi-cast MAC address is registered, “Forward” is the only frame processing that can be specified
  • Destination VLAN ID
    • Select the forwarding-destination VLAN ID from those that are registered in the VLAN database
  • Forwarding destination interface
    • If you press the [Select] button, the interfaces assigned to the forwarding-destination VLAN ID are shown as a list

      Place a check mark in the check box of the interface that you want to use as the forwarding-destination interface, and press the [Confirm] button

    • If registering a unicast MAC address, you can specify one interface
    • If registering a multicast MAC address, you can specify multiple interfaces
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • Layer 2 functions
  • Spanning tree

Spanning tree

1. Summary

This page is for configuring the spanning tree.

If you want to use the spanning tree function, you need to enable both the system settings and the interface settings.

If the spanning tree is disabled in the system settings, the spanning tree does not work on all interfaces regardless of the interface settings.

2. Top page

This is the top page for the spanning tree.

System settings

  • Displays the spanning tree setting for the system.
  • Press the [Setting] button to display the page for configuring the system settings.

Interface settings

  • Displays the spanning tree setting for each interface.
  • The table items are explained below.
    • I/F
      • Displays the interface name.
    • Spanning tree function
      • Displays whether the spanning tree function is enabled or not on the interface.
  • Press the [Setting] button to display the page where you can change the settings of the selected interface.
  • If you press the [Specify all] button, the settings can be changed for all interfaces whose check box is selected.
  • If you press the [Return to defaults] button, the settings will be initialized on all interfaces whose check boxes are selected.

3. System settings page

This page is for configuring the spanning tree for the system.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

System settings

  • Spanning tree function
    • Select the spanning tree function setting from the following items.
      • Use
      • Don’t use

4. Interface settings page

This page is for configuring the spanning tree for the interface.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Interface settings

  • Applicable interface
    • Displays the name of the interface whose settings are to be changed.
  • Spanning tree function
    • Select the spanning tree function setting from the following items.
      • Use
      • Don’t use
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • Layer 2 functions
  • Loop detection

Loop detection

1. Summary

This page is for configuring the settings for loop detection.

This function monitors whether a loop is occurring by sending its loop detection frame from the port and whether the frame returns to itself or not.

2. Top page

This is the top page for the loop detection.

System settings

  • Displays the system settings of loop detection.
  • The table items are explained below.
    • Displays the loop detection settings for the entire system.
    • Displays the setting for whether to disable Port Blocking immediately or periodically after the loop is resolved.
    • Displays the setting for automatic recovery from Shutdown (errdisable state).
    • Press the [Setting] button to display the page for configuring the loop detection settings for the entire system.
  • Resetting the loop detection status
    • You can immediately resolve the loop detection states (e.g., Shutdown) by reset feature.

Interface settings

  • Displays the settings and operating status of loop detection for each interface.
  • The table items are explained below.
    • Check box
      Select the check box for bulk settings or to initialize the settings.
    • Port
      Displays the interface name.
    • Loop detection
      Displays the settings of loop detection for the interface.
    • Port Blocking
      Displays the settings of Port Blocking function.
      If it is enabled, the function blocks frames when a loop is detected.
    • Status
      Displays the operating status of loop detection.
      • Operating
        The loop detection function is operating.
      • Detected
        Loop has been detected. Communication is continued.
      • Blocking
        Blocking the frames. (Restart the communication in 5 seconds after the loop has been resolved)
      • Shutdown
        Shutting down the port. (Restart the communication in 5 minutes after shutting down the port)
      • Stopped The loop detection function is stopped.
        Normally, the state becomes “Stopped” when the loop detection setting is disabled.
        If it is stopped by other factors, the following factors are indicated in parentheses.
        • LAG
          If it is a static/LACP logical interface
        • Mirror port
          If it is a port with mirroring settings (mirror port)
        • STP
          You can use the loop detection function with spanning tree. However, the function works only when the spanning tree status of the corresponding port is “Forwarding”.
  • Press the [Setting] button to display the page for configuring the selected interface settings.
  • Press the [Specify all] button to configure the settings for all interfaces with the check box selected.
  • Press the [Return to defaults] button to initialize the settings for all interfaces with the check box selected.
    • Each of the default settings are shown below.
      • Loop detection: Enabled
      • Port Blocking: Enabled (Block frames when a loop is detected)
  • Press the [Update] button to update the table of interface settings.

3. System settings page

This page is for configuring the interface settings for loop detection.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

System settings

  • Specify whether to enable or disable the loop detection function for the entire system.
    Even if set to enable, the loop detection function for an individual port does not work if the port’s setting is disabled.
  • If this function is used with a spanning tree, the spanning tree takes precedence.

4. Interface settings page

This page is for configuring the interface settings for loop detection.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Interface settings

  • Loop detection Specify whether to enable or disable the loop detection function for the target interface.
    However, even if set to enable, the loop detection function does not work in the following cases.
    (1) The loop detection function for the entire system is disabled.
    (2) The target interface is a port with mirroring settings. (mirror port)
    (3) The target interface is a static/LACP logical interface.
    (4) Used with spanning tree, and spanning tree status of the target interface is not “Forwarding”.
  • Port Blocking
    Specify whether to enable or disable the Port Blocking function for the target interface.
    If set to enable, the function blocks frames when a loop is detected.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • Layer 2 functions
  • Pass through

Pass through

1. Summary

In this page you can edit the settings of the pass through function.

If you enable the pass through function, you can forward special frames that are usually discarded.

2. Top page

This is the top page for pass through.

EAP pass through setting

  • The current setting is shown as to whether the EAP pass through is enabled.
  • If the EAP pass through is enabled, the device forwards the received EAPOL frames so that the device can be placed between the IEEE 802.1X authentication switch and PCs.
  • Press the [Setting] button to access a page where you can change the settings.

3. EAP pass through settings page

In this page you can specify whether the EAP pass through is enabled.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

EAP pass through setting

  • EAP pass through
    • Enable
      • Forwards received EAPOL frames.
    • Disable
      • Discards received EAPOL frames.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • Layer 3 functions

Layer 3 functions

  • DNS client
  • Routing
  • PBR
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • Layer 3 functions
  • DNS client

DNS client

1. Summary

This page is for configuring the DNS client settings.

2. Top page

This is the top page for the DNS client.

DNS client settings

  • Displays the DNS client settings.
  • The table items are explained below.
    • DNS client functions
      • Displays the settings for whether to enable or disable the DNS client function.
    • DNS server address
      • Displays the DNS server address settings used during inquiry for name resolution.
    • Default domain
      • Displays the default domain settings.
    • Search domain
      • Displays the search domain settings.
  • Press the [Setting] button to access a page where you can configure the DNS client settings.

3. DNS client settings page

This page is for configuring the DNS client settings.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

DNS client settings

  • DNS client functions
    • Select the operation for the DNS client function from the following options.
      • Enable
      • Disable
  • DNS server address
    • Specify the DNS server address.
    • For the server address, either an IPv4 address or an IPv6 address can be specified.
    • Up to three server addresses can be specified.
  • Default domain
    • Specify the default domain.
    • Up to 256 characters can be inputted.
  • Search domain
    • Specify the search domain.
    • Up to 256 characters can be inputted.
    • Up to six search domains can be specified.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • Layer 3 functions
  • Routing

Routing

1. Summary

This page is for configuring the routing settings.

2. Top page

This is the top page for routing.

Routing function basic settings

  • The current settings for the routing function are shown.
  • When you press the [Setting] button, a page where you can change the routing function settings will appear.

Routing table

  • Displays the routing table details.
  • The table items are explained below.
    • Check box
      • Select the check box to delete static route information.
    • Enabled route
      • For the route used in actual communications, Enabled will be displayed.
      • For the routes not used for actual communications, Disabled will be displayed.
    • Kind
      • Displays one of the following route information types.
        • static
        • connected
    • Destination
      • Displays the destination network address for the route information.
      • If the destination is a default gateway, default will be displayed.
    • Gateway
      • Displays the route information gateway.
      • Null is displayed for settings to discard packets.
    • Priority
      • Displays the administrative distance for route information.
  • Press the [New] button to display a page where you can create new settings for static route information.
  • Press the [Setting] button to display a page where you can change the settings for the selected static route information.
  • If you press the [Delete] button, all static route information for which the check boxes are selected will be deleted.
  • A check box and [Setting] button is displayed for the static route information entry.
  • Up to 1024 static route information entries can be displayed.
    • When 1024 static route information entries are displayed, the [New] button is disabled.

3. Routing function basic setting page

In this page you can specify whether the routing function is used.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Routing function basic setting page

  • Routing function

    Select the routing function from the following items.

    • Use routing function
    • Don’t use routing function

4. Static route information settings page

This page is for configuring the static route information settings.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Static route information settings

  • Destination network
    • When configuring new settings
      • Select a destination network from the following networks.
        • Specifying a network address
          • Input the destination network address.
        • Default gateway
    • When changing settings
      • The destination network address is displayed.
  • Gateway
    • Select from one of the following gateways.
      • Specifying an IP address
        • Input the gateway IP address.
      • Discarding a packet without forwarding
  • Priority
    • Input the priority.
    • The input range is 1 - 255.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • Layer 3 functions
  • PBR

PBR

  • Creating a route map
  • Applying a route map
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • Layer 3 functions
  • PBR
  • Creating a route map

Creating a route map

1. Summary

This page is for creating, deleting, and changing settings of route maps.

2. Top page

This is the top page for creating a route map.

List of route maps

  • Displays the information of the created route maps.
  • The table shows the following items.
    • IDs
      • The route map ID
    • Number of entries
      • The total number of entries set in the route map
    • Comment
      • The comment set in the route map
  • Displays up to 20 route maps per page. To switch pages, press page_prev or page_next, or enter a page number.
  • Pressing the sort switch is to sort by each item.
  • Pressing the [New] button is to display the page for creating a new route map.
  • Pressing the [Setting] button is to display the page for changing the settings of the selected route map.
  • Pressing the [Delete] button is to delete all route maps with the check box selected.
  • The maximum number of route maps is 4094.
    • The [New] button is disabled when there are 4094 route maps.

3. “Setting a route map” page

This page is for creating a new route map and changing the settings of the created route map.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Setting a route map

  • Route map ID
    • When creating a new route map
      • Set the route map ID from 1 to 4094.
      • The smallest ID among the unregistered route map IDs is entered as the initial value.
      • Unable to set a registered route map ID.
    • When changing the settings of a created route map
      • Unable to change the route map ID.
  • Comment
    • Enter a comment for the route map.
    • Single-byte alphanumeric characters and single-byte symbols are allowed.
    • “?” symbol is not allowed.
    • A space character is not allowed at the beginning.
    • Up to 32 characters are allowed.
  • Entry
    • Set entries for the route map.
    • Up to 64 entries are allowed for one route map.
    • Pressing the [Add] or [Change] button is to open the “Entry settings” dialog.
    • Set the following items in the "Entry settings" dialog.
      • Condition (Access list ID)
        • Select the condition (Access list ID) of the packet to be processed.
        • Pressing the [Select] button is to open the “Selecting a condition” dialog.
        • Select an access list in the “Selecting a condition” dialog.
      • Processing content
        • Select a process from the following to perform to the packets that match the conditions.
          • Forward packets
            • Forward the packets to the address set as the forwarding destination.
            • Set an IPv4 address or an IPv6 address as the forwarding destination.
            • Unable to set an IPv6 link local address as the forwarding destination.
            • Unable to set an IPv6 address as the forwarding destination when the stack function is enabled.
          • Discard packets
            • Discard packets.
          • Follow the routing function
            • Operate packets according to the normal routing functions.
    • Pressing the [Detail] button is to display the details of the corresponding condition (Access list ID) in the table.
      • Pressing the [Close details] button is to close the details.
    • Pressing the [Delete] button is to delete the corresponding entry.
    • Pressing the icon or icon is to change the applying order of entries.
    • Evaluate traffic in ascending order of entry number.
      • Execute the process set in the entry if the condition matches.
      • Once the condition matched, no further entries are evaluated.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • Layer 3 functions
  • PBR
  • Applying a route map

Applying a route map

1. Summary

This page is for applying route maps to VLAN interfaces.

2. Top page

This is the top page for applying route maps.

Policy-based routing function basic settings

  • Displays the setting whether to use the policy-based routing function.
  • Pressing the [Setting] button is to display the page for changing the settings of the policy-based routing function.

Interface list

  • Displays the information of the route map applied to the interface.
  • The table shows the following items.
    • VLAN ID
      • The VLAN ID
    • Name
      • The name set for the VLAN
    • Route map (IPv4)
      • Displays the settings of the route map for IPv4 received packets.
        • ID
          • The route map ID to apply
        • Comment
          • The comment set in the route map
    • Route map (IPv6)
      • Displays the settings of the route map for IPv6 received packets.
      • Displays the information of the same items as the route map (IPv4).
  • Pressing the [Setting] button is to display the page for changing the settings of the corresponding interface.
  • Pressing the [Batch setting] button is to set all interfaces whose check box selected.
  • Pressing the [Batch removing] button is to remove all settings of route map applied to interfaces whose check box selected.

3. “Policy-based routing function basic settings” page

This page is for setting whether to use the policy-based routing function.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Policy-based routing function basic settings

  • Policy-based routing function
    • Select from the following items.
      • Use
        • Enable policy-based routing function.
      • Don’t use
        • Disable policy-based routing function.
        • Route map applied state does not change, but the policy-based routing function stops.

4. “Selecting route maps to apply” page

This page is for selecting route maps to apply to interfaces.

Enter the settings, and then press the [Confirm] button.

If there is no mistake in the setting confirmation screen, press the [OK] button.

Selecting route maps to apply

  • Target VLAN
    • The VLAN ID to which the route map applies
  • Route map to apply (IPv4)
    • Select a route map for received IPv4 packets.
    • Pressing the [Select] button is to open the “Selecting a route map” dialog.
    • Select a route map to apply in the “Selecting a route map” dialog.
    • Pressing the [Detail] button is to display the corresponding route map information in a separate window.
    • The [Detail] button is disabled when no route map is selected.
  • Route map to apply (IPv6)
    • Select a route map for received IPv6 packets.
    • The setting items are the same as the route map (IPv4) to apply.
    • Unable to set when the stack function is enabled.
  • Please consider the following restrictions when applying route maps:
    • Restriction by the number of control conditions for the access list.
      • The maximum number of applicable control conditions to an interface is 1524.
      • Other functions also use control conditions. Therefore, the number of applicable control conditions may be less than 1524.
      • The remaining number of applicable control conditions decreases when the interface to which the route map is applied links up.
    • Restriction by the number of next-hop
      • The maximum number of applicable next-hop to an interface is 128.
      • The remaining number of applicable next-hop decreases when the interface to which the route map is applied and the next-hop link up.
      • The remaining number of applicable next-hop does not decrease if the same next-hop is applied to other interfaces.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • Multicast

Multicast

  • Multicast basic settings
  • IGMP snooping
  • MLD snooping
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • Multicast
  • Multicast basic settings

Multicast basic settings

1. Summary

This page is for basic settings related to multicast.
Specify processing method for unknown multicast frames.

Unknown multicast frames are frames destined to addresses not registered in IGMP snooping.
This product forwards unknown multicast frames to all ports as the default setting, which does not matter in low bandwidth environments. However, discarding instead of forwarding in high bandwidth environments may be recommended.
If you want to discard unknown multicast frames and only forward some multicast frames that use link local addresses such as mDNS, you can exclude them from discarding.

2. Top page

This is the top page for multicast basic settings.

Unknown multicast frame settings

  • Displays the configuration of unknown multicast frames.
  • The table items are explained below.
    • Processing method
      • Displays the processing method of unknown multicast frames.
    • Excluded frames from discarding
      • Displays excluded frames from discarding when configured to discard unknown multicast frames.
  • Press the [Setting] button to access a page where you can change the settings.

3. Unknown multicast frame settings page

This page is for configuring unknown multicast frames.
Enter the settings, and then press the [Confirm] button.
If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

System settings

  • Processing method
    • Specify the processing method for unknown multicast frames from below.
      • Flood
      • Discard
  • Excluded frames from discarding
    • Specify the excluded frames from discarding when configured to discard unknown multicast frames.
    • Specify the following conditions for excluded frames from discarding.
      • Destination address
        • Specify the address type from the following.
          • Specify the address
            • Enter the IPv4 multicast address into the text box.
          • Link local address
            • Set all addresses in 224.0.0.0/24 and ff02::/112 as the target.
          • mDNS
            • Set 224.0.0.251 as the target.
          • Dante
            • Set 224.0.0.230 - 233 as the target.
      • VLAN
        • Specify the VLAN as the target.
        • All VLANs become the target if specifying the link local address as the destination address.
      • Press the icon to add a new row.
      • Press the [Delete] button to delete the row.
      • The addresses excluded from discarding can be set up to 100 items.
        • The above count does not include the link local address setting, and only one can be set.
        • If specifying Dante as the address type, one item is counted as four items.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • Multicast
  • IGMP snooping

IGMP snooping

1. Summary

In this page you can edit the settings of the IGMP snooping function.

2. Top page

This is the top page for IGMP snooping.

IGMP snooping function settings

  • IGMP snooping function settings are shown for each VLAN ID that is defined
  • A maximum of 20 items can be displayed for one page. Press page_prev or page_next or enter a numeric value to switch between pages.
  • When you press the [Setting] button, a page where you can change the IGMP snooping function settings for the selected VLAN ID will appear
  • If you press the [Specify all] button, the settings can be changed for all VLAN IDs whose check box contains a check mark
  • If you press the [Return to defaults] button, the settings will be initialized for all VLAN IDs whose check box contains a check mark
    • Default settings for the IGMP snooping function are as follows
      • IGMP snooping function: Enabled
      • IGMP version: IGMPv3
      • IGMP query: No transmission
      • IGMP query transmission interval: 125 seconds
      • TTL check: Enabled
      • Multicast router port : None
      • Fast leave function : Disabled

3. IGMP snooping function settings page

In this page you can make various settings for the IGMP snooping function.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

IGMP snooping function settings

  • VLAN ID
    • The VLAN ID for which settings are being made is shown
  • IGMP snooping settings
    • Enabled ( Control transmission of IP multicast packets )
      • Enable IGMP snooping.

        Multicast packets are forwarded only to the port to which the terminal you want to receive them is connected.

        This function monitors (snoops) IGMP messages exchanged between receiving terminals and a multicast router. It can suppress the flooding of multicast packets and reduce network bandwidth usage.

    • Disabled ( Flood IP multicast packets )
      • Disable IGMP snooping

        Multicast packets are always forwarded to all ports in the same VLAN.

  • Version

    Select the IGMP version from the following items.

    • IGMPv3
    • IGMPv2
  • IGMP query
    • No transmission

      IGMP query transmission function is disabled

    • Transmit periodically

      IGMP query transmission function is enabled. The transmission interval can be specified in the range of 20 seconds to 18000 seconds

  • TTL check

    Select the TTL check from the following items.

    • Enabled ( IGMP packets other than TTL=1 are discarded )
    • Disabled ( IGMP packets other than TTL=1 are corrected to TTL=1 and transmitted )
  • Multicast router port
    • The multicast router port is the interface to which the multicast router is connected.
    • This device automatically learns the interface that receives the IGMP query as the multicast router port. Also, you can statically configure the multicast router port.

    • To statically configure multicast router ports, press the [Select] button. The interfaces that belong to the specified VLAN ID are listed.
    • Then, check the check box of the interface to use as the multicast router port, and press the [Confirm] button.

  • Data transfer suppression function for multicast router ports
    • This function suppresses network traffic load by stopping unnecessary multicast frames transfer to the multicast router port.
    • Select from the following items.
      • Disable
        • Disabling this function causes multicast frames to be transferred to the multicast router port as well if any port is receiving IGMP report messages.
      • Enable
        • Enabling this function causes multicast frames to be transferred to the multicast router port as well only when the multicast router port receives IGMP report messages.
  • Report suppression function
    • This function suppresses the network traffic load between the multicast router and the host.
    • Select from the following items.
      • Enable
        • Enabling this function transfers received IGMP report and leave messages to the IGMP querier at once.
      • Disable
        • Disabling this function transfers received IGMP report and leave messages to the IGMP querier as is without combining them.
  • Fast leave function
    • Fast leave function is a function not to check the receiver’s existence in the IGMP leave process.
    • This function is effective when only one receiver is connected to the LAN/SFP port.
    • Select from the following items.
      • Disable
        • Disable the fast leave function.
        • The IGMP leave process sends a group-specific query to check the receivers’ existence.

      • Enable
        • Enable the fast leave function.
        • The IGMP leave process does not check the receiver’s existence.

back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • Multicast
  • MLD snooping

MLD snooping

1. Summary

In this page you can edit the settings of the MLD snooping.

2. Top page

This is the top page for MLD snooping.

MLD snooping settings

  • MLD snooping settings are shown for each VLAN ID that is defined.
  • A maximum of 20 items can be displayed for one page. Press page_prev or page_next or enter a numeric value to switch between pages.
  • When you press the [Setting] button, a page where you can change the MLD snooping settings for the selected VLAN ID will appear.
  • If you press the [Specify all] button, the settings can be changed for all VLAN IDs whose check box contains a check mark.
  • If you press the [Return to defaults] button, the settings will be initialized for all VLAN IDs whose check box contains a check mark.
    • Default settings for the MLD snooping are as follows.
      • MLD snooping : Enabled
      • Version : MLDv2
      • MLD query : No transmission
      • MLD query transmission interval : 125 Seconds
      • Multicast router port : None
      • Fast leave function : Disabled
  • You cannot configure MLD snooping when the stack function is enabled.

3. MLD snooping settings page

In this page you can make various settings for the MLD snooping.
Enter the settings, and then press the [Confirm] button.
If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

MLD snooping settings

  • VLAN ID
    • The VLAN ID for which settings are being made is shown.
  • MLD snooping
    • Enabled ( Control transmission of IPv6 multicast packets )
      • Enable MLD snooping Multicast packets are forwarded only to the port to which the terminal you want to receive them is connected.
        This function monitors (snoops) MLD messages exchanged between receiving terminals and a multicast router. It can suppress the flooding of multicast packets and reduce network bandwidth usage.
    • Disabled ( Flood IPv6 multicast packets )
      • Disables the MLD snooping Multicast packets are always forwarded to all ports in the same VLAN.
  • Version
    • Select the MLD version from the following items.
      • MLDv1
      • MLDv2
  • MLD query
    • No transmission MLD query transmission function is disabled.
    • Transmit periodically MLD query transmission function is enabled. The transmission interval can be specified in the range of 20 seconds to 18000 seconds.
  • Multicast router port
    • The multicast router port is the interface used to connect multicast routers. This device automatically learns the interface that receives the MLD query as the multicast router port. Also, you can statically configure the multicast router port.
    • To statically configure multicast router ports, press the [Select] button. The interfaces that belong to the specified VLAN ID are listed.
      Then, check the check box of the interface to use as the multicast router port, and press the [Confirm] button.
  • Fast leave function
    • Fast leave function is a function not to check the receiver’s existence in the MLD leave process.
    • This function is effective when only one receiver is connected to the LAN/SFP port.
    • Select from the following items.
      • Disable
        • Disable the fast leave function. The MLD leave process sends a group-specific query to check the receivers’ existence.
      • Enable
        • Enable the fast leave function. The MLD leave process does not check the receiver’s existence.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • Traffic control

Traffic control

  • Access list
  • QoS
  • Flow control
  • Storm control
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • Traffic control
  • Access list

Access list

  • Create Access list
  • Apply Access list
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • Traffic control
  • Access list
  • Create Access list

Create Access list

1. Summary

In this page you can create or delete access lists, and change their settings.

2. Top page

This is the top page for creating an access list.

Access lists

  • The information for the access list you created will be displayed.
  • The table items are explained below.
    • ID
      • The access list ID will be displayed.
    • Type
      • The access list type will be displayed.
    • Comment
      • The comment set in this access list will be displayed.
  • A maximum of 20 items can be displayed for one page. Press page_prev or page_next or enter a numeric value to switch between pages.
  • You can press the sort switch to sort by each item.
  • Press the [New] button to display the page where you can create a new access list.
  • Press the [Setting] button to show the page where you can change the settings of the selected access list.
  • If you press the [Delete] button, all access lists whose check boxes are selected will be deleted.
    • Access lists that are applied to class maps cannot be deleted.
  • On this page, you can reference and configure up to 1536 access lists.

3. Access list settings page

This page is for creating new access lists, or for changing the settings of existing access lists.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Access list settings

  • Access list
    • Select the access list type from the following items.
      • IPv4 access list
      • IPv6 access list
      • MAC access list
    • When changing the settings, the access list type cannot be changed.
    • The IPv6 access list settings cannot be configured when the stack function is enabled.
  • Access list ID
    • Set the configurable access list ID from the following ranges, according to the access list type.
      • IPv4 access lists
        • 1 - 2000
      • IPv6 access lists
        • 3001 - 4000
      • MAC access lists
        • 2001 - 3000
    • When changing the settings, the access list ID cannot be changed.
  • Comment
    • Specify the comment using up to 32 single-byte alphanumeric characters and symbols.
    • The “?” character cannot be used in the comment text.
  • Control conditions
    • Specify the control conditions for the access list.
    • Up to 768 control conditions can be configured per access list.
    • Press the [Add] button to display the “Control condition settings” dialog.
    • In the “Control condition settings” dialog, you can specify conditions for which traffic is permitted and denied as per the following items.
      • Operation
        • Select the actions to be taken when the traffic matches the control conditions, shown in the items below.
          • Permit
          • Deny
      • Source address
        • Select the source address to be targeted from the following items.
          • All addresses
          • Specify host address
          • Specifying a network address
            • This cannot be specified for a MAC access list.
          • Specify host address with wildcard bit
            • Specify the address and wildcard mask.
            • This cannot be specified for a IPv6 access list.
        • If the wildcard mask bit is “1,” the bit in the same address position will not be checked.
        • When specifying the conditions for subnet 192.168.1.0/24, do so as shown below.
          • Address : 192.168.1.0, Wildcard mask : 0.0.0.255
        • When specifying the conditions for vendor code 00-A0-DE-*-*-*, do so as shown below.
          • Address : 00A0.DE00.0000, Wildcard mask : 0000.00FF.FFFF
      • Destination address
        • The details for the items to be set for the destination address are equivalent to those of the source address.
        • This cannot be specified for a IPv6 access list.
      • Protocol
        • Select the protocol to be targeted from the following items.
          • All protocols
          • TCP
          • UDP
          • ICMP
          • Specify protocol number
            • Input a protocol number from 0 to 255.
        • When selecting TCP or UDP as a protocol, specifying the source and destination port numbers.
          • You can specify either a single number or a number range for the port number.
          • Input a port number from 0 to 65535.
        • When selecting TCP as a protocol, you can specify the conditions regarding the TCP vendor control flag.
          • If more than one bit is specified, it works under the AND condition. Packets with all the specified bits set to 1 are targets.
          • For example, you can deny only TCP connections from outside to inside by allowing only packets with ACK bit or RST bit of 1 for the interface’s direction.
          • In this case, you need to set two control conditions. One is to allow packets with an ACK bit value of 1, and the other is to allow packets with an RST bit value of 1.
        • This cannot be specified for a MAC access list or a IPv6 access list.
    • Press the [Delete] button to delete the corresponding control conditions.
    • Press the or icons to change the order in which the control conditions are applied.
    • When evaluating the control conditions, control conditions with earlier numbers will be evaluated first; and if the conditions match, the conditions that follow will not be checked.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • Traffic control
  • Access list
  • Apply Access list

Apply Access list

1. Summary

Apply the access list for the interface on this page.

2. Top page

This is the top page for applying the access list.

Interface list

  • The access list information applied to the interface is displayed.
  • The table items are explained below.
    • I/F
      • Displays the interface name.
    • Access list (IN)
      • The information listed below for the access list applied to the input side of the interface is shown here.
        • ID
          • The access list ID will be displayed.
        • Type
          • The access list type will be displayed.
        • Comment
          • The comment set in this access list will be displayed.
    • Access list (OUT)
      • Information for the access list applied to the input side of the interface is shown here.
      • Information similar to the access list (IN) will be displayed.
  • Press the [Setting] button to display the page where you can change the settings of the selected interface.
  • If you press the [Specify all] button, the settings can be changed for all interfaces whose check box is selected.
  • If you press the [Return to defaults] button, the settings will be initialized on all interfaces whose check boxes are selected.

3. Selection page for access lists to apply

This page is for selecting the access list to apply to the interface.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Select access list to apply

  • Applicable interface
    • The interface on which the access list will be applied is displayed.
  • Access list to apply (IN)
    • Select the access list to apply to the input side of the interface.
    • Press the [Select] button to display the file “Access list selection” dialog box.
    • On the “Access list selection” dialog, you can select the check box for an access list and press the [Confirm] button to select the access list to apply.
    • Press the [Detail] button in the “Access list selection” dialog box to display the targeted access list.
    • In the IPv4 access list which specifies port numbers by range, only one interface can be applied for the entire system.
    • The number of control conditions that can be applied to an interface are 1536 for the entire system.
    • Applying an access list to one interface will decrease a number of applicable control conditions equal to the control conditions included in the access list.
    • For example, when an access list with five specified control conditions is applied to the input side of port1.1, the number of control conditions that can be applied is decreased by 5.
    • Note that the number of control conditions that can be actually applied is less than 1536, because the control conditions are also used in the system and other functions.
  • Access list to apply (OUT)
    • Select the access list to apply to the output side of the interface.
    • The setting details for the access list (OUT) to be applied are equivalent to the access list (IN) to be applied.
    • IPv4 access lists which specify port numbers by range cannot be applied to the output side.
    • MAC access lists cannot be applied to the output side of an interface.
    • Access lists cannot be applied to the output side of a logical interface.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • Traffic control
  • QoS

QoS

1. Summary

In this page you can edit the settings of the QoS (Quality of Service) function.
You can enable/disable the QoS function, and change the trust mode.

2. Top page

This is the top page for QoS.

System settings

  • Displays the QoS settings for the entire system.
  • The table items are explained below.
    • QoS function
      • Displays whether the QoS function is enabled.
    • CoS - transmit queue mapping table
      • Displays the transmit queue ID settings corresponding to the CoS value.
    • DSCP - transmit queue mapping table
      • Displays the transmit queue ID settings corresponding to the DSCP value.
  • Press the [Setting] button to access a page where you can change the settings
  • To enable the QoS function, you must disable flow control.

Interface settings

  • The trust mode setting used by the QoS function is shown for each LAN/SFP port
  • Press the [Setting] button to access a page where you can change the settings of the selected LAN/SFP port
  • If you press the [Specify all] button, the settings can be changed for all LAN/SFP ports whose check box contains a check mark
  • If you press the [Return to defaults] button, the settings will be initialized for all LAN/SFP ports whose check box contains a check mark
    • The default trust mode setting for all ports is “CoS”
    • The default CoS value for all ports is “0” by default.
  • If the settings do not use the QoS function, QoS function settings cannot be made

3. System settings page

In this page you can specify whether the QoS function is used.
Enter the settings, and then press the [Confirm] button.
If there are no mistakes in the input content of the confirmation screen, press the [OK] button.
Be aware that if the settings do not use the QoS function, all QoS-related settings will be cleared.

System settings

  • QoS function
    • Disable
      • The QoS function will be disabled. At this time, all QoS settings will be cleared.
    • Enable
      • The QoS function will be enabled. QoS-related settings and commands can be executed.
  • CoS - transmit queue mapping table
    • Configures the transmit queue ID settings corresponding to each CoS value.
    • The input range of the transmit queue ID is 0 to 7, and a larger ID has a higher priority for sending frames.
    • Press the [Restore the default settings] button to load the factory-set state settings.
  • DSCP - transmit queue mapping table
    • Configures the transmit queue ID settings corresponding to each DSCP value.
    • The input range of the transmit queue ID is 0 to 7, and a larger ID has a higher priority for sending frames.
    • If “Configure only RFC compliance values” is selected, only RFC compliance DSCP values are displayed and configured.
    • If “Configure all DSCP values” is selected, all DSCP values are displayed and configured.
    • Press the [Restore the default settings] button to load the factory-set state settings.
    • Press the [Apply Dante optimal settings] button to apply the most appropriate settings for Dante.

4. Interface settings page

Set the "Trust mode" setting which means whether the transmission queue is determined based on the packet’s CoS value or the DSCP value or the Port priority.
Enter the settings, and then press the [Confirm] button.
If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Interface settings

  • Port
    • The LAN/SFP port for which settings are made is shown
  • Trust mode
    • Use CoS value to determine transmission queue
      • The packet’s CoS value and the “CoS - Transmission queue ID conversion table” are used to determine the transmission queue
      • If the received packet is an untagged packet, the default CoS value is applied
      • A default CoS value within the 0 - 7 range can be specified.
    • Use DSCP value to determine transmission queue
      • The packet’s DSCP value and the “DSCP - Transmission queue ID conversion table” are used to determine the transmission queue
    • Use the priority specified for the port to determine the transmission queue
      • The transmission queue is determined according to the “Port priority order”
      • Select the transmission queue to be assigned as the port priority order in the range of 0 - 7 Higher numbers indicate a higher priority order; with the default settings, 2 is selected
      • The setting can be changed only if the trust mode is set to “Port priority”
    • If a policy map is applied to the LAN/SFP port, you cannot change the trust mode setting.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • Traffic control
  • Flow control

Flow control

1. Summary

This page is for configuring flow control (the IEEE 802.3x PAUSE frame transmission and reception).

2. Top page

This is the top page for flow control.

System settings

  • Displays the current setting whether to use flow control (the IEEE 802.3x PAUSE frame transmission and reception) for the entire system.
  • Press the [Setting] button to display the page for configuring the settings.
  • To enable flow control for the entire system, you need to disable the QoS function.

Interface settings

  • Displays flow control settings for each LAN/SFP port.
  • Press the [Setting] button to display the page for configuring the selected interface.
  • Press the [Return to defaults] button to initialize the settings for all interfaces with the check box selected.
  • Press the [Specify all] button to configure the settings for all interfaces with the check box selected.

3. System settings page

This page is for configuring flow control (the IEEE 802.3x PAUSE frame transmission and reception) for the entire system.
Once you have entered the settings, press the [Confirm] button.
If the input information on the confirm page is correct, press the [OK] button.

System settings

  • Flow control for entire system You can specify whether to enable or disable flow control for the entire system.
    Even if flow control for the entire system is enabled, flow control does not work for a port whose individual port setting is disabled.
  • Constraints If flow control is enabled, the tail drop function is disabled. However, this excludes the case where the stack function is enabled.

4. Interface settings page

This page is for configuring flow control (the IEEE 802.3x PAUSE frame transmission and reception) for the interface.
Once you have entered the settings, press the [Confirm] button.
If the input information on the confirm page is correct, press the [OK] button.

Interface settings

  • Flow control Specify whether to enable or disable flow control for LAN/SFP ports.
    If it is enabled, Pause frames are sent and received regardless of whether the target device supports flow control.
  • Auto negotiation Use auto negotiation to verify that the target device supports flow control.
    If the target device does not support flow control, Pause frames are not sent or received.
  • Constraints
    • In the following cases, only receiving Pause frames is supported. If the stack function is enabled
    • In the following cases, auto negotiation does not work even if it is enabled. When an SFP+ module is used
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • Traffic control
  • Storm control

Storm control

1. Summary

This page is for changing the storm control settings.
If the storm control is enabled, the load on the unit can be reduced by discarding specific frames received that exceed bandwidth threshold values.

2. Top page

This is the top page for the storm control settings.

Storm control settings

  • The current settings for the storm control are shown for each interface.
  • The table items are explained below.
    • Check box
      • Select the check box for bulk settings or to initialize the settings.
    • Port
      • Displays the interface name.
    • Target frame
      • Displays the target frames for storm control.
    • Upper limit for bandwidth percent
      • Displays the upper limit for the bandwidth percentage.
      • Frames received that exceed the upper limit value are discarded.
  • Press the [Setting] button to display the page where you can change the settings of the selected interface.
  • If you press the [Specify all] button, the settings can be changed for all interfaces whose check box is selected.
    • The default settings will be applied to the settings on the storm control settings page.
  • If you press the [Return to defaults] button, the settings will be initialized on all interfaces whose check boxes are selected.
    • The storm control is disabled for all ports by default.

3. Storm control settings page

This page is for storm control settings.
Enter the settings, and then press the [Confirm] button.
If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Interface settings

  • Port
    • Displays the name of the interface for which settings will be made.
  • Storm control
    • Select the operation for the storm control from the following options.
      • Disable
      • Enable
  • Target frame
    • Broadcast frame
      • Enables broadcast storm control.
    • Multicast frame
      • Enables multicast storm control.
    • Unicast frame
      • Enables control for unicast frames sent from an unknown address.
  • Upper limit for bandwidth percent
    • Specifies the upper limit value for the bandwidth percentage.
    • Upper limit values can be specified to two decimal places.
    • Frames received that exceed the upper limit value are discarded.
    • The same upper limit value is applied to all applicable frames.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • Application layer

Application layer

  • DHCP server
  • RADIUS server
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • Application layer
  • DHCP server

DHCP server

1. Summary

This page contains the settings for using the DHCP server function, the settings for the IP address range to assign and the term of validity, and so on.

2. Top page

This is the top page for DHCP server.

DHCP server operations

  • Displays the settings for DHCP operations.
  • The table items are explained below.
    • DHCP server functions
      • Displays whether a DHCP server function is to be enable or not.
    • Interfaces with the DHCP server function enabled
      • Displays VLAN interfaces with the DHCP server function enabled.
  • Press the [Setting] button to access a page where you can configure the DHCP server operation settings.

List of addresses assigned by DHCP

  • The IP address range assigned for the DHCP is displayed for each DHCP pool.
  • The table items are explained below.
    • Check box
      • Select the check box to delete DHCP pool settings.
    • Pool name
      • Displays the DHCP pool name.
    • IP address assignment range
      • The IP address range assignable for the DHCP server using the DHCP server function is displayed.
    • Lease time
      • Shows the term for which IP addresses are assigned.
    • Lease count
      • Displays the total for the number of IP addresses on lease and the number of IP addresses within the assignment range.
  • Press the [New] button to display a page where you can create new settings for the DHCP pool.
  • Press the [Setting] button to access a page where you can change the settings of the selected DHCP pool.
  • If you press the [Delete] button, all DHCP pools whose check box has a check mark will be deleted.
  • Up to 64 DHCP pools can be configured.

3. DHCP server operation settings page

This page is for configuring the basic operation settings for the DHCP server.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

DHCP server operation settings

  • DHCP server functions
    • Select the operation for the DHCP server function from the following options.
      • Disable
      • Enable
  • Interfaces to enable
    • Select VLAN interface for which the DHCP server function will be enabled.
    • Press the [Select] button to display the “VLAN interface list” dialog box.
    • Select the VLAN interface check box in the "VLAN interface list" dialog box and press the [Confirm] button, in order to select the VLAN interfaces on which the DHCP server function will be enabled.
    • Up to 32 VLAN interfaces can be selected.

4. Address assignment settings page

In this page you can set the IP address range assignable for the DHCP server.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Address assignment settings

  • Pool name
    • When configuring new settings
      • Specify the DHCP pool name.
      • Characters that can be inputted include single-byte alphanumeric characters and symbols, excluding ?.
      • Up to 31 characters can be inputted.
      • You cannot use the same name already used for another DHCP pool.
    • When changing settings
      • Displays the selected DHCP pool name.
  • Network address
    • Specify the target network address.
    • You cannot specify a network address that conflicts with a DHCP pool network already set.
  • IP address range
    • Input the IP address range to be assigned.
    • Input the starting IP address. If the ending IP address has not been specified, a single IP address will be specified.
    • Up to 8 IP address ranges can be specified.
    • Up to 8192 IP addresses total from all pools can be assigned.
    • IP addresses that are not included in the specified network cannot be specified.
  • Gateway
    • Specify the IP addresses that will be notified as a default gateway.
    • Up to 8 gateways can be specified.
  • DNS server
    • Specify the IP address to be notified as a DNS server.
    • Up to 8 DNS servers can be specified.
  • Domain name
    • Specify the domain name to be notified.
    • Characters that can be inputted include single-byte alphanumeric characters and symbols, excluding ?.
    • Up to 127 characters can be inputted.
  • Lease time
    • Input the term for which the IP address is assigned.
    • The minimum setting value for the lease time is 20 seconds, and the maximum value is 120 days, 23 hours, 59 minutes and 59 seconds.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • Application layer
  • RADIUS server

RADIUS server

  • Server settings
  • User management
  • Managing certificates
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • Application layer
  • RADIUS server
  • Server settings

Server settings

1. Summary

This page is for performing operations related to the certificate authority and RADIUS server.

2. Top page

This is the top page for the RADIUS server.

Certificate authority management

  • Press the [Next] button to the right of “Create certificate authority” to begin the process of creating a certificate authority.
  • Press the [Next] button to the right of “Delete certificate authority” to begin the process of deleting the certificate authority.
  • Press the [Next] button to the right of “Backup/restore files and settings related to certificate authority” to begin the process of backing up or restoring.

RADIUS server settings

  • Displays the settings for the RADIUS server.
  • The table items are explained below.
    • RADIUS server usage
      • Displays whether a RADIUS server is to be used or not.
      • If a RADIUS server is to be used, the port number will be displayed.
    • Interfaces that can access the RADIUS server
      • Displays the interfaces that can access the RADIUS server.
    • Reauthentication interval configured for authenticator
      • Displays the settings for the reauthentication interval configured on the authenticator by the RADIUS server.
    • Authentication method
      • Displays the authentication method settings used by the RADIUS server.

RADIUS client list

  • Displays the RADIUS client settings.
  • The table items are explained below.
    • Check box
      • Select the check box to delete the RADIUS client settings.
    • IP address
      • Displays the RADIUS client address.
  • A maximum of 20 items can be displayed for one page. Press page_prev or page_next or enter a numeric value to switch between pages.
  • You can press the sort switch to sort by each item.
  • Press the [New] button to access a page where you can configure the settings for a new RADIUS client.
  • Press the [Setting] button to access a page where you can change the selected RADIUS client settings.
  • Press the [Delete] button to delete all RADIUS clients whose check boxes are selected.
  • On this page, you can configure up to 100 RADIUS clients.

3. Certificate authority creation page

This is the certificate authority creation page.

Enter the certificate authority name, and then press the [Confirm] button.

If there are no mistakes in the input content confirmation screen, press the [OK] button.

If a certificate authority already exists, you will not be able to create a certificate authority.

Create a certificate authority

  • Name
    • Specifies the certificate authority name.
    • Enter from 3 to 32 single-byte alphanumeric characters/symbols, with the following exceptions: \ [ ] / " ? space
    • You cannot set the name as DEFAULT.
    • If this is omitted, the name YAMAHA_SWITCH will be automatically set.

4. Certificate authority deletion page

This is the certificate authority deletion page.

Press the [Execute] button to delete the certificate authority.

Deleting the certificate authority will delete all RADIUS-related settings, certificates and so on.

5. Backup / Restoration page

This page is for backup/restore of settings related to certificate authorities.

Enter the contents, and then press the [Confirm] button.

If there are no mistakes in the input content confirmation screen, press the [OK] button.

The following files and settings will be backed up and restored.

  • Certificate authority
  • Various certificates
  • RADIUS client settings
  • RADIUS user settings

Backup / Restoration

  • Content to execute
    • Select below whether a content to execute.
      • Backup
      • Restore
      • Import the backup file of a Yamaha wireless AP
  • File to restore
    • Press the [Select file] button to specify the file to restore.
    • When “Import the backup file of a Yamaha wireless AP” is selected, specify the file backed up on WLX402 or WLX313.
  • zip file password
    • Enter up to 32 single-byte alphanumeric characters/symbols, with the following exceptions: # & ^ \ ; | ` { }
    • When backing up, enter the password set for the backup file.
    • When restoring or importing the backup file of a Yamaha wireless AP, enter the password set for the backup file when it was backed up.
      • When using a file without a password, restore or import successfully with or without input of password.

6. RADIUS server settings page

In this page you can configure the settings for a RADIUS server.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

RADIUS server settings

  • RADIUS server usage
    • Select below whether a RADIUS server will be used.
      • Use
      • Don’t use
    • When Use is selected, specify the port number.
    • Input a port number from 1024 to 65535.
    • When Use is selected, a certificate authority is created when the settings are made, if one does not already exist.
  • Interfaces that can access the RADIUS server
    • Press the [Select] button to display the “VLAN interface list” dialog box.
    • You can select the port check box in the “VLAN interface list” dialog box and press the [Confirm] button to select the associated interface.
    • Up to 7 VLAN interfaces can be selected.
  • Reauthentication interval configured for authenticator
    • Select the reauthentication interval configured on the authenticator from the options below.
      • 3600 Seconds
      • 43200 Seconds
      • 86400 Seconds
      • 604800 Seconds
  • Authentication method
    • Select the authentication method used by the RADIUS server from the methods below.
      • PAP
      • PEAP
      • EAP-MD5
      • EAP-TLS
      • EAP-TTLS

7. RADIUS client settings page

This page is for configuring the RADIUS client settings.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

RADIUS client settings

  • IP address
    • Specifies the RADIUS client address.
    • Enter IPv4 addresses using the XXX.XXX.XXX.XXX format.
    • Enter IPv6 addresses using the XXXX:XXXX::XXXX.XXXX format.
    • When the settings are changed, the IP address of the selected RADIUS client will be displayed as text.
  • Secret text string
    • Specifies the secret text string of the RADIUS client.
    • Enter up to 128 single-byte alphanumeric characters/symbols, with the following exceptions: \ [ ] " ? space
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • Application layer
  • RADIUS server
  • User management

User management

1. Summary

This page is for configuring the RADIUS user settings.

2. Top page

This is the top page for RADIUS users.

User settings

  • Displays the settings for the RADIUS user.
  • The table items are explained below.
    • Check box
      • Select the check box to delete the RADIUS user settings.
    • User ID
      • Displays the user ID for the RADIUS user.
    • Name
      • Displays the name of the RADIUS user.
    • Authentication method
      • Displays the authentication method for the RADIUS user.
    • VLAN
      • Displays the VLAN that can be accessed by the RADIUS user.
  • Input the text string in the text box at the top of the table, and press the icon to search for user information.
  • The drop-down list box to the left of the text box lets you select one of the following items to filter the search parameters even further.
    • None
    • User ID
    • Name
    • Authentication method
    • VLAN
  • A maximum of 100 items can be displayed for one page. Press page_prev or page_next or enter a numeric value to switch between pages.
  • You can press the sort switch to sort by each item.
  • Press the [New] button to display a page where you can create new settings for the RADIUS user.
  • Press the [Setting] button to access a page where you can change the settings of the selected RADIUS user.
  • Press the [Delete] button to delete the settings for all RADIUS users whose check boxes are selected.
  • Press the [Import] button to display a page where you can import settings for the RADIUS user.
  • Press the [Export] button to export the settings for RADIUS users as a CSV file.
  • On this page, you can configure up to 2000 RADIUS users.

3. User settings page

This page is for configuring the RADIUS user settings.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

User settings

  • Select an authentication function
    • Select the authentication method used by the RADIUS user from the methods below.
      • 802.1X
      • MAC
      • Web
      • None
    • When the authentication method is selected, the items that must be entered and the items that do not need to be entered for the selected authentication function will become clear.
      • When using a Yamaha device as the authenticator, we recommend that you select an authentication function.
    • When Not specified is selected, all items will become selectable.
      • When using a non-Yamaha device as the authenticator, we recommend that you select Not specified.
    • When changing the settings, it is not possible to select anything besides Not specified.
  • User ID
    • Specifies the user ID for the RADIUS user.
    • Specify a text string from 3 to 32 characters.
    • The characters that can be inputted depends on the type of authentication method.
      • For PAP, EAP-MD5, EAP-TTLS, and PEAP:
        • Single-byte alphanumeric characters/symbols, with the following exceptions: \ [ ] " ? space
      • For EAP-TLS:
        • Single-byte alphanumeric characters/symbols, with the following exceptions: \ [ ] / : < * > | " ? space
    • You cannot set the name as DEFAULT.
    • When using MAC authentication, input the MAC address for the user’s terminal.
      • For the MAC address, use one of the following input formats according to the authenticator settings.
        • XX:XX:XX:XX:XX:XX
        • XX-XX-XX-XX-XX-XX
        • XXXXXXXXXXXX
      • When MAC authentication is selected for “Select an authentication function,” the MAC address that was entered will be automatically reflected in the “Password” and “Password (confirm)” fields.
  • Password
    • Specifies the password for the RADIUS user.
    • Enter up to 32 single-byte alphanumeric characters/symbols, with the following exceptions: \ [ ] ?
    • When using MAC authentication, input the MAC address for the user’s terminal.
  • Password ( Confirm )
    • To confirm, enter the password once again that you entered in the “Password” field.
  • Authentication method
    • Select the authentication method used to authenticate the RADIUS user from the methods below.
      • PAP
      • PEAP, EAP-MD5, EAP-TTLS
      • EAP-TLS
  • Name
    • Specifies the name of the RADIUS user.
    • Enter up to 32 single-byte alphanumeric characters/symbols, with the following exception: ?
  • Terminal MAC address
    • Input this address when you wish to control access by using a supplicant MAC address in addition to authentication via user ID and password.
    • Enter the address using the XXXX.XXXX.XXXX format.
  • VLAN
    • Specifies the VLAN to assign to the user via dynamic VLAN.
    • Input a VLAN from 1 to 4094.
  • SSID of connected device
    • For users that are authenticated via a wireless AP, this specifies the SSID that can be used to connect.
    • Enter up to 32 single-byte alphanumeric characters/symbols, with the following exceptions: \ [ ]
  • Recipient e-mail address for certificates
    • Specify the e-mail recipient addresses used when sending client certificates.
    • Input up to 256 single-byte alphanumeric characters and single-byte symbols.
    • You cannot use symbols other than _ - . and @.
  • Period of certificate validity
    • Specifies the period of validity that is set when creating a client certificate.
    • Enter the date in YYYY/MM/DD format.
    • Dates from the current system date to 2037/12/31 can be entered for the period of validity.

4. User settings import page

This page is for importing the RADIUS user settings.

Enter the contents, and then press the [Confirm] button.

If there are no mistakes in the input content confirmation screen, press the [OK] button.

The client certificates for users that were deleted during import will automatically be revoked.

Import user settings

  • File to import
    • Select the CSV file to import.
  • Issue a certificate
    • Select below whether to issue a client certificate after the import is completed.
      • Issue a certificate for users whose settings have been changed, and send e-mail
      • Issue a certificate for users whose settings have been changed
      • Do not issue a certificate
back to home
  • SWX3220 Series Technical Data (GUI)
  • Detailed settings
  • Application layer
  • RADIUS server
  • Managing certificates

Managing certificates

1. Summary

This page is for performing certificate-related operations.

2. Top page

This is the top page for certificate operations.

Mail notification settings

  • Displays e-mail notification-related settings for certificates.
  • The table items are explained below.
    • Mail template ID for sending certificates
      • Displays the mail template ID to be used when attaching and sending a client certificate via e-mail.
    • Mail template ID for certificate period of validity notifications
      • Displays the mail template ID to be used when attaching and sending a client certificate period of validity notification via e-mail.
    • Timing of period of certificate validity notifications
      • Displays the settings for the timing used to send the period of validity notifications for client certificates.

User list

  • Displays the certificate information for the RADIUS user.
  • The table items are explained below.
    • Check box
      • Select the check box to issue, revoke or download a certificate.
    • User ID
      • Displays the user ID for the RADIUS user.
    • Name
      • Displays the name of the RADIUS user.
    • Mail address
      • The RADIUS user e-mail addresses will be displayed.
    • Period of validity (Settings)
      • Displays the certificate’s period of validity for the RADIUS user.
    • Period of validity (certificate)
      • Displays the period of validity of the client certificate associated with a RADIUS user.
      • If there are multiple client certificates, the certificate with the most recent period of validity will be shown.
  • Input the text string in the text box at the top of the table, and press the icon to search for user information.
  • The drop-down list box to the left of the text box lets you select one of the following items to filter the search parameters even further.
    • None
    • User ID
    • Name
    • Mail address
    • Certificates not issued
    • Expired certificates
    • Certificates soon to expire
      • Displays users whose certificates will expire within one month.
    • Certificates revoked
  • You cannot specify a search text string when selecting either Certificates not issued, Expired certificates, Certificates soon to expire or Certificates revoked.
  • A maximum of 100 items can be displayed for one page. Press page_prev or page_next or enter a numeric value to switch between pages.
  • You can press the sort switch to sort by each item.
  • Press the [Issue] button in the “Specified users” box to issue certificates for all RADIUS users whose check boxes are selected.
    • You can select the check box for Attach certificates issued and send via e-mail that is displayed in the dialog box and press the [Execute] button to attach and send the issued certificates via e-mail.
    • The e-mail recipients are the e-mail addresses of each RADIUS user.
  • Press the [Revoke] button in the “Specified users” box to revoke certificates for all RADIUS users whose check boxes are selected.
    • Select the certificate which will be revoked from the list below.
      • Old certificates
      • New certificates
      • Both
    • For users with only one certificate, the certificate is revoked regardless of which of the above is selected.
  • Press the [Download] button in the “Specified users” box to download the certificates for all RADIUS users whose check boxes are selected.
  • Press the [Send] button in the “Specified users” box to attach and send the certificates for all RADIUS users whose check boxes are selected.
  • Press the [Download] button in the “All users” box to download the certificates for all RADIUS users.
  • Press the [Send] button in the “All users” box to attach and send the certificates for all RADIUS users via e-mail.
  • Some operations will be restricted for the statuses shown below.
    • The certificate authority does not exist
    • Certificate is being issued
  • If a user exists whose certificate has not been issued, a notification will be shown in the blue information box.
    • Press the [Bulk issue] button to issue client certificates in bulk, for users corresponding to the following.
      • Users who have never issued certificate
      • Users who was changed password or expire after issued certificate
  • The progress will be shown in the blue information box while the certificates are being issued.

3. Mail notification settings page

This page is for settings related to certificate e-mail notifications.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Mail notification settings

  • Mail template ID for sending certificates
    • Select the mail template ID.
  • Mail template ID for certificate period of validity notifications
    • Select the mail template ID.
  • Timing of period of certificate validity notifications
    • Specify the timing of the period of certificate validity notifications.
    • Input a value from 1 to 90.
    • Up to three can be specified.

4. Certificate operations page

This page is for performing certificate-related operations.

Enter the contents, and then press the [Confirm] button.

If there are no mistakes in the input content confirmation screen, press the [OK] button.

Certificate operations

  • Certificate to operate
    • Information for the target certificate for the operation will be displayed.
    • Select the check box of the certificate for which the operation is performed.
  • Content to execute
    • Select the certificate operation from the list below.
      • Download certificate
      • Attach certificates and send via e-mail
      • Set certificate to revoke
back to home
  • SWX3220 Series Technical Data (GUI)
  • Maintenance

Maintenance

  • Unit settings
  • Access management
  • External devices
  • Schedule execution
  • SNMP
  • LLDP
  • Mail notification
  • Terminal monitoring
  • Dante optimization
  • SDVoE optimization
  • PTP
  • Maintenance
  • Find this switch
back to home
  • SWX3220 Series Technical Data (GUI)
  • Maintenance
  • Unit settings

Unit settings

1. Summary

Various settings can be specified for the unit.

2. Top page

This is the top page for unit settings. A description of each setting is shown.

Unit name setting

Displays the unit name that is set.

  • Press the [Setting] button to access a page where you can change the settings.

LED mode setting

Displays the LED mode that is set.

  • Press the [Setting] button to access a page where you can change the settings.

Buzzer settings

The buzzer settings and status are displayed.

  • Press the mute switch button to toggle the mute status.
    • When the buzzer icon is , the buzzer sounds (mute is disabled).
    • When the buzzer icon is , there is no sound from the buzzer (mute is enabled).
  • Mute will be automatically disabled when the following operations are performed.
    • Restarted the device.
    • Switched buzzer function enabled/disabled
  • Press the [Setting] button to access a page where you can change the settings.
  • Press the [Next] button to display the page for testing the sound from the buzzer (buzzer test run page).
    • When the buzzer function is disabled or muted, you cannot listen to the buzzer.

Time zone setting

Displays the time zone setting.

  • Press the [Setting] button to access a page where you can change the settings.

Current date and time setting

The current date and time specified for this unit are shown.

  • Press the [Setting] button to access a page where you can change the settings.

Date and time synchronization setting

The NTP server that is queried at the specified time and date synchronization interval is shown.

  • Press the [Next] button to access a page where you can synchronize the time.
  • Press the [Setting] button to access a page where you can change the settings.

3. Unit name setting page

In this page you can set the unit name.

When you have entered the settings, press the [Confirm] button. If there are no mistakes in the input content confirmation screen, press the [OK] button.

Unit name setting

  • Device name
    • Enter an arbitrary character string for use as the hostname.
    • Enter up to 63 single-byte alphanumeric characters/symbols, with the following exceptions: ?

4. LED mode setting page

In this page you can set the LED mode.

When you have entered the settings, press the [Confirm] button. If there are no mistakes in the input content confirmation screen, press the [OK] button.

LED mode setting

  • LED mode
    • Select the LED mode from the following.
      • LINK/ACT mode
        • LED indicator lights will illuminate, flash, or switch OFF depending on the LAN port status.
      • OFF mode
        • LED always stays off.

5. Buzzer settings page

This page is for setting the buzzer.

When you have entered the settings, press the [Confirm] button. If there are no mistakes in the input content confirmation screen, press the [OK] button.

Buzzer settings

  • Buzzer function
    • Select the operation of the buzzer function from the following items.
      • Disable
        • Disable the buzzer function.
      • Enable
        • Enable the buzzer function.
  • Notification conditions
    • Select the conditions (events) for notification by buzzer from the following.
      • Finished startup
        • Sounds a buzzer when the device has finished startup.
      • Detect SD card insertion and removal
        • Sounds a buzzer when the SD card is inserted or removed.
      • Detect temperature abnormally
        • The buzzer keeps sounding while detecting an abnormal temperature.
      • Detect fan abnormality
        • The buzzer will continue to sound while detecting a fan abnormality.
      • Detect loop
        • The buzzer will continue to sound while the loop is detected and the port is in the blocking state.
      • Detect SFP optical Rx level abnormality
        • The buzzer will continue to sound while detecting an abnormal SFP optical Rx level.
    • If the following events are detected, the buzzer sounds regardless of the notification condition settings.
      • Mute/Unmute
      • Execute “Find this switch”
    • To prevent all buzzers from sounding, you need to set the buzzer function to disabled.

6. Buzzer beep test page

This page sounds the buzzer of this product on a trial basis and confirms what kind of sound it actually sounds.

When you press the [OK] button, the buzzer of the product will sound.

The buzzer sounds up to three times and then stops automatically.

Buzzer beep test

A list of sound types that can be output from the buzzer of this product is displayed.

The buzzer sounds according to the type of sound in the line where the [OK] button is pressed.

If you press the [OK] button in the following line of sound, the sound will be played only once.

  • Startup sound
  • Unmute execute sound
  • Mute execute sound
  • SD card unmount sound
  • SD card mount sound

If you press the [OK] button in the following line of sound, the sound is repeated 3 times.

  • “Find this switch” execution sound
  • System error sound
  • Port error sound

7. Time zone setting page

This page is for configuring the settings related to time zone.

When you have entered the settings, press the [Confirm] button. If there are no mistakes in the input content confirmation screen, press the [OK] button.

Time zone setting

  • Time zone
    • Select the time zone from the following.
      • UTC
      • JST
      • Difference from GMT ( -12:00 to +13:00 )
  • Daylight saving time
    • Select the daylight saving time operation from the following.
      • Disable
      • Enable
  • Time zone during daylight saving time
    • During daylight saving time, the time zone name specified in this item is displayed as the time zone abbreviation.
    • Enter up to 7 single-byte alphanumeric characters.
  • Daylight saving time period
    • Specify the date and time that daylight saving time starts and ends.
    • If you want to execute the specified period only once, select By date and enter the following.
      • Date
        • Enter in the format YYYY/MM/DD.
      • Time
        • Enter in the format hh:mm.
    • If you want to execute the specified period annually, select Recurring and enter the following.
      • Month
        • The input range is from January to December.
      • Week
        • Select from the following.
          • First
          • Second
          • Third
          • Fourth
          • Last
      • Day of week
        • Select from the following.
          • Sunday
          • Monday
          • Tuesday
          • Wednesday
          • Thursday
          • Friday
          • Saturday
      • Time
        • Enter in the format hh:mm.
  • Daylight saving time offset
    • Specify the time to advance at the start of daylight saving time.
    • The input range is from 1 to 1,440 minutes.

8. Current date and time setting page

In this page you can set the current date and time.

When you have entered the settings, press the [Confirm] button. If there are no mistakes in the input content confirmation screen, press the [OK] button.

Current date and time setting

  • Current time
    • In the “Year/Month/Day” box, enter the date in YYYY/MM/DD format.
      • When you move the focus to the box, a calendar is displayed. You can select a date to enter that date in the box.
      • You can also enter this manually.
    • In the “hours:minutes:seconds” box, enter the time in hh:mm:ss format.
      • When you move the focus to the box, a calendar is displayed. You can select a date to enter that date in the box.
      • You can also enter this manually.

9. Date and time synchronization page

In this page you can synchronize the time with an NTP server.

When you press the [OK] button, the time is synchronized with the NTP server that is specified as the query destination.

10. Date and time synchronization setting page

In this page you can make settings for synchronization with an NTP server.

When you have entered the settings, press the [Confirm] button. If there are no mistakes in the input content confirmation screen, press the [OK] button.

Date and time synchronization setting

  • Date and time synchronization interval
    • Specifies the interval at which time is synchronized with the NTP server.
    • You can choose from the following as the synchronization interval.
      • Unused
      • 1 hour -- 24 hours
    • The default value is 1 hour
  • NTP server to query
    • Enter the host name or IP address of the NTP server that will perform synchronization.
    • Up to two NTP servers can be configured.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Maintenance
  • Access management

Access management

  • User settings
  • Various server settings

back to home

  • SWX3220 Series Technical Data (GUI)
  • Maintenance
  • Access management
  • User settings

User settings

1. Summary

This page is for configuring the user settings.

2. Top page

This is the top page for the user settings.

Password settings

  • Password-related settings are displayed.
  • The table items are explained below.
    • Administrator password
      • Displays whether the administrator password has been set.
    • Encryption
      • The display will show whether password encryption is enabled.
  • Press the [Setting] button to access the page where you can change the password-related settings.

User settings

  • Displays a list of user settings.
  • The table items are explained below.
    • Check box
      • Select the check box to delete user settings.
    • User name
      • Displays the user name.
    • Administrative privileges
      • Displays whether the user has been given administrative privileges.
  • Press the [New] button to display the page where you can set up a new user.
  • Press the [Setting] button to access a page where you can change the settings of the selected user.
  • If you press the [Delete] button, all users whose check boxes are selected will be deleted.
  • Settings can be made for up to 32 users.

3. Password settings page

This page is for making password-related settings.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Password settings

  • Administrator password
    • Enter the administrative password that you want to set.
    • You can use up to 32 single-byte alphanumeric characters and symbols. (excluding " ' > | space)
    • If the password is not changed, select the Administrator password not changed check box.
    • If a password has already been set, the Administrator password not changed check box will be selected by default.
    • Refer to the password strength when deciding on your password, which is displayed as you type.
    • The strength of the password is indicated in four levels from “weakest” to “strongest” based on the following conditions.
      • Number of characters
      • Types of characters
      • Uppercase alphanumeric characters included
      • Lowercase alphanumeric characters included
      • Numerals included
      • Symbols included
  • Administrator password ( confirm )
    • To confirm the password that you entered in the “Administrator password” field, enter the password once again.
  • Encrypt password
    • Select the password encryption settings from the settings shown below.
      • Encrypt
      • Don’t encrypt
    • You cannot restore a password that has been encrypted.
    • The settings for this field will affect the following passwords.
      • Administrator password
      • User passwords

4. User settings page

This page is for configuring the user settings.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

User settings

  • User name
    • When configuring new settings
      • Specifies the user name to set.
      • Single-byte alphanumeric characters can be inputted.
      • Up to 32 characters can be inputted.
      • The following text strings cannot be set.
        • lp
        • adm
        • bin
        • ftp
        • gdm
        • man
        • rpc
        • sys
        • xfs
        • halt
        • mail
        • news
        • nscd
        • sync
        • uucp
        • root
        • sshd
        • games
        • daemon
        • gopher
        • nobody
        • ftpuser
        • mtsuser
        • rpcuser
        • mailnull
        • operator
        • shutdown
    • When changing settings
      • Shows the selected user name.
  • New password
    • Enter the new password that you want to set.
    • You can use up to 32 single-byte alphanumeric characters and symbols. (excluding " ' > | space)
    • The operation for password strength is the same as the “Administrator password” item in the Password settings page.
  • New password ( confirm )
    • To confirm the password that you entered in the “New password” item, enter the password once again.
  • Administrative privileges
    • Select from one of the following administrative privileges.
      • Do not set
      • Set
    • Users that have been given administrative privileges can log in as an administrative user when logging into the Web GUI.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Maintenance
  • Access management
  • Various server settings

Various server settings

1. Summary

In this page you can make settings for each type of server.

2. Top page

This is the top page for making settings for each type of server.

The current settings are shown for the servers listed below.

  • HTTP server
  • Telnet server
  • SSH server
  • TFTP server
  • SNMP server

Web GUI access

  • Displays the settings for the HTTP server.
  • The table items are explained below.
    • Use HTTP server
      • Displays whether an HTTP server is to be used or not.
      • If an HTTP server is to be used, the port number will be displayed.
    • Use secure HTTP server
      • Displays whether a secure HTTP server is to be used or not.
      • If a secure HTTP server is to be used, the port number will be displayed.
    • Interfaces that can access the HTTP server
      • Displays the interfaces that can access the HTTP server.
      • You can access a management VLAN without server settings.
    • Clients that can access the HTTP server
      • Displays the clients that can access the HTTP server.
    • Time until auto logout
      • Displays the time for automatic logout.
    • Use HTTP proxy
      • Displays whether an HTTP proxy server is to be used or not.
      • If an HTTP proxy server is to be used, the timeout interval is displayed.

Access via Telnet

  • Displays the settings for the Telnet server.
  • The table items are explained below.
    • Use Telnet server
      • Displays whether a Telnet server is to be used or not.
      • If a Telnet server is to be used, the port number will be displayed.
    • Interfaces that can access the Telnet server
      • Displays the interfaces that can access the Telnet server.
      • You can access a management VLAN without server settings.
    • Clients that can access the Telnet server
      • Displays the clients that can access the Telnet server.

Access via SSH

  • Displays the settings for the SSH server.
  • The table items are explained below.
    • Use SSH server
      • Displays whether an SSH server is to be used or not.
      • If an SSH server is to be used, the port number will be displayed.
    • Interfaces that can access the SSH server
      • Displays the interfaces that can access the SSH server.
      • You can access a management VLAN without server settings.
    • Clients that can access the SSH server
      • Displays the clients that can access the SSH server.
    • Client existence check from SSH server
      • Displays whether the SSH server checks for existing clients.
      • If the SSH server is set to check for existing clients, this displays the check interval and the number of times checked before disconnecting.

Access via TFTP

  • Displays the settings for the TFTP server.
  • The table items are explained below.
    • Use TFTP server
      • Displays whether a TFTP server is to be used or not.
      • If a TFTP server is to be used, the port number will be displayed.
    • Interfaces that can access the TFTP server
      • Displays the interfaces that can access the TFTP server.
      • You can access a management VLAN without server settings.

Access via SNMP

  • Displays the settings for the SNMP server.
  • The table items are explained below.
    • Clients that can access the SNMP server
      • Displays the clients that can access the SNMP server.

3. Web GUI access page

In this page you can configure the settings for an HTTP server.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Web GUI access

  • Use HTTP server
    • Select below whether an HTTP server will be used or not.
      • Use
      • Don’t use
    • When “Use” is selected, specify the port number.
    • Input a port number from 1 to 65535.
  • Use secure HTTP server
    • Select below whether an secure HTTP server will be used or not.
      • Use
      • Don’t use
    • When “Use” is selected, specify the port number.
    • Input a port number from 1 to 65535.
  • Interfaces that can access the HTTP server
    • Press the [Select] button to display the “VLAN interface list” dialog box.
    • You can select the port check box in the “VLAN interface list” dialog box and press the [Confirm] button to select the associated interface.
    • Up to 8 VLAN interfaces can be selected.
  • Clients that can access the HTTP server
    • Select the client access restriction methods from the following options.
      • Permit all
      • Specify conditions
    • When “Specify conditions” is selected, up to 8 conditions can be specified.
    • The conditions are specified as shown below.
      • Operation
        • To restrict client access, select from the following operations.
          • Permit
          • Deny
      • Conditional
        • Select from the following targets for client access restriction.
          • All addresses
          • Specified IP address
      • IP address
        • When “Specified IP address” is selected, specify the IP address.
        • The following IP addresses shown below can be specified.
          • IPv4 address
            • Example: 192.168.100.1
          • IPv4 network address
            • Example: 192.168.100.0/24
          • IPv6 address
            • Example: fe80::1234:5678
          • IPv6 network address
            • Example: 2001:1234:5678:90ab::0/64
    • Press the icon to add a configuration form.
    • Press the [Delete] button to delete a configuration form.
  • Time until auto logout
    • Specify the time for automatic logout.
    • The user is automatically logged out when the time specified in this item elapses since the last access to the Web GUI.
    • Input a time from 1 minute to 49 days 17 hours 2 minutes 23 seconds.
  • Use HTTP proxy
    • Select below whether an HTTP proxy server will be used or not.
      • Use
      • Don’t use
    • When “Use” is selected, specify the timeout interval.
    • Input a timeout interval from 1 to 180.

4. Access via Telnet page

In this page you can configure the settings for a Telnet server.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Access via Telnet

  • Use Telnet server
    • Select below whether a Telnet server will be used or not.
      • Use
      • Don’t use
    • When “Use” is selected, specify the port number.
    • Input a port number from 1 to 65535.
  • Interfaces that can access the Telnet server
    • The setting method for this item is the same as for the “Interfaces that can access the HTTP server” item on the Web GUI access page.
  • Clients that can access the Telnet server
    • The setting method for this item is the same as for the “Clients that can access the HTTP server” item on the Web GUI access page.

5. Access via SSH page

In this page you can configure the settings for an SSH server.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

If a host key has not been generated for the SSH server, the host key will be automatically generated when you modify the settings for using the SSH server.

Access via SSH

  • Use SSH server
    • Select below whether an SSH server will be used or not.
      • Use
      • Don’t use
    • When “Use” is selected, specify the port number.
    • Input a port number from 1 to 65535.
  • Interfaces that can access the SSH server
    • The setting method for this item is the same as for the “Interfaces that can access the HTTP server” item on the Web GUI access page.
  • Clients that can access the SSH server
    • The setting method for this item is the same as for the “Clients that can access the HTTP server” item on the Web GUI access page.
  • Client existence check from SSH server
    • Select below whether the SSH server checks for existing clients.
      • Check
      • Do not check
    • When “Check” is selected, specify the check interval and the number of times checked before disconnecting.
    • Input a check interval from 1 to 2147483647.
    • Input the number of times checked from 1 to 2147483647.

6. Access via TFTP page

In this page you can configure the settings for a TFTP server.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Access via TFTP

  • Use TFTP server
    • Select below whether a TFTP server will be used or not.
      • Use
      • Don’t use
    • When “Use” is selected, specify the port number.
    • Input a port number from 1 to 65535.
  • Interfaces that can access the TFTP server
    • The setting method for this item is the same as for the “Interfaces that can access the HTTP server” item on the Web GUI access page.

7. Access via SNMP page

In this page you can configure the settings for a SNMP server.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Access via SNMP

  • Clients that can access the SNMP server
    • Configure clients that can access the SNMP server.
    • Only predefined communities can be selected for the client community.
    • Specify the client IP address by IPv4 or IPv6 address.
    • Press the icon to add a client.
    • Press the [Delete] button to delete the client.
    • You can configure up to 32 clients.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Maintenance
  • External devices

External devices

  • microSD
back to home
  • SWX3220 Series Technical Data (GUI)
  • Maintenance
  • External devices
  • microSD

microSD

1. Summary

On this page you can perform operations with the microSD card.

The microSD card will automatically be mounted when it is inserted into this unit.

When removing the microSD card from this unit while the unit is powered on, be sure to unmount the microSD card first.

If the stack function is enabled, you can perform operations with the microSD card that is inserted to the main switch.

2. Top page

This is the microSD top page.

Displays the mounting status of the microSD card.You can also begin the steps here for switching the mounting status of the microSD card.

Mounting switch for microSD card

  • Displays the mounting status of the microSD card.
  • Press the [Next] button to begin the steps for switching the mounting status of the microSD card.

3. microSD card mounting switch page

This page is for switching the microSD card mounting status.

Press the [OK] button to switch the mounting status of the microSD card.

If the microSD card is already mounted, it will be unmounted; and if the microSD card is already unmounted, it will be mounted.

back to home
  • SWX3220 Series Technical Data (GUI)
  • Maintenance
  • Schedule execution

Schedule execution

1. Summary

In this page you can make settings for schedule execution.

The schedule execution function of this product has two setting items, schedule template and schedule.

Schedule template settings allow you to create a template of detailed settings for processes involved in executing scheduled functions and operations, such as the specific functions to be executed, the applicable item involved, and the execution sequence.

In schedule settings, you can select when to execute schedules and which templates to execute.

2. Top page

This is the top page for making settings for schedule execution.

List of schedule template

  • Information for the currently registered schedule template are shown.
  • The table items are explained below.
    • Template ID
      • Registered schedule template ID are shown.
    • Status
      • The status of the schedule template are shown.
    • Template description
      • Description of the schedule template are shown.
  • If you press the [New] button, a page appears in which you can create a new schedule template.
  • If you press the [Setting] button, a page appears in which you can edit the settings of the selected schedule template.
  • If you press the [Delete] button, all schedule templates whose check box has a check mark will be deleted.
  • Up to 10 schedule templates can be registered.

List of schedule

  • Information for the currently registered schedule are shown.
  • The table items are explained below.
    • Schedule ID
      • Registered schedule ID are shown.
    • Execution timing
      • The execution timing of the schedule are shown.
    • Template to be executed
      • The information about the template to be executed when the schedule executed are shown.
  • If you press the [New] button, a page appears in which you can create a new schedule.
  • If you press the [Setting] button, a page appears in which you can edit the settings of the selected schedule.
  • If you press the [Delete] button, all schedules whose check box has a check mark will be deleted.
  • Up to 10 schedules can be registered.

3. Schedule template settings page

In this page you can create a new schedule template or edit the settings of an already-registered schedule template.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Schedule template settings

  • Template ID
    • The ID of the schedule template being set is displayed.
    • Newly created templates are automatically assigned the lowest unregistered serial number as the template ID.
  • Template description
    • Sets the schedule template description text.
    • Enter up to 64 single-byte alphanumeric characters/symbols, excluding the ? symbol.
  • Status
    • Select template status from the following items.
      • Enabled
        • Enables the template
      • Disabled
        • Disables the template
        • The contents of the template are not executed at the time of schedule execution.
  • Import source of the schedule execution contents
    • Select the import source of the schedule execution contents from the following items.
      • CONFIG of the device
        • Executes the schedule execution contents saved in CONFIG of the device at the time of schedule execution.
        • The schedule execution contents entered on this page are saved in CONFIG of the device.
      • Script file in SD card
        • Loads the schedule execution contents from the script file in SD card at the time of schedule execution.
        • Please refer to 5. How to use the script file for specific usage.
  • Contents of schedule execution
    • Enter the commands to be executed by the scheduled execution.
    • You can enter multiple commands together by separating them with line-returns.
    • Specify settings that result in 20 or fewer command lines.
    • Schedule execution always starts with the specially-privileged EXEC mode (enable).
    • For prohibited commands and command details, refer to the command reference and the information provided on the Network device product information page and Network device technical information page .
    • If you press the [Easy input] button, you can quickly enter the corresponding commands for the following functions.
      • Shutdown
      • Cancel shutdown
      • Save TECHINFO into SD card
      • Save settings

4. Schedule settings page

In this page you can create a new schedule or edit the settings of an already-registered schedule.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Schedule settings

  • Schedule ID
    • The ID of the schedule being set is displayed.
    • Newly created templates are automatically assigned the lowest unregistered serial number as the schedule ID.
  • Trigger type
    • Select the trigger to execute the schedule execution from the following items.
      • Time
        • When the time specified in the execution timing arrives, the device executes the schedule execution.
      • Event
        • When the event specified in the execution timing occurs, the device executes the schedule execution.
  • Execution timing
    • If you select Time for Trigger type, select the timing to execute the schedule execution.
      • Easy input
        • Select a typical frequency pattern for the schedule execution timing.
        • Period
          • Select the periodic pattern of schedule execution from the following items.
            • Every day
            • Every week
            • Every month
            • Every year
          • If “Every week” is selected, mark the checkbox for the day of the week when the schedule is to be executed.
          • If “Every month” is selected, enter the day when the schedule is to be executed in the “Day” box.
          • If “Every year” is selected, enter the month and the day when the schedule is to be executed in the “Month” box and the “Day” box.
          • Enter numeric values in the “Month” and “Day” boxes.
          • Multiple months/days can be specified as comma-delimited values. (Example: Enter “10,20” to specify 10 and 20.)
          • A hyphen can be used to indicate a range of values. (Example: Enter “1-3” to specify 1, 2, and 3.)
          • When you focus on the “Month” and “Day” boxes, the input form that can be operated with a mouse click is displayed.
        • Time
          • In the “Hours:Minutes:Seconds” box, enter the time in hh:mm:ss format.
          • When you focus on the “Hours:Minutes:Seconds” box, an input form that can be operated with a mouse click is displayed.
      • Input in command format
        • Enter the “Date” and “Time” in the command format.
        • This allows specifying settings in more detail than the Easy input mode.
        • Enter the “Date” in MONTH/DATE format.
        • Enter the “Time” in hh:mm:ss format.
        • For details on command format, refer to the command reference and to the information provided on the Network device product information page and Network device technical information page .
    • If you select Event for Trigger type, select the event that triggers to execute the schedule execution.
      • When you start up the device
        • When you start up the device, the device executes the schedule execution.
      • When you attached an SD card
        • When you attached an SD card, the device executes the schedule execution.
  • Template to be executed
    • Select the template to be executed in the schedule execution.

5. How to use the script file

If you select the script file in SD card as the import source of the schedule execution contents in the schedule template settings, the contents of the script file are executed at the time of schedule execution.

To use the script file, you need to insert an SD card with the script file saved in the specified path “/(model name)/schedule/script.txt” into the device beforehand.

You can enter up to 100 lines of commands into the script file. Commands after the 101 line are not executed at the time of schedule execution.

  • SWX3220 Series Technical Data (GUI)
  • Maintenance
  • SNMP

SNMP

  • MIB
  • Community
  • SNMPv3 User
  • SNMP trap
back to home
  • SWX3220 Series Technical Data (GUI)
  • Maintenance
  • SNMP
  • MIB

MIB

1. Summary

This page is for configuring MIB settings.

2. Top page

This is the top page for MIB.

Management information settings

  • The contents of the Management information settings are shown.
  • Press the [Setting] button to access a page where you can change the settings.

3. Management information setting page

This page is for configuring Management information settings.
Enter the settings, and then press the [Confirm] button.
If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Management information settings

  • Administrator information (sysContact)
    • Sets the string of Administrator information (sysContact).
    • The character string entered here is stored in the MIB variable sysContact.
    • Characters that can be inputted include single-byte alphanumeric characters and symbols, excluding ?.
    • Up to 255 characters can be inputted.
  • Installation site information (sysLocation)
    • Sets the string of Physical location information (sysLocation).
    • The character string entered here is stored in the MIB variable sysLocation.
    • Characters that can be inputted include single-byte alphanumeric characters and symbols, excluding ?.
    • Up to 255 characters can be inputted.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Maintenance
  • SNMP
  • Community

Community

1. Summary

This page is for configuring SNMP community settings.

2. Top page

This is the top page for Community.

List of communities

  • Information for the currently registered community are shown.
  • The table items are explained below.
    • Community name
      • Registered communities name are shown.
    • Access mode
      • Access mode set to community are shown.
  • If you press the [New] button, a page appears in which you can create a new community.
  • If you press the [Setting] button, a page appears in which you can edit the settings of the selected community.
  • If you press the [Delete] button, all communities whose check box has a check mark will be deleted.
    • If you check the “Delete from related settings as well” check box in the delete dialog, the following setting is changed with the deletion of the community.
      • Deletes the trap destination settings specifying the community to be deleted.
      • Deletes the clients that can access the SNMP server settings specifying the community to be deleted.
  • Up to 16 communities can be registered.

3. Community setting page

This page is for configuring SNMP community settings.
Enter the settings, and then press the [Confirm] button.
If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Community settings

  • Community name
    • Sets the community name.
    • Characters that can be inputted include single-byte alphanumeric characters and symbols, excluding ?.
    • Up to 32 characters can be inputted.
  • Change the settings related to the community accordingly.
    • The following setting is changed accordingly to the change of community settings.
      • Change the community name used in the trap destination settings to the changed name.
      • Change the community name used in the clients that can access the SNMP server settings to the changed name.
    • This item will be displayed only when changing settings.
    • If you check the check box, the [Detail display] button will be displayed on the confirmation page.
    • Press the [Detail display] button to open the dialog with the following information.
      • Trap destination settings which the community name to be changed.
  • Access mode
    • Select the access mode of the community from the list below.
      • ReadOnly
        • Only read to MIB is allowed.
      • ReadWrite
        • Both read and write to MIB are allowed.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Maintenance
  • SNMP
  • SNMPv3 User

SNMPv3 User

1. Summary

This page is for configuring the settings related to SNMPv3 User.

2. Top page

This is the top page for SNMPv3 User.

MIB view list

  • Displays the list of registered MIB views.
  • The table items are explained below.
    • View name
      • Displays the registered MIB view name.
  • Press the [New] button to display the page for registering a new MIB view.
  • Press the [Setting] button to display the page for changing the selected MIB view settings.
  • Press the [Delete] button to delete the MIB views with the check box selected.
    • If you check the “Delete from related settings as well” check box in the delete dialog, the following settings are changed with the deletion of the MIB view.
      • Deletes the MIB view settings from the group settings as well. If there are no more readable and writable MIB views, deletes the group settings as well.
      • Deletes the user settings belonging to the group to be deleted.
      • Deletes the trap destination settings specifying the user to be deleted.
  • You can register up to 16 MIB views.

Group list

  • Displays the list of registered groups.
  • The table items are explained below.
    • Group name
      • Displays the registered group name.
    • Readable MIB view
      • Displays the MIB view that is readable by users who belong to this group.
    • Writable MIB view
      • Displays the MIB view that is writable by users who belong to this group.
    • Security level
      • Displays the security level required for users who belong to this group.
  • Press the [New] button to display the page for registering a new group.
  • Press the [Setting] button to display the page for changing the selected group settings.
  • Press the [Delete] button to delete the groups with the check box selected.
    • If you check the “Delete from related settings as well” check box in the delete dialog, the following settings are changed with the deletion of the group.
      • Deletes the user settings belonging to the group to be deleted.
      • Deletes the trap destination settings specifying the user to be deleted.
  • You can register up to 16 groups.

User list

  • Displays the list of registered users.
  • The table items are explained below.
    • User name
      • Displays the registered user name.
    • Group
      • Displays the name of the group to which this user belongs.
    • Authentication algorithm
      • Displays the authentication algorithm that this user uses for communication.
    • Encryption algorithm
      • Displays the encryption algorithm that this user uses for communication.
  • Press the [New] button to display the page for registering a new user.
  • Press the [Setting] button to display the page for changing the selected user settings.
  • Press the [Delete] button to delete the users with the check box selected.
    • If you check the “Delete from related settings as well” check box in the delete dialog, the following setting is changed with the deletion of the user.
      • Deletes the trap destination settings specifying the user to be deleted.
  • You can register up to 16 users.

3. MIB view settings page

This page is for configuring settings related to MIB view of SNMP.
Enter the settings, and then press the [Confirm] button.
If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

MIB view settings

  • View name
    • Set the MIB view name.
    • Characters that can be inputted include single-byte alphanumeric characters and symbols, excluding ?.
    • Up to 32 characters can be inputted.
  • Change the settings related to the view accordingly.
    • The following setting is changed accordingly to the change of MIB view settings.
      • Change the MIB view name used in the group settings to the changed MIB view name.
    • This item will be displayed only when changing settings.
    • If you check the check box, the [Detail display] button will be displayed on the confirmation page.
    • Press the [Detail display] button to open the dialog with the following information.
      • Group settings where MIB view name to be changed.
  • Entry
    • Set the MIB objects to be allowed access.
    • MIB object ID
      • Specify the MIB object ID.
      • Single-byte numeric characters and dot (.) can be inputted.
      • Up to 64 characters can be inputted.
    • Type
      • Select ldquo;Include in management (include)” to allow access to the specified MIB object ID or ldquo;Exclude from management (exclude)” to not allow access.
    • Press the icon to add an entry.
    • Press the [Delete] button to delete the entry.
    • You can specify up to 8 entries.
    • You need to specify at least one entry.

4. Group settings page

This page is for configuring the settings related to groups of SNMP.
Enter the settings, and then press the [Confirm] button.
If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Group settings

  • Group name
    • Set the group name.
    • Characters that can be inputted include single-byte alphanumeric characters and symbols, excluding ?.
    • Up to 32 characters can be inputted.
  • Change the settings related to the group accordingly.
    • The following settings are changed accordingly to the change of group settings.
      • Change the group name used in the user settings to the changed group name.
    • This item will be displayed only when changing settings.
    • If you check the check box, the [Detail display] button will be displayed on the confirmation page.
    • Press the [Detail display] button to open the dialog with the following information.
      • Group settings for which the group name is changed
  • Readable MIB view
    • Select a MIB view that is readable by users who belong to this group.
    • Press the [Select] button and select a MIB view from the “Select MIB view” dialog.
  • Writable MIB view
    • Select a MIB view that is writable by users who belong to this group.
    • Press the [Select] button and select a MIB view from the “Select MIB view” dialog.
  • Security level
    • Configure the security level required for users who belong to this group.
    • You cannot use encryption alone without authentication.
    • User authentication for MIB access fails if the user settings do not meet the security level of the group.

5. User settings page

This page is for configuring the settings related to users of SNMP.
Enter the settings, and then press the [Confirm] button.
If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

User settings

  • User name
    • Set the user name.
    • Characters that can be inputted include single-byte alphanumeric characters and symbols, excluding ?.
    • Up to 32 characters can be inputted.
  • Change the settings related to the user accordingly.
    • The following setting is changed accordingly to the change of user settings.
      • Change the user name used in the trap destination settings to the changed user name.
      • Change the security level used in the trap destination settings according to this user setting.
    • This item will be displayed only when changing settings.
    • If you check the check box, the [Detail display] button will be displayed on the confirmation page.
    • Press the [Detail display] button to open the dialog with the following information.
      • Trap destination settings where user name to be changed
      • Trap destination settings where the security level to be changed
  • Group
    • Select a group to which this user belongs.
    • Press the [Select] button and select a group from the “Select group” dialog.
  • Authentication algorithm
    • Select an authentication algorithm that this user uses for communication.
  • Authentication password
    • Enter from 8 to 32 single-byte alphanumeric characters/symbols, excluding the ? symbol.
    • If the setting of the authentication algorithm is “None”, this setting is not available.
  • Encryption algorithm
    • Select a encryption algorithm that this user uses for communication.
    • If the setting of the authentication algorithm is “None”, this setting is not available.
  • Encryption password
    • Enter from 8 to 32 single-byte alphanumeric characters/symbols, excluding the ? symbol.
    • If the setting of the authentication or encryption algorithm is “None”, this setting is not available.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Maintenance
  • SNMP
  • SNMP trap

SNMP trap

1. Summary

This page is for configuring SNMP trap settings.

2. Top page

This is the top page for SNMP trap.

Trap type settings

  • The contents of the settings of trap type are shown.
  • Press the [Setting] button to access a page where you can change the settings.

List of traps destinations

  • Information for the currently registered traps destinations are shown.
  • The table items are explained below.
    • Destination address
      • Registered traps destination address are shown.
    • Version
      • SNMP version that used in trap are shown.
    • Community / User
      • SNMP community name or user name that used in trap are shown.
    • Message type
      • SNMP message type that used in trap are shown.
    • Security level
      • Displays the security level required in the user settings for the device to send traps.
  • If you press the [New] button, a page appears in which you can create a new traps destination.
  • If you press the [Setting] button, a page appears in which you can edit the settings of the selected traps destination.
  • If you press the [Delete] button, all traps destinations whose check box has a check mark will be deleted.
  • Up to 8 traps destinations can be registered.

3. Trap type setting page

This page is for configuring Trap type settings.
Enter the settings, and then press the [Confirm] button.
If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Trap type settings

  • Trap type
    • Select the trap type to send by SNMP agent from the list below.
      • Boot from power OFF state
        • Send traps when the power is turned on/off or when firmware is updated.
      • Restart without power OFF
        • Send traps when restart by reload command.
      • Link down of port
        • Send traps when link down of port.
      • Link up of port
        • Send traps when link up of port.
      • Fail authentication
        • Send traps when SNMP message to non-registered community or user is received.
      • Fail authentication
        • Send traps when SNMP message to non-registered community or user is received.
      • Change Temperature status
        • Send traps when Temperature state is changed for example when temperature abnormally detected.
      • Change FAN status
        • Send traps when FAN state is changed for example when FAN abnormally detected.
      • Detect / lose L2MS agent
        • Send traps when an L2MS agent is detected or lost.
      • Detect / cancel ErrDisable
        • Send traps when the ErrDisable is detected or canceled.
      • RMON event
        • Send traps when the RMON event is executed.
      • Change device monitoring status
        • Send traps when the device monitoring function detects a change in the device status.
      • Detect root of spanning tree / change of topology
        • Send traps when a new root bridge is detected or when a topology change is detected.
      • Detect / resolve the loop
        • Send traps when a loop is detected or resolved.
      • Change VRRP status
        • Send traps when the device transitions to the master state or when a VRRP protocol error is detected.

4. Trap destination setting page

In this page you can create a new trap destination or edit the settings of an already-registered trap destination.
Enter the settings, and then press the [Confirm] button.
If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Trap destination settings

  • Destination address
    • Sets the destination address of traps.
    • For the destination address, either an IPv4 address or an IPv6 address can be specified.
    • For IPv6 link local addresses, you must also specify the interface to send from. (Format: fe80::X%vlanN)
  • Version
    • Select the SNMP version used by traps.
      • SNMPv1
        • Send traps using SNMP version 1.
      • SNMPv2c
        • Send traps using SNMP version 2c.
      • SNMPv3
        • Send traps using SNMP version 3.
  • Community / User
    • Select the community or users used by traps.
    • Click the [Select] button to display the “Community selection” dialog or “User selection” dialog.
    • List of already-defined community or user is displayed at “Community selection” dialog or “User selection” dialog.
    • In the “Community selection” dialog or “User selection” dialog, pressing the [Select] button enables selection of communities or users used by traps at the destination where the traps are sent.
  • Message type
    • Select the SNMP message type used by trap.
      • Use Trap
        • Message type that does not require response confirmation to the destination.
      • Use Inform Request
        • Message type that require response confirmation to the destination.
    • If SNMPv1 is selected as the version, then thte message type cannot be selected.
    • The Trap message type is always used for version SNMPv1.
  • Security level
    • Set the security level required in the user settings for the device to send traps.
    • You cannot use encryption alone without authentication.
    • Sending traps fails if the user settings do not meet the security level of the trap destination settings.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Maintenance
  • LLDP

LLDP

1. Summary

This page is for changing LLDP settings and viewing neighbor information obtained by LLDP.

* LLDP (Link Layer Discovery Protocol) is a protocol to collect neighbor information. In this unit, following operations are supported.

  • Unit information is periodically transmitted to neighboring devices.
  • Reception of information from neighboring devices.
  • Display of received neighbor information.

2. Top page

This is the top page for the LLDP.

Neighbor information list

  • Pressing the [Next] button displays a page where acquired neighbor information can be viewed.
  • The [Next] button is disabled if the LLDP function is disabled.

System settings

  • Displays the LLDP settings for the system.
  • The table items are explained below.
    • LLDP
      • Displays whether LLDP is enabled or disabled for the entire system.
    • Auto-configure via LLDP function
      • The current settings for the auto-configure via LLDP function are displayed.
    • System name
      • Displays the system name to be notified by LLDP.
    • System description
      • Displays the system description to be notified by LLDP.
  • Press the [Setting] button to display the page for configuring the system.

Interface settings

  • Displays the LLDP settings for the interface.
  • The table items are explained below.
    • Port
      • Displays the interface name.
    • LLDP frame transmission and reception
      • Displays the LLDP frame transmission and reception mode for the target interface.
  • Press the [Setting] button to display the page for configuring the selected interface.
  • Press the [Specify all] button to configure the settings for all interfaces with the check box selected.
  • Press the [Return to defaults] button to initialize the settings for all interfaces with the check box selected.

3. Neighbor information list page

This page displays a summary of neighbor information obtained by LLDP.
Displays ports where neighbor information was received and part of that information.

Neighbor information list

  • Displays a list of neighbor information obtained by LLDP.
  • Up to 1000 neighbor information is displayed.
  • Pressing the [Detail] button displays a page for viewing details about the selected neighbor information.
  • You can search neighbor information from the "Search" box.
    • Press to execute the search.
    • Press to clear the search.
    • You can use regular expressions shown below in search keywords.
    • Lowercase and capital letters are treated the same for keywords.
      SyntaxExplanation
      AThe character “A”
      ABCThe characters “ABC”
      [ABC]One character, either “A”, “B” or “C”
      [A-C]One character between “A” and “C”
      [^ABC]An arbitrary character that is neither “A”, “B” or “C”
      .An arbitrary character
      A+At least one “A” character
      A*At least zero “A” characters
      A?Zero or one “A” character
      ^AA string that begins with “A”
      A$A string that ends with “A”
      ABC|DEF|GHI“ABC”, “DEF” or “GHI”
      A{2}Two “A” characters (AA)
      A{2,}Two or more “A” characters (AA, AAA, AAAA...)
      A{2,3}Two to three “A” characters (AA, AAA)
      ¥bWord breaks, such as spaces
      ¥BAny character besides \b
      ¥dAn arbitrary number (same as [0-9])
      ¥DAny character besides numbers (same as [^0-9])
      ¥sSingle breaking character
      ¥SAny single character besides \s
      ¥wAlphanumeric characters including underlines (same as [A-Za-z0-9_])
      ¥WAny character besides \w
    • Press to update information to the latest information.
    • The number of search results to display at one time can be selected by pressing “Display number” on the “Select” menu.
    • If the number of neighbor information results exceeds the "display number" setting, the range of neighbor information results can be changed by pressing .
    • Press the sort switch to sort by each item.
      • With default settings, results are sorted in ascending order of the receiving port.
      • Press the sort switch again to toggle between ascending and descending order.
      • “Receiving ports” are sorted in order of port number.
      • Other items are sorted alphabetically based on the character string.

4. Neighbor information detail page

This page displays details for neighbor information selected on the neighbor information page.

Details of neighbor information

  • Each information item in the obtained neighbor information is displayed.
  • If obtained neighbor information contains no information for an item, “-” is displayed.
  • For details on the information displayed, refer to Network device technical information page.

5. System settings page

This page is for configuring the LLDP settings for the system.
Enter the settings, and then press the [Confirm] button.
If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

System settings

  • LLDP
    • Specify whether to enable or disable LLDP for the entire system.
  • Auto-configure via LLDP function
    • Specify whether to enable or disable Auto-configure via LLDP function.
  • System name
    • Specify the system name to be notified by LLDP.
    • Enter up to 255 single-byte alphanumeric characters/symbols, excluding the ? symbol.
  • System description
    • Specify the system description to be notified by LLDP.
    • Enter up to 255 single-byte alphanumeric characters/symbols, excluding the ? symbol.

6. Interface settings page

This page is for configuring the LLDP settings for the system.
You can also change the detailed settings by pressing the [Advanced settings] button.
Enter the settings, and then press the [Confirm] button.
If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Interface settings

  • Port
    • Specify whether to enable or disable LLDP for the entire system.
  • LLDP frame transmission and reception
    • Select the operation for LLDP frame transmission and reception from the following options.
      • Enabled
        • Enables LLDP frame transmission and reception.
        • Select direction to enable from the following items.
          • Transmit & Receive
          • Transmit
          • Receive
      • Disabled
        • Disables LLDP frame transmission and reception.
  • Option TLV to send
    • Select the information to be sent by LLDP from the following items.
      • Basic management TLV
        • Sends administrative information about the system, such as the system name and the functions it supports.
      • IEEE 802.1 TLV
        • Sends information about the VLAN and link aggregation of the port.
      • IEEE 802.3 TLV
        • Sends information about the auto negotiation and PoE of the port.
      • LLDP-MED TLV
        • Sends information about network policy and extended PoE of the port.
  • LLDP frame transmission interval
    • Specifies the transmission interval of LLDP frames in terms of seconds.
    • Input a transmission interval of LLDP frames from 5 to 3600.
  • Hold time (TTL) of device information sent by LLDP
    • Specify a hold multiplier to decide a hold time ( TTL ).
    • Input a hold multiplier from 1 to 100.
    • The upper limit of Hold time (TTL) is 65535.
  • Fast transmission period setting
    • Specify a transmission interval and a send number of LLDP frames during the fast transmission period.
    • Input a transmission interval from 1 to 3600.
    • Input a send number from 1 to 8.
  • Time from stop sending LLDP frames to reinitialization
    • Specify the waiting time from when LLDP is disabled to when LLDP can be re-enabled on the port.
    • Input a time from stop sending LLDP frames to reinitialization from 1 to 8.
  • Type of Management address sent by LLDP
    • Select management address type from the following items.
      • IP address
      • MAC address
  • Maximum number of managed devices
    • Specifies the maximum number of managed devices.
    • Input a maximum number of managed devices from 1 to 1000.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Maintenance
  • Mail notification

Mail notification

1. Summary

In this page you can make settings related to mail notification. When a mail notification is received, mail is automatically sent to the assigned recipient when the specified conditions are met.

First use the [New] button in “Registered mail server list” to register the mail server of the recipient. After registering this, use the [New] button in “Mail notification settings list” to make mail notification settings.

2. Top page

This is the top page for mail notifications.

List of registered mail servers

  • Information for the currently registered mail server (SMTP server) is shown.
  • You can use the [New] button at the top of the list to add settings.
  • If you want to change the settings, press the [Settings] button located at the right of the table. A page for changing the settings appears, allowing you to change the settings.
  • If you want to delete settings, select the setting that you want to delete, and press the [Delete] button located above the list. A confirmation dialog box appears; press the [Delete] button to delete the setting.
  • Up to 10 mail servers can be registered.

List of mail notification settings

  • The currently specified mail notification settings are shown.
  • You can use the [New] button at the top of the list to add settings.
  • If you want to change the settings, press the [Setting] button located at the right of the table. A page for changing the settings appears, allowing you to change the settings.
  • If you want to delete settings, select the setting that you want to delete, and press the [Delete] button located above the list. A confirmation dialog box appears; press the [Delete] button to delete the setting.
  • If you want to do mail sending test, press the [Next] button located at “Sending test” item. A confirmation dialog box appears; press the [OK] button to do mail sending test.

3. Mail server settings page

This page lets you make settings for the recipient’s mail server (SMTP server). Check the items that you specified, and then press the [Confirm] button. If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

List of registered mail servers

  • ID
    • This is the identifying number of the mail server settings. It is assigned automatically.
  • Account identification name
    • Specify the mail server’s account identification name. For convenience, specify a name that will be easy to recognize.
    • You can use up to 64 single-byte characters.
    • This can be omitted.
  • SMTP server address
    • Enter the IP address or domain name of the SMTP server used when sending mail.
    • You can use up to 64 single-byte characters.
  • SMTP server port number
    • Enter the SMTP server’s port number.
    • If “Submission port (port number 587)” is checked, the submission port, which is port number 587, is specified.
  • Encrypting SMTP
    • This setting determines whether to encrypt SMTP with SSL when sending mail.
    • Selecting “Not encrypt” is to use SMTP for sending mail.
    • Selecting “Encrypt with SSL (over SSL)” is to use SMTPS (SMTP over SSL) for sending mail, so that SMTP is encrypted with SSL.
      • It is recommended to set 465 for “SMTP server port number”.
    • Selecting “Encrypt with SSL (STARTTLS)” is to use SMTPS (STARTTLS) for sending mail, so that SMTP is encrypted with SSL.
    • For STARTTLS, communication is encrypted only if the SMTP server supports encryption using SSL.
    • Encryption using SSL is not available when setting an IPv6 address as the SMTP server address.
  • SMTP authentication
    • Select from the drop-down list box whether to authenticate with the SMTP server.
    • To authenticate, enter the following settings.
      • User name
        • This setting determines the user name used when authenticating to the SMTP server.
        • Up to 64 single-byte characters are allowed.
      • Password
        • This setting determines the password used when authenticating to the SMTP server.
        • Up to 64 single-byte characters are allowed.

4. Mail notification settings page

In this page you can make mail notification settings. You can specify the transmission source and the recipient address of mail notifications. Check the items that you specified, and then press the [Confirm] button. If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Mail notification settings

  • ID
    • This is the identifying number of the mail notification settings. It is assigned automatically.
  • Source (From)
    • Specify the sender’s mail address of the mail that will be sent.

      SMTP server:

      • Select the SMTP server used when sending the mail.

      Mail address:

      • Enter the sender’s mail address of the mail that will be sent.
      • You can use up to 256 single-byte characters. However, you cannot use symbols other than underline (_), hyphen (-), dot (.), and at-sign (@).
  • Destination (To)
    • Enter the sender’s mail address of the mail that will be sent.
    • You can register up to four items; the mail is sent to all of the registered mail addresses.
    • You can use up to 256 single-byte characters. However, you cannot use symbols other than underline (_), hyphen (-), dot (.), and at-sign (@).
    • This setting does not affect the mail send function of the RADIUS server.
  • Subject
    • Specify the subject of the mail that will be sent.
    • You can use up to 128 single-byte characters.
    • If you select “Use specified subject,” the subject name will be the specified subject.
    • This setting does not affect the mail send function of the RADIUS server.
  • Notification content
    • The contents of the notification are specified as follows.
      • LAN map error detection
        • This notification will be made only if this unit is operating as an L2MS manager.
        • Select the LAN map events to be notified from the following.
          • Device abnormality
          • Loop detection
          • SFP optical Rx level abnormality
          • Transmission queue monitoring
          • PoE supply
          • Snapshot
          • Duplication of L2MS managers
      • Status notification for terminal monitoring
        • The change in status monitored by the device monitoring function will be notified.
      • Stack error detection
        • Failure information of the stack function will be notified.
    • This setting does not affect the mail send function of the RADIUS server.
  • Mail transmission wait time
    • Specify the time by which mail transmission is delayed after the notification event occurs.
    • If other notification events occur during this wait time, those notifications are combined and sent in a single email.
    • This setting does not affect the mail send function of the RADIUS server.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Maintenance
  • Terminal monitoring

Terminal monitoring

1. Summary

On this page you can make settings for device monitoring.

The device communication status can be monitored by specifying the monitoring target and method.

You can also specify the action to be executed when the device status changes.

Device monitoring settings can be made only from the Web GUI.

Although the contents of the device monitoring settings are not shown in the CONFIG file, when an operation (such as “erase startup-config”) is performed on the CONFIG file, the same operation is performed on the device monitoring settings.

If the auto-configure via LLDP function is enabled, the Yamaha wireless AP connected to this unit is automatically monitored by LLDP.

2. Top page

This is the top page for device monitoring.

List of monitored terminals

  • The device monitoring status and settings are shown here.
  • The table items are explained below.
    • Check box
      • Select the check box to delete device monitoring settings.
    • Status
      • One of the device monitoring statuses as follows are displayed.
        • IDLE
        • UP
        • DOWN
      • Refer to 4. Conditions for determining monitored device status for the conditions used to determine the above statuses.
    • Include in monitoring
      • Displays information for the monitoring target(s).
      • If the monitoring type is “Ping”, the IP address of the monitored device will be displayed.
      • For monitoring types other than “Ping”, the interface number will be displayed.
    • Device name
      • Displays the name of the device being monitored.
    • Monitoring type
      • Displays one of the following monitoring types for the device being monitored.
        • Ping
        • Frame reception volume
        • LLDP
  • Press the [New] button to display a page where you can create new settings for monitored devices.
  • Press the [Setting] button to access a page where you can change the settings of the selected device.
  • Press the [Update] button to update the table.
  • If you press the [Delete] button, all monitored devices whose check boxes are selected will be deleted.
  • Up to 256 monitored devices can be configured.
    • Of these, up to 64 monitored devices with ping can be configured.

3. Monitored device settings page

This page is for configuring the monitored device settings.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Setting monitored devices

  • Device name
    • Specifies the device name.
    • Characters that can be inputted include single-byte alphanumeric characters and symbols, excluding ?.
    • Up to 80 characters can be inputted.
  • Monitoring type
    • Select from one of the following monitoring methods.
      • Ping-based communication monitoring
      • Frame reception volume monitoring
      • LLDP reception interval monitoring
    • This item cannot be changed when changing the settings.
  • Destination IP address for ping
    • Specifies the IP address to which a ping message will be transmitted.
    • This item will only be displayed when Ping-based communication monitoring is selected for the “Monitoring type” item.
  • Time waiting for reply
    • Specifies the time required to determine whether the ping response has failed.
    • The input range is 1 - 60.
    • This item will only be displayed when Ping-based communication monitoring is selected for the “Monitoring type” item.
  • No. of failures before detecting unavailable device
    • Specifies the number of times that the ping response must fail before determining that the monitored device is unavailable.
    • The input range is 1 - 100.
    • This item will only be displayed when Ping-based communication monitoring is selected for the “Monitoring type” item.
  • Port
    • Specifies the port for frame monitoring.
    • The input format is portX.YY.
    • This item will only be displayed when Frame reception volume monitoring or LLDP reception interval monitoring is selected for the “Monitoring type” item.
  • Monitor start band
    • Specifies the bandwidth at which frame reception volume monitoring will start.
    • The input range is 1 - 1000000000.
    • This item will only be displayed when Frame reception volume is selected for the “Monitoring type” item.
  • Unavailable device detection band
    • Specifies the band value for determining that the monitored device is unavailable.
    • The input range is 0 - 999999999.
    • The value specified for this item must be less than the value used for “Monitor start band”.
    • This item will only be displayed when Frame reception volume monitoring is selected for the “Monitoring type” item.
  • Operation when detecting change in status
    • SNMP trap transmission
      • When a change of status is detected, a trap is notified to the SNMP manager.
    • Mail notification
      • An e-mail is sent when a change of status is detected.
      • The e-mail server, destination and so on must be configured in order to send e-mail.
      • Further, you must select the Status notification for device monitoring in the “Mail notification settings” as the “notification content”.
      • Configure the e-mail server and e-mail template on the E-mail notifications page.

4. Conditions for determining monitored device status

This explains the conditions for when the monitored device status changes.

  • Monitoring with Ping
    • If a Ping packet transmitted by this unit does not return within the set time waiting for reply, this is counted as one failure, The status is determined by how many failures occur.
    • The conditions for change in status are shown below.
      • IDLE status
        • Initial status determination has not been completed after setting the monitored device.
      • UP status
        • Ping transmission has not failed continuously for the Number of failures before detecting unavailable device that was set.
      • DOWN status
        • Ping transmission fails continuously for the Number of failures before detecting unavailable device that was set.
  • Monitoring according to frame reception volume
    • Measures the frame reception volume for the monitoring target and determines the status.
    • The conditions for change in status are shown below.
      • IDLE status
        • After the monitored device is configured, the frame reception volume for the monitored target port has not once exceeded the monitor start band that was set.
      • UP status
        • After the frame reception volume for the monitored target port exceeded the monitor start band that was set, it did not fall below the unavailable device detection band.
        • The frame reception volume for the monitored target port rose above the unavailable device detection band in DOWN status.
      • DOWN status
        • The frame reception volume for the monitored target port fell below the unavailable device detection band in UP status.
  • Monitoring with LLDP
    • Status is determined by the LLDP frame reception status at the monitored target port.
    • The conditions for change in status are shown below.
      • IDLE status
        • After the monitored device is configured, no LLDP frames have been received at the monitored target port.
      • UP status
        • The next LLDP frame was able to be received at the monitored target port, within the TTL of the previously accepted LLDP frame.
        • An LLDP frame could be received in DOWN status at the monitored target port.
      • DOWN status
        • The next LLDP frame could not be received at the monitored target port, within the TTL of the previously accepted LLDP frame.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Maintenance
  • Dante optimization

Dante optimization

1. Summary

This is the page for operations related to the Dante optimization settings.

The Dante optimization settings can be made manually or by means of auto-configure via LLDP.

By configuring the optimization settings, the following functions will be set.

  • DiffServ base QoS
  • IGMP snooping
  • Flow control
  • EEE

2. Top page

This is the top page for configuring the Dante optimization.

Manual settings

  • Press [Next] button to begin the steps for Dante optimization settings.

Auto-configure via LLDP

  • The current settings for the auto-configure via LLDP function are displayed.
  • Press [Setting] button to display the page where the settings for the auto-configure via LLDP function can be modified.

3. Manual settings page

This is the page for the Dante optimization settings.

Press [OK] button to apply the optimization settings.

4. Auto-configure via LLDP page

This is the page for setting auto-configure via LLDP.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Auto-configure via LLDP

  • Auto-configure via LLDP
    • Select whether to enable the auto-configure via LLDP settings, from the options below.
      • Enable
      • Disable
back to home
  • SWX3220 Series Technical Data (GUI)
  • Maintenance
  • SDVoE optimization

SDVoE optimization

1. Summary

This is the page for operations related to the SDVoE optimization settings.

By configuring the optimization settings, the following will be set.

  • IGMP snooping

2. Top page

This is the top page for configuring the SDVoE optimization.

SDVoE optimization

  • Press [Next] button to begin the steps for SDVoE optimization settings.

3. SDVoE optimization settings page

This is the page for the SDVoE optimization settings.

Press [OK] button to apply the optimization settings.

  • SWX3220 Series Technical Data (GUI)
  • Maintenance
  • PTP

PTP

1. Summary

This page is for configuring PTP (Precision Time Protocol).

This product supports PTPv2 (IEEE1588-2008).

PTP cannot be configured when the stack function is enabled.

2. Top page

This is the top page for PTP.

System settings

  • Displays the PTP settings for the system.
  • The table items are explained below.
    • PTP function for the entire system
      • Displays whether the PTP function is enabled for the entire system.
    • PTP operation mode
      • Displays the PTP operation mode of this unit.
      • Only End-to-End (E2E) / Transparent Clock / 1 step mode is currently supported.
    • Transport protocol
      • Displays the frame format used to transfer PTP messages.
  • Press the [Setting] button to display the page for configuring the system.

Interface settings

  • Displays the PTP configuration for the interface.
  • The table items are explained below.
    • Port
      • Displays the interface name.
    • PTP function
      • Displays whether the PTP function is enabled for the target interface.
  • Press the [Setting] button to display the page for configuring the selected interface.
  • Press the [Specify all] button to configure the settings for all interfaces with the check box selected.
  • Press the [Return to defaults] button to initialize the settings for all interfaces with the check box selected.

3. System settings page

This page is for configuring the PTP settings for the system.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

System settings

  • PTP function for the entire system
    • Specify whether to enable or disable the PTP function for the entire system.
  • PTP operation mode
    • This product only supports end-to-end (E2E) transparent clock 1-step and you cannot change this.
  • Transport protocol
    • Specify the frame format used to transfer PTP messages.

4. Interface settings page

This page is for configuring the PTP settings for the interface.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

Interface settings

  • Port
    • Displays the port name to configure the settings.
  • PTP function
    • Specify whether to enable or disable the PTP function for the target port.
    • For the PTP function to work, you need to enable the entire system’s PTP function as well.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Maintenance
  • Maintenance

Maintenance

  • Command execution
  • System self-diagnostics
  • Cable diagnostics
  • Update firmware
  • CONFIG management
  • Summary data management
  • SYSLOG management
  • Backup / Restoration
  • Restart and initialization
back to home
  • SWX3220 Series Technical Data (GUI)
  • Maintenance
  • Maintenance
  • Command execution

Command execution

1. Summary

In this page you can perform operations related to command execution.

2. Command execution page

In this page you can execute commands and acquire the results of command execution. After entering the command in the command entry field, press the [OK] button to execute the command. If you press the [Clear] button, the contents of the command entry field are cleared.

Command execution

  • Command input
    • In the command entry field, enter the setting in console command format (abbreviated input is not accepted).
    • You can enter multiple commands together by separating them with line-returns.
    • Execution always starts with the specially-privileged EXEC mode (enable). Enter the mode change command each time.
    • For details on commands to enter, refer to the command reference and to the information provided on the Network device product information page and Network device technical information page.
    • The following commands cannot be entered.
      • ping
      • ping6
      • telnet
      • ssh
      • ssh-server host key generate
      • reload
      • restart
      • cold start
      • firmware-update execute
      • firmware-update sd execute
      • startup-config select
      • erase startup-config
      • copy running-config startup-config
      • copy startup-config
      • show config
      • show running-config
      • show startup-config
      • show history
      • show tech-support
      • backup system
      • restore system
      • remote-login
      • stack enable
      • stack disable
      • no stack
      • stack subnet
      • no stack subnet
      • boot prioritize sd
      • no boot prioritize sd
      • quit
      • disable
      • logout
      • exit ( When in special privilege EXEC mode )
      • copy radius-server local
      • crypto pki generate ca
      • no crypto pki generate ca
      • system-diagnostics on-demand execute
  • Command execution result
    • Displays the command execution result.
      • Success ... Shown if the command executed successfully.
      • Error ... Shown if the command you entered could not be executed.
      • Prohibited ... Shown if a prohibited command was entered.
  • Command execution log
    • The console log is output as the command execution record.
    • The command execution log will not necessarily always show the identical result as when the console setting operation was executed.
    • By pressing the [Obtain as text file] button, you can acquire the contents of the command execution log as a text file.
    • The name of the acquired file is “command_YYYYMMDDhhmmss.txt”.
      YYYY...A.D. ( 4 Digit )
      MM...Month ( 2 Digit )
      DD...Day ( 2 Digit )
      hh...Hours ( 2 Digit )
      mm...Minutes ( 2 Digit )
      ss...Seconds ( 2 Digit )
back to home
  • SWX3220 Series Technical Data (GUI)
  • Maintenance
  • Maintenance
  • System self-diagnostics

System self-diagnostics

1. Summary

This page is for finding system failures.

The system self-diagnostics function consists of boot-up, on-demand, and health-monitoring diagnostics.

  • Boot-up diagnostics
    • Verifies whether any failures exist in the system boot-up sequence.
    • Performs at system start-up.
  • On-demand diagnostics
    • Verifies whether any failures exist in the hardware components (e.g., interface) and memory.
    • The user can perform this at any time.
  • Health monitoring diagnostics
    • Verifies whether any failures exist in the hardware components (e.g., fan) and temperatures.
    • Performs all the time in the background while the system is working.

2. Top page

This is the top page for system self-diagnostics.

The top page shows each diagnostics result.

Open the accordion to display the details of each diagnostics result.

In a stack configuration, only the diagnostics results of the main switch are shown.

Diagnostics results of units other than the main switch are not shown.

If you want to check the diagnostics results of units other than the main switch using GUI, please refer to 5. Procedure to check the diagnostics results in a stack configuration.

Boot-up diagnostics

  • The boot-up diagnostics performs the following tests.
    • Loading test
      • Verifies the loading status of software modules.
      • Displays “Passed” if all modules are loaded successfully or displays “Failed” otherwise.
      • The information about modules that failed to load is not displayed. If you want to specify the module that failed to load, find the following errors in the log.
        “[ HAMON]:err: An unexpected error has occurred. (XXXX daemon)”
        * XXXX part shows the module name.
    • RTC test
      • Verifies accessing the RTC register.
      • Retrieves the time twice from RTC, then displays “Passed” if the time has changed or displays “Failed” if it is the same. It also displays “Failed” if retrieving the time from RTC (reading the register) fails.
    • Packet processor test
      • Verifies accessing the packet processor register.
      • Writes to and reads from the packet processor register, then displays “Passed” if the values match or displays “Failed” if the values do not match.
        It also displays “Failed” if accessing the register fails.

On-demand diagnostics

  • Press the [Perform diagnostics] button to display the page for performing on-demand diagnostics.
  • Press the [Discard diagnostics results] button to display the page for discarding the on-demand diagnostics results.
  • You cannot perform on-demand diagnostics if the state of the stack is active.
    If you want to perform on-demand diagnostics when the stack function is enabled, please refer to 5. Procedure to check the diagnostics results in a stack configuration.
  • The on-demand diagnostics performs the following tests.
    • PHY test
      • Verifies accessing the PHY register.
      • Writes to and reads from the PHY register, then displays if the values match or displays if the values do not match. It also displays if accessing the register fails.
    • CPLD test
      • Verifies accessing the CPLD register.
      • Writes to and reads from the CPLD register, then displays “Passed” if the values match or displays “Failed” if the values do not match.
        It also displays “Failed” if accessing the register fails.
    • Memory test
      • Verifies accessing the packet processor memory.
      • Writes to and reads from the various packet processor memory areas, then displays “Passed” if the values match or displays “Failed” if the values do not match.
        It also displays “Failed” if accessing the memory fails.

Health monitoring diagnostics

  • Press to update the results of health-monitoring diagnostics.
  • The health-monitoring diagnostics performs the following tests.
    • Temperature test
      • Monitors the temperatures below.
        • CPU
        • MAC
        • PHY
        • SFP
      • Displays “Passed” if the temperature has not exceeded the threshold or displays “Failed” otherwise.
    • Fan test
      • Monitors the fan speed.
      • Displays “Passed” if the fan speed is normal or displays “Failed” if the fan has stopped or the fan speed has increased.
    • SFP test
      • Monitors the SFP optical Rx level.
      • Displays if the optical RX level is in the normal range or displays if it is out of the range.

3. On-demand diagnostics performing page

This page is for performing on-demand diagnostics.

Press the [OK] button to perform the on-demand diagnostics.

All ports are shut down while the diagnostics is performing.

The unit restarts automatically after performing on-demand diagnostics.

4. On-demand diagnostics results discarding page

This page is for discarding the on-demand diagnostics results.

Press the [OK] button to discard the on-demand diagnostics results.

5. Procedure to check the diagnostics results in a stack configuration

The diagnostics results show only for the unit currently logged in.

If you want to check the diagnostics results of all units in the stack configuration using GUI, perform the following procedures.

  1. Disconnect the connections between the member switches.
  2. Access the GUI of the unit that you want to show the diagnostics results.
  3. (Optional) Perform on-demand diagnostics.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Maintenance
  • Maintenance
  • Cable diagnostics

Cable diagnostics

1. Summary

This page is for diagnosing whether cable failures have occurred.

The cable diagnostics can check failures of the LAN cables connected to the LAN ports of this unit.

You can use this to troubleshoot network problems or as a simple cable check when setting up a network.

Please note that this diagnostics is a simplified function, so it cannot detect as precisely as a specialized device.

Cables should be longer than 10 m for correct diagnostics.

The diagnostics does not work correctly if the port is supplying PoE power.

2. Top page

This top page is for cable diagnostics.

Cable diagnostics

  • Press the [OK] button to perform the cable diagnostics.
    • The following ports are not able to perform cable diagnostics.
      • The port interface is disabled
      • The port is shut down by loop detection
      • The port is shut down by spanning tree
      • The port is shut down by port security violation
    • The port under diagnostics will temporarily linke down.
  • Press the [Discard diagnostics results] button to delete the last cable diagnostics results.
  • The cable diagnostics results show the following items.
    • Port
      • The port performed diagnostics.
    • Result
      • The status of cable connected to LAN port.
        • OK : Electrically connected.
        • Open : A target device is not connected, or the cable is damaged.
        • Short : The cable is shorted.
    • Distance to the cable failure point
      • If the result is “Open” or “Short”, displays the distance from the LAN port to the cable failure point in meters.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Maintenance
  • Maintenance
  • Update firmware

Update firmware

1. Summary

In this page you can perform operations related to firmware update.

2. Top page

This is the top page for firmware update.

You can start the procedure for updating the firmware via the network. Various settings for updating the firmware via the network are displayed.

Firmware update information

  • Displays the firmware revision and basic settings.
  • Displays the firmware revision for the next start-up if a restart is pending after a firmware update.
  • Press the [Setting] button to access a page where you can change the settings.

Update firmware from PC

  • When you press the [Next] button, the procedure for updating the firmware from the PC will be started.

Update firmware via network

  • When you press the [Next] button, the procedure for updating the firmware via the network will be started.
  • Various settings for updating the firmware via the network are displayed.
  • Press the [Setting] button to access a page where you can change the settings.

3. Firmware update basic settings page

This page is for configuring the basic settings for the firmware update.

When you have entered the settings, press the [Confirm] button. If there are no mistakes in the input content confirmation screen, press the [OK] button.

Firmware update basic settings

  • Restart timing after the update
    • Specify the restart timing after the firmware update.
  • Restart method after the update
    • If you want the system to restart after the firmware update in a stack configuration automatically, you can specify whether each switch restarts in sequence or simultaneously.
    • This item cannot be configured when the stack function is disabled.

4. Update firmware from PC page

In this page you can specify the firmware file placed on the PC from which you are accessing the Web GUI, and perform the firmware update.

In “Select file,” select the firmware file that you want to use for the update, and press the [Confirm] button. If there are no mistakes in the confirmation screen, press the [OK] button.

Update firmware from PC

  • Specify update file
    • Selects the firmware file used for the update
  • Restart after the update
    • Specify whether or not to restart after the firmware update automatically.
    • The timing for restarting depends on the Restart timing after the update in the Firmware update basic settings.

5. Update firmware via network page

In this page you can download a firmware file from a web server, and perform the firmware update. This function lets you easily perform the entire process of checking for the latest firmware, downloading it, and updating the firmware.

When you open the page, the revision of the firmware file on the web server is automatically checked.

If the download URL is the Yamaha website and an updateable firmware revision is found. The [OK] button displays a guide to the software license agreement website. Please read the contents on the website and press the [OK] button if you agree to the terms. Press the [OK] button to start downloading the firmware file from the webserver.

Update firmware via network

  • Current firmware revision
    • The revision of the currently-used firmware file is shown.
  • Firmware revision available for update
    • Updatable revisions of the firmware files on the web server are shown.
  • Restart after the update
    • Specify whether or not to restart after the firmware update automatically.
    • The timing for restarting depends on the Restart timing after the update in the Firmware update basic settings.

6. Update via network settings page

In this page you can make various settings for updating the firmware via the network.

When you have entered the settings, press the [Confirm] button. If there are no mistakes in the input content confirmation screen, press the [OK] button.

Update via network settings

  • Download source URL
    • This is the setting of the URL at which the firmware is located.
  • HTTP proxy server
    • This is the HTTP proxy server setting used to download the firmware via the network.
  • Revision downgrade
    • This setting permits or forbids rewriting to an older version of firmware.
  • Timeout
    • This setting specifies the timeout time during the process of updating the firmware via the network.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Maintenance
  • Maintenance
  • CONFIG management

CONFIG management

1. Summary

In this page you can import and export CONFIG.

This unit operates in accordance with its CONFIG file (settings data). A CONFIG file consists of a combination of multiple commands.

2. Top page

This is the top page for CONFIG management.

You can start the process of importing a CONFIG, or the process of exporting a CONFIG.

Import

  • Press the [Next] button to display a page where you can import a CONFIG.

Export

  • Press the [Next] button to display a page where you can export a CONFIG.

3. Import page

In this page, a CONFIG from the PC can be copied to internal non-volatile memory, updating the CONFIG.

When you have entered the settings, press the [Confirm] button. If there are no mistakes in the input content confirmation screen, press the [OK] button.

If the currently used CONFIG is the same as the import-destination CONFIG, the unit restarts automatically after the import has ended successfully.

If you want to start up with a CONFIG file that is not currently being used, change the setting using the startup-config select command before restarting.

Import CONFIG

  • Import method
    • Select the import method from the following options.
      • Import all settings (.zip)
        • Import information such as a CONFIG file and a L2MS agent CONFIG together.
        • You cannot be used when using YNO manager for access.
      • Import a CONFIG file (.txt)
        • Import a CONFIG file.
      • Import a L2MS agent CONFIG (.bin)
        • Import a L2MS agent CONFIG.
  • Settings to import
    • Press the [Select a file] button to display the file selection dialog box.
    • You can use the settings obtained on the export page.
  • Import-destination
    • Select the import-destination CONFIG in internal non-volatile memory.
    • Cannot be changed when the stack function is enabled. (The currently used CONFIG is selected.)

4. Export page

In this page you can copy a CONFIG from internal non-volatile memory to the PC.

When you have finished entry, check the entered content and press the [OK] button.

Export CONFIG

  • Export method
    • Select the export method from the following options.
      • Export all settings (.zip)
        • Export information such as a CONFIG file and a L2MS agent CONFIG together.
        • You cannot be used when using YNO manager for access.
      • Export a CONFIG file (.txt)
        • Export a CONFIG file.
      • Export a L2MS agent CONFIG (.bin)
        • Export a L2MS agent CONFIG.
  • Settings to export
    • Select the CONFIG in internal non-volatile memory that you want to export.
    • Cannot be changed when the stack function is enabled. (The currently used CONFIG is selected.)
back to home
  • SWX3220 Series Technical Data (GUI)
  • Maintenance
  • Maintenance
  • Summary data management

Summary data management

1. Summary

This page is for performing operations related to the summary data.

2. Top page

This is the top page for summary data management.

The settings for whether to back up the summary data or not are displayed.

Here you can start the process of clearing the summary data and exporting summary data to a PC.

Backup settings for summary data

  • The settings for whether to back up the summary data or not are displayed.
  • Press the [Setting] button to access a page where you configure the backup settings.

Clearing summary data

  • Press the [Next] button to begin the process of clearing the summary data.

Export summary data

  • Press the [Next] button to begin the process of exporting the summary data to a PC.

3. Backup settings page for summary data

This page is for configuring the summary data backup settings.

Enter the settings, and then press the [Confirm] button.

If there are no mistakes in the input content of the confirmation screen, press the [OK] button.

When backup settings are enabled, the summary data will be backed up whenever an SD card has been inserted.

Backup settings for summary data

  • Summary data to be backed up
    • Select the summary data to back up from the list below.
      • Traffic information
      • Resource information

4. Page for clearing summary data

This page is for clearing the summary data.

When you have inputted the settings, press the [Confirm] button.

If there are no mistakes in the input content confirmation screen, press the [OK] button.

When the summary data has been cleared, both the data saved in internal volatile memory and the data backed up to SD card will be cleared.

Clearing summary data

  • Summary data to clear
    • Select the summary data to clear from one of the following.
      • Traffic information
      • Resource information

5. Export page for summary data

This page is for exporting summary data.

When you have finished inputting, check the inputted content and press the [OK] button.

Implementing the summary data export will download a ZIP file.

Summary data will be exported if an SD card is inserted.

See 6. Export file configuration for more information on the configuration of the ZIP file.

Export summary data

  • Summary data to export
    • Select the summary data to export from one of the following.
      • Traffic information(Transmit)
      • Traffic information(Reception)
      • Resource information
  • Specifying a timespan
    • Select the month(s) of the data to be exported.
    • Specify the month(s) from the previous year using the drop-down list box.

6. Export file configuration

This explains about the folder that will be extracted when decompressing the ZIP file.

The configuration when the October 2017 traffic information (received) is exported is shown below.

  • 20171103150412_trf_rx_csv.zip
    • 20171103150412_trf_rx_csv
      • 20171001_trf_rx_hour.csv
      • :
      • 20171031_trf_rx_hour.csv
      • 201710_trf_rx_day.csv

This explains about the folder and files after extraction.

  • 20171103150412_trf_rx_csv
    • The CSV files with the summary data are contained in this folder.
    • The time of export and data type are used in the folder name.
    • One of the following will be used for the data type, according to the type specified.
      • trf_tx

        For traffic information (transmission)

      • trf_rx

        For traffic information (reception)

      • resource

        For resource information

  • 20171001_trf_rx_hour.csv
    • This is the CSV file with the summary data.
    • The date, data type and data unit time will be included in the file name for the target data.
    • The naming convention for the data type is the same as for the folders.
    • One of the following will be used for the data unit time.
      • hour

        Files that are totaled every hour, containing one days’ worth of data

      • day

        Files that are totaled every day, containing one months’ worth of data

back to home
  • SWX3220 Series Technical Data (GUI)
  • Maintenance
  • Maintenance
  • SYSLOG management

SYSLOG management

1. Summary

In this page you can view and edit the settings of the SYSLOG function.

The operation history of this device is output as the SYSLOG (log data) according to the settings of the SYSLOG function. In addition to recording the SYSLOG inside this device, you can also specify a destination address for output to an external host.

2. Top page

This is the top page for SYSLOG management.

The current settings for the SYSLOG function are shown.

SYSLOG settings

  • The output-level of SYSLOG that is output, and the header information and destination address for the SYSLOG transmission are shown.
  • Press the [Setting] button to access a page where you can change the settings.
  • You can delete the saved log.

3. SYSLOG settings page

In this page you can make settings for the SYSLOG function.

When you have entered the settings, press the [Confirm] button. If there are no mistakes in the input content confirmation screen, press the [OK] button.

For details on the various SYSLOG types, refer to the command reference.

SYSLOG settings

  • SYSLOG type
    • ERROR
      • This setting specifies whether ERROR type SYSLOG is output.
    • INFO
      • This setting specifies whether INFO type SYSLOG is output.
    • DEBUG
      • This setting specifies whether DEBUG type SYSLOG is output.
  • SYSLOG transmission
    • Header
      • You can configure the header for outputting SYSLOG to external hosts.
      • You can specify whether to include or exclude the timestamp and hostname in the SYSLOG message header.
        The hostname is stored as the device name of the unit.
    • SYSLOG transmission destination address
      • This is the transmission destination address setting when outputting the SYSLOG to an external host.
      • You can specify up to two IPv4/IPv6 destination addresses.
      • For IPv6 link local addresses, you must also specify the interface to send from. (Format: fe80::X%vlanN)
      • If no destination address is specified, the SYSLOG is recorded only inside the switch.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Maintenance
  • Maintenance
  • Backup / Restoration

Backup / Restoration

1. Summary

This page is for the backup and restoration of the configuration of the entire device.

If the device fails, you can restore the backup file to a newly prepared device to restore the settings.

The backup file contains the following information.

  • Startup configuration and its associated information
  • Setting values for the startup-config select command
  • Setting values for the boot prioritize sd command

Do not perform any operation (such as the write command or the erase startup-config command) related to the configuration while performing the backup or restoration on this page.

In a stack configuration, you need to back up and restore for each switch.

2. Top page

This is the top page for the backup/restoration.

Backup

  • Press the [Next] button to display the page for backing up the system.

Restoration

  • Press the [Next] button to display the page for restoring the system.

3. Backup page

This page is for downloading the configuration of the entire device as a backup file.

If the stack function is disabled, the execution screen is displayed. Press the [OK] button to download the backup file for the device that you are currently accessing.

If the stack function is enabled, the input screen is displayed. Select the device to back up, and press the [Confirm] button. Then press the [OK] button on the execution screen to download the selected device’s backup file.

The following is an explanation of the screen when the stack function is enabled.

Backup

  • Stack ID of the device to back up
    • Select the stack ID of the device to back up.
    • The model name and the serial number of the selected device are displayed.

4. Restoration page

This page is for restoring the backup configuration of the entire device to this device.

When you have entered the settings, press the [Confirm] button. If there are no mistakes in the input content confirmation screen, press the [OK] button.

When the restoration is complete, the device automatically restarts.

Restoration

  • Backup file
    • Select the backup file to restore.

5. Restoration procedure in a stack configuration

When the stack function is enabled, the configuration for the entire device cannot restore from this page.

If some of the devices that make up the stack fail and need to replace them, follow the procedure below to restore them.

  1. Update the firmware of the newly prepared device to the same version as the device to be replaced.
  2. After updating the firmware, access this page and restore the configuration you have backed up before for the entire device.
  3. After the restoration and restart are complete, turn off the power. Then connect the device to the master switch in operation, and turn on the power.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Maintenance
  • Maintenance
  • Restart and initialization

Restart and initialization

1. Summary

In this page you can restart this unit and return it to the factory-set state.

2. Top page

This is the top page for restart and initialization.

Here you can start the process of restarting this unit or returning it to the factory-set state.

Restart

  • When you press the [Next] button, the process of restarting this unit will begin.

Initialization

  • When you press the [Next] button, the process of returning this unit to the factory-set state will begin.

3. Restart page

In this page you can restart this unit.

When you press the “OK” button, the unit will restart.

If the stack function is disabled, press the [OK] button to restart the unit.

If the stack function is enabled, select the device to restart from the input screen and press the [Confirm] button. Then, press the [OK] button on the execute screen to restart the specified device.

Note that when you execute restart, the settings that were being changed will not be saved. In addition, the GUI cannot be accessed until restart has completed.

4. Initialization page

In this page you can return this unit to its factory-set state.

After you have entered the administrator password, press the [Confirm] button. Confirm the content to be executed, and if you want to return this unit to its factory-set state, press the [OK] button.

Note that when the unit is returned to its factory-set state, all settings will return to their default values, including the address for accessing the GUI.

If the stack function is enabled, only the main switch is initialized.

Initialization

  • Administrator password
    • To return the unit to its factory-set state, enter the administrator password.
back to home
  • SWX3220 Series Technical Data (GUI)
  • Maintenance
  • Find this switch

Find this switch

1. Summary

The “Find this switch” function uses the LED and buzzer installed in this product to inform you of the installation location of the product in an easy-to-understand manner.

Please use it when you want to check the installation location of the product or when you want to show the operation target to the workers at the site.

While this function is running, the LED and buzzer will be in the following states, respectively.

  • LED : The LEDs on all ports flash orange.
  • Buzzer : Sounds the “Find this switch” execution sound.

2. “Find this switch” execution page

This page is for executing the “Find this switch” function.

Find this switch

  • Displays the execution status of “Find this switch” function.
  • You can start the “Find this switch” function by pressing the [Start] button when it is stopped.
  • You can stop the “Find this switch” function by pressing the [Stop] button when it is running.
  • Press the [Start] button to display the dialog and select the following items to start the notification.
    • Notification method
      • Select the Type of notification from the following.
        • Blink the port LED
          • Blinks the LEDs on all ports in orange while the function is running.
          • It cannot be selected when the Current LED mode is OFF mode.
          • You can configure the LED mode in “Management -> Unit settings-> LED mode setting”.
        • Beep the buzzer
          • During the execution of the function, the buzzer sounds the “Find this switch” execution sound.
          • It cannot be selected if the buzzer function is disabled or muted.
          • You can configure the buzzer function and mute status in “Management -> Unit settings -> Buzzer settings”.
    • Notification period
      • Select the time to continue the notification from the following.
        • 30 Seconds
        • 1 Minutes
        • 3 Minutes
        • 5 Minutes
        • 10 Minutes
        • 1 Hours
      • After pressing the [Execute] button, the notification will be automatically stopped when the Duration of notification expires.
back to home

Error

Print

  • foo
  • bar
