Zone connections (Advanced)

Using the Zone function, you can play audio in another room separate from the one where this product is installed.

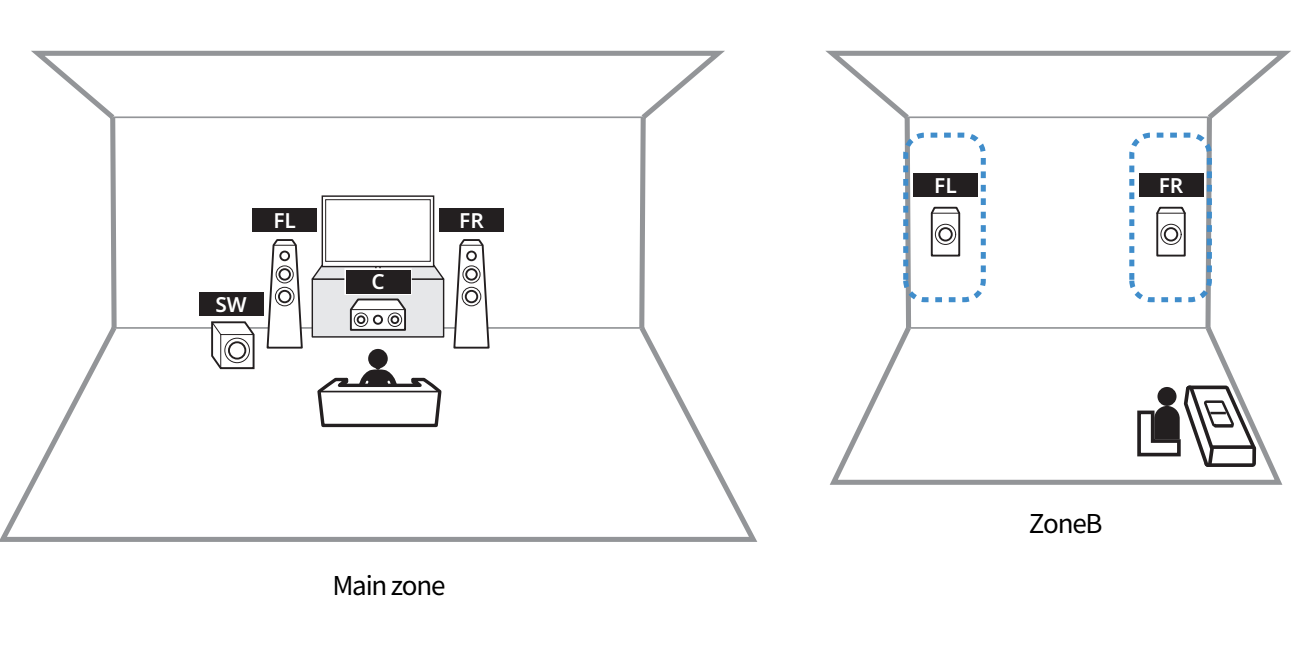

The figure below shows an example using a 3.1-channel Main zone and ZoneB.

To use zone speakers, you must change the settings.

NOTE
  • You can connect up to two subwoofers (with built-in amplifiers). Both subwoofers output the same audio signal.
  • If using only one subwoofer, you may place it on either side.
  • The following connections cannot be used at the same time:
  • Surround speaker
  • Height speakers
  • ZoneB speakers
  • Bi-amp connections
