1. RX300A
2. PREPARATION FOR USE

Making initial settings using the Setup Guide

When you turn on this product for the first time, follow the on-screen instructions (Setup Guide) on the TV to perform the initial settings.

The settings include the following:

• Setup Guide
• Language settings
• Speaker setup using “Room Correction”

Setting the language

1. Turn on the TV.

•

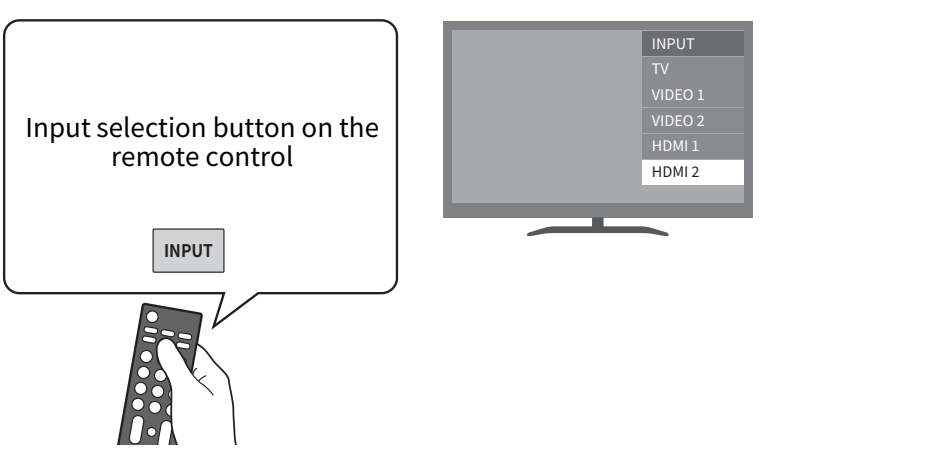

2. Switch the TV input.

• Switch the TV input to the HDMI input connected to the HDMI OUT port of this product.

• The display may vary depending on the type of TV you are using.

•

3. Make sure that the Setup Guide is displayed on the TV screen.

• It may take several seconds for the screen to appear. If it does not appear after waiting for a while, start again from “Connecting a TV”.

NOTICE

• Do not connect the Setup Microphone to this product at this stage.

•

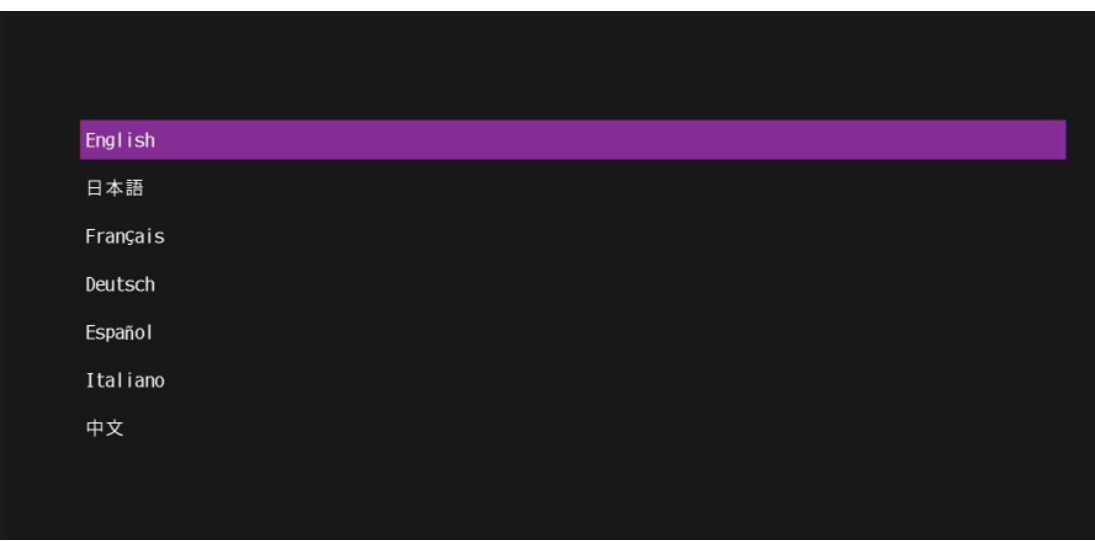

4. Select the language.

• Use the cursor keys to select a language, then press the ENTER key.

Set up the speakers using “Room Correction”

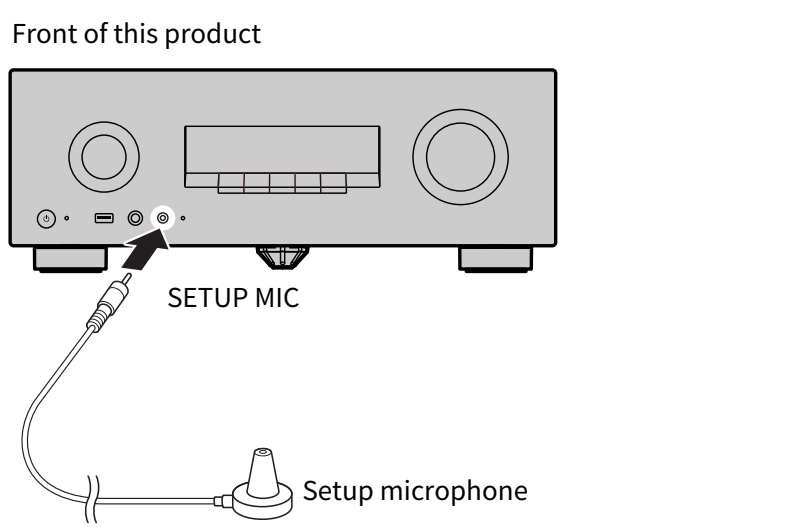

1. Connect the Setup Microphone.

• Connect the supplied Setup Microphone to the SETUP MIC jack of this product.

NOTE

• “Room Correction” detects the speaker connections and the distance to the listening position, and automatically adjusts the volume balance, delay, and tone.

•

2. Assemble the Cardboard Microphone Stand.

1.


1.


1.


1.


1.


1.


•

3. Place the Setup Microphone at the listening position.

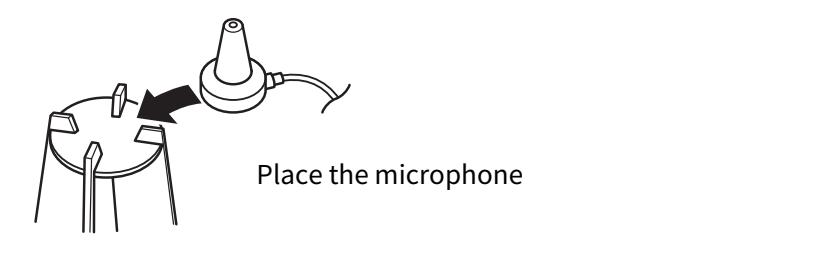

1. Place the Setup Microphone on top of the Cardboard Microphone Stand.

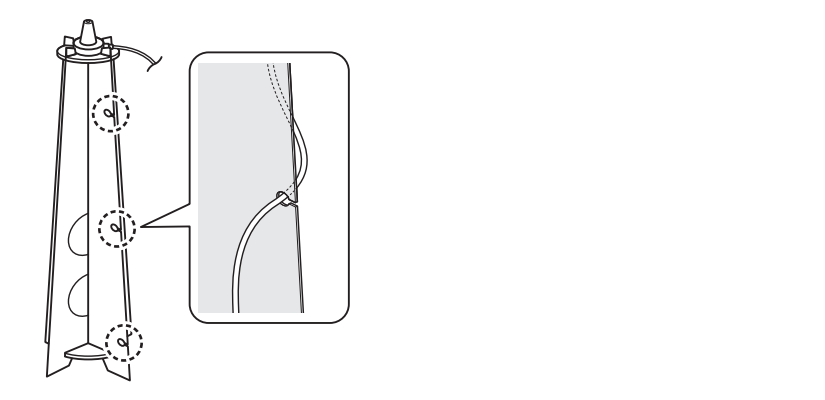

1. Hook the Setup Microphone cable into the hole in the Cardboard Microphone Stand.

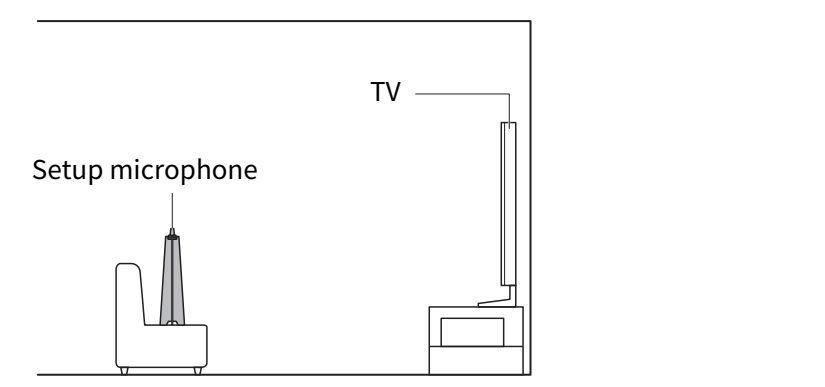

1. Place the Cardboard Microphone Stand with the microphone attached at the listening position.


NOTE

• For best results, position the microphone at ear height when seated. You can also use a camera tripod.

•

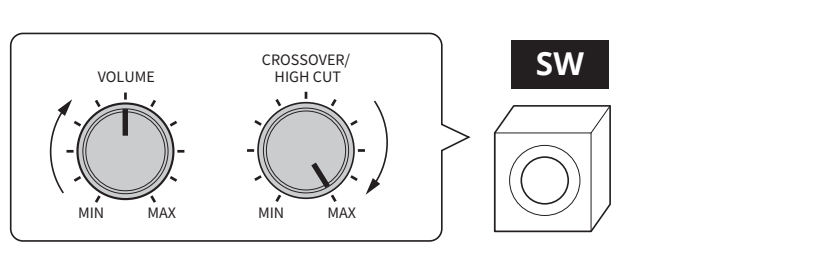

4. Set up the subwoofer.

• Setting up the subwoofer allows you to enjoy powerful bass sound. If you are using a subwoofer, configure this setting.

1. Turn on the subwoofer.

1. Set the volume to half of the maximum level.

1. If the crossover is adjustable, set it to the maximum.


•

5. Follow the on-screen instructions on the TV to perform the measurement.

NOTICE

• Loud test tones will be output during the measurement. If small children are present, please take appropriate precautions.

• The volume cannot be adjusted during the measurement.

• Keep the room quiet during the measurement.

• During the measurement, stay in a rear corner of the room and avoid blocking the path between the speakers and the Setup Microphone.

• Do not connect headphones.

•

6. Check the measurement results and select “Save”.

• When the measurement is complete, the results are displayed on the TV.

• Check the results and, if there are no issues, select “Save”.

•

7. When the setup completion screen appears, disconnect the Setup Microphone from this product.

•

• This completes the “Room Correction” process.
