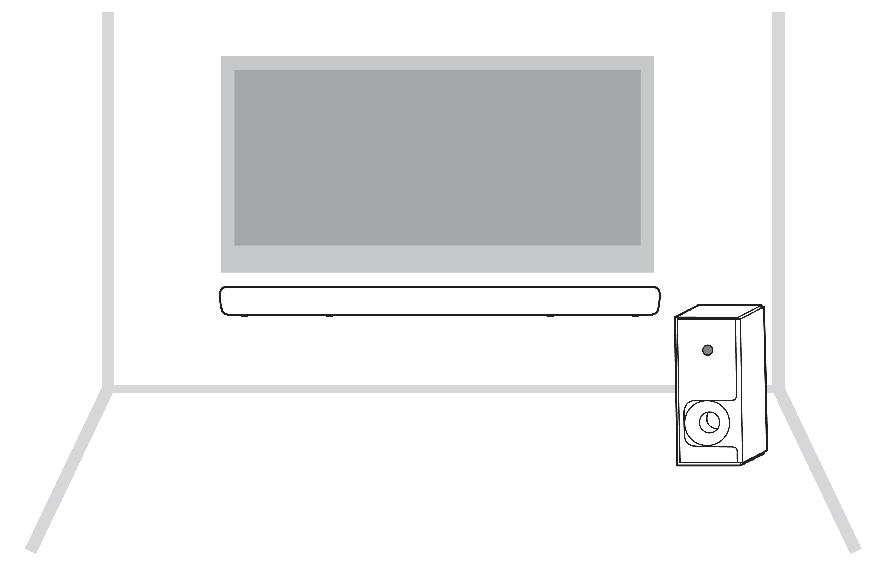

Mounting the center unit on a wall

Mount the center unit on a wall using the screw holes on the rear panel.

CAUTION
  • Please have a qualified contractor or dealer when mounting the center unit on a wall. Some skills and experience are required for safe installation.
  • To prevent the center unit from falling, attach it to a wall constructed of drywall (plasterboard).
  • Make sure you use screws (sold separately) that can support the weight of the installation. Using clamps other than specified screws, such as short screws, nails, and two-sided tape, may cause the center unit to fall.
  • Fix the cables in place where they will not become loose. If your foot or hand accidentally gets caught on a loose cable, the center unit may fall.
  • Do not lean on the unit or apply excessive force to the top of the center unit. Doing so may cause the center unit to fall.
  • Check that the center unit is securely fixed after the installation. Yamaha will bear no responsibility for any accidents caused by improper installations.

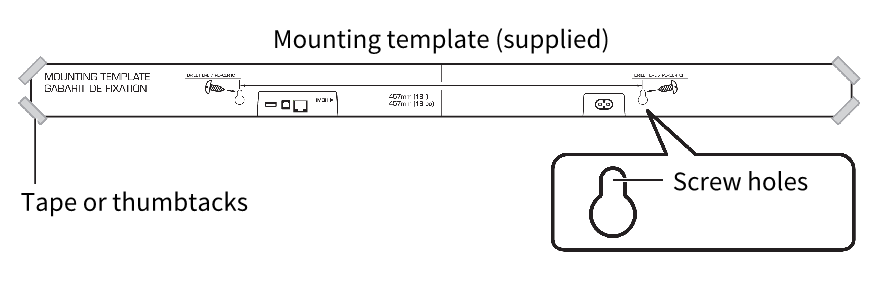

  1. Attach the mounting template (supplied) on a wall and mark for the screw holes.
  1. Remove the mounting template from the wall, and then install screws (sold separately) at the points marked on the wall.

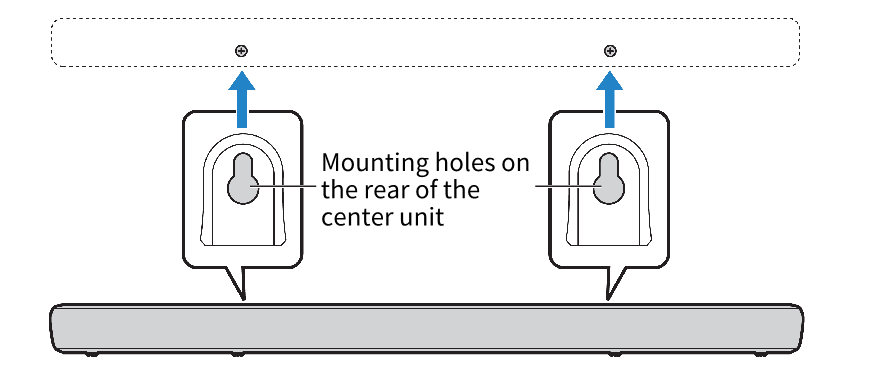

  1. Hang the center unit on the screws.
