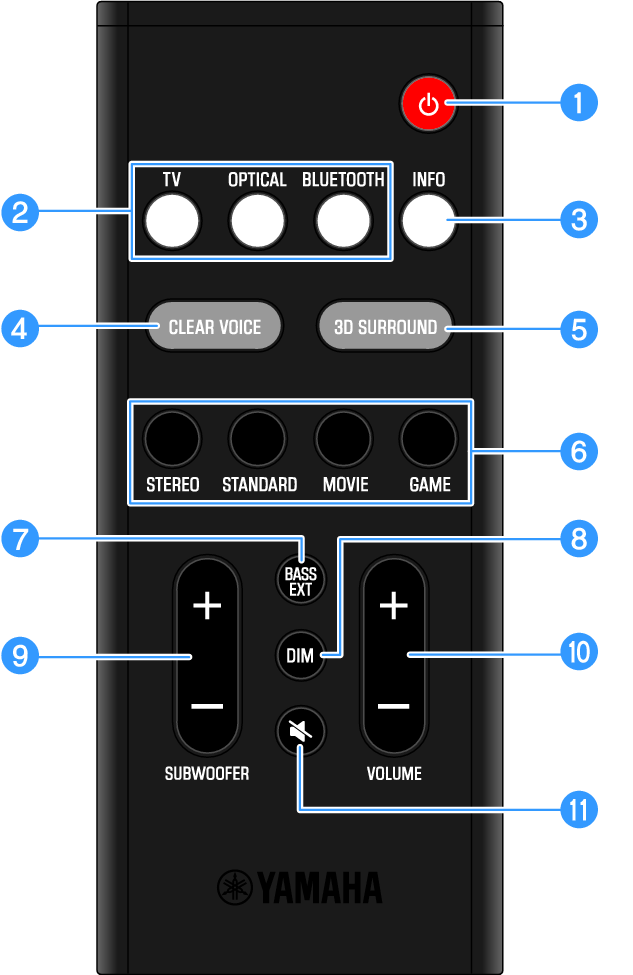

Part names of the remote control

This section describes the part names and functions of the remote control.

　

a

z (Power) button

Turn the sound bar on and off ().

b

Input source buttons

Select an audio input source ().

  • TV button: Audio from a TV
  • OPTICAL button: Audio from a device connected to the OPTICAL input jack
  • BLUETOOTH button: Audio from a Bluetooth device

c

INFO button

Shows information such as the type of audio signal being played and the settings for the sound bar’s functions ().

d

CLEAR VOICE button

Enable or disable the Clear Voice function ().

e

3D SURROUND button

Press the button to enable or disable 3D surround playback ().

f

Sound mode buttons

Switch to your preferred sound mode ().

  • STANDARD
  • MOVIE
  • GAME
  • STEREO

g

BASS EXT button

Enable or disable the Bass Extension function ().

h

DIM button

Switch the brightness of the indicators of the sound bar ().

i

SUBWOOFER (+/-) button

Adjust the volume of the subwoofer ().

j

VOLUME (+/-) button

Adjust the volume of the sound bar ().

k

| (Mute) button

Mute the audio output (). Press this button again, or press VOLUME (+/-) to unmute.

NOTE
  • Use the remote control within the range shown in the following illustration:
  • When the sound bar is mounted on a wall, point the remote control at the remote control sensor on the top of the sound bar.
