Connecting headphones

This shows how to connect your headphones to this product. Use the input jack or connector that matches the plug shape of your headphone cable.

How to connect

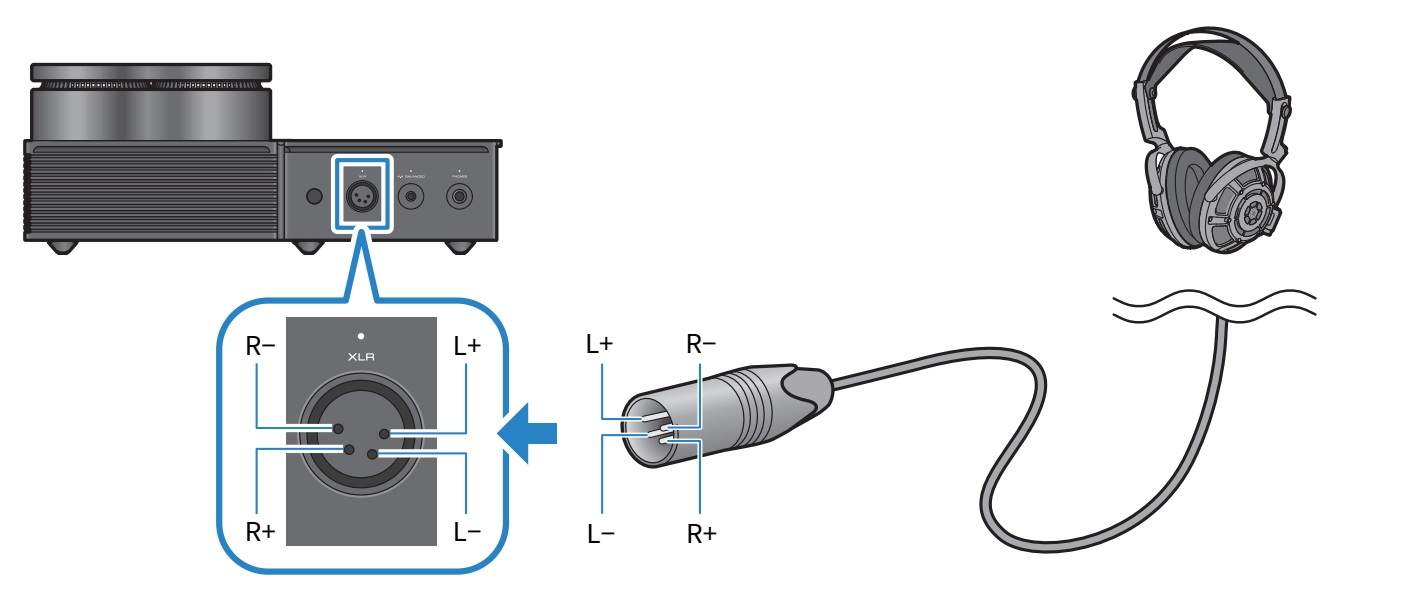

XLR 4-pin plugs

Connect the XLR 4-pin plug to the [XLR] connector on the front panel.

Balanced 4.4 mm five-conductor (TRRRS) plugs

Connect the balanced 4.4 mm five-conductor (TRRRS) plug into the [4.4 BALANCED] jack on the front panel.

6.3 mm (1/4-inch) standard plugs

Connect the 6.3 mm (1/4-inch) standard plug into the [PHONES] jack on the front panel.
