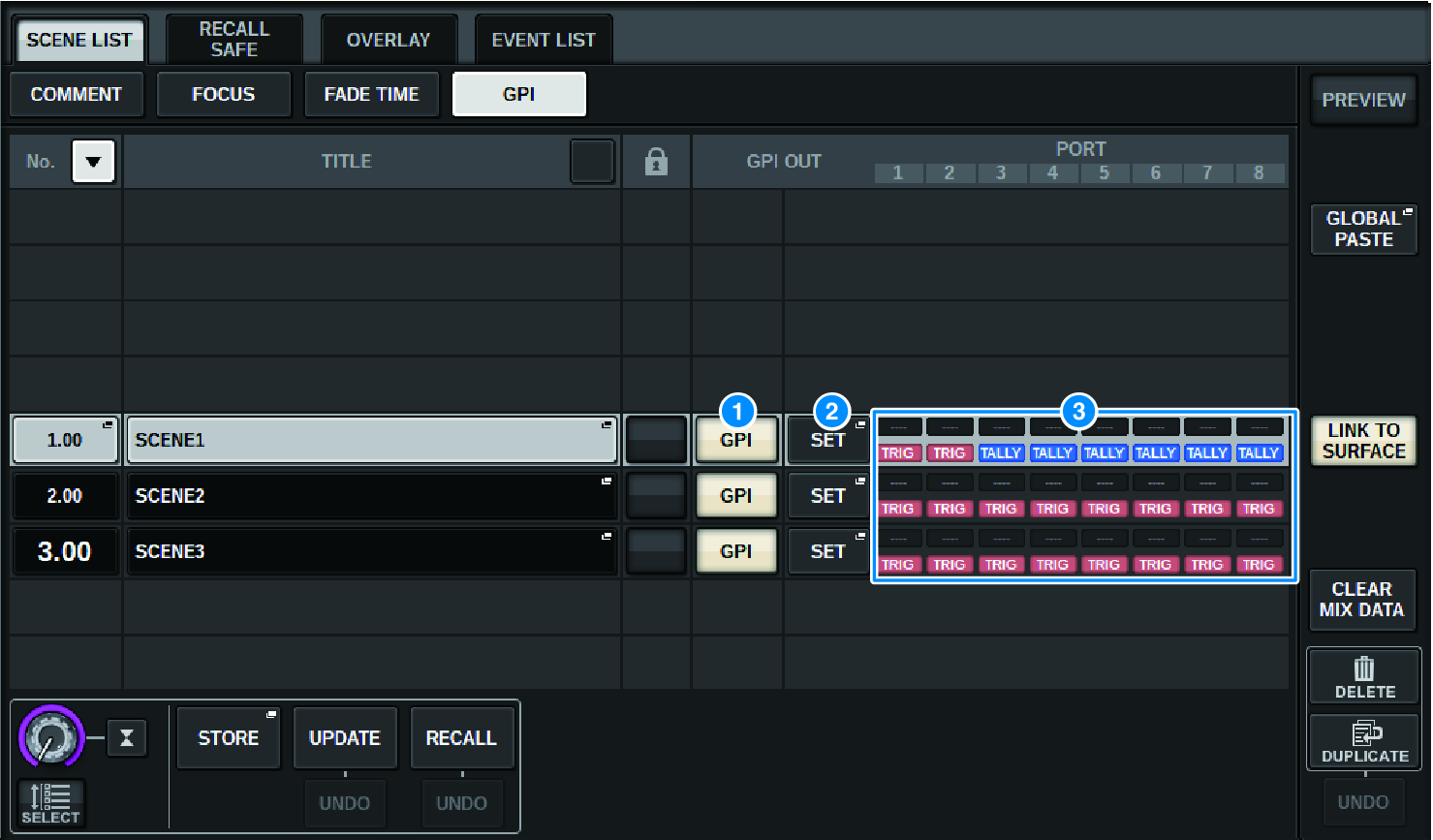

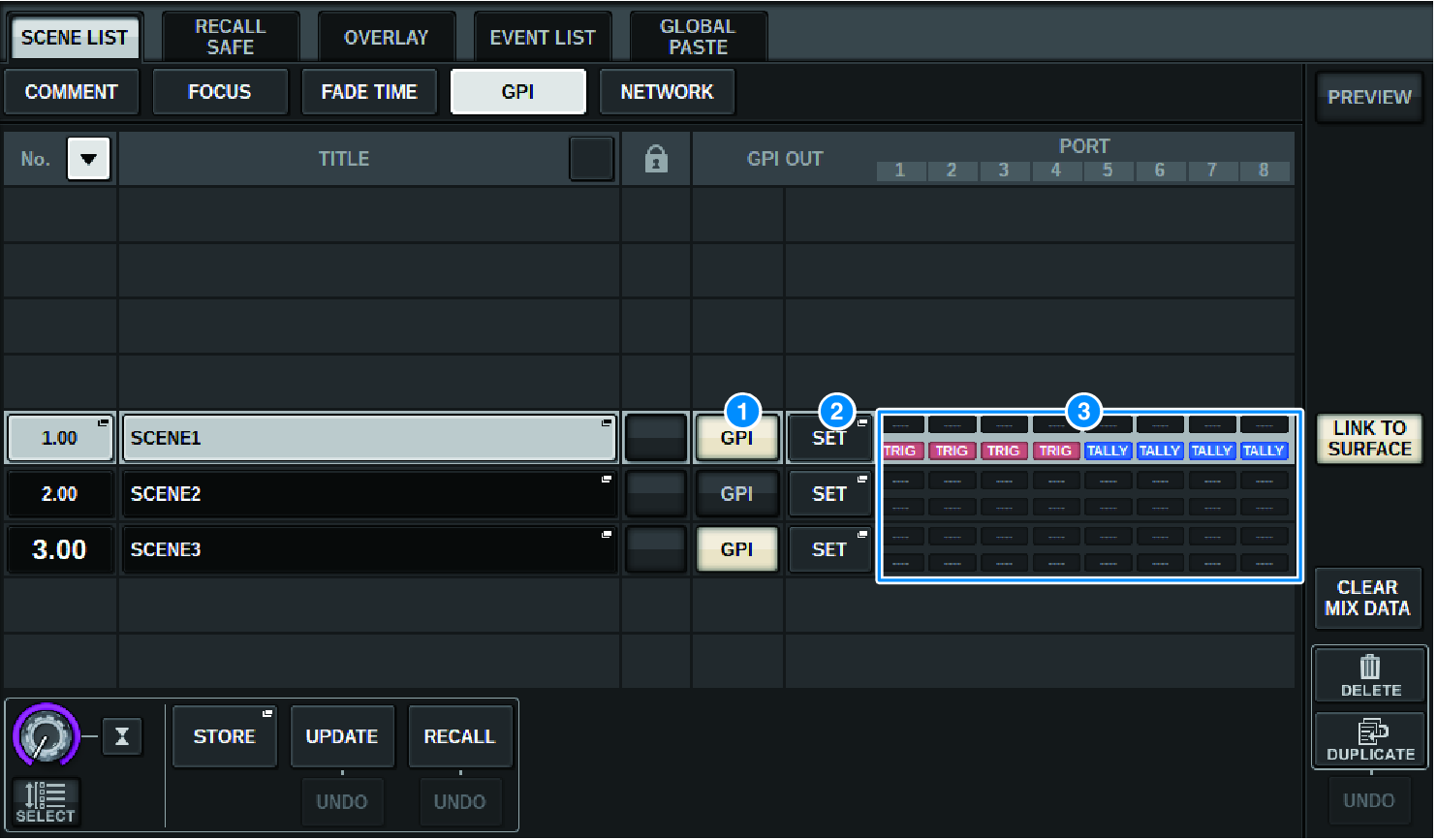

GPI field

This screen contains the following items.

a

GPI button

If this button is on and the selected scene is recalled, a control signal will be output.

b

SET popup button

Press this button to access a popup window, in which you can specify the control signal output from each GPI OUT.

c

GPI PARAMETER display section

In this section, indicators show the status of the GPI settings specified for each scene.
