Pair setting

Adjacent channels can be paired and used as a stereo module.

Input channels

You can pair either odd/even-numbered channels or even/odd-numbered channels. For single input channels (monaural), the pan level is nominal at the center, and +3 dB at hard left or hard right. For paired input channels, the balance level is nominal at the center, and +3 dB at hard left or hard right.

MIX buses and MATRIX buses

You can pair adjacent odd/even-numbered MIX buses or MATRIX buses.

NOTE
  • For information on the parameters that can be linked using the pair setting, refer to the data list.

When MIX buses are paired, the signal flow will change as described below:

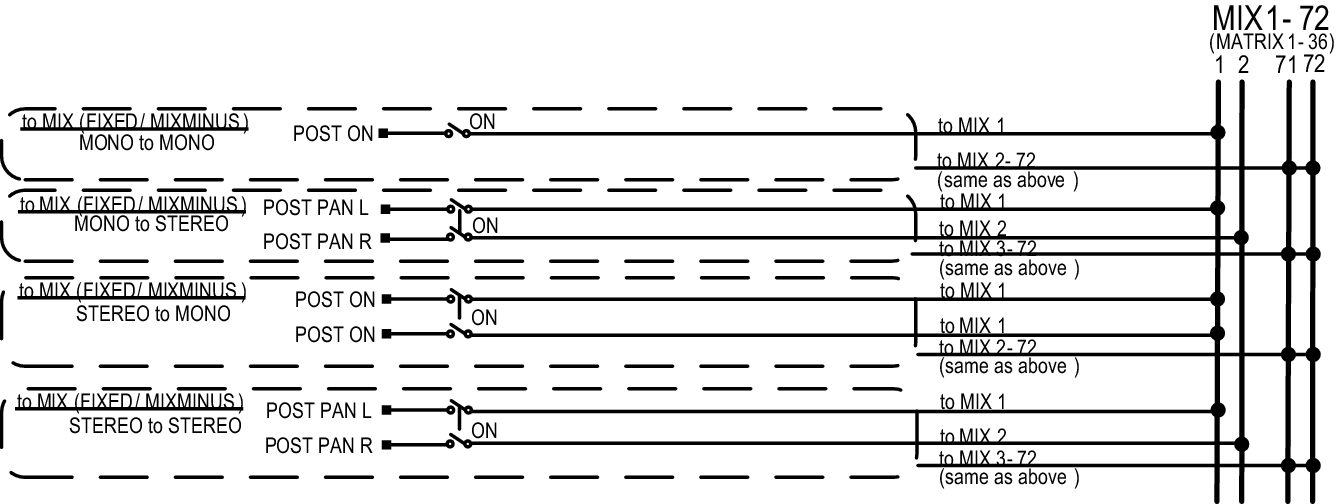

CH to MIX

FIX

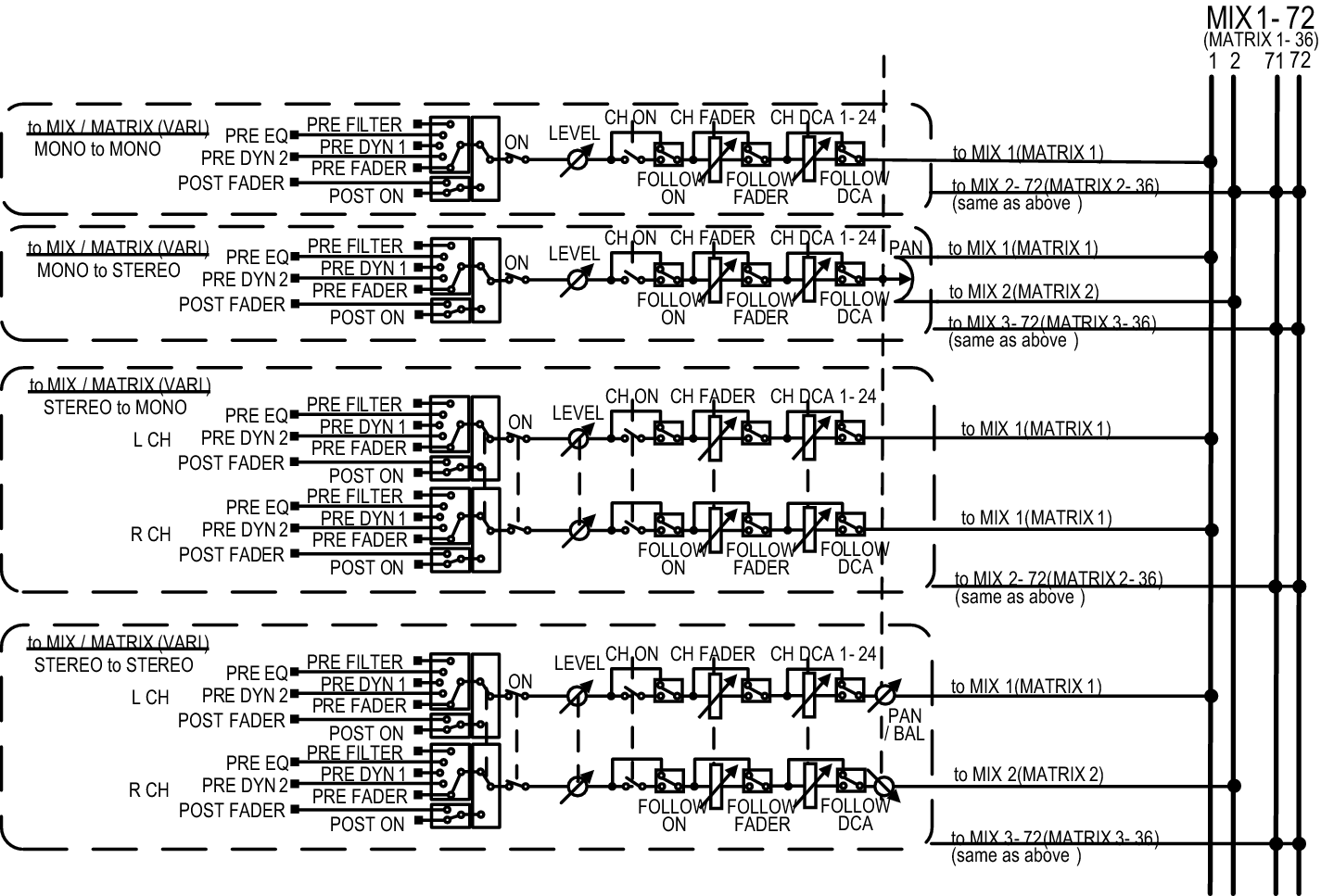

CH to MIX

VARI

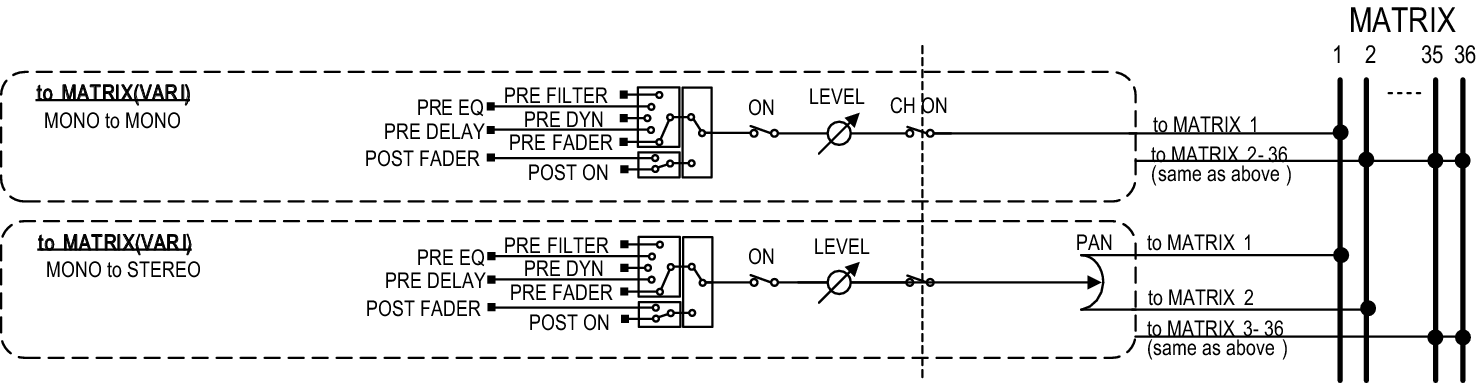

MIX to MATRIX

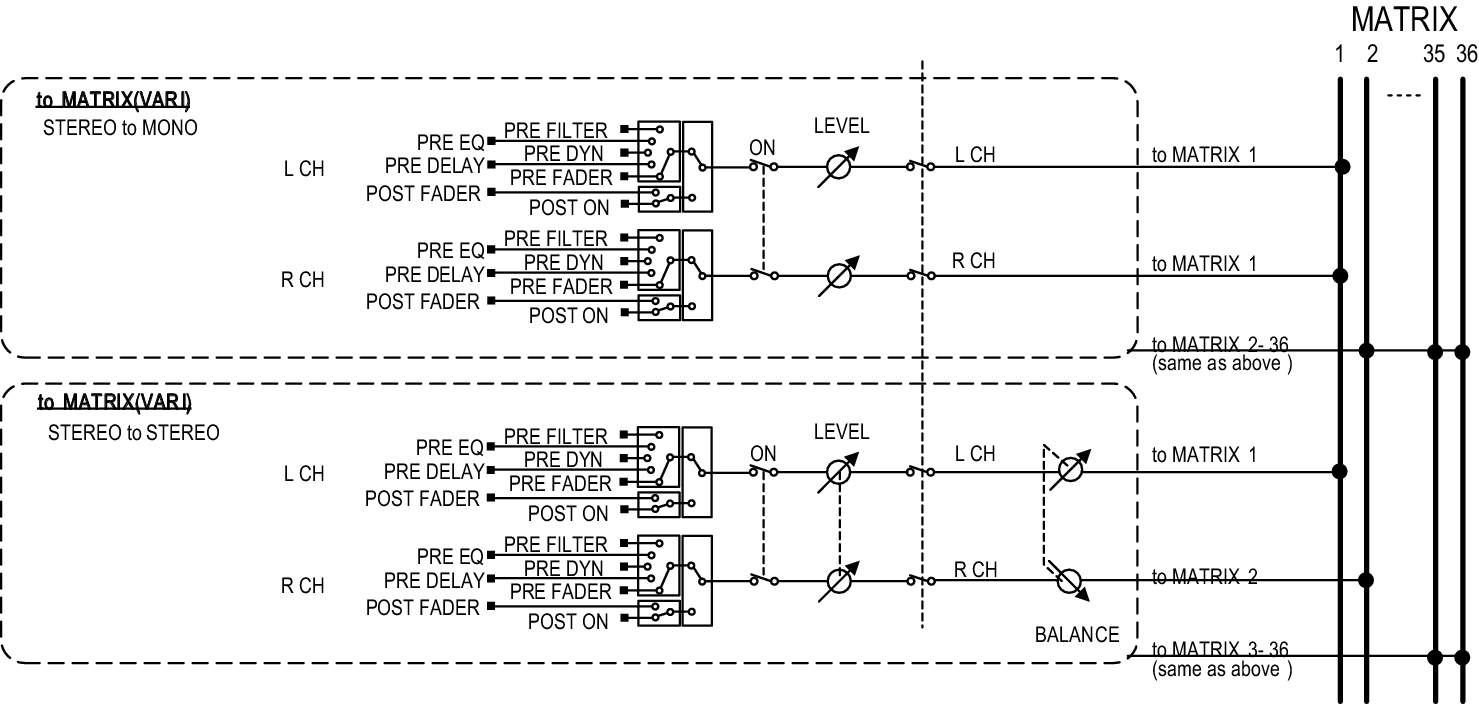

MIX/STEREO to MATRIX

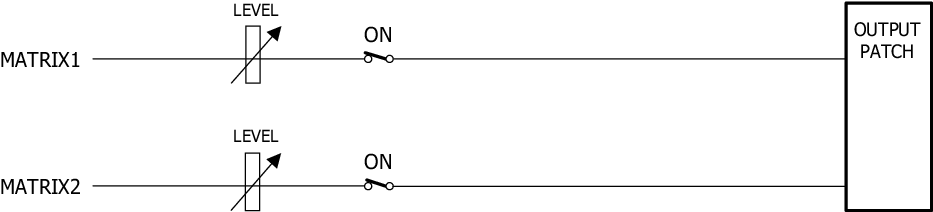

MATRIX (MONO) to OUTPUT PATCH

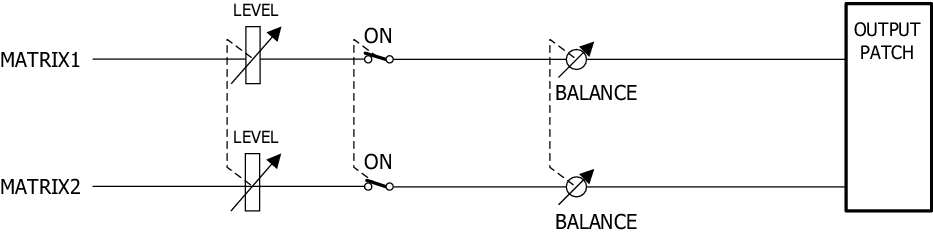

MATRIX (STEREO) to OUTPUT PATCH
