Installing the unit

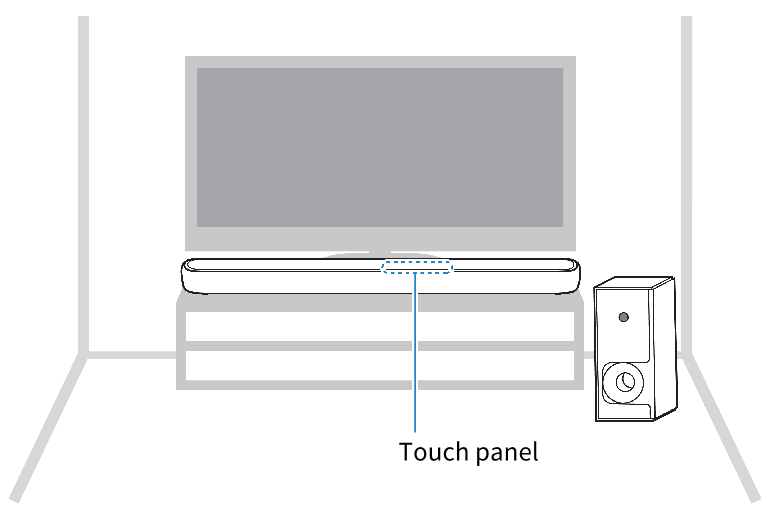

Install the unit as shown in the following illustration.

Install the subwoofer externally of the center unit. To prevent sound from reflecting off of walls, angle the subwoofer slightly toward the center of the room.

NOTICE
  • Do not stack the center unit and any other device directly on each other. Doing so may cause a malfunction due to vibrations.
  • Do not apply excessive force to the unit when moving it. Doing so may damage the speakers or the portion covered with fabric.
  • Avoid the following when installing the subwoofer to prevent any loss in sound volume.
  • Installing the subwoofer so that the speaker (portion covered with fabric) is too close to a wall.
  • Covering the subwoofer’s bass reflex port.
  • The subwoofer can only be used in its upright position. Do not position the subwoofer on its side.
  • The unit contains non-magnetic shielding speakers. Do not place magnetically sensitive items (hard disk drive, etc.) near the unit.
  • Do not place objects such as metallic furniture between the center unit and the subwoofer as such objects may interfere with wireless communication.
NOTE
  • The center unit can also be mounted on a wall. For details, see the following:
