Thank you for purchasing a Yamaha SWX2310P series switch.
Before using the product, be sure to read this manual carefully to ensure the product is installed and settings are configured properly.
Be sure to observe the warnings and cautions indicated in this manual and use the product correctly and safely.

1. How to Use This Page

Select the firmware version.
Change the “Firmware version” at the top of the screen to the version of your device.
By default, the latest firmware version is selected.
Select the item you want to look up.
Select the item you want to display from the accordion menu on the left side of the screen.

2. Startup Guide

This guide describes the setup procedure up to the point SWX2310P series settings can start being specified.
Settings for the SWX2310P series can be specified using any of the following four methods.

Specify settings by executing commands using the CONSOLE port.
Specify settings by executing commands using Telnet.
Specify settings by executing commands using SSH.
Specify settings using a web browser.

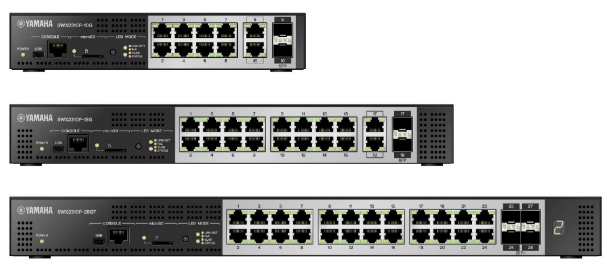

2.1. Preparation for Specifying Settings via the CONSOLE Port

Prepare the computer and other items needed for specifying settings.
If specifying settings via the CONSOLE port, use a USB cable or RJ-45/DB-9 console cable (YRC-RJ45).
Use a USB cable that supports data transfer via both a USB Type A connector and a mini-USB Type B (5-pin) connector to connect to the mini-USB CONSOLE port. Charge-only cables cannot be used.
Terminal software is also needed for controlling the computer serial (COM) port.
Configure communication settings for the CONSOLE terminal as follows.
- Baud rate: 9600bps
- Data: 8bit
- Parity: None
- Stop bit: 1bit
- Flow control: Xon/Xoff
Use a USB cable or an RJ-45/DB-9 console cable (YRC-RJ45) to connect a computer to the product.
- A USB serial driver must be installed before the mini-USB CONSOLE port can be used.
- For details on how to install the USB serial driver, refer to “Yamaha Network Device USB Serial Driver Installation Guide.”
  The Yamaha Network Device USB Serial Driver Installation Guide and the installer can be downloaded from the following website.
- https://network.yamaha.com/support/download/utility/

Switch ON the unit. The unit takes approximately 70 seconds to start up.
Immediately after startup, the following is displayed on the serial console screen.

YamahaL2SW BootROM Ver.1.00

Starting .............................

SWX2310P-28GT Rev.2.02.06 (Tue Mar 13 08:41:39 2018)
  Copyright (c) 2018 Yamaha Corporation. All Rights Reserved.

Log in to this unit.
For factory default settings, log in by entering “admin” as the default administrative username (and “admin” as the password).
After using “admin” to log in, the password must be changed to specify a new password.

Username: admin
Password: admin

SWX2310P-28GT Rev.2.02.06 (Tue Mar 13 08:41:39 2018)
  Copyright (c) 2018 Yamaha Corporation. All Rights Reserved.

Please change the default password for admin.
New Password: (1)
New Password(Confirm): (2)
Saving ...
Succeeded to write configuration

SWX2310P>

1	Enter the new password.
2	Enter the same password again.

After that, specify settings as appropriate for the given product operating environment.
- For details on settings via the serial console, refer to Command Reference.

2.2. Preparation for Specifying Settings via Telnet, SSH, or a Web Browser

Prepare the computer and other items needed for specifying settings.
- Prepare an Ethernet cable of category 5 for connecting to the product.
- To access the unit via Telnet or SSH, Telnet or SSH terminal software must be installed on the computer.
- For a list of compatible web browsers, see the website below.
  - http://www.rtpro.yamaha.co.jp/RT/FAQ/gui/browser.html
Change the IP address of the computer used to specify settings.
The default setting of 192.168.100.240/24 is specified in the unit.
Change the IP address for the computer used to specify settings so that it includes the segment 192.168.100.0/24.
- If a fixed computer IP address is specified, write it down.
- For instructions on how to change computer IP addresses, refer to the computer instruction manual.
Use an Ethernet cable of category 5 to connect the unit to a computer.
Switch ON the unit. The unit takes approximately 70 seconds to start up.
When startup is completed, the indicators for the LAN port to which the Ethernet cable is connected will light up according to the communication speed and mode.
Access the unit using the computer for specifying settings.
- Access from a Telnet client
  Access the unit (192.168.100.240) using terminal software.
  When access is successful, a screen that prompts for a username and password is displayed.
  For factory default settings, log in by entering “admin” as the default administrative username (and “admin” as the password).
  After using “admin” to log in, the password must be changed to specify a new password.
  Username: admin Password: admin SWX2310P-28GT Rev.2.02.06 (Tue Mar 13 08:41:39 2018) Copyright (c) 2018 Yamaha Corporation. All Rights Reserved. Please change the default password for admin. New Password: (1) New Password(Confirm): (2) Saving ... Succeeded to write configuration SWX2310P>
  1 Enter the new password.

  2 Enter the same password again.
- Access from an SSH client
  To access the unit from an SSH client, specify the following unit settings in advance.
  - Generate an SSH server host key and enable the SSH server function.

    SWX2310P>enable SWX2310P#ssh-server host key generate ※ホスト鍵の生成 SWX2310P#configure terminal SWX2310P(config)#ssh-server enable ※機能の有効化
  - Register a user name and password.

    SWX2310P(config)#username yamaha privilege on password 1a2b3c4d ※ユーザー名 "yamaha" パスワード "1a2b3c4d"の場合 SWX2310P(config)#exit

    If specified in advance, save settings as necessary.

    SWX2310P#write Succeeded to write configuration. SWX2310P#

    With the above settings specified, access the unit (192.168.100.240) using terminal software.
    When access is successful, a screen that prompts for a username and password is displayed.
    Enter the user name and password to enable login.

    Username: yamaha ※ユーザー名 "yamaha"の場合 Password: 1a2b3c4d ※パスワード "1a2b3c4d"の場合 SWX2310P-28GT Rev.2.02.06 (Tue Mar 13 08:41:39 2018) Copyright (c) 2018 Yamaha Corporation. All Rights Reserved. SWX2310P>

    Note that the product does not support the following SSH server functions.
  - SSH protocol version 1
  - User authentication other than password authentication (host-based authentication, public-key authentication, challenge–response authentication, GSSAPI authentication)
  - Port forwarding (X11/TCP forwarding)
  - Gateway ports
  - Permitting blank passwords
- Access from a web browser
  Launch the web browser on the computer for specifying settings and access 192.168.100.240.

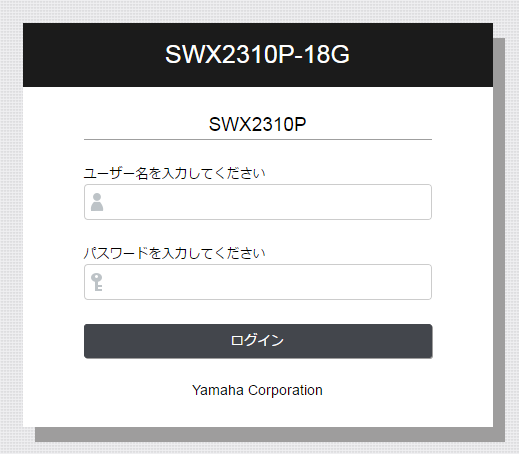

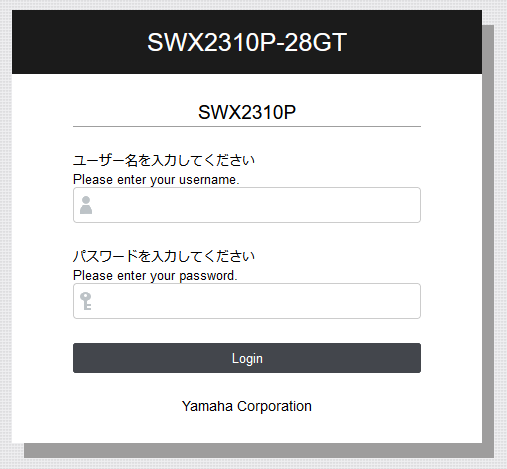

  When access is successful, the following login screen is displayed.

  If default settings are configured, log in by entering “admin” as the default administrative username (and “admin” as the password).
  Then specify a new password later, when prompted to change the default administrative password.
After that, specify settings as appropriate for the given product operating environment.
- For details on specifying settings from a Telnet client or SSH client, refer to Command Reference.
- For details on specifying settings via a web browser, refer to Help within the GUI accessed.

3. Updating Firmware

To ensure reliable operation, we recommend applying the most recent firmware updates, which include new functionality and bug fixes.
Please verify your system version before applying updates.

Use the show environment command to check the system version.

4. Precautions

Please note that Yamaha accepts no responsibility for damage or losses that result from using the product or specifying settings incorrectly. Be aware of this in advance.
If plugged into a 200 V AC power supply outlet, the customer is responsible for supplying an appropriate power cord. Note that Yamaha accepts no responsibility for any of various types of damage or losses caused by the power cord. Be aware of this in advance.
Do not touch the inside of ports with fingers or metallic objects, etc.
Do not install the product where it is exposed to direct sunlight or unusually high temperatures (such as next to a heater).
Do not use the product in a location subject to sudden changes in ambient temperature. Sudden changes in ambient temperature could cause condensation to form on the product. If condensation forms, let it dry for a while before switching ON the power supply.
Before touching this unit, remove static charge from yourself and your clothing.
Do not place this unit in locations where there is a strong magnetic field.
Do not connect equipment that generates noise to the same electrical power supply line as this unit. Such conditions might cause malfunctions or faulty operation.
Using the product could cause noise to occur in nearby devices, such as telephones, radios, or televisions. If noise occurs, try relocating or reorienting the product.
Do not route communication cables near power cords. Power cords could induce high voltages that might cause malfunction.
Unplug the product from the power outlet while not in use.
Use enhanced category 5 (CAT5e) or better LAN cable for 1000BASE-T connections.
This product includes a lithium-ion battery for backup power for clock functionality. Therefore, the product and its accessories are disposed of in accordance with local laws and regulations.
Do not install SFP modules other than the YSFP-G-SX, YSFP-G-LX, YSFP-G-SXA, and YSFP-GLXA that are sold separately by Yamaha into the SFP port. The operation is not guaranteed if any SFP module other than those indicated above is installed.
Do not install SFP modules other than the YSFP-10G-SR, YSFP-10G-LR, YDAC-10G-3M, YDAC-10G-1M, YSFP-G-SX, YSFP-G-LX, YSFP-G-SXA, and YSFP-G-LXA that are sold separately by Yamaha into the SFP+ port. The operation is not guaranteed if any SFP module other than those indicated above is installed.
Attach a dust cover to all unused SFP and SFP+ ports. If foreign matter gets inside the port, it could cause a malfunction. Keep the dust covers carefully stored so they are not lost.
SFP modules and optical fiber cables can have problems with insufficient light input, failure to link up, or other issues due to loss of accuracy caused by connector damage or abrasion, dirty contacts, or other factors. In particular, single mode fiber should be handled especially carefully because it is more prone to suffer such effects than multi mode fiber. Clean the contacts before making connections. Also, attach the protective cap when not in use.
