Basic system

This section describes a basic procedure for setting up your RIVAGE PM10 system.

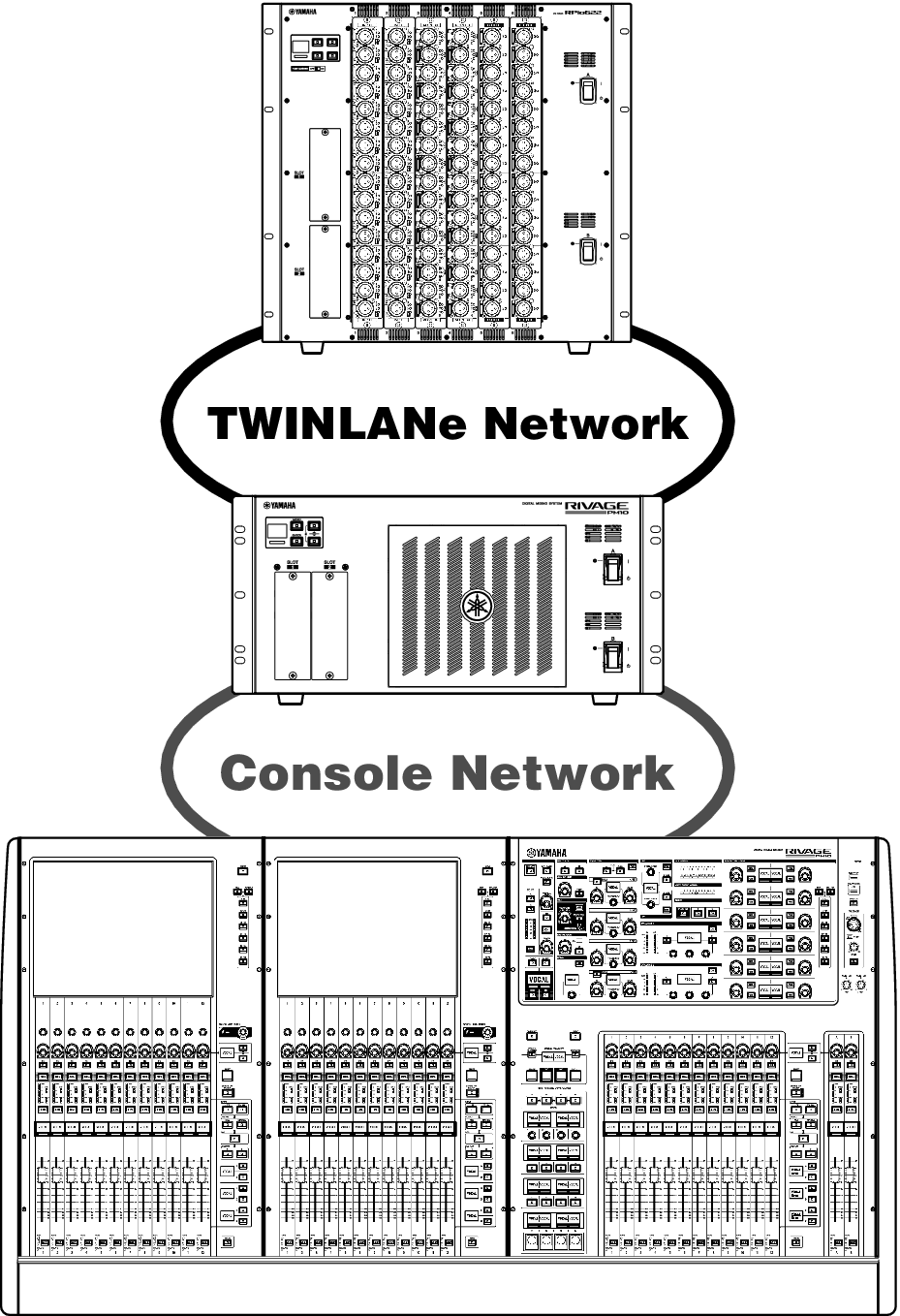

The system in the example consists of the following devices:

  • Control surface (CS-R10) x 1
  • DSP engine (DSP-R10) x 1
  • I/O rack (RPio622) x 1
  • HY card (HY256-TL) x 2
  • RY card (RY16-ML-SILK) x 1
  • RY card (RY16-DA) x 1

Set-up procedure

“Installing optional cards”

“Assigning the Unit ID”

“Connecting the devices”

“Turning on the power to the system”

Setting the word clock

“Assigning channels to the TWINLANe network”

Patching the input ports

Patching the output ports

Specifying the analog gain for the HA (head amp)

Routing the input channel signals to the STEREO bus
