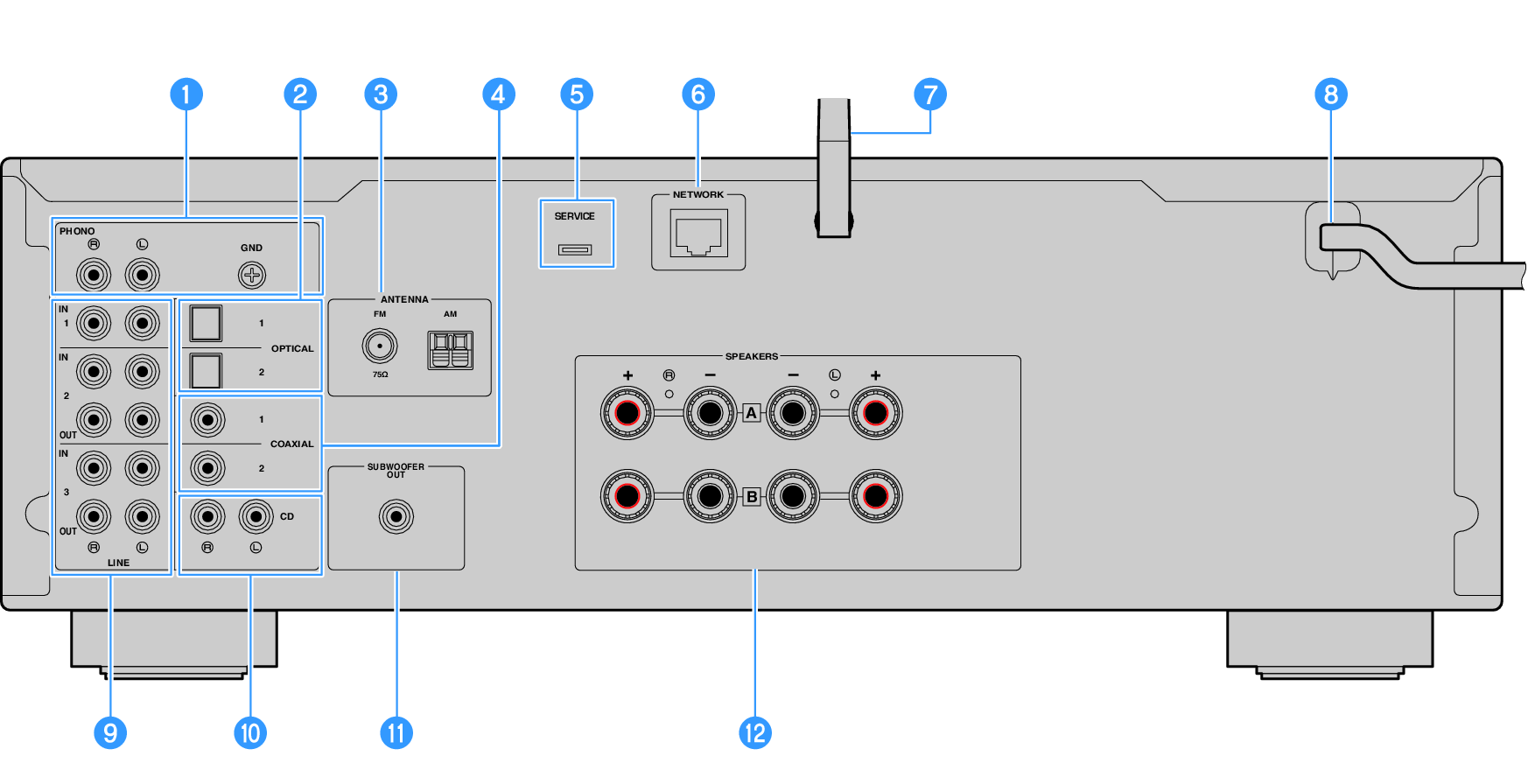

Rear panel

The following are the names of parts on the rear of the unit and an explanation of their functions.

a

PHONO IN jacks

GND jack

For connecting to a turntable ().

b

OPTICAL 1-2 IN jacks

For connecting to external devices with an optical digital output ().

c

ANTENNA jack

For connecting to a radio antenna ().

d

COAXIAL 1-2 IN jacks

For connecting to external devices with a coaxial digital output ().

e

SERVICE port

These are service ports that are used when performing repairs, etc. Do not plug anything into them.

f

NETWORK jack

For connecting a network cable when connecting this product to a wired network ().

g

Wireless antenna

For connecting this product to a wireless network (Wi-Fi) (). It is also used for Bluetooth connections ().

h

Power cord

Connects to an electrical outlet ().

i

LINE 1-3 jacks

For connecting external devices that have analog audio inputs/outputs ().

j

CD IN jacks

For connecting to the analog audio OUT of devices like CD players ().

k

SUBWOOFER OUT jack

For connecting to a subwoofer with a built-in amplifier ().

l

SPEAKERS jacks

For connecting to speakers ().
